Description

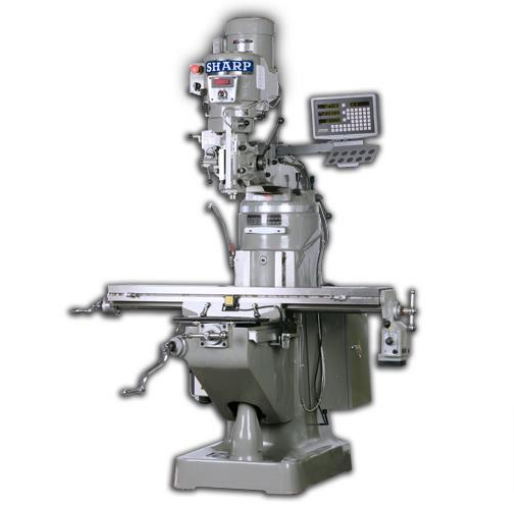

9” X 49” Mill with Newall NMS 300 3 - Axis Digital Readout, X - Axis Power Feed, Digital Variable Head (DVS) Wire 220 V Only,(Transformer Needed for 440V), Hard - Chrome Ways and Gibbs, Precision Ground and Flaked Table, Unique Double Nut Backlash System, Cutler Hammer On / Off Switch, Front and Rear Way Covers, One Shot Lube
GENERAL SPECIFICATIONS
- Table: 9” X 49”
- T - Slots Number and Size: 3 Slots, ”
- Travels ( X, Y and Z): 36.6” X 12” X 5”
- Ram Travel: 12”
- Knee Travel: 16”
- Spindle To Column (Min - Max): 6-¾” - 18-½”
- Spindle to Nose Table (Min - Max): 2-” - 1
8” - Spindle Motor: 3 HP
- Spindle Nose Taper: R8
- Digital Variable Speed Drive: 65 - 4,500 RPM
- Quill Feed 3 Speed (IPR): 0.0015,0.003,0.006”
- Head Swivels: 360°
- Head Tilt (Left - Right): 45°
- Head Tilt (Up - Down): 45°
- Dimensions: 7’ X 6.5’ X 6.75’
- Weight: 2,100 LBS
INCLUDES: Newall NMS 300 3 - Axis Digital Readout, X - Axis Power Feed, Digital Variable Head (DVS) Wire 220 V Only,(Transformer Needed for 440V), Hard - Chrome Ways and Gibbs, Precision Ground and Flaked Table, Unique Double Nut Backlash System, Cutler Hammer On / Off Switch, Front and Rear Way Covers, One Shot Lube
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
