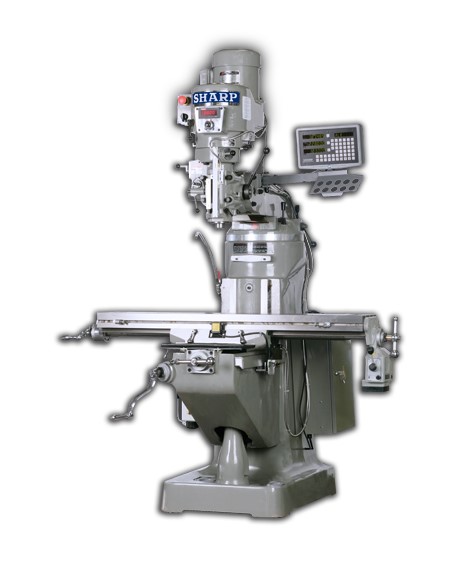

Sharp #LMV-49K-DVS, vertical mill package, 9" x49" table, 3 HP, 60-4500 RPM, R-8 Spindle

9” X 49” Capacity Vertical Milling Machine with 3HP Motor Variable Speed Drive (60-4500 RPM), R-8 Spindle, Meehanite Casting, Chromed Ways, elf-Lubricating Motor Shaft, Abec-7 Super Precision Spindle Bearings, Digital Variable Speed, 3- Axis Digital Readout (quill, saddle and table), X –axis Power Feed, Hard-Chromed Ways, Front & Rear Rubber Way Cover, & One Shot Lube System.

STANDARD EQUIPMENT:

• 3- Axis Digital Readout (quill, saddle and table)
• X –axis Power feed
• Hard-Chromed Ways
• Font & Rear Rubber Way Cover
• One Shot Lube System
• Digital Variable Speed Head wired 220V (440V requires additional transformer)
• Tool Kit (includes: Machine manual, Half nut wrench, Wrench 17, & 19m, Set of 6 Allen wrenches, Phillip screwdriver, Flat head screwdriver, Oil can, Grease Gun, Rear way cover bracket, Pin for indicator Can of paint.)

FEATURES:

• 3HP Motor
• Variable Speed Drive (60-4500 RPM)
• R-8 Spindle
• Meehanite Casting
• Chromed Ways
• Self-Lubricating Motor Shaft Extends Pulley Life
• Abec-7 Super Precision Spindle Bearings
• Digital Variable Speed (440 V Application needs an optional Transformer)
• Digital Readout - Features: Calculation Functions, Finding Center of Part, Drilling Holes on Oblique Line, Bolt Circles, Power Interrupt, Linear Error Compensation Milling Functions,
• 2 years limited Manufacturing Warranty

GENERAL SPECIFICATIONS:

• Table Working Surface: 9” x 42”
• T-Slots Number and Size: 3 Slots, 5/8”
•
  Travels (X, Y, And Z): 30” x 12” x 5”
• Ram Travel: 12”
• Knee Travel: 16”
• Spindle To Column (Min-Max): 6 3/4”-18 1/2”
• Spindle Nose To Table (Min-Max): 2 1/8”-18”
• Spindle Motor: 3 HP
• Spindle Nose Taper: R8
• Spindle Variable Speed Drive: 60-4500 Rpm
• Quill Feed 3 Speed (IPR): 0.0015, .003, .006”
• Head Swivels: 360°
• Head Tilt (Lt. To Rt) : 45°
• Head Tilt (Up And Down): 45°
• Floor Area (W x D x H): 7’ x 6.5’ x 6.75’
• Weight: 2,400 Lbs.
• Total Power Consumptions
• 220V: 3KVA/15 amps
• 440V: 3KVA/7.5 amps

FEATURES, FUNCTION, & BENEFITS:

ISO 9002 certified: Quality up to world industry standards.
Meehanite casting: Highest grade of casting possible.

A pair of precision ABEC-7 angular contact bearings to support spindle.

The quill is ground and chromed to fit the housing: This insures a spindle run out of 0.0002” T.I.R.

Motor shaft and VariDrive pulleys are dynamically balanced, then chromed for a flawless fit, ground ribs on inside diameter: For smooth speed changes.

Motor shaft has an oil channel in the center that is fed by grease fitting on the lower end: To keep VariDrive pulley moving smoothly on the shaft.

This LMV mill uses a roller bearing for the lower support of the shaft: It ensures proper loading, support and alignment. It also prevents the shaft from being distorted by the tension of the belt: For quiet, accurate operation at any speed for years and years.

One shot lubrication system: For lubrication of ways and lead screws. (X, Y and Z-axis)

Hand scraped saddle and knee: For better oil retention. It avoids having chips and dirt embed in the knee and damage the sliding surface.

Oil groove are milled: For maximum lubrication on all wear areas.

Table and saddle backlash is controlled by double nut design: Keeps lead screw in contact with bronze nuts all times to keep backlash at .0008” within 20”.

Table and saddle are mounted with thrust bearings that are preloaded: Eliminating endplay for precisely controlled lateral movement.

Ways are hard chromed dovetail on saddle and column.
