For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact David Valitt
Phone Number: 973...> Show Phone Number 973-497-7570
Let the seller know you found their listing on Surplus Record!
Description

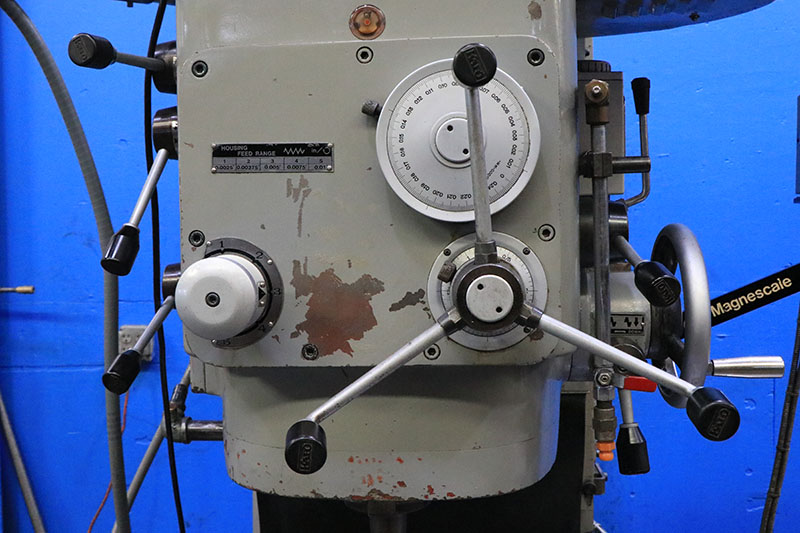

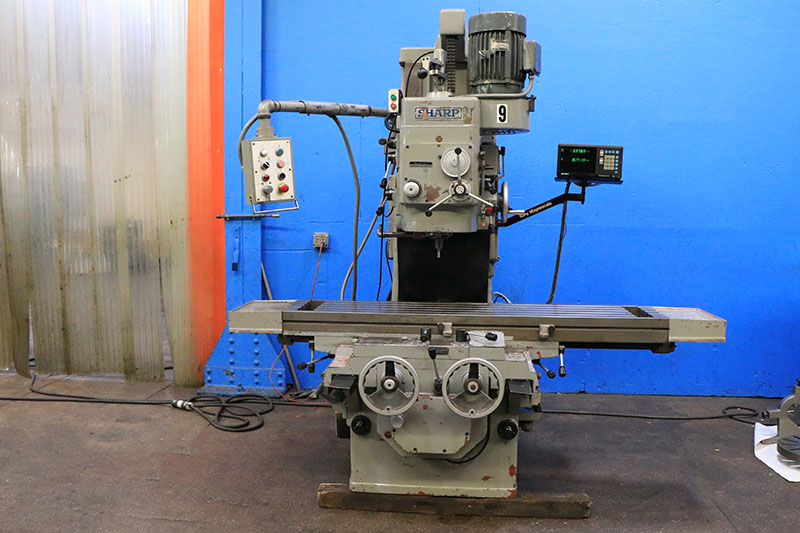

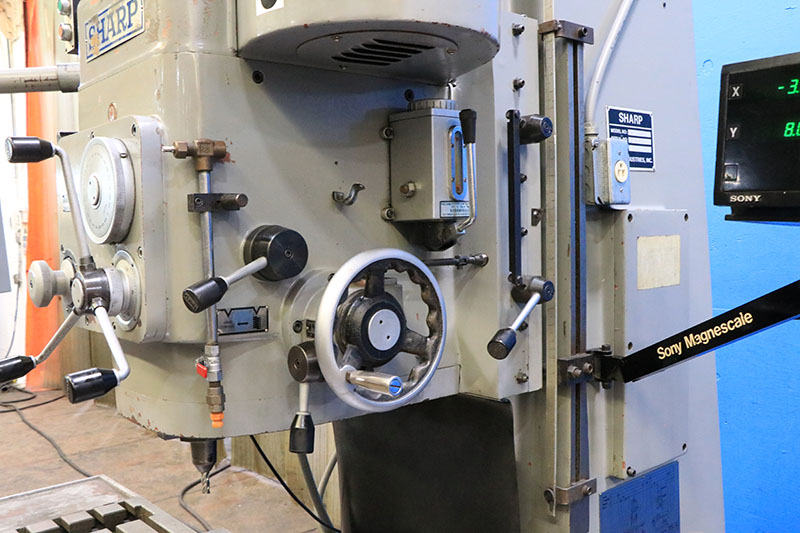

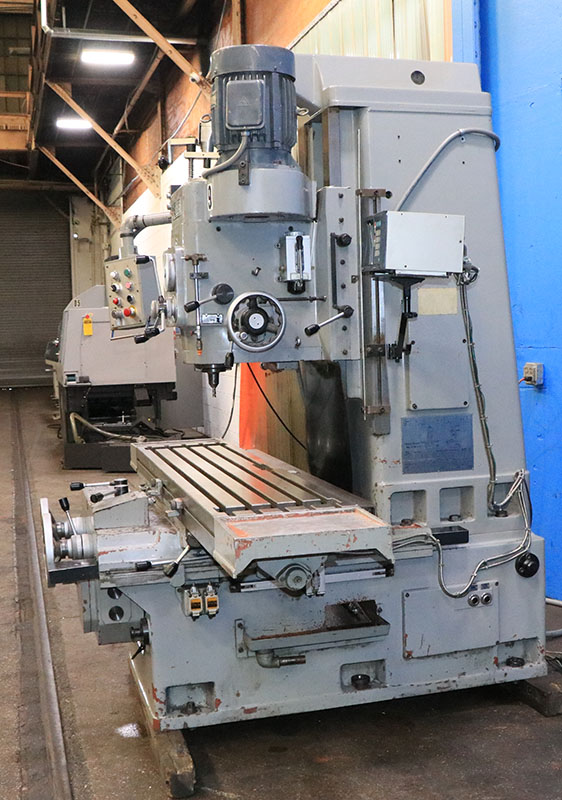

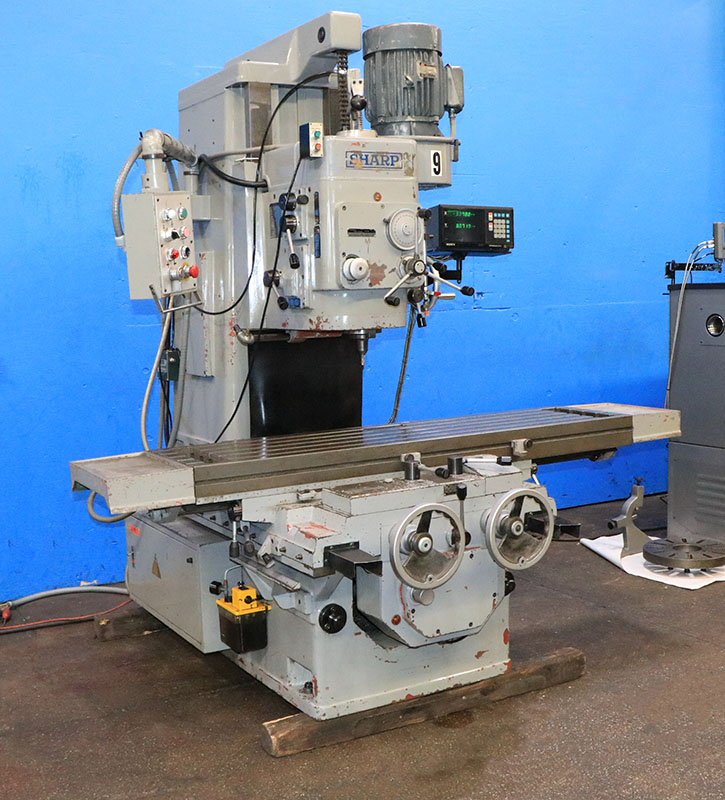

SHARP VERTICAL BED MILL
MODEL: KMA-1… S/N: 11055… MFG: 1990
SPECIFICATIONS:…
TABLE SIZE ................................. 67" x 15-15/16"
LONGITUDINAL TABLE TRAVEL ..................″9-3/4"
CROSS TABLE TRAVEL ......................... 14-15/16"
HEAD VERTICAL TRAVEL ....................... 19-11/16"
MAXIMUM DISTANCE SPINDLE NOSE TO TABLE ..... 23-5/8"
FEED RANGE LONGITUDINAL… CROSS ............ 1 -″4 IPM
FEED RANGE VERTICAL HEAD ................... .002 - .008 IPM
SPINDLE TAPER .............................. #50 STD
SPINDLE SPEEDS (12) ........................ 45 - 1500 RPM
APPROXIMATE DIMENSIONS ..................... 126" x 79" x 87"H
APPROXIMATE WEIGHT ......................... 8,800 LBS
EQUIPPED WITH:…

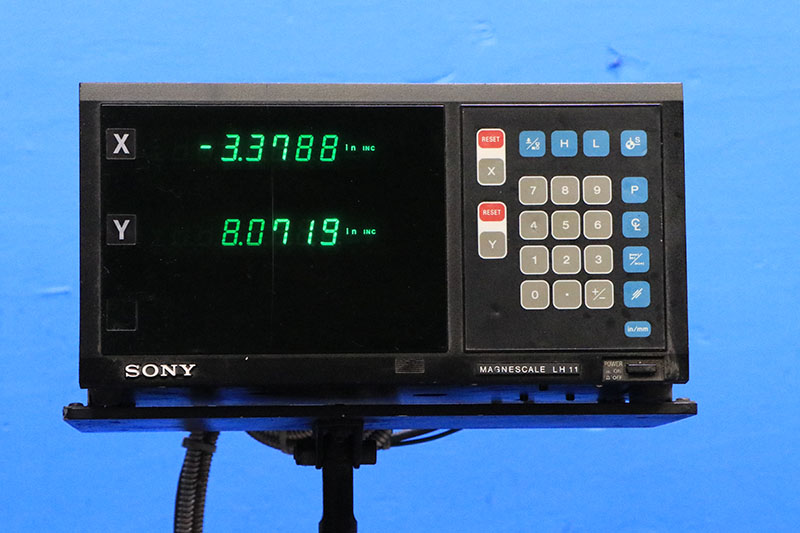

SONY TWO AXIS DIGITAL READOUT
HARDENED… GROUND BOX GUIDEWAYS
POWER RAPID TRAVERSE
BACKLASH ELIMINATOR
POWER DRAW BAR
AUTOMATIC LUBRICATION SYSTEM
10 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
