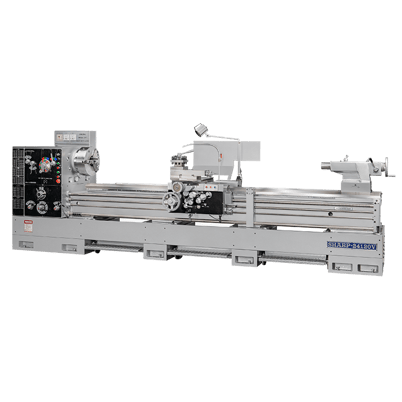

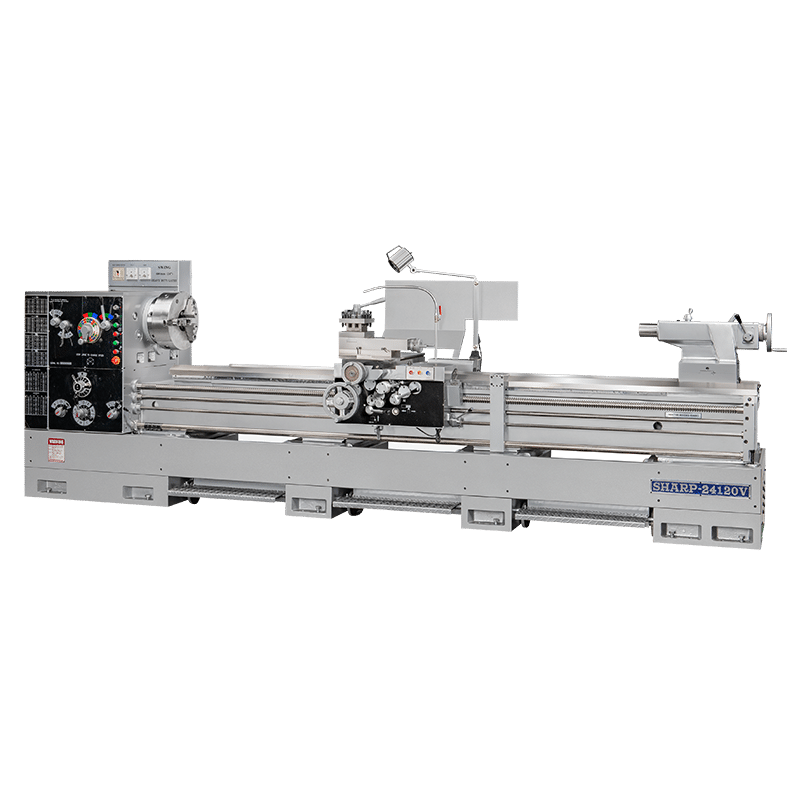

Sharp #30-V-Series, heavy duty lathe, 3080V, 30120V, 30160V

General Info

• Stock #: Sharp-30-V-Series
• Brand: Sharp
• Model: 3080V, 30120V, 30160V
• Approx. Shipping Weight: 8,200 lbs.

Specifications

• Swing Over Bed: 3080V: 24 in., 30120V: 30 in., 30160V: 30 in.
• Swing Over Cross Slide: 3080V: 14.75 in., 30120V: 19.75 in., 30160V: 14.75 in.
• Swing Over Gap: 3080V: 33 in., 30120V: 39 in., 30160V: 39 in.
• Gap Width (In Front Of Face Plate): 11.81 in.
• Distance Between Centers: 3080V: 80 in., 30120V: 120 in., 30160V: 160 in.

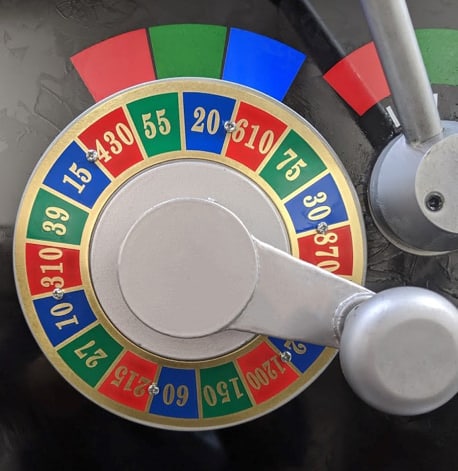

• Spindle Speed: 10 – 1,200 RPM (18 speeds)

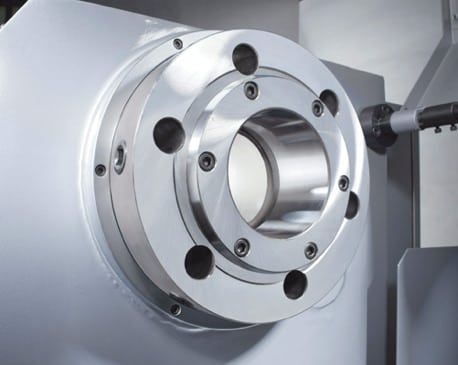

• Spindle Nose: D1-11 Camlock
• Spindle Bore: 4.125 in.
• Threads (Inch): 0.25 – 84 tpi (60)
• Modular Threads: 0.05 – 28 in. (55)
• Diametral Pitch Threads: 1 – 240 (55)
• Longitudinal Feeds: 0.0015 – 0.2 in./rev
• Cross Feeds: 0.0006 – 0.16 in./rev
• Leadscrew Pitch, Diameter: 1.5 in. / 2 tpi
• Cross Slide Travel: 14.75 in.
• Compound Travel: 9 in.
• Compound Width: 30.25 in.
• Bed Length: 3080V: 130.5 in., 30120V: 153 in., 30160V: 183 in.
• Bed Width: 19 in.
• Quill Diameter: 3.12 in.
• Quill Travel: 7.5 in.
• Quill Center Taper: MT #5
• Spindle Motor: 15 HP
• Voltage: 220V/440V
• Phase: 3 phase
• Power Consumption (220V): 15 KVA / 40 amps
• Power Consumption (440V): 15 KVA / 20 amps
