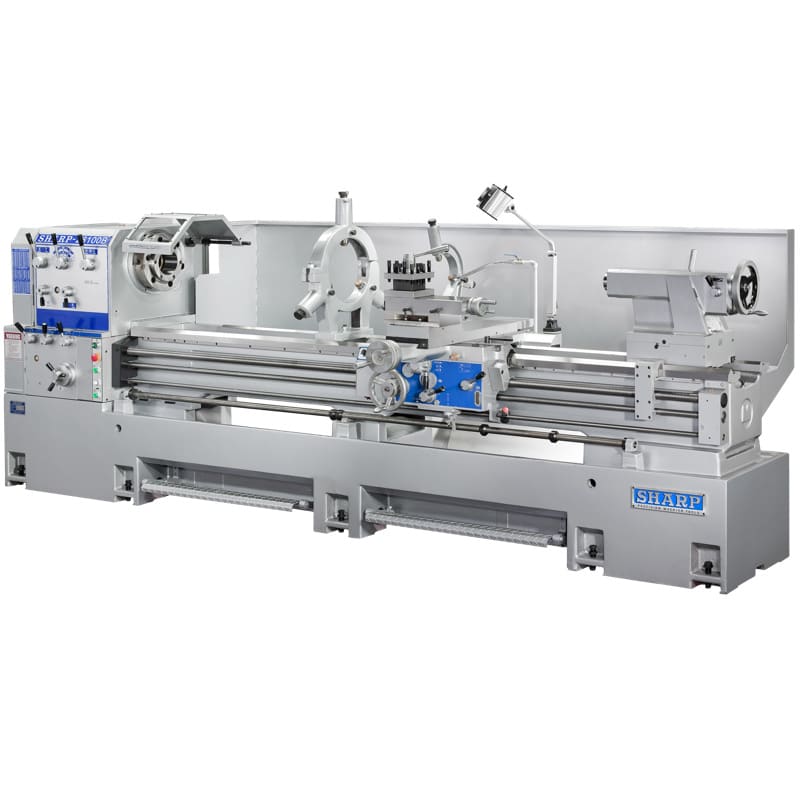

Sharp #22-B-Series, heavy duty lathe, 2240B, 2260B, 2280B, 22100B, 22120B, 22160B

General Info

• Stock #: Sharp-22-B-Series
• Brand: Sharp
• Model: 2240B, 2260B, 2280B, 22100B, 22120B, 22160B
• Approx. Shipping Weight: 2240B: 5,280 lbs., 2260B: 5,610 lbs., 2280B: 6,380 lbs., 22100B: 6,930 lbs., 22120B: 7,960 lbs., 22160B: 10,626 lbs.
• Approx. Shipping Dimensions: 2240B: 7.08′ L x 3.41′ W x 4.16′ H, 2260B: 9.5′ L x 3.41′ W x 4.16′ H, 2280B: 11.41′ L x 3.41′ W x 4.16′ H, 22100B: 13.08′ L x 3.41′ W x 4.16′ H, 22120B: 13.08′ L x 3.41′ W x 4.16′ H, 22160B: 18.83′ L x 3.41′ W x 4.16′ H

Specifications

• Swing Over Bed: 22 in.
• Swing Over Cross Slide: 13.2 in.
• Swing Over Gap: 31 in.
• Gap Width (In Front Of Face Plate): 11.81 in.
• Distance Between Centers: 2240B: 40 in., 2260B: 60 in., 2280B: 80 in., 22100B: 100 in., 22120B: 120 in., 22160B: 160 in.
• Spindle Speed: 10 – 1,000 RPM

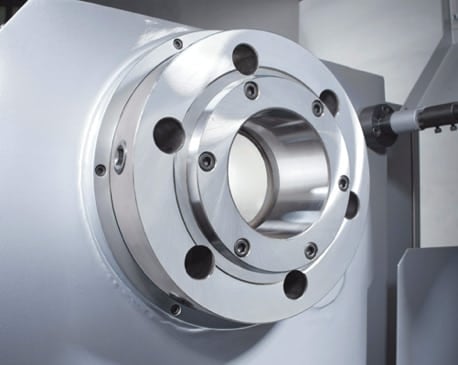

• Spindle Nose: D1-11 Camlock
• Spindle Bore: 4.5 in.
• Threads (Inch): 2 – 56 tpi (44)
• Modular Threads: 0.019 – 0.55 in. (24)
• Diametral Pitch Threads: 0.157 – 2.20 in. (36)
• Longitudinal Feeds: 0.0022 – 0.032 in./rev
• Cross Feeds: 0.00026 – 0.035 in./rev
• Leadscrew Pitch, Diameter: 4 tpi, 1.5 in.
• Cross Slide Travel: 2240B: 14.75 in., 2260B: 14.75 in., 2280B: 14.75 in., 22100B: 11.8 in., 22120B: 11.8 in., 22160B: 11.8 in.
• Compound Travel: 2240B: 8 in., 2260B: 8 in., 2280B: 8 in., 22100B: 6.2 in., 22120B: 6.2 in., 22160B: 7.8 in.
• Compound Width: 6 in.
• Bed Length: 22100B: 130.5 in., 22120B: 153 in., 22160B: 183 in.
• Bed Width: 15.75 in.
• Quill Diameter: 3 in.
• Quill Travel: 6.5 in.
• Quill Center Taper: MT #5
• Spindle Motor: 15 HP
• Voltage: 2240B: 220V/440V, 2260B: 220V/440V, 2280B: 230V/460V, 22100B: 230V/460V, 22120B: 230V/460V, 22160B: 230V/460V
• Phase: 3 phase
• Power Consumption (220V): 16 KVA / 45 amps
• Power Consumption (440V): 16 KVA / 22.5 amps
