Description
Description

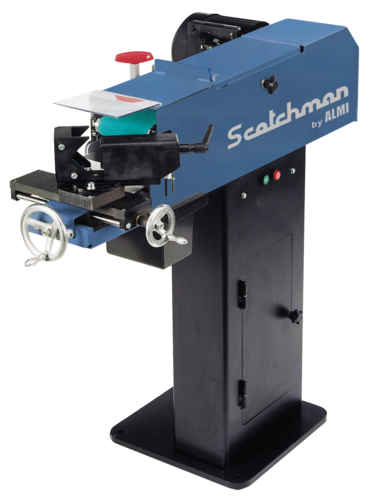

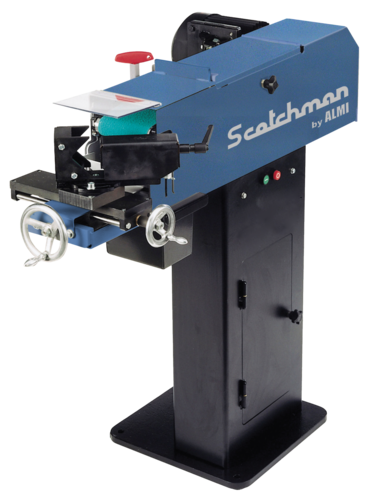

Scotchman 1/2″ – 4″ Electric Pipe Notcher, Model AL150
SKU # 3025009
Specifications:
| Grinding Capacity | 1/2″ to 4″ O.D. |
| Angle Range | Straight=90° to 30° |
| Belt | 6″ x 78-3/4″ |
| Belt Speed | 98.4 Feet Per Second |
| Speed | 3420 RPM |
| Motor | 5-1/2 hp 3ph 230/460v |
| Motor (Optional) | 5-1/2 hp 1 ph 230v |
| Dimensions | 59″ x 47″ x 26 1/2″ |
| Shipping Weight | 600 lbs |
Get Your Price from Vander Ziel Machinery Sales!
