Description

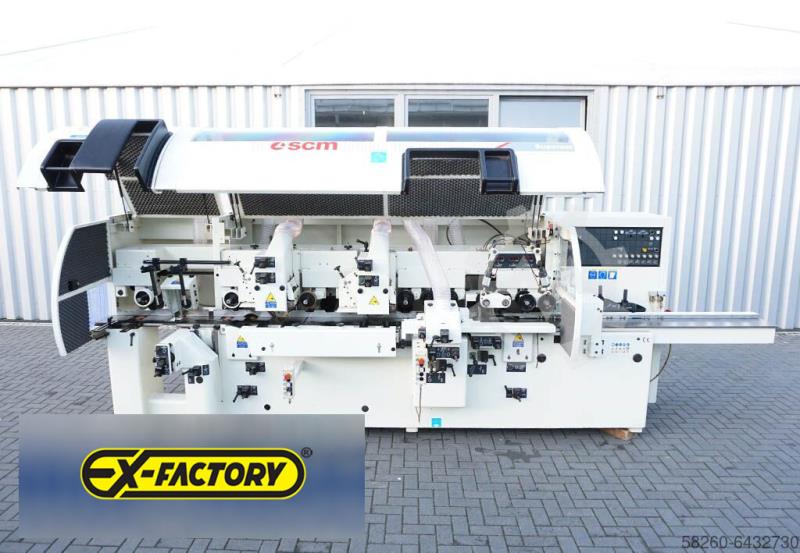

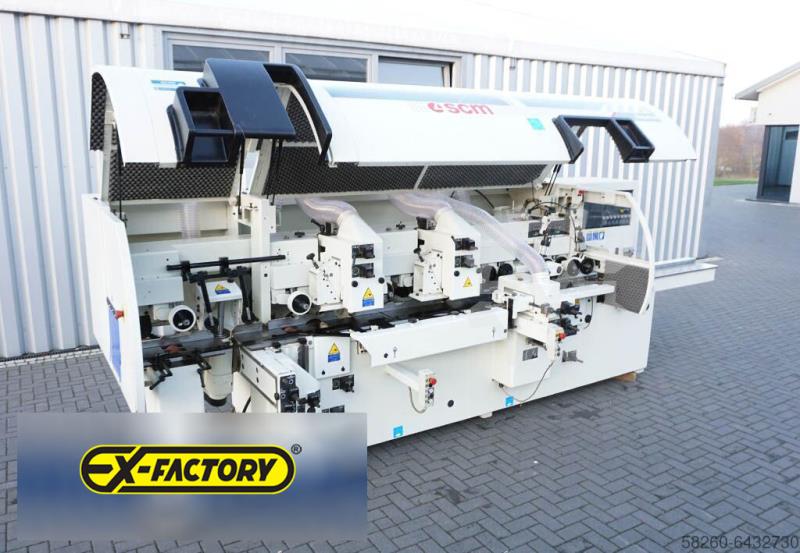

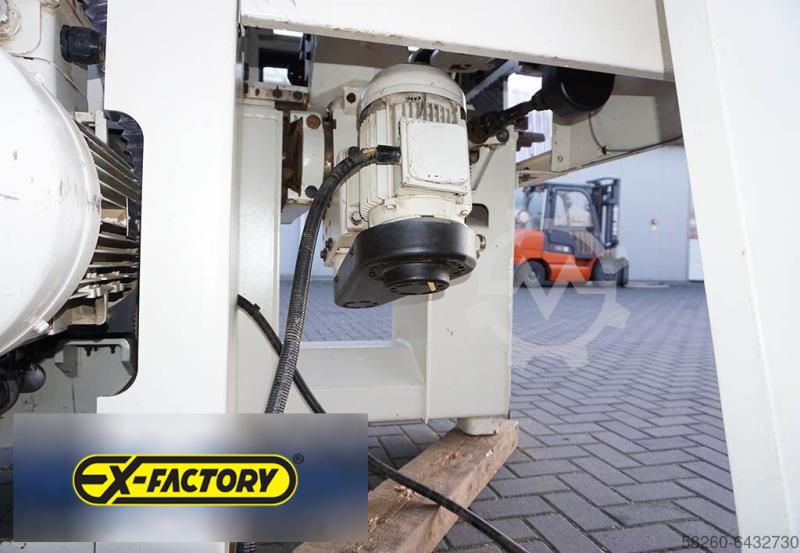

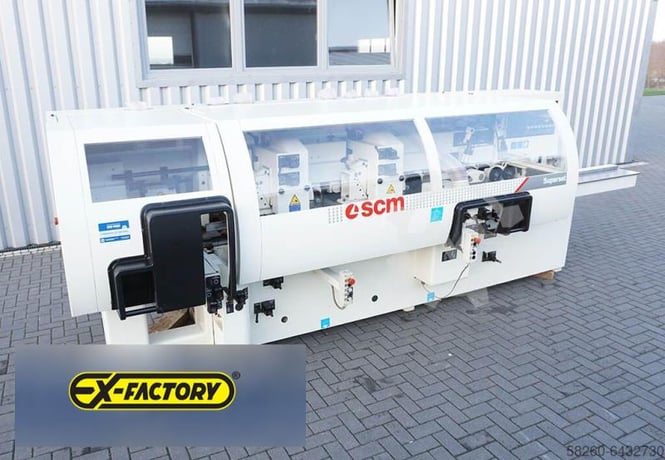

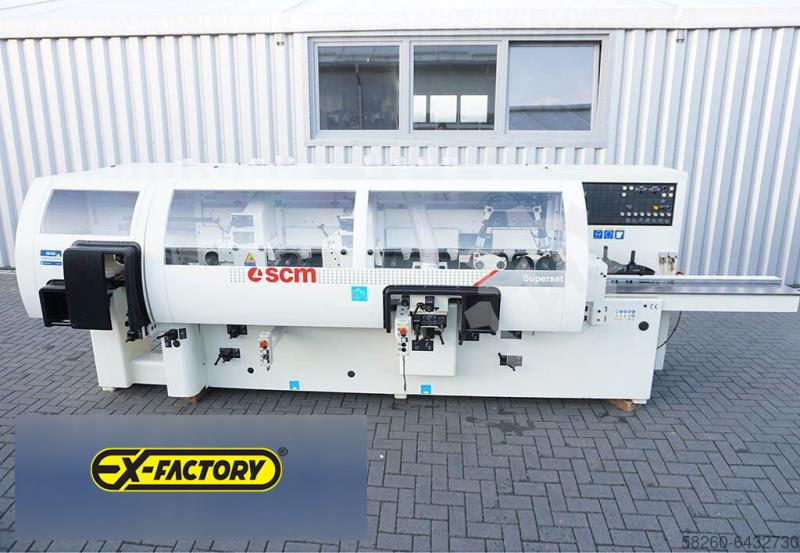

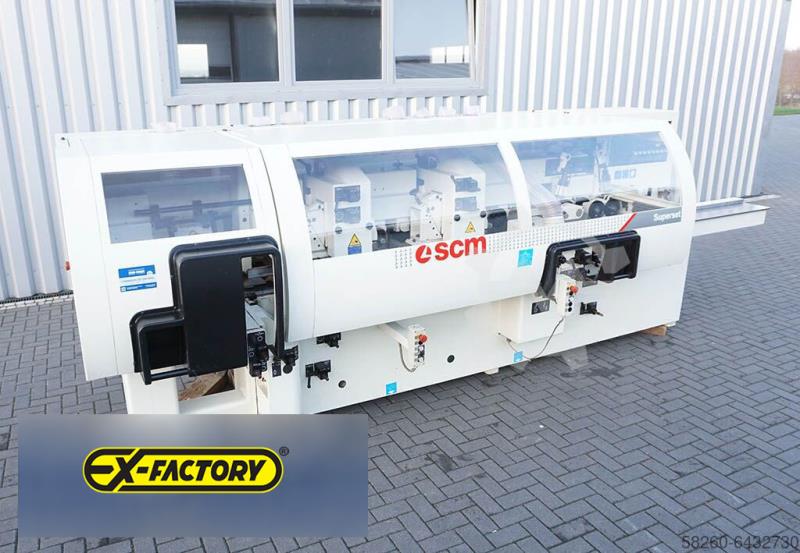

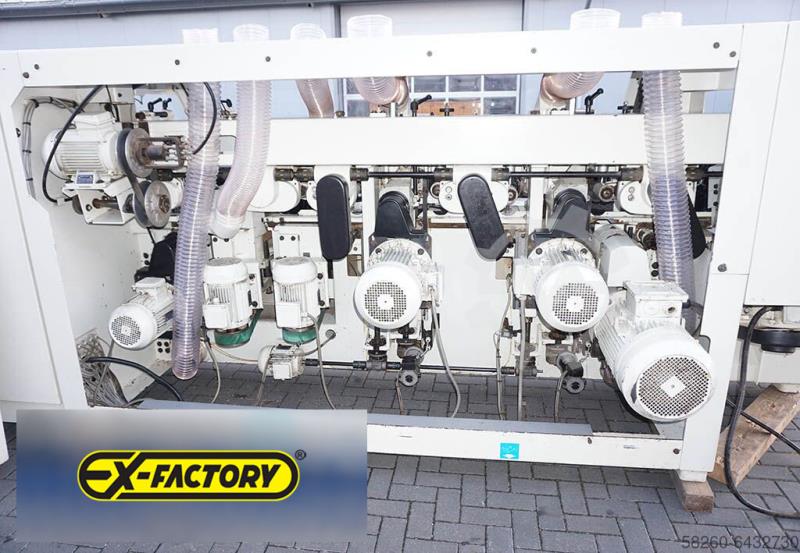

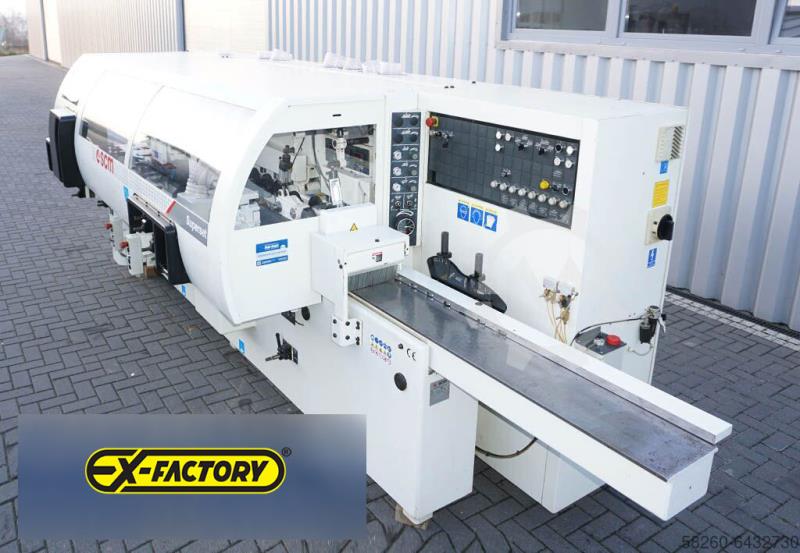

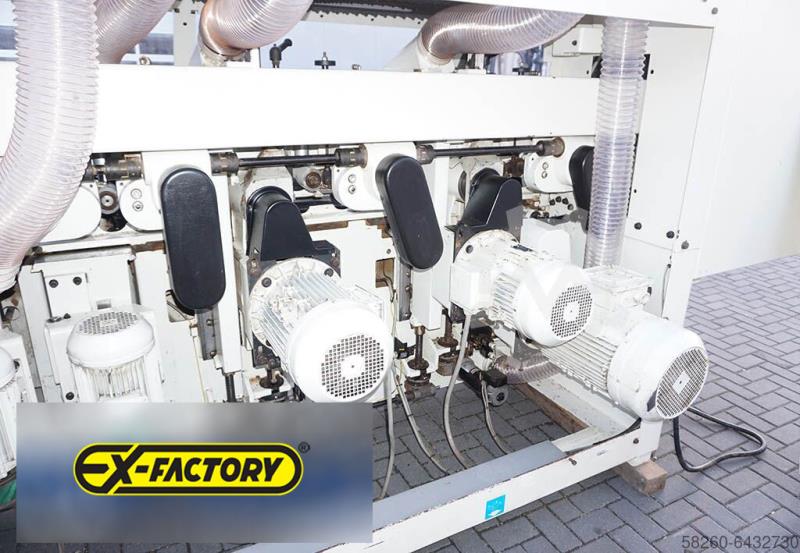

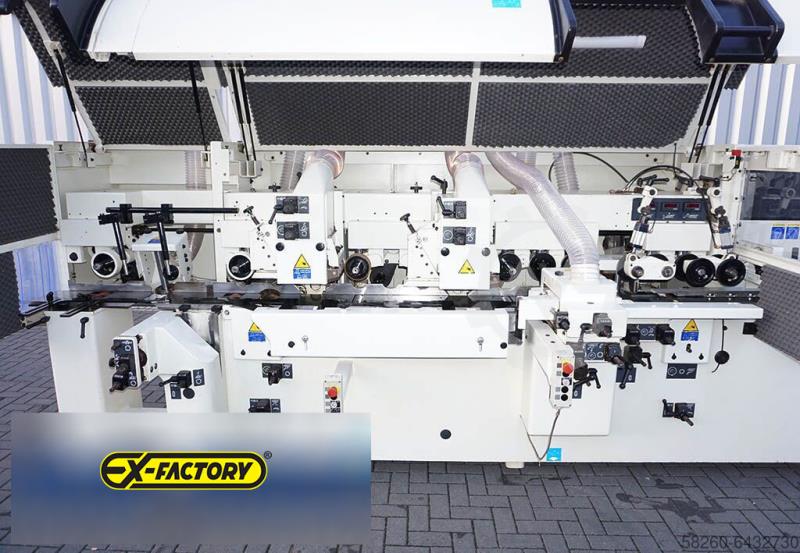

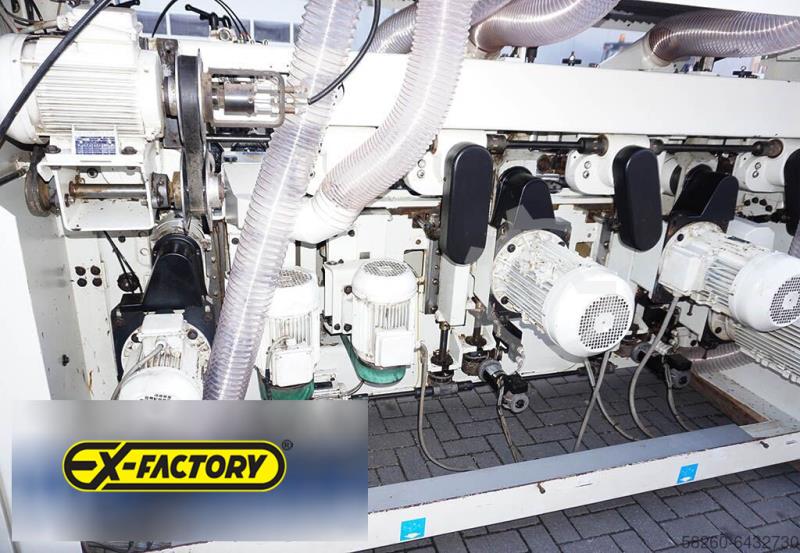

SCM SUPERSET Plus ... Feed Through Moulder, 7-head;Superset moulders have the innovative SETUP/2 system fitted as standard making set-up times for tooling changeover up to twenty times faster. -- Machine Structure: Machine bed and top beam are monobloc constructions in thick steel, ensuring high rigidity to achieve a high quality finished product. -- Working Capacity: max. width 240 mm x height 120 mm (9-7/16" x 4-3/4"), min. 125 mm x 6 mm (1" x 1/4"). -- Head Sequence: 7-Head (B-R-L-T-T-B-U), 1.Bottom 5.5 kW (7.5 HP), 2. Right 5.5 kW (7.5 HP),3. Left 5.5 kW (7.5 HP),4. Top 7.5 kW (10 HP), 5. Top 11 kW (15HP),6. Bottom 18.5 kW (25 HP), 7. Universal 360 5.5 kW (10 HP). -- Spindles: All spindles 40 mm diameter (1-9/16"), with mechanical digital readouts for height and width adjustments and electric brakes. Spindle speeds 6,000 RPM. All spindles driven by individual motor. -- SCM T-set quick locking device: Easy & quick locking & unlocking of the cutter heads by compressed air gun. -- Motorized height/feed beam adjustment. Operated by 0.75 kW (1 HP) motor, adjusting feed rollers and heads #4 & #5. -- Feed system: ● Infinitely variable feed speeds from 5-25 m/Min (16-82 FPM), driven by 4 kW (5.5 HP) motor. ● Chainless feed system with constant velocity joints. ● Overhead feed wheels 140 mm (5-1/2") with pneumatic pressure. ● Horizontal top spindles with angular hold downs. ● Short stock devices throughout the machine. ● Outfeed table with micrometric adjustment. -- Machine tables: Infeed table length 2,000 mm (6'). Machine bed of 1-piece hardened steel, machined in its entirety on CNC machining center. With table lubrication pump. -- Complete with: Full safety/sound enclosure with illumination inside. (4) Emergency stop buttons. Central lubrication. Dust extraction hoods 5x 120 mm (4-3/4"), 2x 150 mm (6"). -- CE Marked compliance. -- Dimensions & Weight: 5,500 x 1,840 x 1,900mm (18' x 6' x 6'-2"), weight approx. 5,000 kg (11,025 lbs.). Actual model is SCM SUPERSET Plus ... Feed Through Moulder, 7-head.Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
