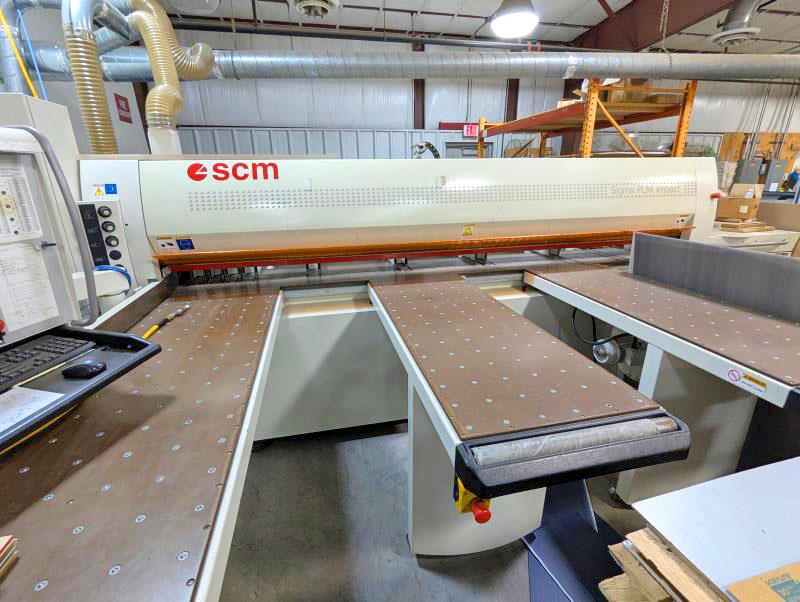

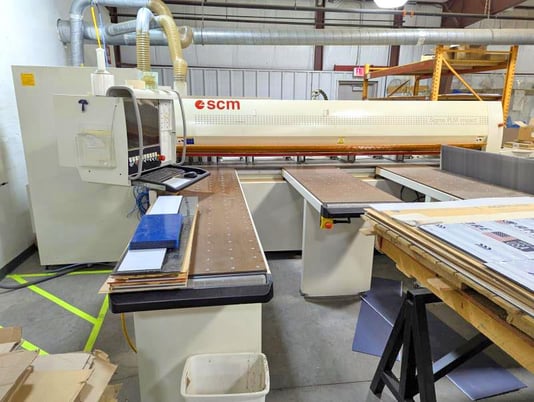

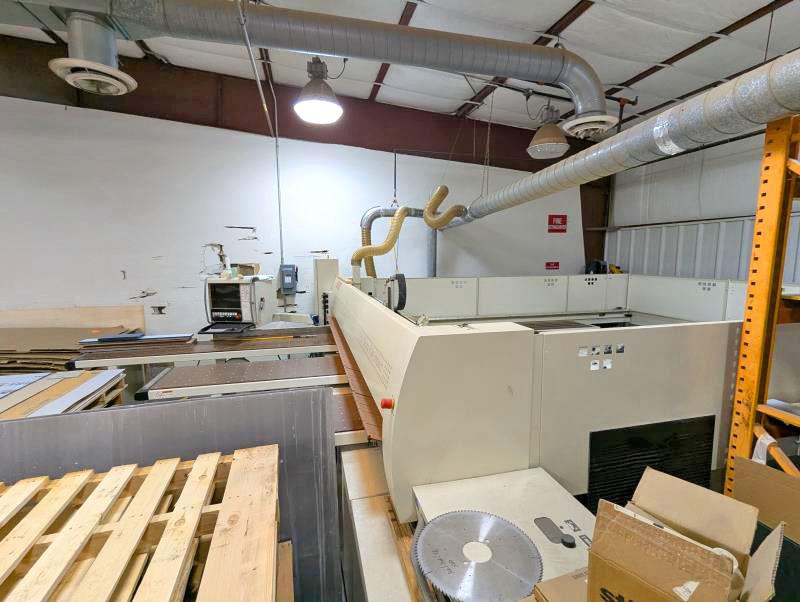

SCM #Sigma-Impact-105-PLM, front load panel saw, 19' x23' table, 2800 cfm dust collector, 7 clamps, 2005

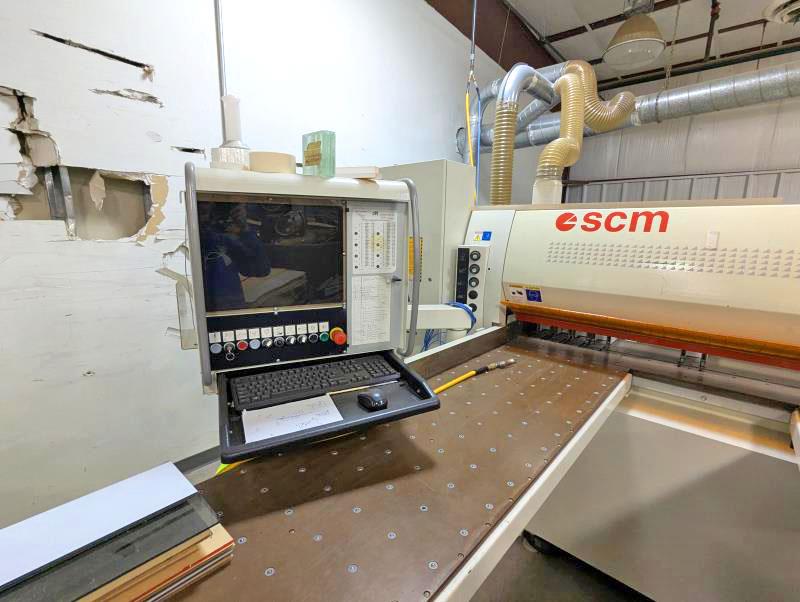

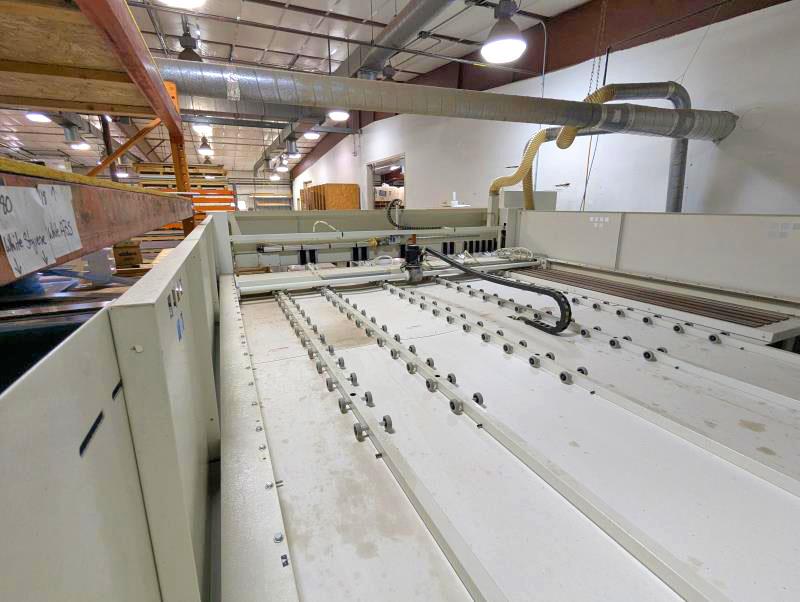

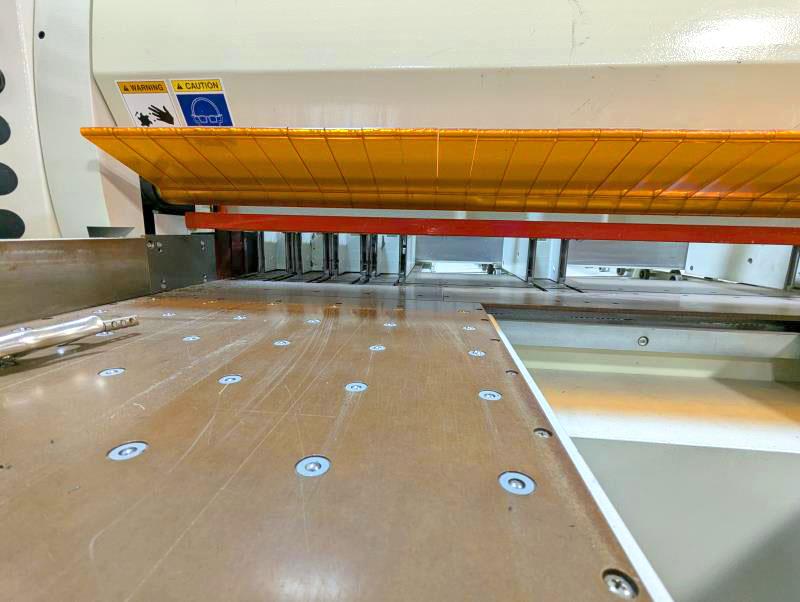

2005 SCM - SIGMA IMPACT 105 PLM: Panel SawSpecifications: -- Overall Footprint: - 19' x 23'. -- Max cutting length & cutting width: 126". -- Max blade projection: 4.13"; max. cutting height: 3.63"; machine cutting tolerances: +/- 0.006"; main saw motor: 18 HP (variable to 3,800 RPM); main blade dia.: 15" (4,300 RPM); scoring saw motor: 2 HP (eliminates chipping on bottom sheet); scoring blade dia.: 8".Equipped with: -- High Speed rack & pinion saw carriage; brushless A/C motor (saw carriage speeds: 0 - 446 FPM); pusher speeds: 0 - 330 FPM; automatic side aligner ensures tight cut tolerances: 2.8" - 48" aligning zone); variable: 0 - 3,900 RPM; 19-1/2" wide rear phenolic table for crosscutting narrow strips; (1) 2' x 8' fixed front load air table; (2) 2' x 5' movable front load air tables.Complete with: -- Premium plastic configuration: (7) Camps with thin plastic configuration; air cooling of the main blade with mist lubrication; pneumatic quick blade change: No tool required. -- Operating air pressure: 7 ATM (95 - 105 PSI); dust extraction: 2,100 - 2,800 CFM; Power: 80 Amps @ 230 Volts - 3-phase - 60 HZ (+/- 5% voltage). -- DELL PC; Windows XP; Win Cut Optimization software.
