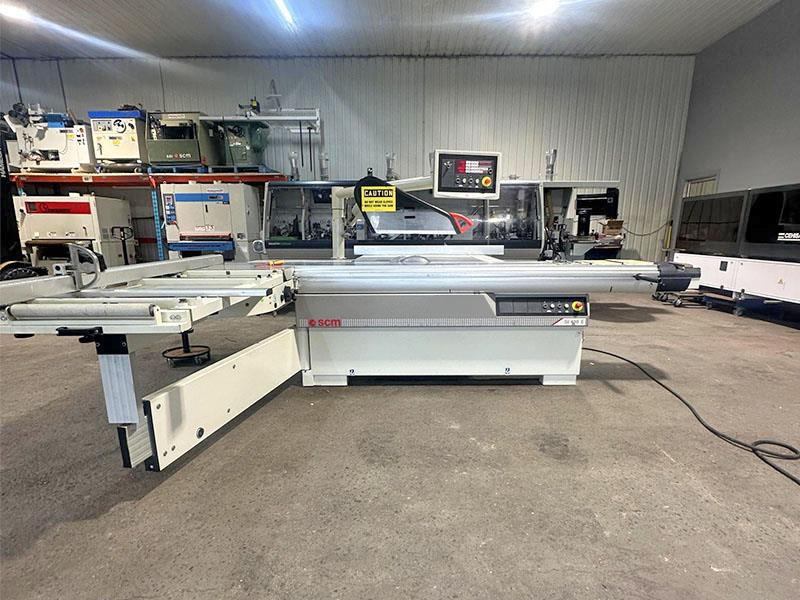

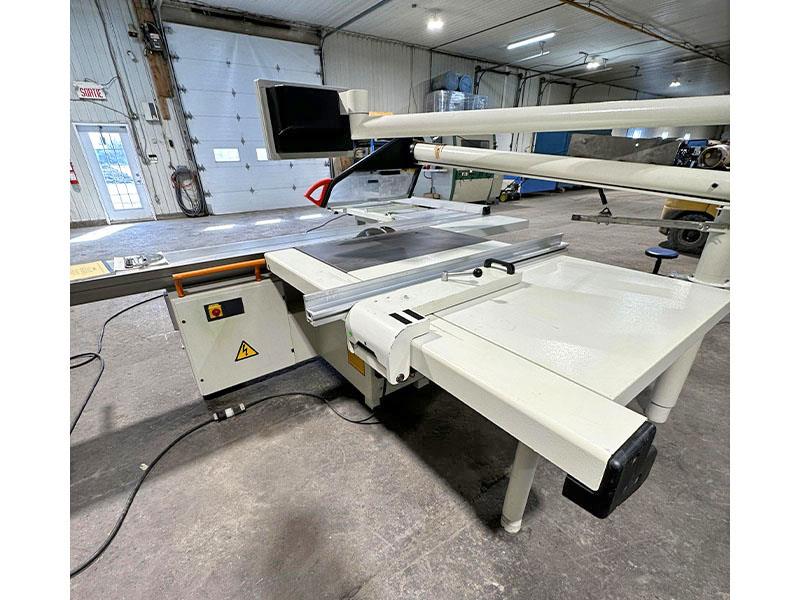

SCM #SI-400-E, programmable sliding table saw, motorized adj., 2007

Estimated monthly payment valid upon approved credit.

Request Formal Quote

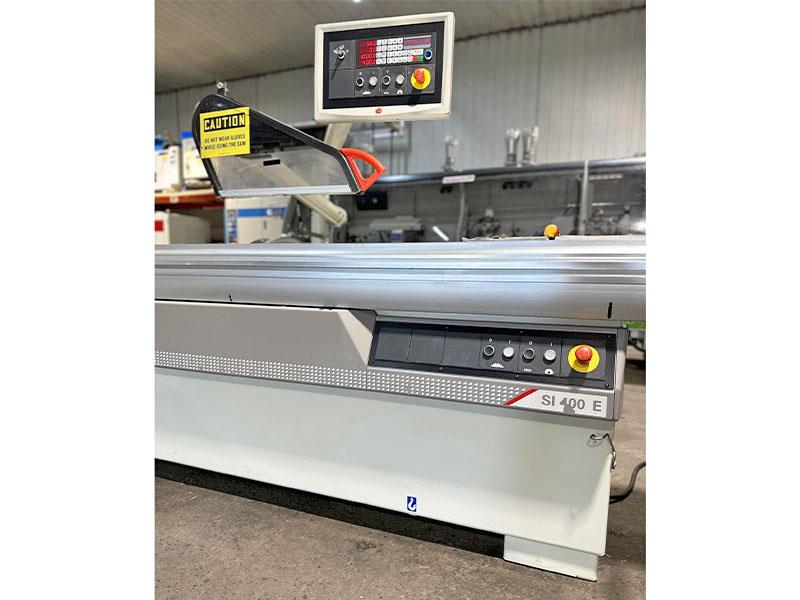

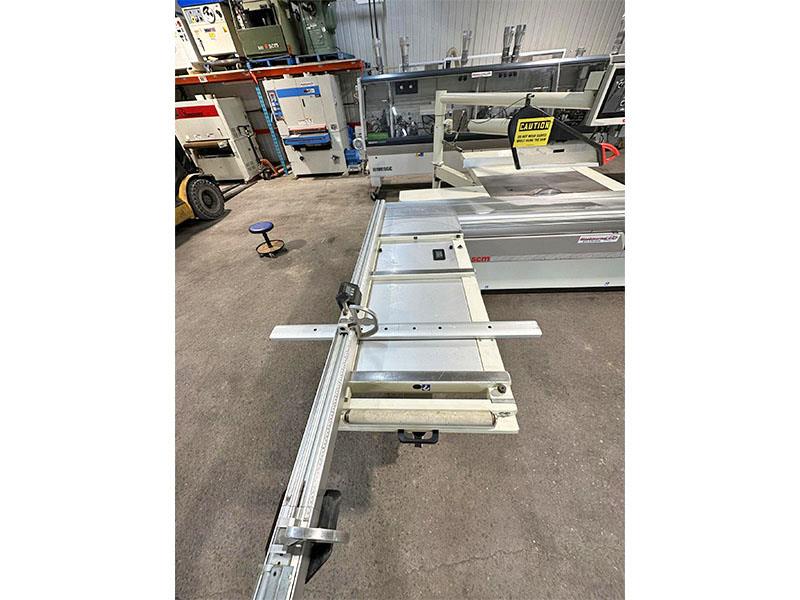

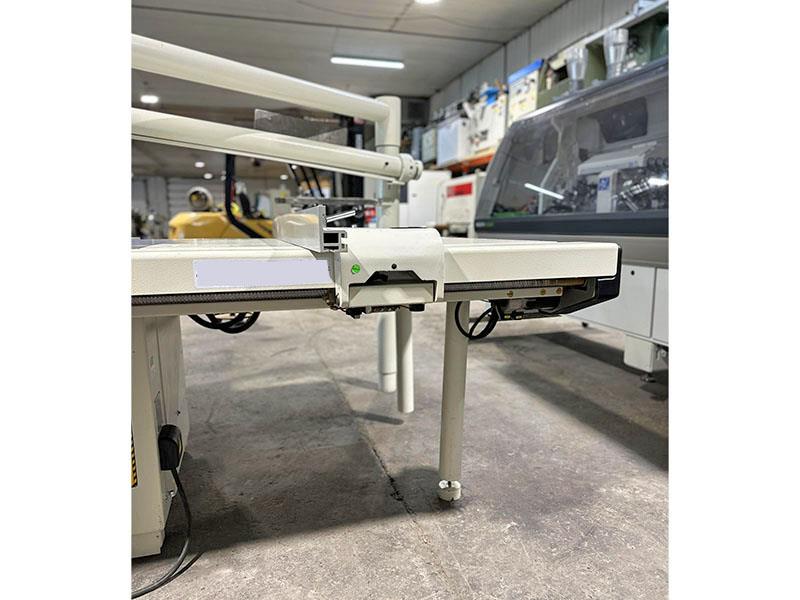

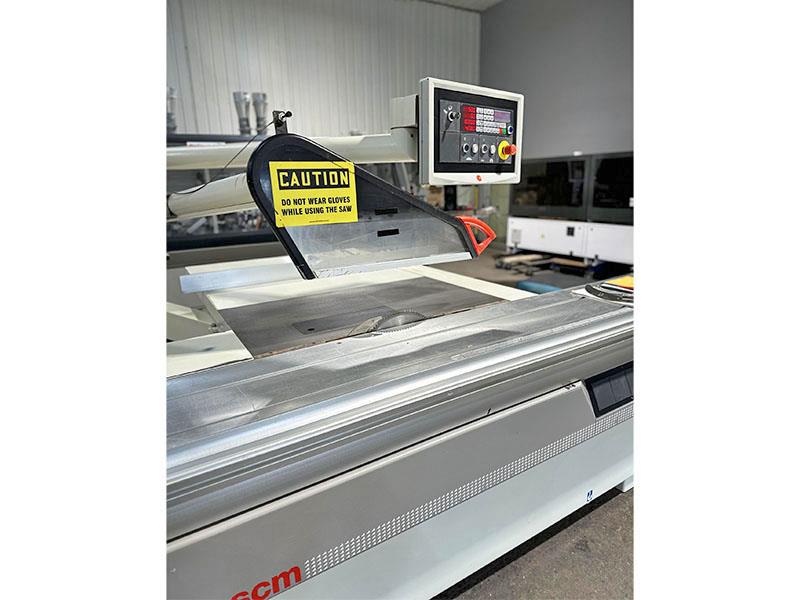

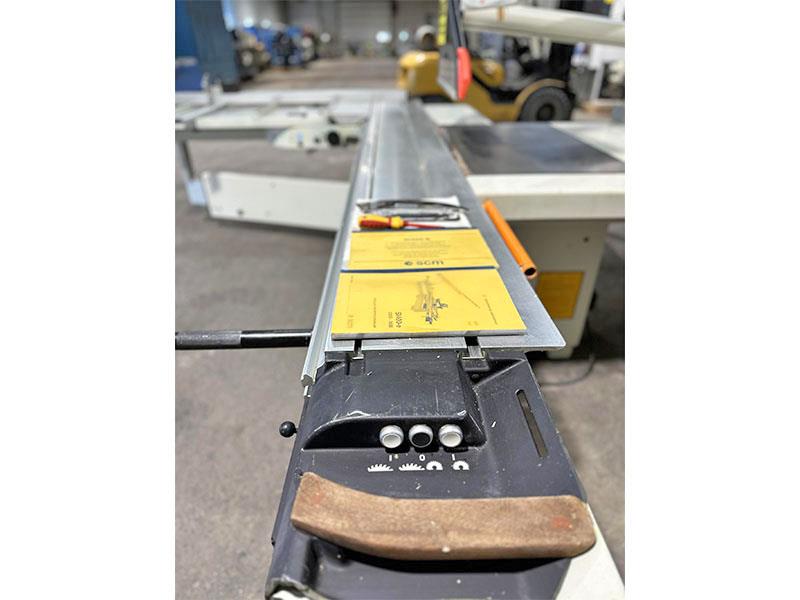

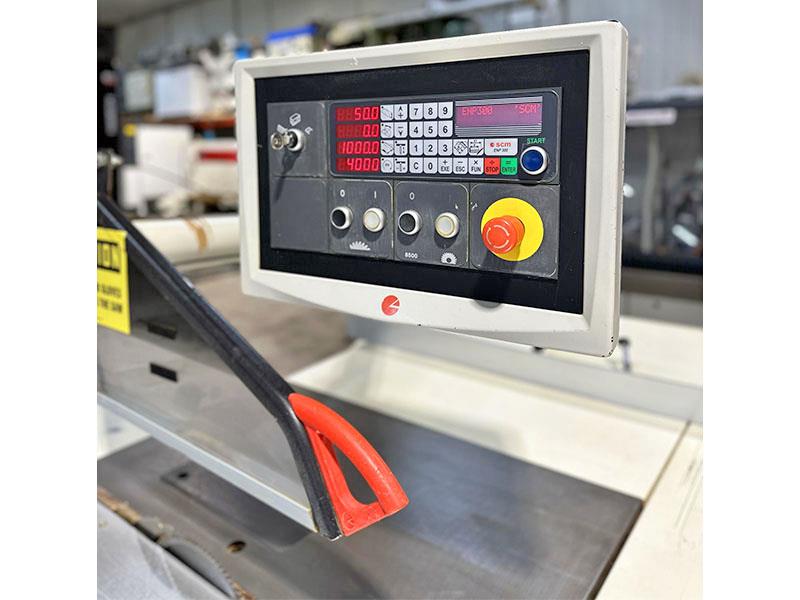

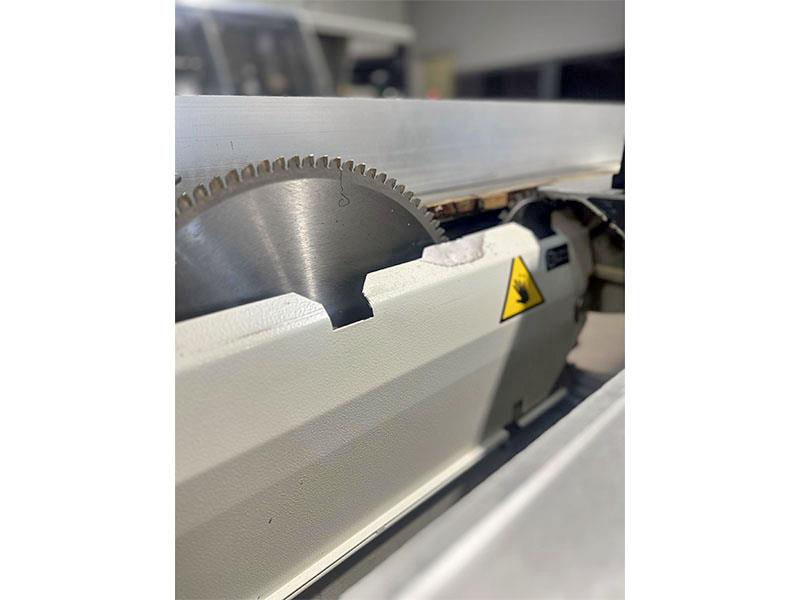

CMI - SI 400 E: Sliding Table Panel Saw with motorized adjustmentsSliding Table Panel Saw with Motorized Blade adjustments and powered Rip Fence positioning.Specifications -- 3,200 mm (126") Stroke length; anodized aluminum: 14-1/4" Wide sliding table; 2-position table locks for easy panel loading in any position. -- 45 Tilting - 1" dia. main saw arbor: 400 mm (15.8") Blade dia. cap.; 130 mm (5") max. cut height @ 90; 90 mm (3.1") @ 45; 59" rip capacity. -- 9 HP Main Saw with self-braking motor: (3) Cutting speeds: 3,600 - 4,800 & 6,000. -- 1.0 HP Scoring Saw Motor: 3/4" Dia. arbor; 120 mm (4-11/16") dia. split scoring blade - 8,500 RPM; scoring unit w/external adjustment with stops. -- Electric control for blade group: Raise, lower and tilt. LED readouts and separate controller to position rip fence accurately with: Fast/slow control to accomplish the left & right movement.Equipped with: -- Articulating overarm protection guard; Heavy-Duty tubular steel support; dust guard. -- 41" x 25" Fixed table size; square crosscut fence with: (1) Stop; extension table with: Miter fence & sliding outrigger support. Includes -- (1) 5" & (1) 4" Dust outlet; centralized control panel with magnetic controls; safety micro switches on access panels & doors. -- Control panel programmable: SCM EP 300.Overall dimensions: 280" x 165" x 36"; Net weight approx.: 2,200 Lbs; requires dust collection of: 1,100 CFM.
