For Sale by Ex-Factory
Surplus Record Dealer Since 2022
Sales Dept.
704-28...> Show Seller's Phone Number 704-285-2223 Let the seller know you found their listing on Surplus Record!
Description

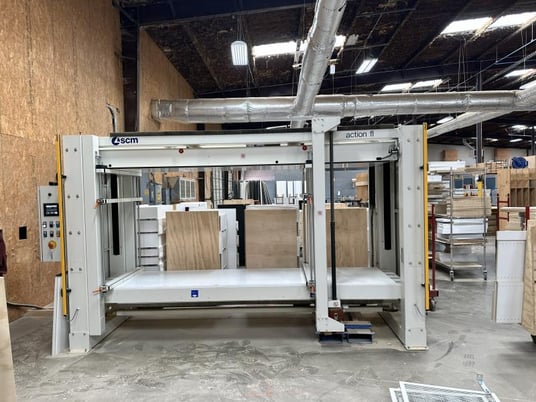

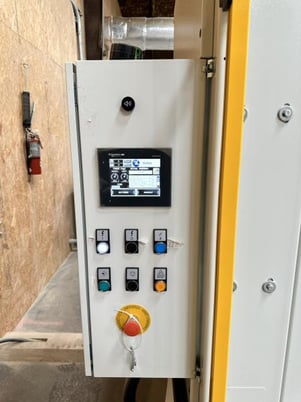

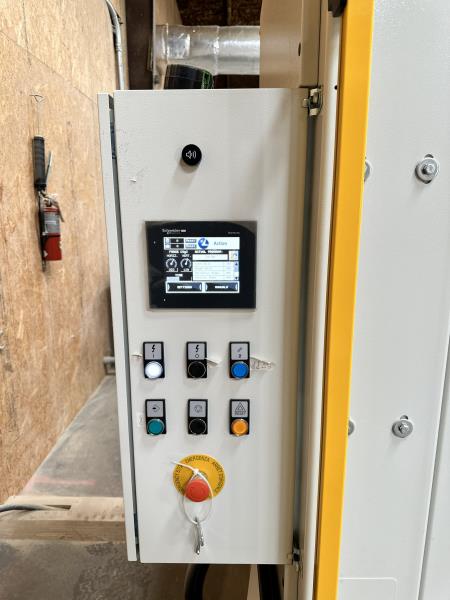

SCM - ACTION FL 2500: Case Clamp (Semiautomatic) -- SpecificationsMax. standard working dimensions: 2,500 mm (98.4") Wide x 1,250 mm (49.2") high x 800 mm (31-1/2") depth. -- Min. standard working dimensions: 250 mm (9.8" Wide x 250 mm (9.8") high x 150 mm (5.9") depth. -- Working height: 508 mm (20"). -- Vertical pressing force: 15 KN (3,372 Lbs.).Features -- Full top & bottom platen for maximizing pressing PSI on the box. -- Rack & Pinion guides at: All (4) corners of the top platen & side pressure to keep the top platen parallel and the side pressure square. -- Sizes of box can be input for efficient cycle control when running repetitive box closings. -- Machine can also find the size of the box, so all the Operator has to do is open the Clamp to a size larger than the box to be clamped. -- The vertical & horizontal pressure is adjustable according to the type of furniture to be assembled. -- Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention. -- Pressure supplied by infinitely adjustable brushless electro-motors.Complete with: -- 5.7" Touchscreen panel with: Software by CPC in order to program cycles. -- Rack & Pinion system, brushless motors. -- Front & rear photocell barriers. -- Actual Model is: SCM CPC ACTION FL 2500
Get Your Price from Ex-Factory!
