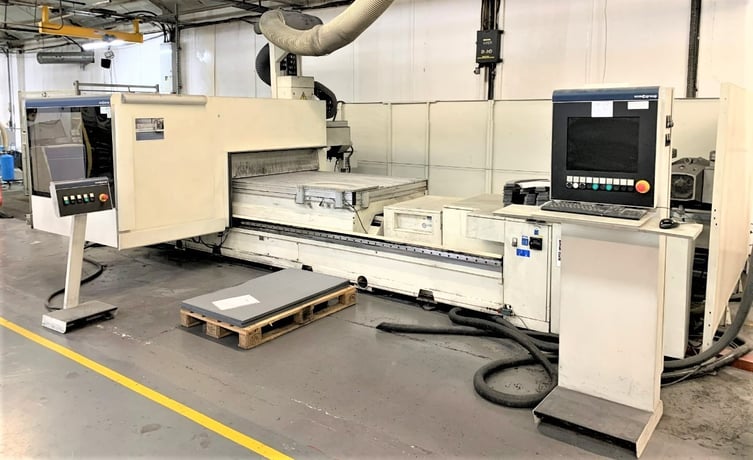

SCM #Accord-FX-M, 3-Axis CNC router, 16 position tool changer, vacuum pump, 2013

2013 SCM Accord 30 FX-M 3-Axis CNC Router for sale. This used machinery offers flexibility with a multifunction aluminum worktable. Features pendulum machining, energy-saving tech, and a 16-position tool changer for enhanced production efficiency.
Machining centre equipped with the high-performance SCM multifunction worktable in aluminum, for production of high flexibility and regardless of form, which require high standards of accuracy. Optimal solutions to meet the specific needs of a flexible production with nesting tecnology and suitable to process panels of different materials: lamellar wood, plywood, chipboard, MDF, etc.
Advantages
Maximum precision on the entire machining area thanks to the rigid mobile gantry.
Reduction of downtimes with tool change on board allowing the replacement of the tool in masked time.
Higher productivitywith the option for pendulum machining with no size limits in total ergonomics.
Maximum freedom of movement in total safety with no carpets on the floor with the new systems Pro Speed and Pro Space
Savnergy, high performance and energy saving.
Technical data
X-axis working area mm from 3650
Y-axis working area mm from 1320
Component passage mm 250
Electrospindle power kW from 8,5 to 13

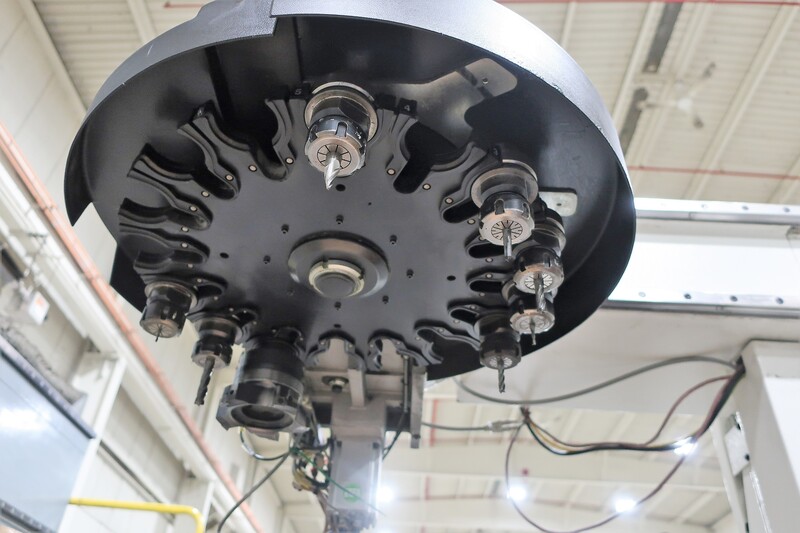

Tool-changer nr. positions from 16
CNC machining centre
Axes
X-Y axes speed m/min 90
Workpiece passage mm 250

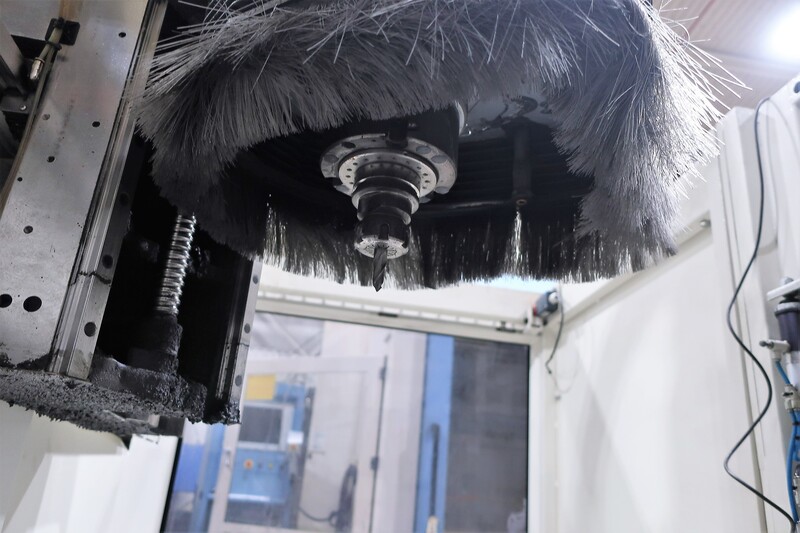

Electro-spindle
3- and 4-axis electro-spindles power kW 8,5 - 12 - 13
Max. rotation RpM 24.000
Software version : Xilog Plus

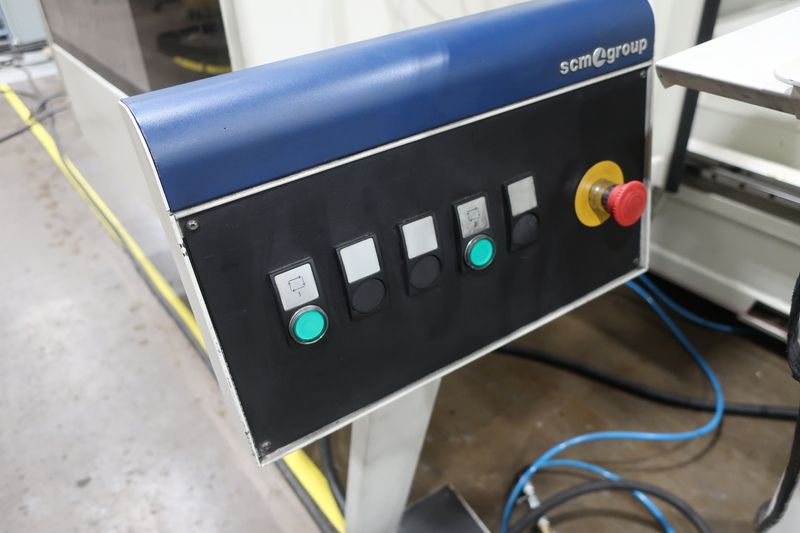

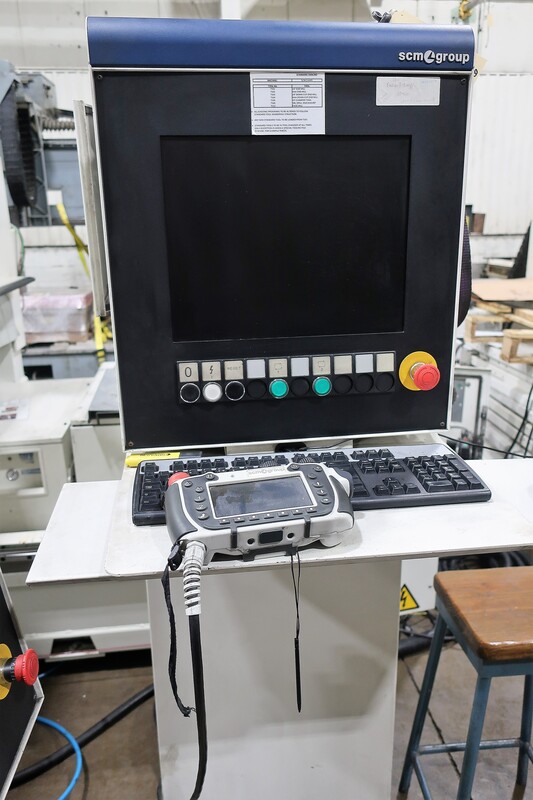

Hand held controller

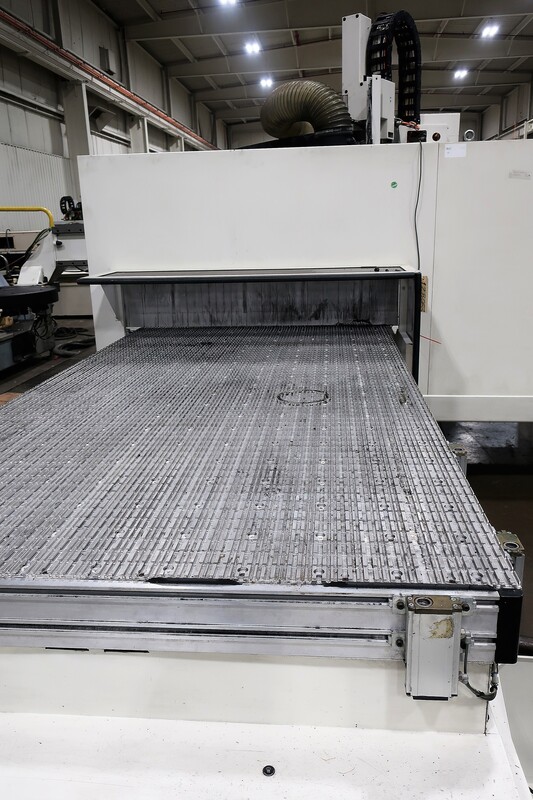

2 Zone vacuum table

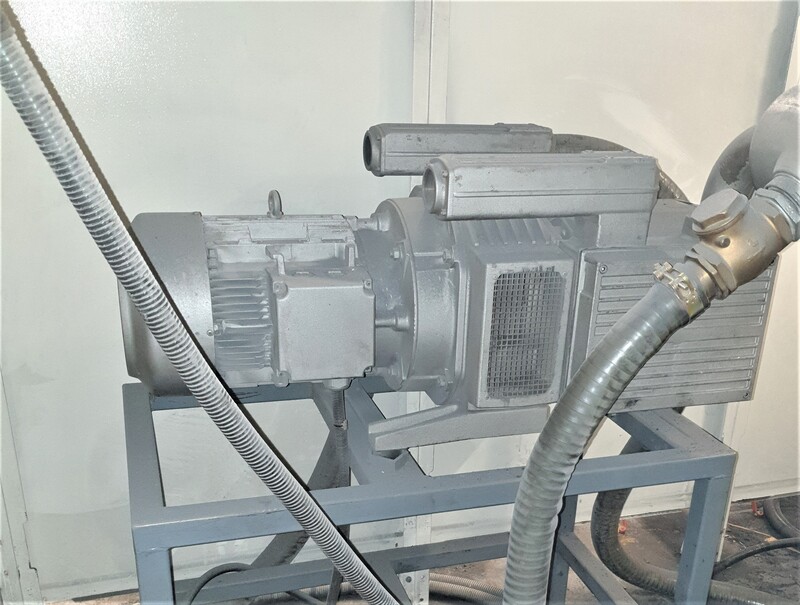

Vacuum pump
Suction opening diameter mm 1 x 100 - 1 x 250
Suction air speed m/sec 25
Suction air consumption m3/hr 1300 / 4400
Compressed air consumption NL/min 170 - 300
Machine weight Kg 6200
