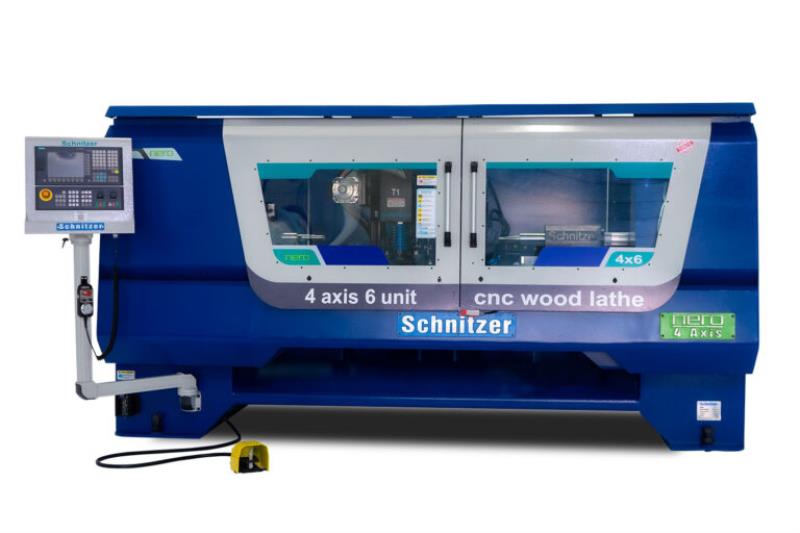

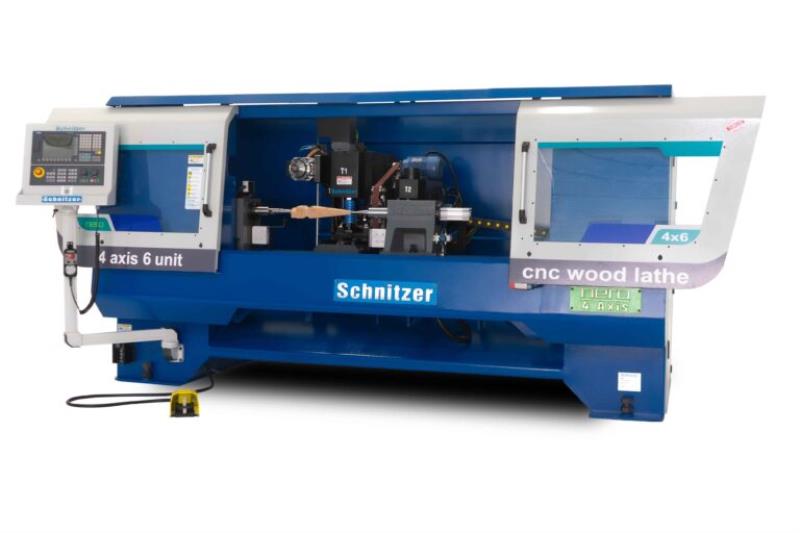

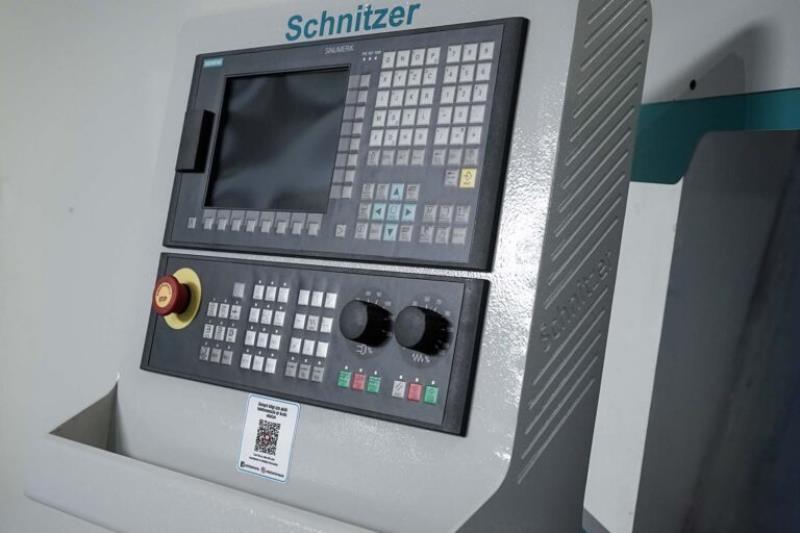

Schnitzer #4X6, multi-axis CNC lathe, Siemens MC 808D, 2026

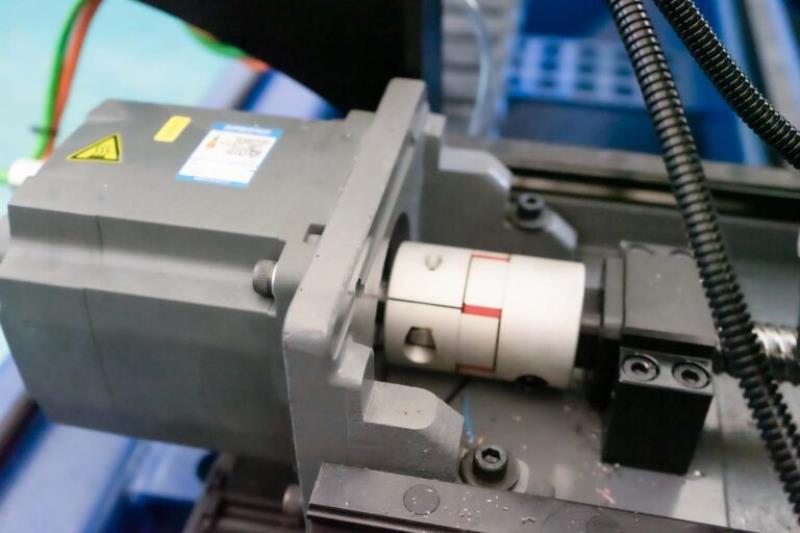

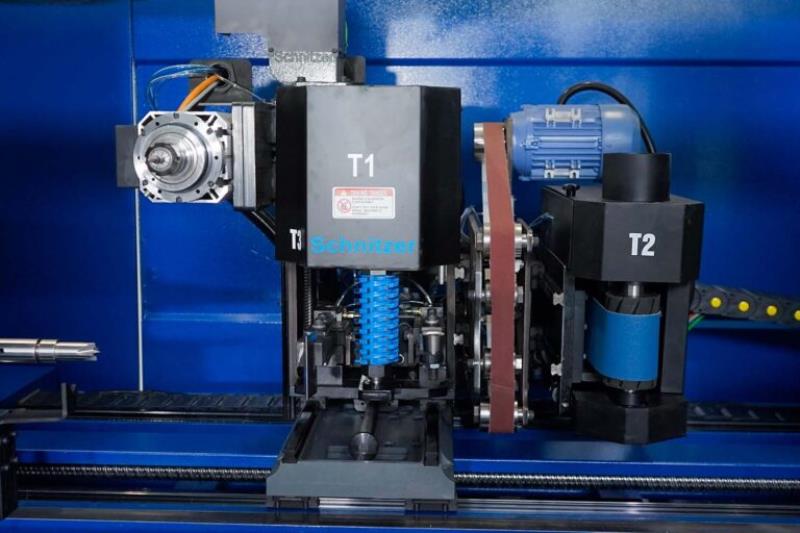

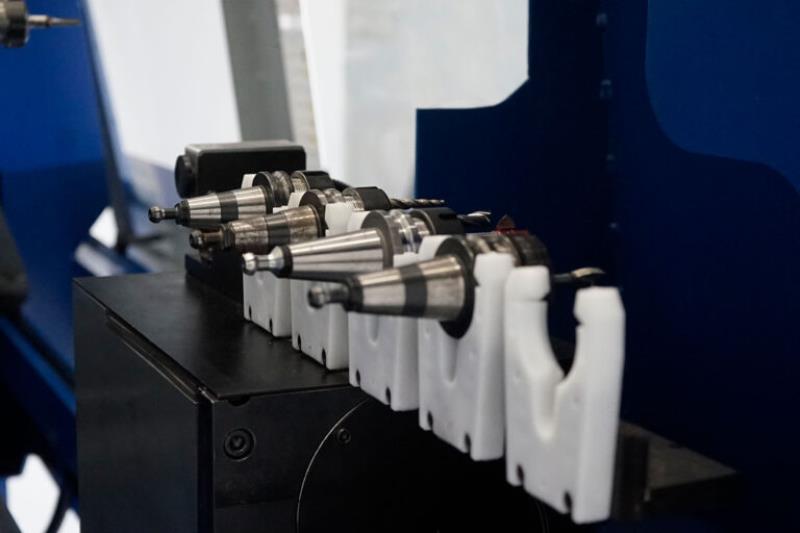

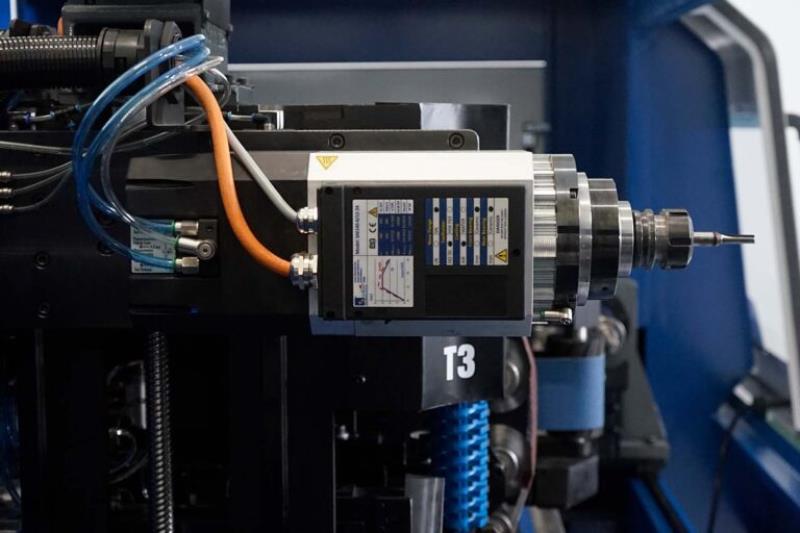

SCHNITZER 4-Axis, 6-Units (heads) CNC Controlled Automatic Lathe. A versatile Multi-Axis CNC lathe that allows the machining of any asymmetrical and symmetrical parts according to your programmed geometry. Made with well-known high-quality components such as SIEMENS, SCHNEIDER, SKF, FAG, FESTO, etc. -- Dimensional Capacity (approx.): Max. Length: 1200 mm (47.25"); Min. Length: 30 mm (1.81"); Max. Sq. Frame: (6.3"),160 x 160 mm, [Max. diameter (400x400 mm (15.75")]. Min. Square 20 x 20 mm (0.787"). -- Motion Model: X-Y-Z-A Axes, Ball Screw Driven. -- Motion Unit/Heads: 1st Unit: Spiral/Roughing/Debarker Turret. 7.5 kW (10 HP). 2nd Unit: V-Gouge/Knife. 3rd Unit: Cup Knife. 4th Unit: Router/Aurel Milling 4 kW (5.4 HP) - 18,000 RPM. Spindle Motor (Avaialble with Optional Tool Changer). Tool holder (ISO30/ER32) Milling Head (ER32/Ø12) 5th Unit: Sanding Unit with Oscillation 6th Unit: Ribbon Sanding Unit --SIEMENS Servo Drives/Spindle Mtr: X-Motor: 1.5 kW (2 HP) Servo Motor with Absolute Encoder; Y-Motor: 0.75 kW (1 HP) Servo with Absolute Encoder; Z- Motor: 1 kW (1.4 HP) Servo with Absolute Encoder; A-Motor: 3.7 kW (5 HP) – 6000 RPM Spindle Servo motor with Absolute Encoder, Air cooled and Electro Magnetic Brake System. X-Y-Z Servos with 'Absolute Encoder' (No Reference needed). Double Direction Cutting. Spindle Motor: 6 kW (8 HP), 24,000 RPM. -- Speeds: Longitudinal Axis Speed: 70,000 mm/Min (231 FPM); Transversal (short) Axis Speed: 40,000 mm/Min (132 FPM); Y-Axis Speed : 30,000 mm/Min (100 FPM). -- Controller Unit: Programmable SIEMENS MC 808D. Industrial fast-precise with its user-friendly interface, simple menu, and functional shortcuts. -- Software: SCHNITZER standard CAD/CAM included. -- Features: Double-Directional cutting; CMSA Linear Movement System; Auto Lubrication (every 200 Min -15 Sec duration); Auto workpiece centering (pneumatic).with a foot pedal.Tailstock. Clamping - pneumatically driven. Hand wheel. Vibration-free cast monoblock frame. SIEMENS outer surface metal coated cables for long-term protection. SIEMENS fuses & SCHNEIDER contacts that are among the best. World brand FESTO pneumatics. Superior strength 40x40 long-axis ball screw, cutter group. -- Dust ports: Quantity, (3) and the diameters are: (2) @ 100 mm (3.94") dia. and (1) 90 mm (3.5") diameter. 4"; Pipe typically requires 390 CFM and 3.5"; about 300 CFM based on velocity of 4,500 FPM. -- Sanding belt sizes are. a.) Ribbon belt: 40 mm x 1560 mm, (1.57" x 61.42") width and length, b.) Oscillation belt size: 100 mm x 1000 mm (3.93" x 39,37"), width and length. Both are approx 100 grit. -- Installed Power: Approx.23 KW. -- Dimensions: Approx. 3,689 mm x 1,845 mm x 1,898 mm (146" x 73" x 75"). Weight approx. 3,200 KG ) 7,040 Lbs. -- Warranty: (1) Year after installation and training. -- Installation: By factory SCHNITZER Technician - Return Flight, Lodging, and Food payable by customer. -- Available options: a.) Automa
