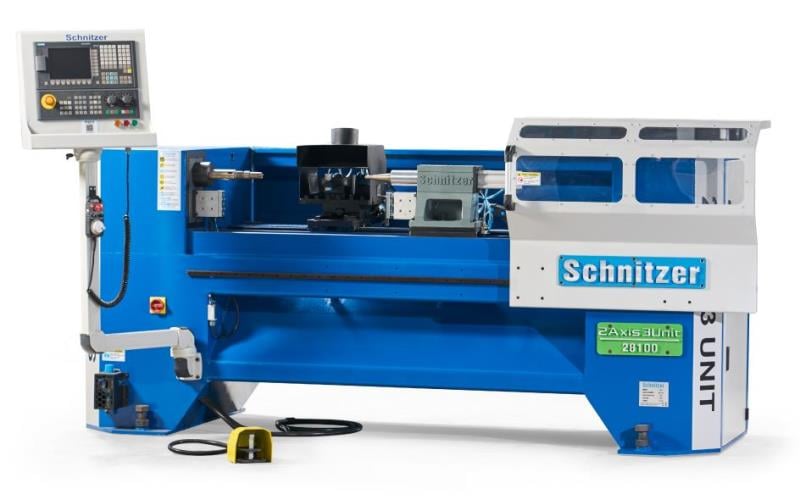

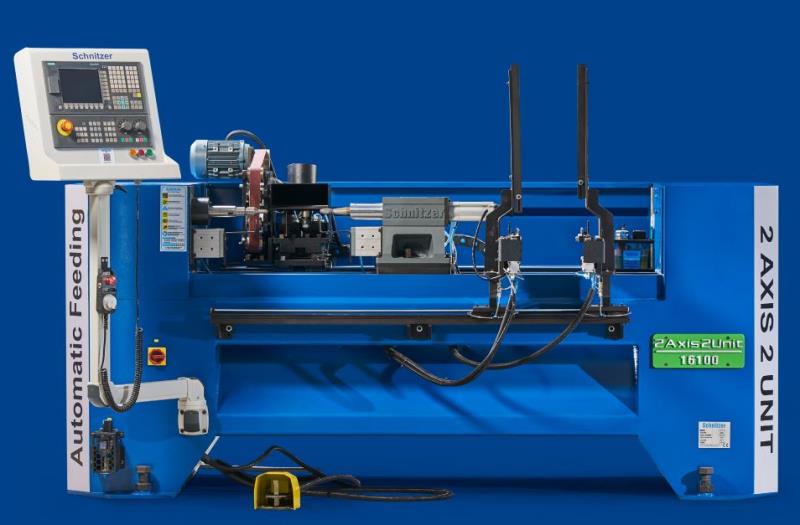

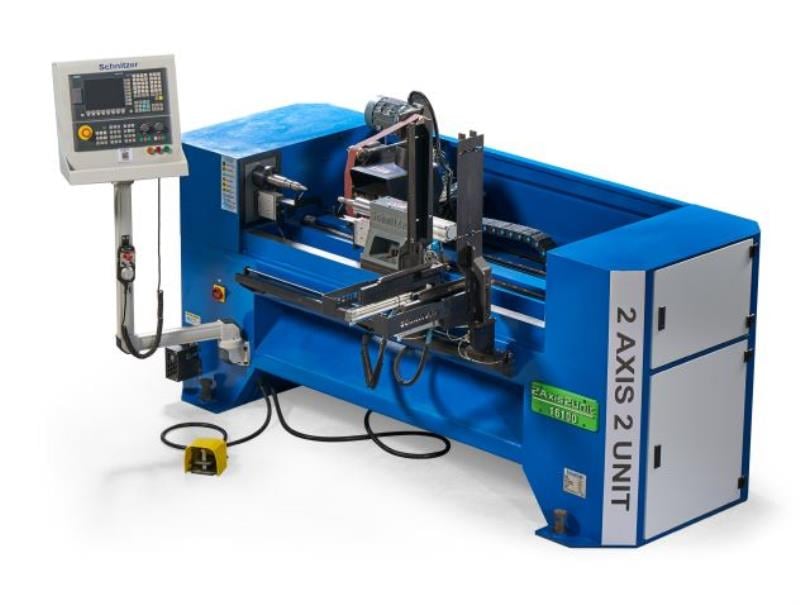

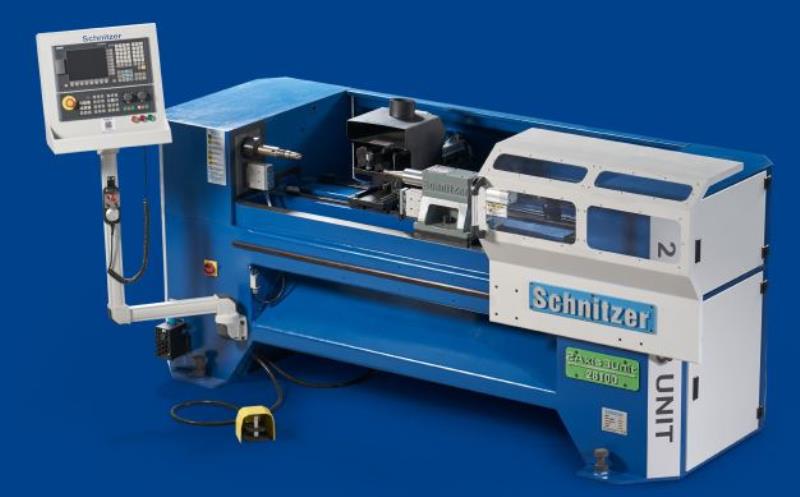

Schnitzer #2-Axis, 3-Unit CNC controlled wood lathe, 39.4" max. length, 6.3" square, 5.4 HP, 5000 RPM, Siemens 808D Control, 2026, new

SCHNITZER 2-Axis 3-UnitS CNC Controlled Lathe with Automatic Hopper Feed. A versatile CNC lathe that allows machining of any symmetrical/concentric parts according your programmed geometry. Made with well known high quality components such as SIEMENS, SCHNEIDER, SKF, FAG, FESTO, etc. --Dimensional Capacity: Max. Length: 1000 mm (39.4"); Min. Length: 20 mm (0.78"); Max. Square: 160 X 160 mm (6.46"). Max dia. 220 mm (8.66"). -- Motion Model: X-Y- Axis. -- Motion Unit/Heads: 1st Unit: V-Gouge Knife, included. 2nd Unit: Cup Knife, included. 3rd Unit: Narrow Sanding belt. -- SIEMENS Servo Drives: X-Motor: 1 kW (1.3 HP). Y-Motor: 0.75 kW (1 HP). -- Spindle Motor: SIEMENS 4 kW (5.4 HP), 6000 RPM Asynchronous. -- Speeds: Longitudinal Axis Speed : 75 M/min (247 FPM); Transverse Axis Speed: 15 M/min (50 FPM). -- Controller Unit: Programmable SIEMENS SINUMERIC 808D Controller. Industrial fast-precise with its user friendly interface, simple menu and functional shortcuts. -- Features: Work-piece centering device; Tailstock clamping - pneumatically; CMSA Linear Movement System; Auto lubrication (every 200 min, duration of 15 sec). Hand wheel. Foot pedal. Vibration-free cast monoblock frame. SIEMENS outer surface metal coated cables for long term protection. SIEMENS fuses & SCHNEIDER contacts that are among the best. World brand FESTO pneumatics. -- Working Power 6 KW. -- Dimensions: Apptox. 2714 mm long x 1412 mm deep x 1725 mm high (107" x 56" x 70"). Weight 1,800 KG ) 3690 Lbs. -- Warranty: (1) year after installation and training. -- Installation: By Online technical assistance or Factory technician as required. -- Available options: a.) With 400 mmm (15.75") Turning Dia. b.) Travelling Steady Rest for slender parts. c.) Max. Length capacity - 900 mm (35.4") or 1500 mm (59.1") d.) 4 - 5 - 6-Axes and 3 to 6 Units available in several model and head compositions.
