Schneider Electric #Conext-XW-Pro, 48V Solar Inverter Package, charge controller, 150 VDC power distribution panel, (6) 195 watt panels, 120/240 Volts, 1PH, 2022

$6,327 USD

Request Formal Quote

SKU: 157034
Model: Conext XW Pro Solar Inverter Package
Year: 2022
Condition: Surplus New
General Specifications:
Amps: 48 amps
Voltage: 120/240 volts
Phase: Single-phase
Additional Description:

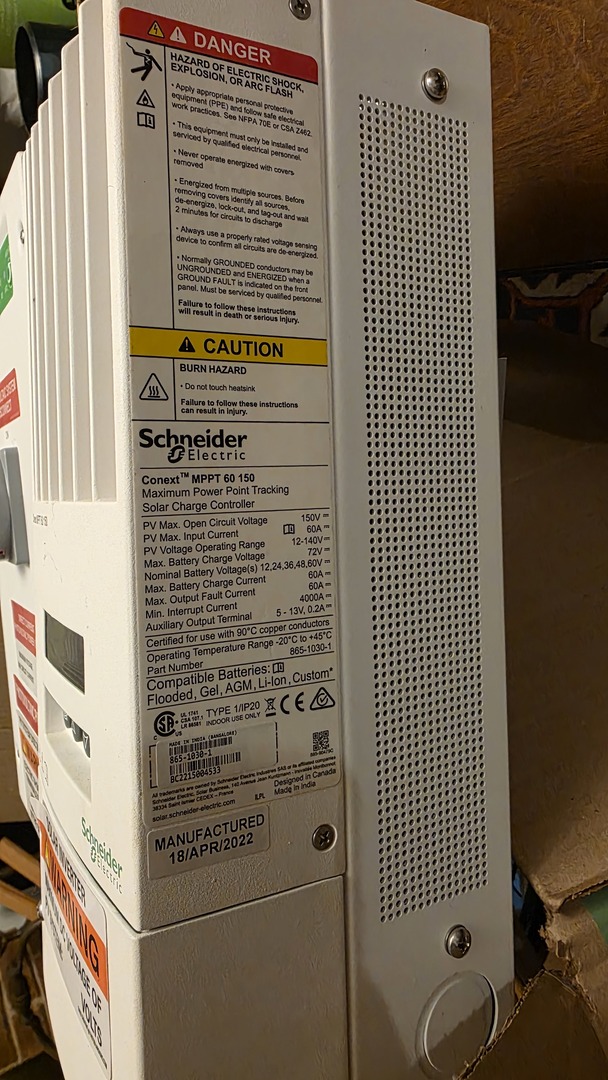

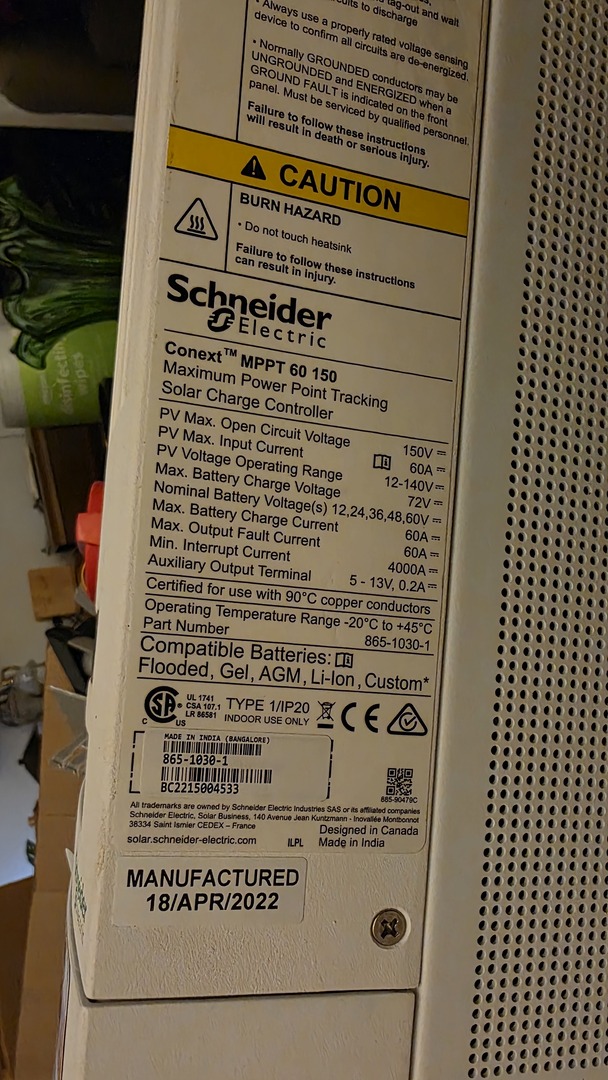

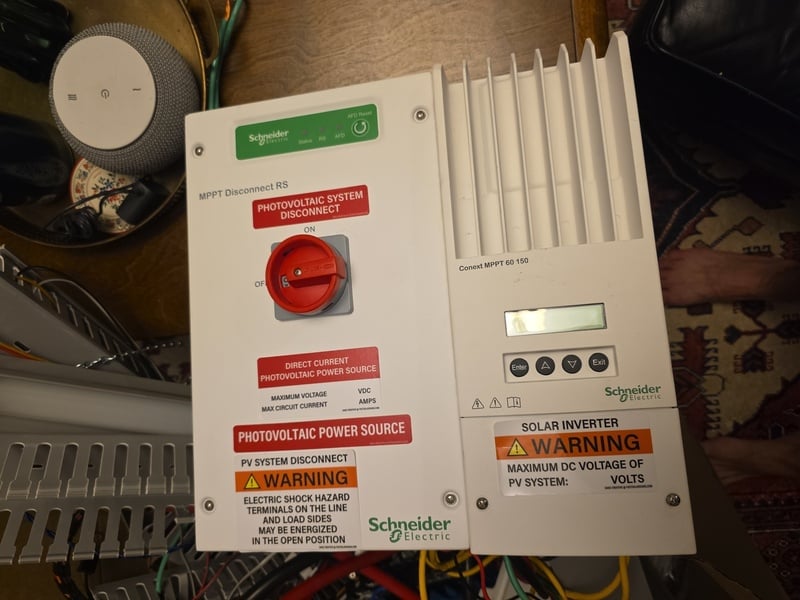

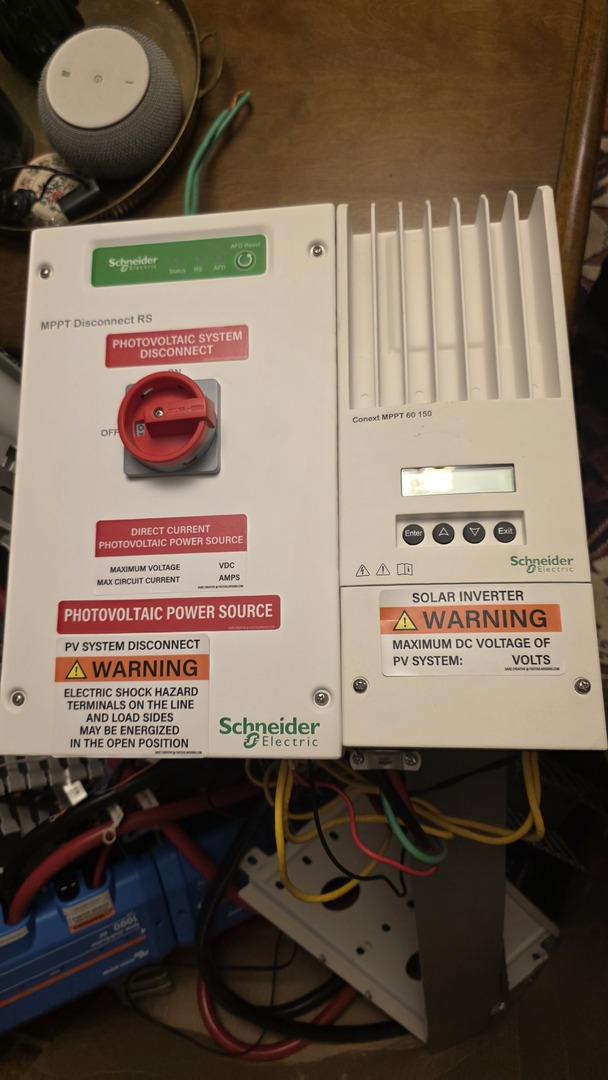

Solar Charge Controller
Manufacturer: Schneider Electric
Model: Conext MPPT 60 150
Part Number: 865-1030-1
Serial Number: BC2215004533
Controller Type: Maximum Power Point Tracking solar charge controller
Maximum PV Open-Circuit Voltage: 150 VDC
Maximum PV Input Current: 60 A
PV Operating Voltage Range: 12-140 VDC
Maximum Battery Charge Voltage: 72 VDC
Supported Battery Voltages: 12/24/36/48/60 VDC
Maximum Battery Charge Current: 60 A
Maximum Output Fault Current: 60 A
Minimum Interrupt Current: 4,000 A
Auxiliary Output: 5-13 VDC, 0.2 A
Compatible Batteries: Flooded, gel, AGM, lithium-ion and custom
Enclosure Rating: Type 1 / IP20
Installation: Indoor use only
Operating Temperature: -20C to 45C
Manufacture Date: April 18, 2022
Power Distribution Panel
Manufacturer: Schneider Electric
Model: Conext XW+ MiniPDP
Part Number: 865-1013-01
Serial Number: BC2120000266
Product Type: Power distribution panel and conduit box
Maximum DC System Voltage: 150 VDC
Nominal Battery Voltage: 48 VDC
AC System Voltage: 120/240 VAC
Maximum DC Continuous Current: 260 A
Maximum AC Grid Current: 48 A, 2-pole
Maximum AC Inverter Current: 48 A, 2-pole
Maximum AC Bypass Current: 48 A, 2-pole
Maximum AC Overcurrent Protection: 60 A
Maximum DC Overcurrent Protection: 250 A for inverter
Manufacture Date: May 18, 2021
Backup Control Switch
Manufacturer: Schneider Electric
Model: BCS 2200
Part Number: 865-BCS-2200
Serial Number: BC2240000598
Product Type: Backup control switch / automatic transfer equipment
Nominal Voltage: 120/240 VAC
Frequency: 60 Hz
Phase: Single phase
Maximum Mains Current: 200 A
Enclosure Rating: Type 3R
Suitable for Service Equipment: Yes
Conductor Compatibility: Copper and aluminum, 75C rated
Operating Temperature: -40C to 50C
Manufacture Date: November 16, 2022
System Monitoring Display
Manufacturer: Victron Energy
Model: GX Touch 70
Part Number: BPP900455070
Serial Number: HQ2230ZVHH2
Display Type: Touchscreen system monitoring display
DC Distribution Modules
Manufacturer: Victron Energy
Model: Lynx Distributor 1000 DC
Part Number: LYN060102000
Serial Number: HQ2227EQNDQ
Connection Type: M8
Enclosure Rating: IP22
Firmware: V2.1
Solar Panels (Purchased at the same time as the system, included in the package)
Manufacturer: ECO-WORTHY
Model: ECOM195W
Serial: 2211M1960644
Quantity: 6
Power: 195 W each
Total array: 1.17 kW DC
Type: Monocrystalline
Dimensions: 1335 x 670 x 35 mm
Weight: 9.29 kg (20.48 lb)
