For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Location: Bannockburn, IL
Contact Jerry/ Ryan
Phone Number: 847...> Show Phone Number 847-580-6800
Let the seller know you found their listing on Surplus Record!
Description

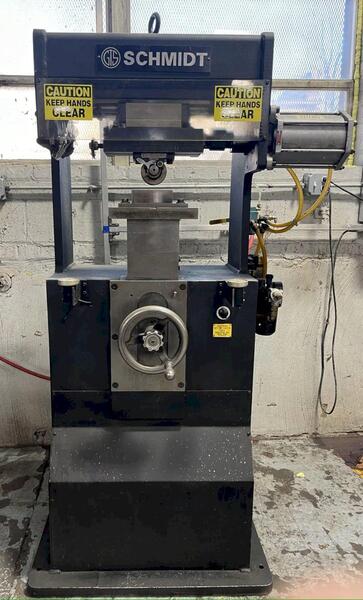

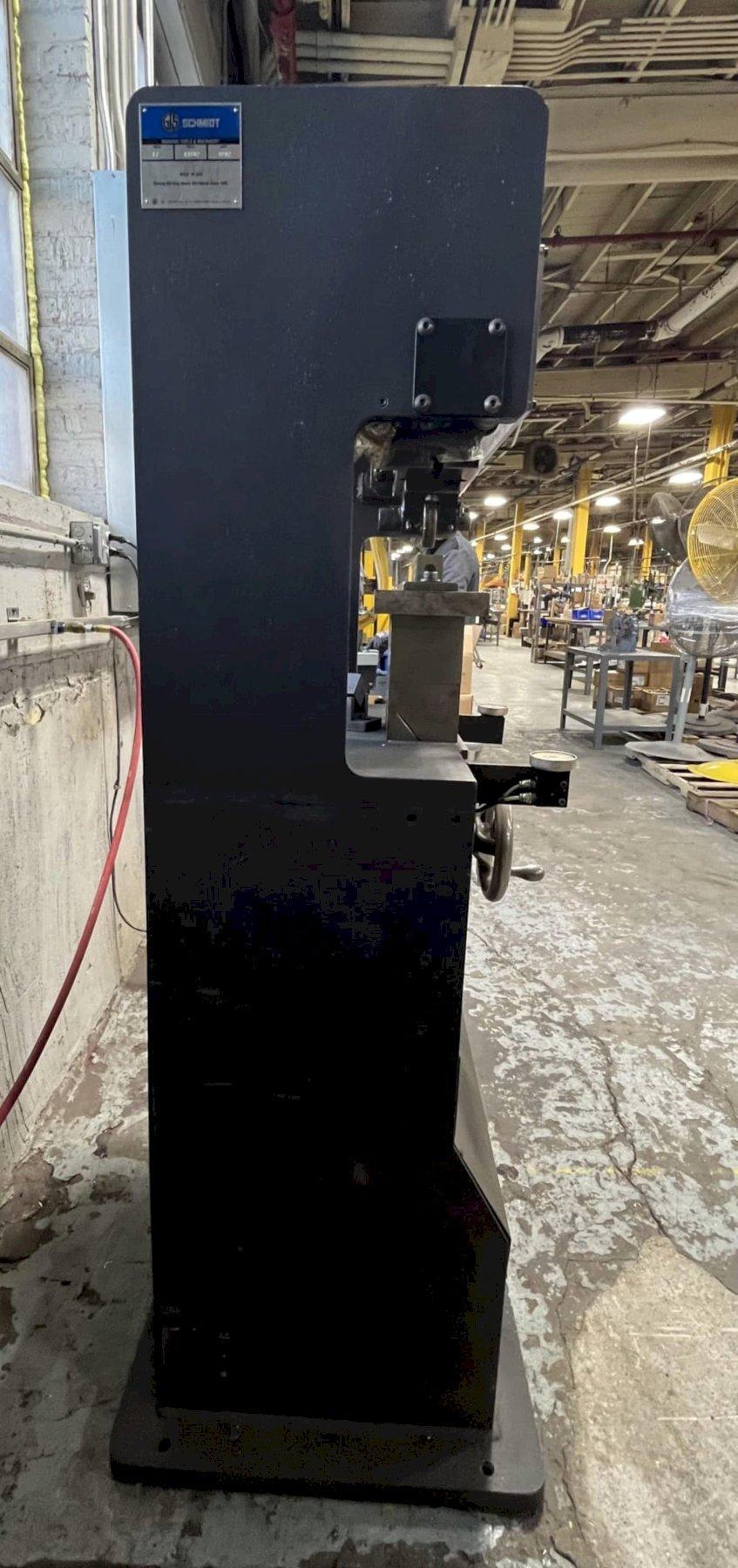

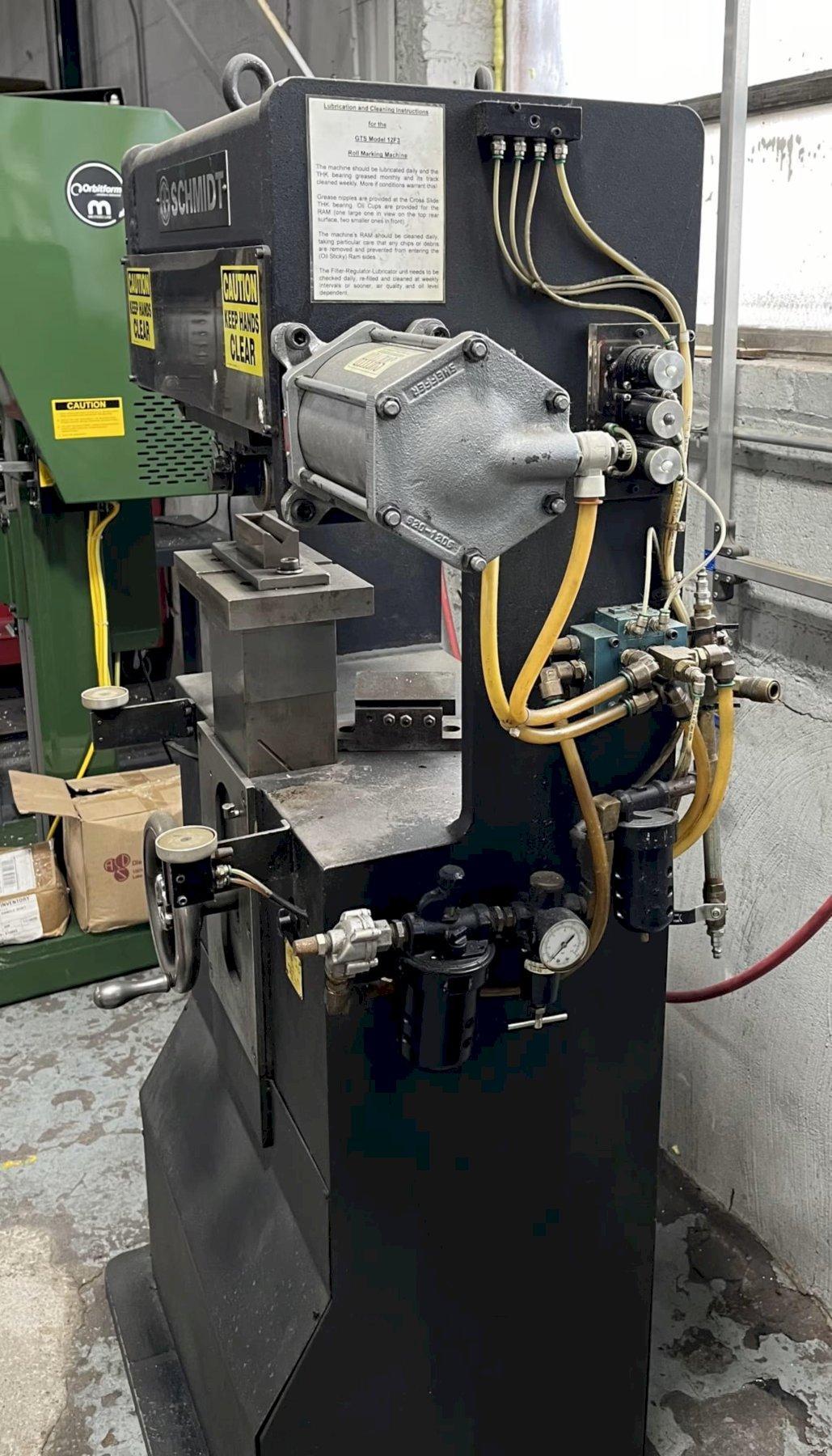

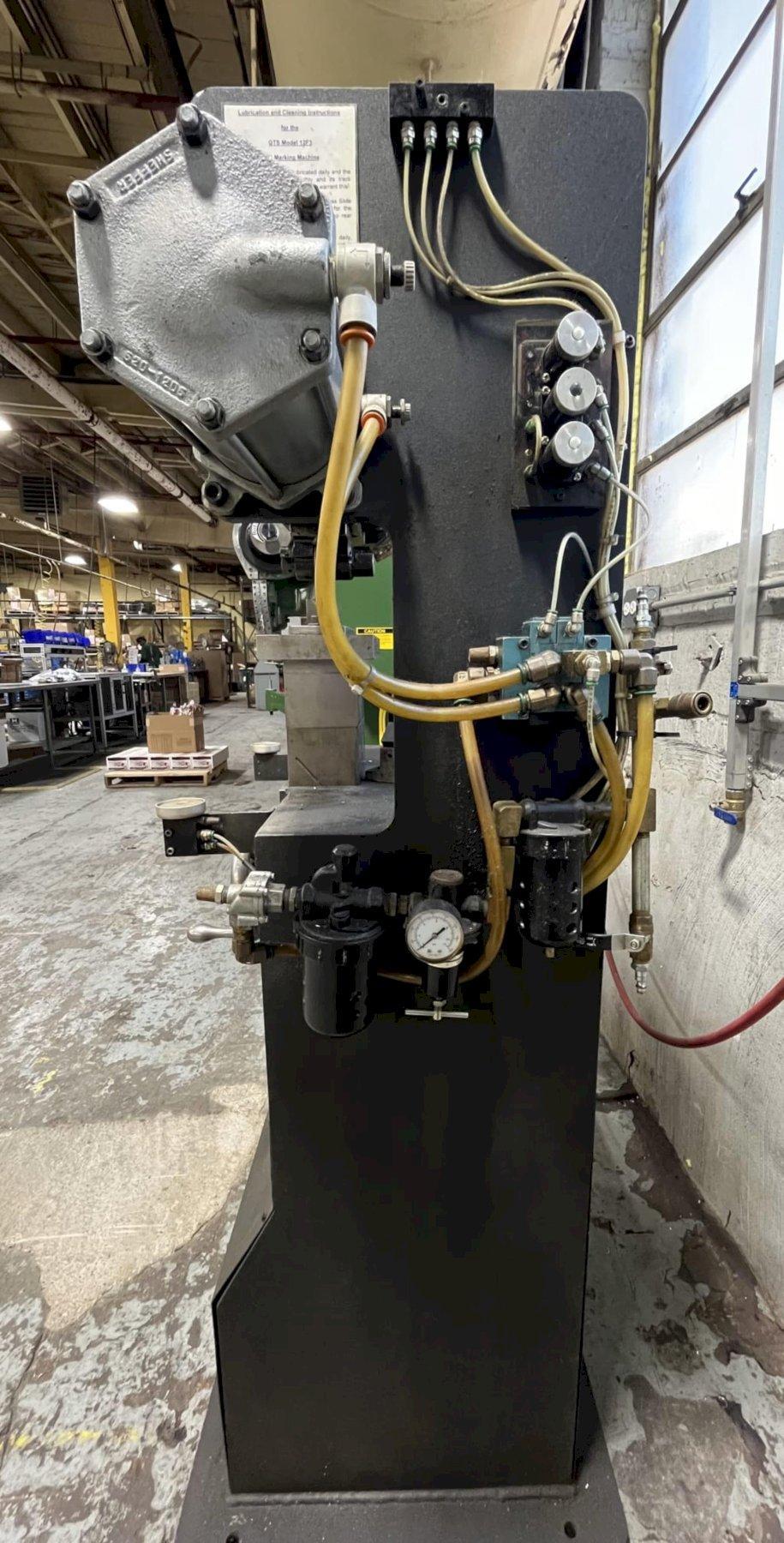

3 TON SCHMIDT SERIES 12 PNEUMATIC ROLL MARKING MACHINE

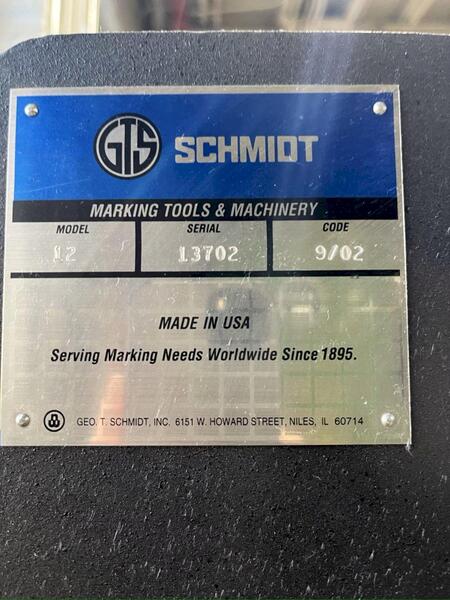

Serial No. 13702 New 2002
Combines 3 tons of marking pressure with the advantage of pneumatic power in a compact floor mounted machine. This economical general purpose marker has the capability of roll marking your round or flat parts, as well as acting as a press marker. The benefit of roll marking is that the characters are applied one at a time. This reduces marking pressure and allows the Series 12 to apply up to 4 lines of 1/8” characters, one character per line at the same time, in a single roll marking cycle. When operated in the press mode 4 - 1/8” characters can be applied.
SPECIFICATIONS:
Max. Ram Pressure 3 Tons
Max. Ram Strone 1/2"
Max. Cross Slide Stroke 6"
Vertical Die Space Height 12"
Throat 4" at 22" Side Plates
Table Size 10" W x 6" D
Min. Working Pressure 20 PSI
Max. Working Pressure 100 PSI
Approx. Weight 1,200 Lbs.
Serial No. 13702 New 2002
Combines 3 tons of marking pressure with the advantage of pneumatic power in a compact floor mounted machine. This economical general purpose marker has the capability of roll marking your round or flat parts, as well as acting as a press marker. The benefit of roll marking is that the characters are applied one at a time. This reduces marking pressure and allows the Series 12 to apply up to 4 lines of 1/8” characters, one character per line at the same time, in a single roll marking cycle. When operated in the press mode 4 - 1/8” characters can be applied.
SPECIFICATIONS:
Max. Ram Pressure 3 Tons
Max. Ram Strone 1/2"
Max. Cross Slide Stroke 6"
Vertical Die Space Height 12"
Throat 4" at 22" Side Plates
Table Size 10" W x 6" D
Min. Working Pressure 20 PSI
Max. Working Pressure 100 PSI
Approx. Weight 1,200 Lbs.
Get Your Price from Blumberg Machinery Co!
