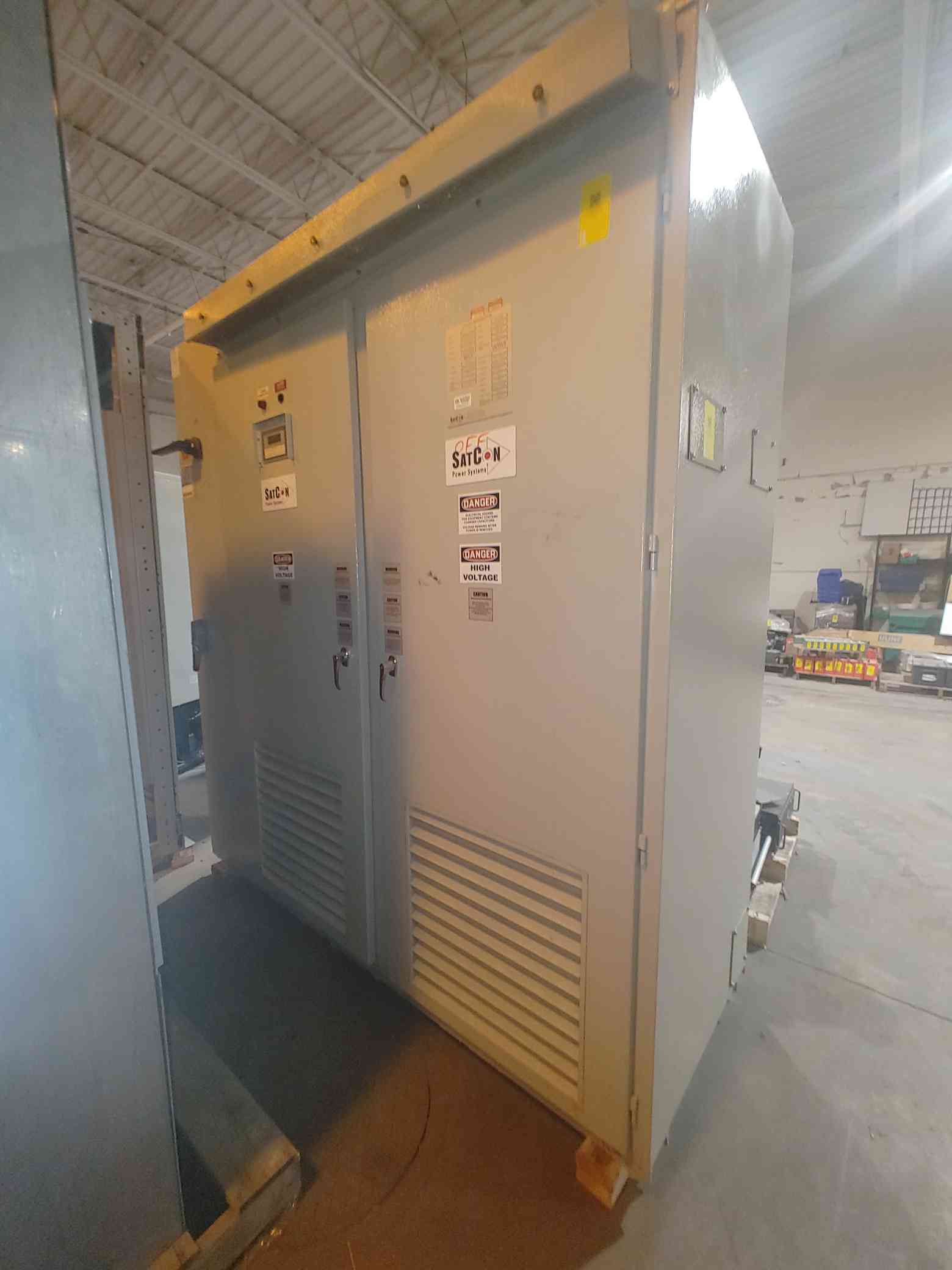

SatCon Utility Interactive #AE-225-60-PV-A, Solar Cell Inverter, NEMA 3R, 2005

$4,000 USD

Request Formal Quote

Details
SatCon Power Systems Utility Interactive Solar Cell Inverter, Model AE-225-60-PV-AModel: AE-225-60-PV-AType: Solar CellDate of Manufacture: August 2005Weight: 5870 LBS. (a very heavy piece of equipment)Factory: Burlington, ON (Burlington, Ontario, Canada)Enclosure: NEMA 3R (suitable for outdoor use with protection against rain, sleet, snow, and external ice formation)Cooling: Air 50C Max. Ambient Temp.Input (DC from solar panels):V (Max.): 600 VDCV (Range): 330 VDC - 600 VDCI (Max.): 718 ADCI (Max. Short Circuit): 0 A (This seems unusual for a short circuit current, might indicate internal protection or a specific measurement point).I (Max. Backfeed): 0 AOutput (AC to the grid):No. of Phase: 3V (Range): 432 V - 528 VF (Range): 59.5 Hz - 60.5 HzV (Nom.): 480 VF (Nom.): 60 HzI (Max.): 270 AP (Max.): 225 kW / 225 kVA (This is the rated power output)I (Max. Fault): 350 AI (Max. Overcurrent Protection): 350 A
Shipping & Freight LogisticsFreight Handling: Average handling lead time is 5 business days (varies by item size, carrier used, and shipping location).Freight Inspection (Crucial): For all freight deliveries, the buyer must inspect the shipment for transit damage and NOTATE ANY DAMAGE on the bill of lading. Have the driver initial the bill of lading and take a photo of entire bill of lading. Send the photo of the BOL to your contact at Quantum Technology. Any damage not noted on the bill of lading will not be refunded.Local Pickup: Available for many items. Please note: Palletizing, strapping, or loading assistance is not included with local pickup unless arranged in advance.International Shipping: We ship worldwide either directly or through a freight forwarder! Contact us for a custom freight quote if international checkout is unavailable.Listing Terms & ExclusionsWhats Included: Only the specific items, cables, and accessories shown in the listing photos are included. If it is not pictured or explicitly listed, it is not included.Cosmetic Condition: This is used commercial equipment. Expect minor cosmetic surface scratches, scuffs, or blemishes that do not impact mechanical or electrical performance.Regulatory & Safety Removals: * Generators/Engines will be shipped without batteries and fuel per DOT safety regulations, therefore those items must be purchased separately by buyer. NOTE: there may be some fuel remaining in the tank as allowed by DOT. oServers/Datacenter Gear: Do not include hard drives, software licenses, or operating systems unless explicitly stated.Buyer Responsibility & Liability LimitationsCompatibility: While we guarantee functionality, listing descriptions are for reference only. Buyers are solely responsible for verifying technical compatibility, power requirements, and software integration with an expert prior to purchase.Limitation of Liability: Quantum is not liable for liquidated damages due to shipping delays or equipment failure. Quantums standard warranty applies as shown above. All items are sold "As-Is, Where-Is.
