Description

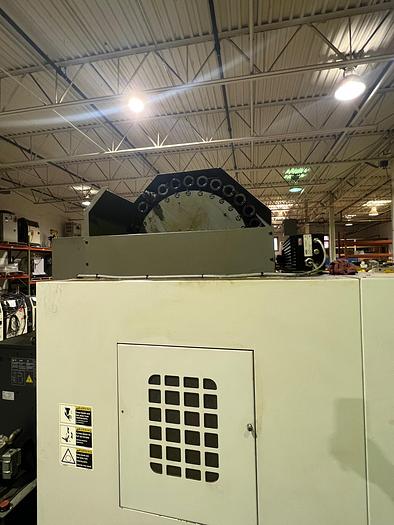

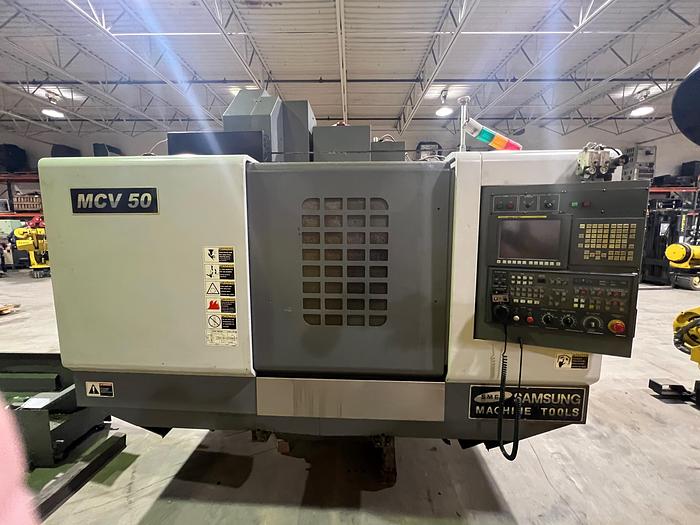

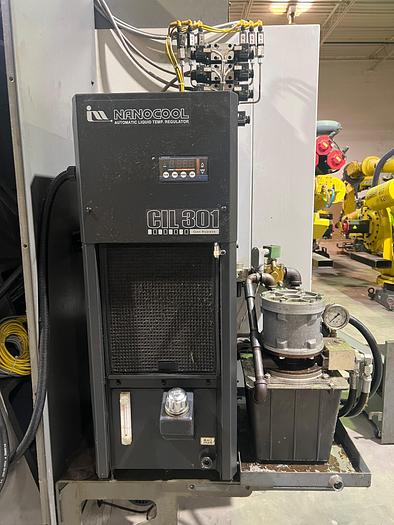

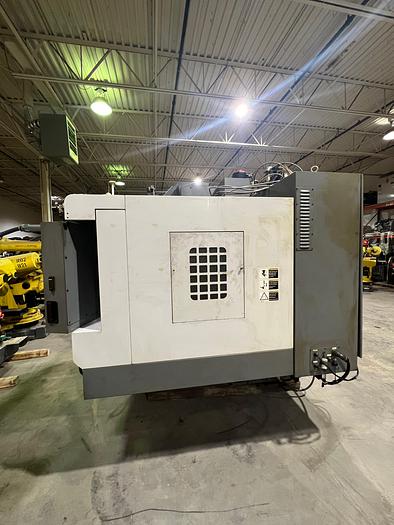

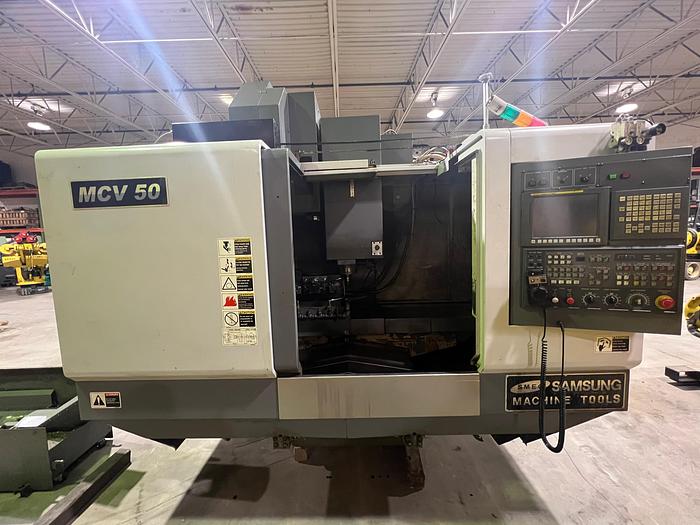

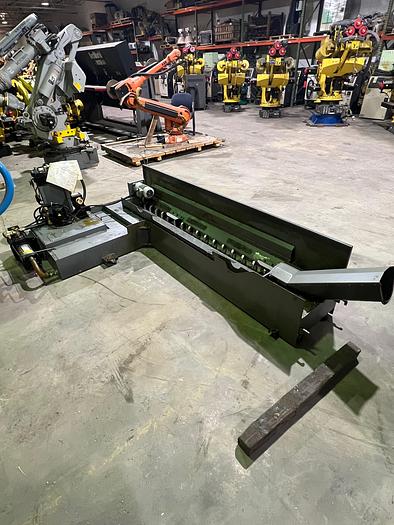

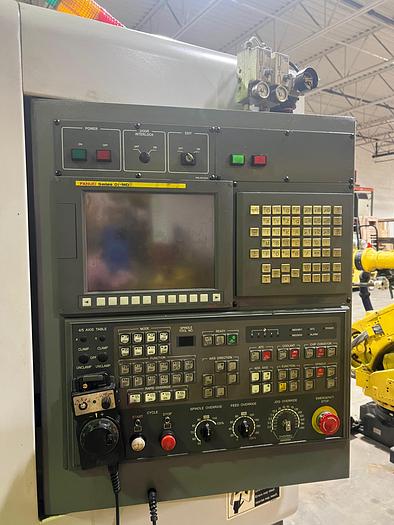

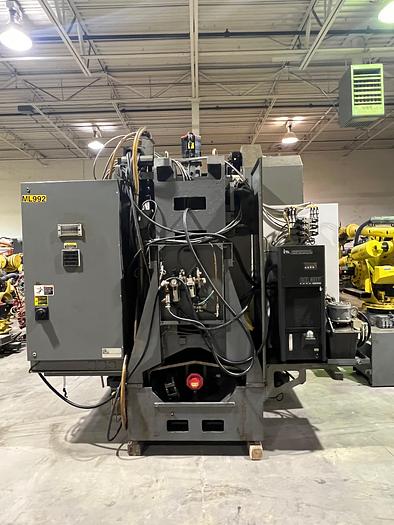

THE 2010 SAMSUNG MCV 50 IS A VERTICAL MACHINING CENTER EQUIPPED WITH A FANUC 0I-MD CONTROL SYSTEM. THIS THREE-AXIS MACHINE FEATURES A TABLE SIZE OF 36.22" X 19.69" WITH A MAXIMUM TABLE CAPACITY OF 1,322 POUNDS. ITS TRAVEL DIMENSIONS ARE 35.43" ON THE X-AXIS, 19.69" ON THE Y-AXIS, AND 20.08" ON THE Z-AXIS. RAPID TRAVERSE RATES REACH 1,417 IPM FOR THE X AND Y AXES AND 1,181 IPM FOR THE Z-AXIS. THE SPINDLE UTILIZES A CAT 40 TAPER, OPERATES AT SPEEDS UP TO 10,000 RPM, AND IS POWERED BY A 20 HP MAIN MOTOR. THE TOOL CHANGER HAS A CAPACITY FOR 30 TOOLS, AND THE SYSTEM INCLUDES COOLANT THROUGH THE SPINDLE CAPABILITIES. THE MACHINE'S PHYSICAL DIMENSIONS ARE 102" X 87" X 100" WITH A TOTAL WEIGHT OF 13,800 POUNDS. IT IS FURTHER EQUIPPED WITH A COOLANT PAN AND CHIP CONVEYOR.
Used Vertical Machining Center, 4th Axis and FANUC Oi-MD CNC Control, featuring a 12 KOMA rotary table and 20 H.P. spindle. include 12,000 RPM spindle speed and 30-capacity tool changer., Table size- 36.22 x 19.69, Max table load- 1,322 Lbs., X axis travel- 35.43, Y axis travel- 19.69, Z axis travel- 20.08, Rapids on ...more
Disclaimer: All and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all prior to purchase. Accessories shown are included only if listed on the invoice., Equipment is sold AS-IS, WHERE-IS. All sales are final., Key s of the Samsung MCV 50:, Fanuc Oi-MD CNC ...more
(subject to independent verification by the buyer), X-Axis Travel – 35.4 ", Y-Axis Travel – 19.68", Z-Axis Travel – 20.07”, Distance from table surface to spindle nose 26”, Distance from spindle center to column 24.5”, Table working surface – 36.22” x 19.68”, Table ...more
