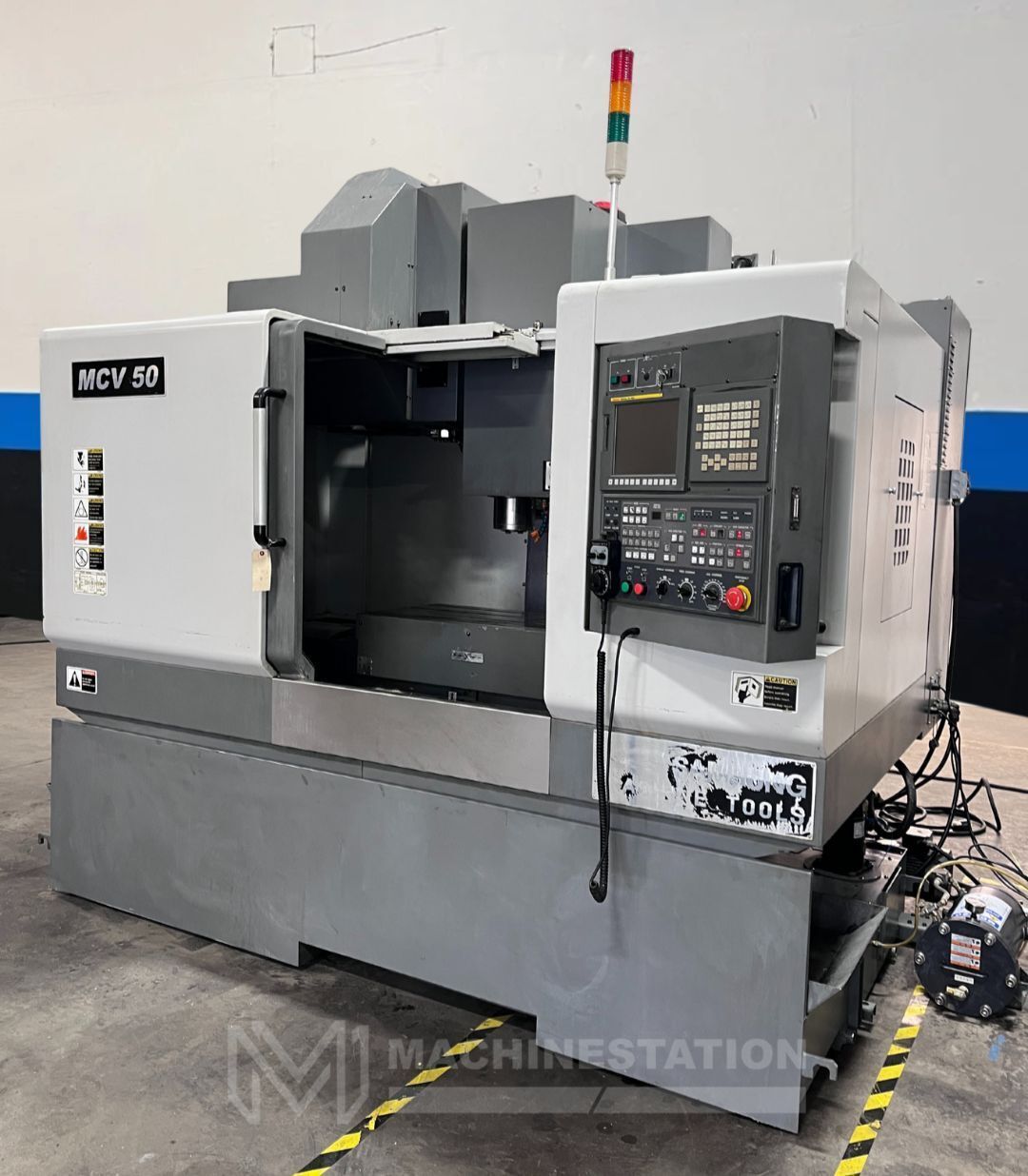

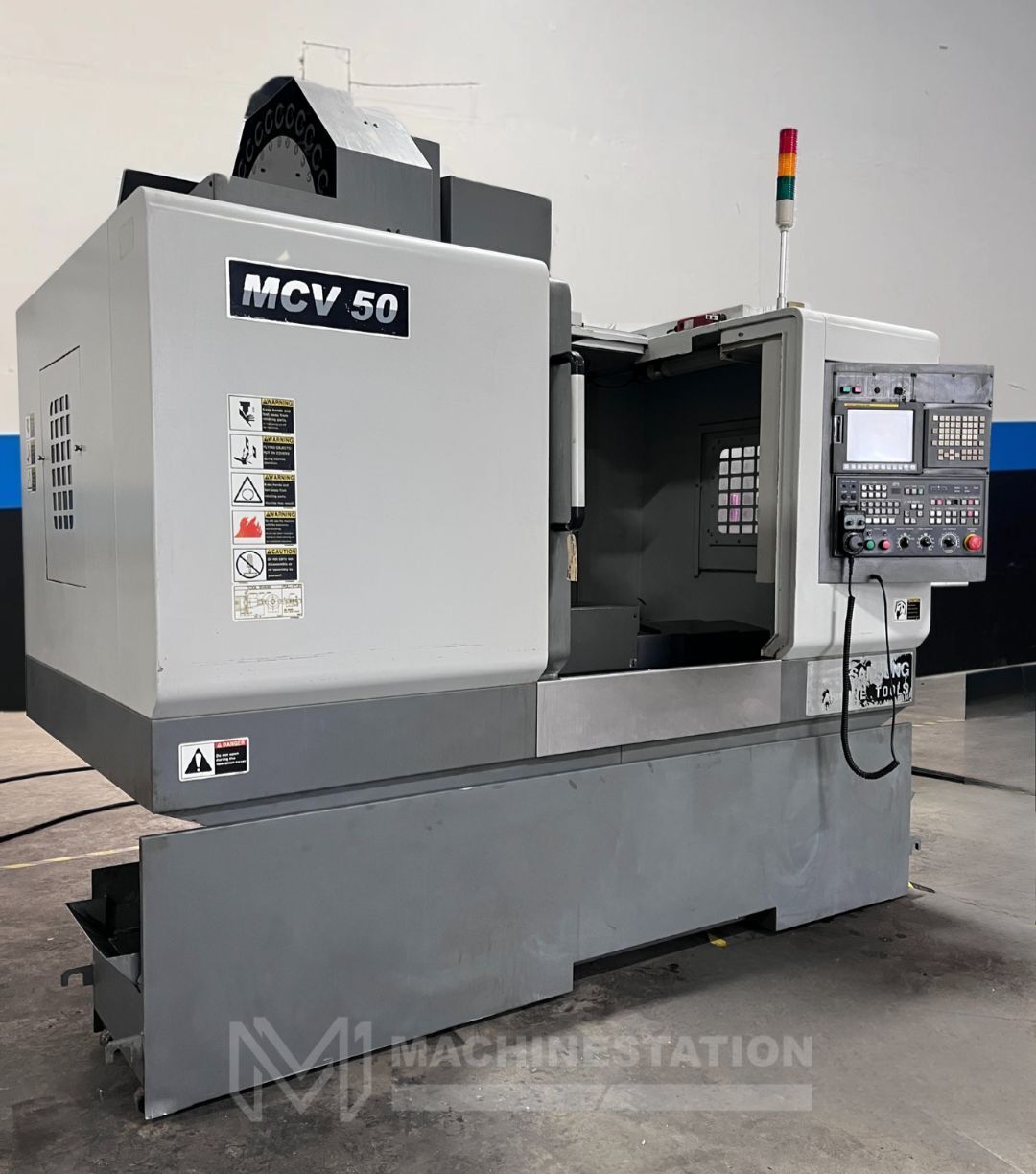

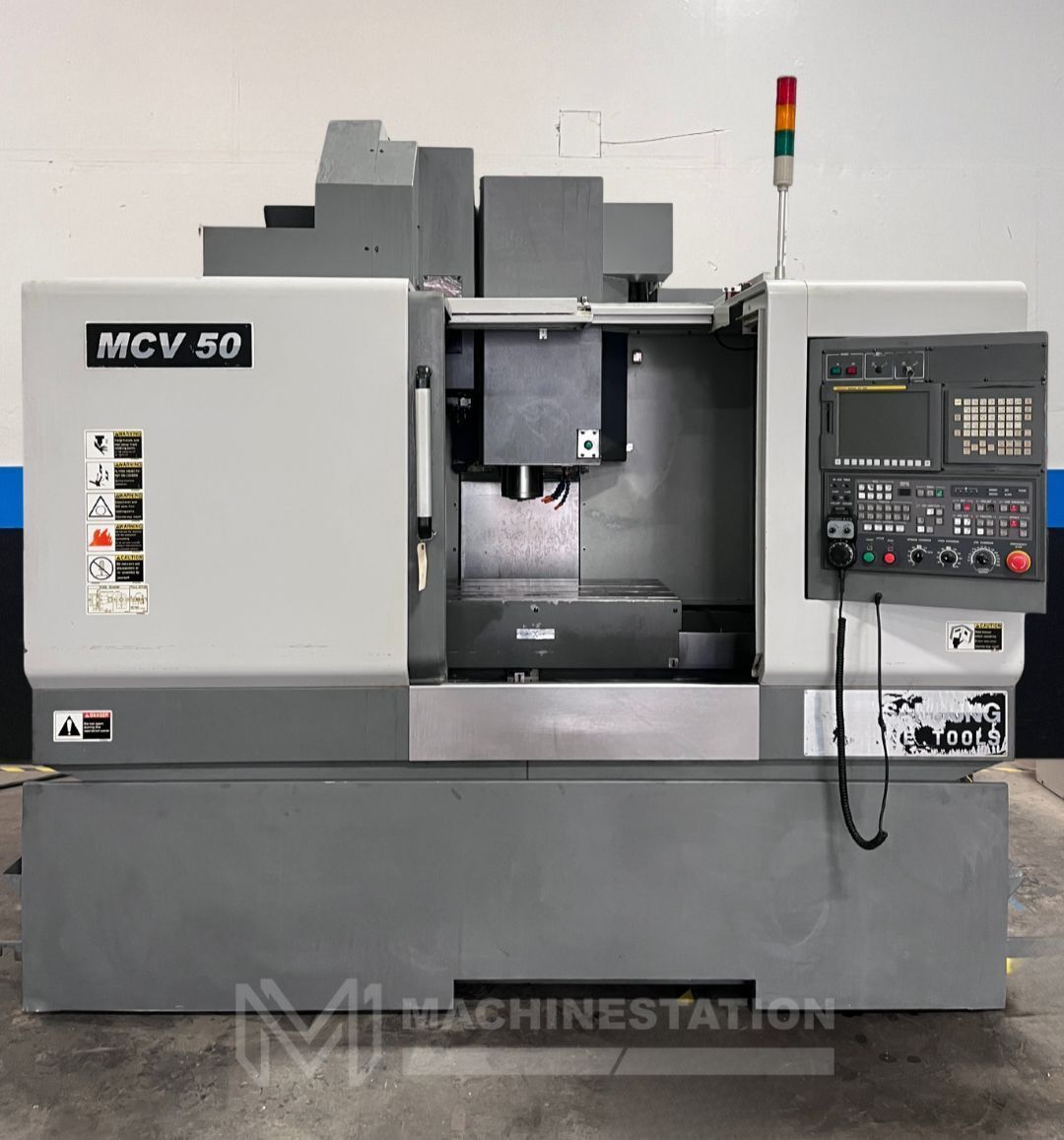

Samsung #MCV-50, CNC vertical machining center, 30 automatic tool changer, 35.4" X, 19.6" Y, 20" Z, 12000 RPM, #40, 20 HP, Fanuc Oi-MD, rigid tap, 290 psi thru spindle coolant, 2010

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Key Features of the Samsung MCV 50:

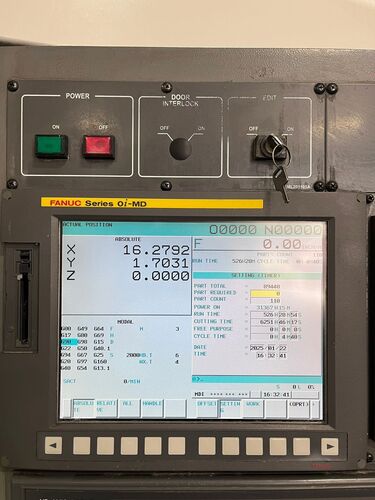

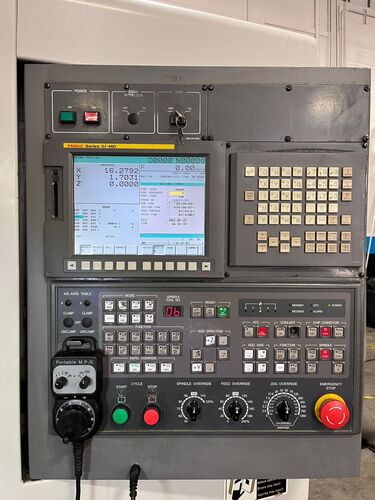

Fanuc Oi-MD CNC Control

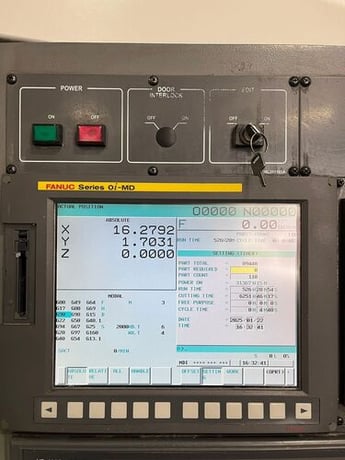

6,251 Hours Cutting Time
30 Station High-Speed Tool Changer
20 HP High Torque Spindle
1417 IPM Fast Rapid Traverse
Rigid Tapping
Spindle Orientation

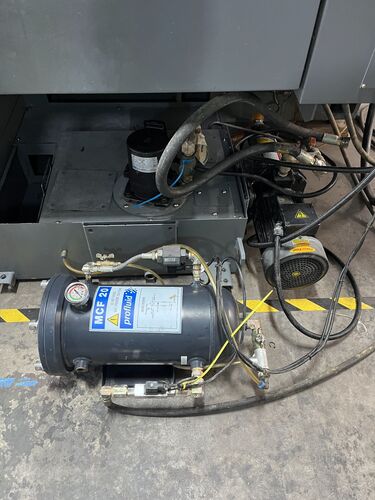

Coolant System
Travel:
X-Axis: 35.43"
Y-Axis: 19.69"
Z-Axis: 20.08"
Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute
Rapid Traverse Rates Z Axis: 1181 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.11" 25.19"

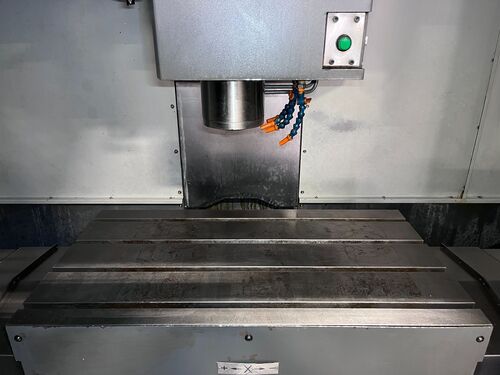

Table:
Length: 36.22"
Width: 19.69"
Number of Std T-Slots: 4
T-Slot Width: 5/8"
Max Weight on Table: 1322 lbs

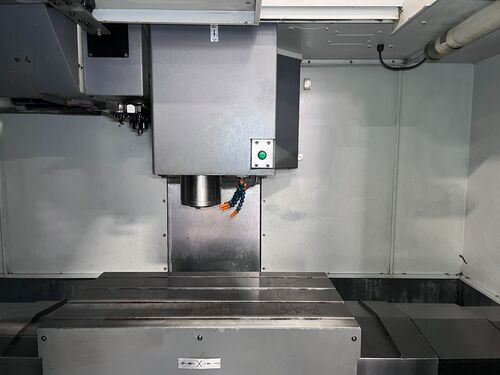

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 20 HP

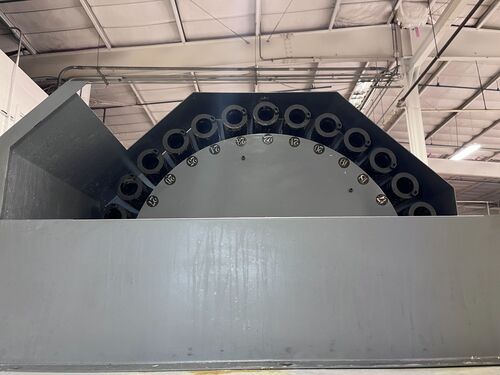

Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5" 5.0"
Max Tool Length: 11"
Tool Changing Time: Seconds
General:
Air Required: 80 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 102" x 87" x 100" High Approx.
Weight: 13,800 lbs Approx.
