S&C ELECTRIC PUREWAVE™ DSTATCOM SYSTEM

Complete 15 MVA Utility-Scale Dynamic Reactive Power Compensation System

Imagine your grid more stable, resilient, and future-ready.

This is an exceptional opportunity to acquire a complete 15 MVA utility-grade S&C Electric PureWave™ DSTATCOM (Dynamic Static Synchronous Compensator) system, consisting of two (2) factory-engineered 7.5 MVA containerized units removed from service in operational condition.

Engineered by S&C Electric Company, this is a utility-scale FACTS (Flexible AC Transmission System) solution designed to deliver instantaneous voltage regulation, dynamic reactive power compensation, power factor correction, harmonic filtering, flicker mitigation, and renewable energy grid stabilization.

As utilities continue to modernize their electrical infrastructure and renewable generation expands, DSTATCOM technology has become one of the most effective solutions for maintaining grid stability, improving power quality, increasing transmission capacity, and supporting rapidly changing electrical loads.

Whether you’re expanding renewable generation, constructing a new substation, upgrading transmission infrastructure, developing a battery energy storage project (BESS), powering a hyperscale data center, or improving industrial power quality, this complete OEM-engineered system provides a proven, utility-grade solution ready for its next installation.

Ideal End Users

• Electric Utilities
• Independent Power Producers (IPP)
• Renewable Energy Developers
• Wind Farms
• Solar Farms
• Battery Energy Storage Systems (BESS)
• Data Centers
• AI Computing Facilities
• Transmission & Distribution Utilities
• EPC Contractors
• Industrial Manufacturing Facilities
• Mining Operations
• Oil & Gas Facilities
• Steel Mills
• Large Commercial Campuses
• Municipal Power Authorities

⸻

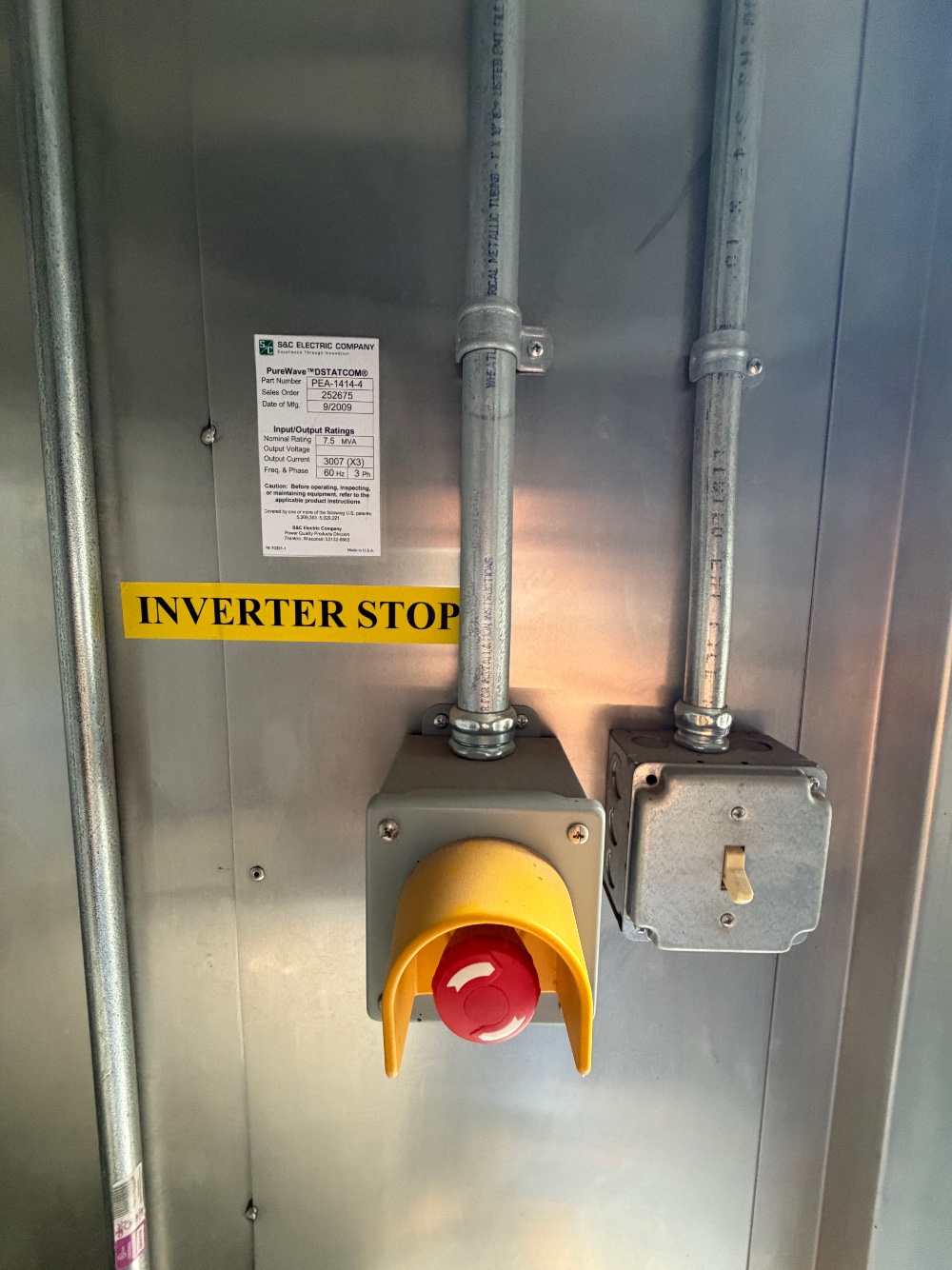

GENERAL INFORMATION

Manufacturer: S&C Electric Company

System: PureWave™ DSTATCOM

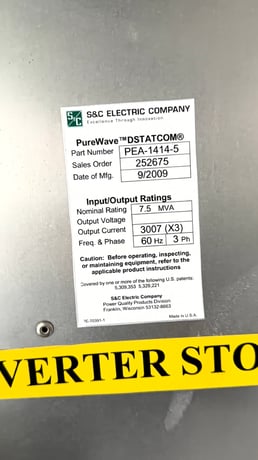

System Rating: 15 MVA Total

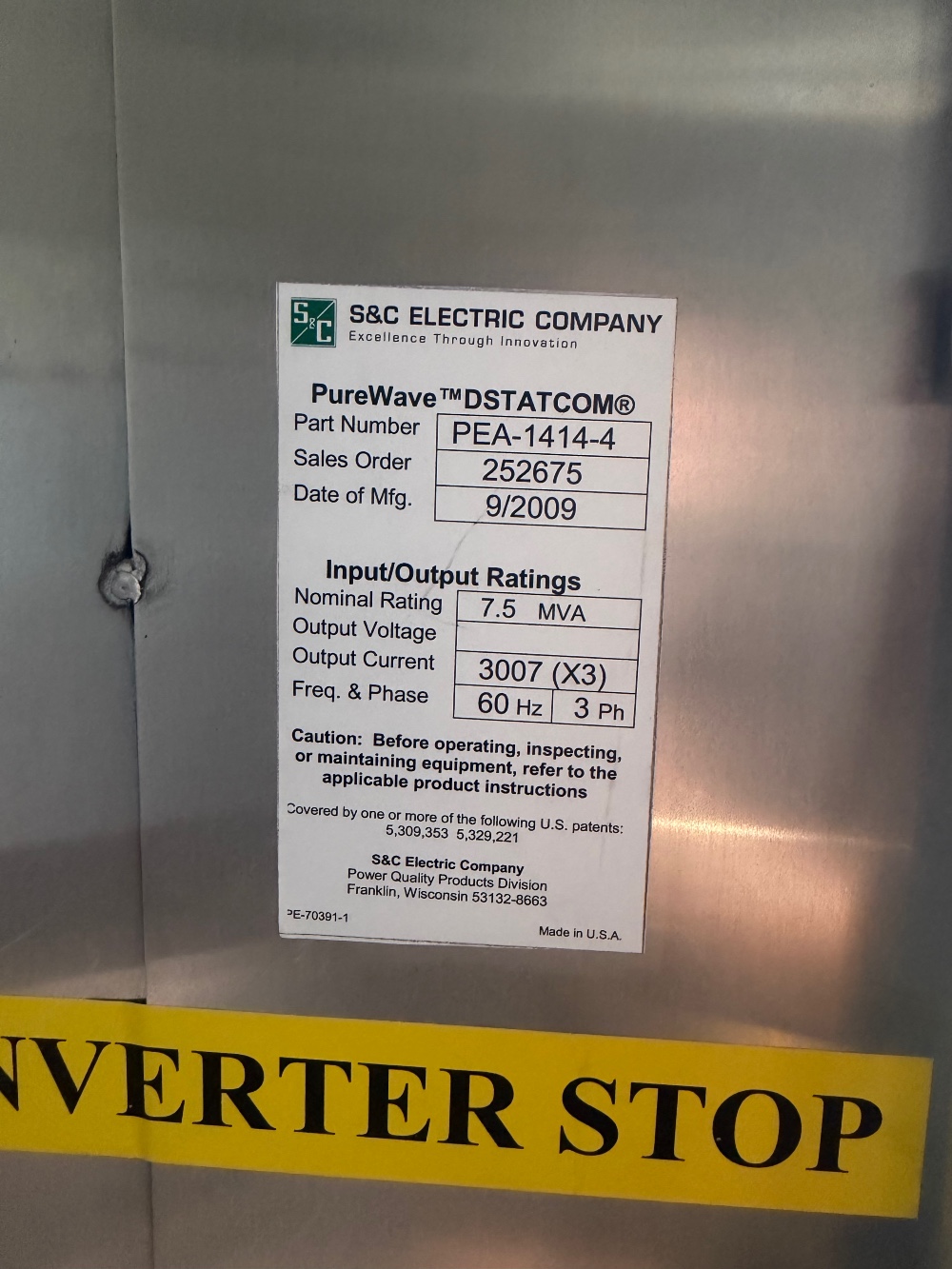

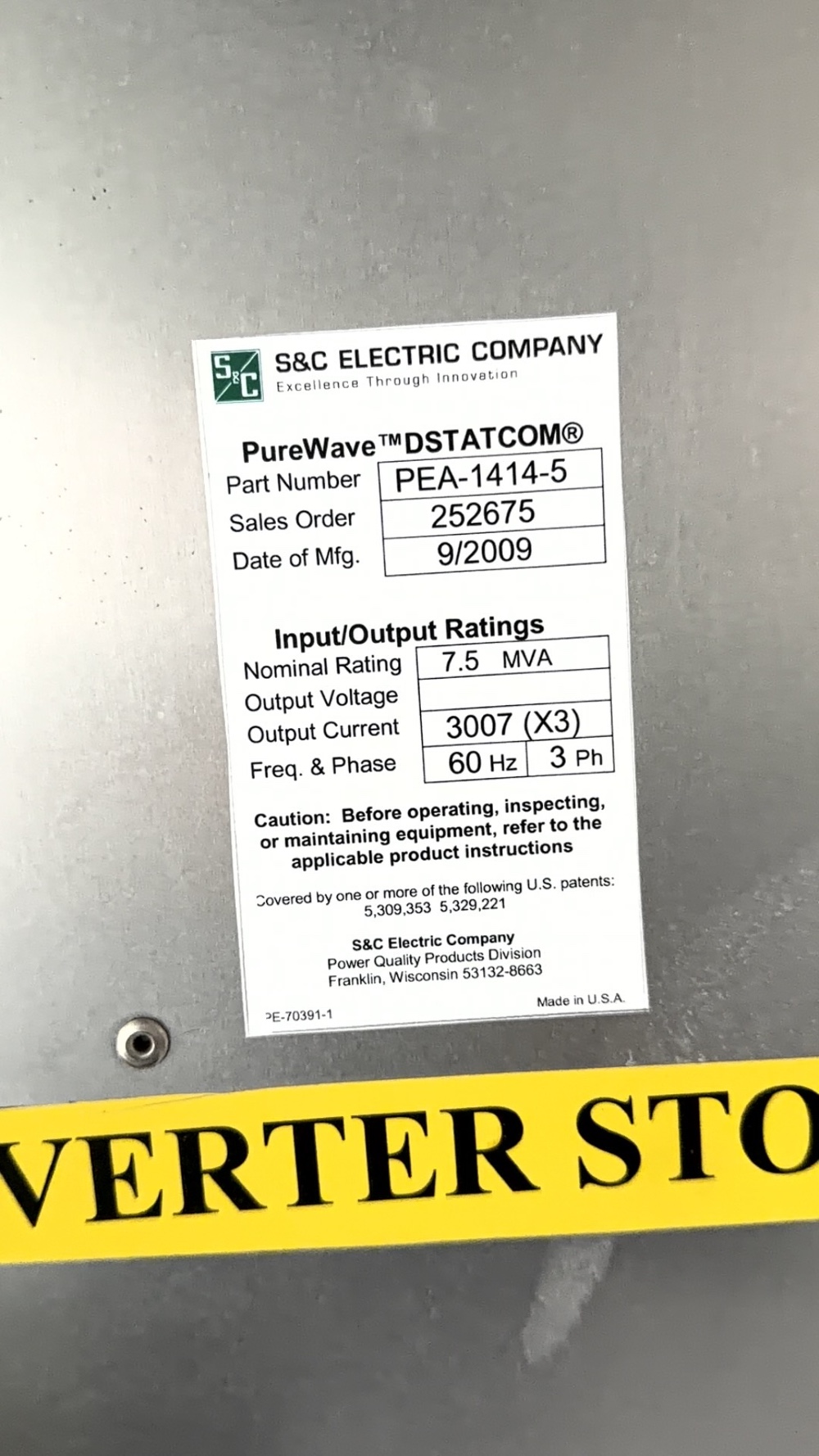

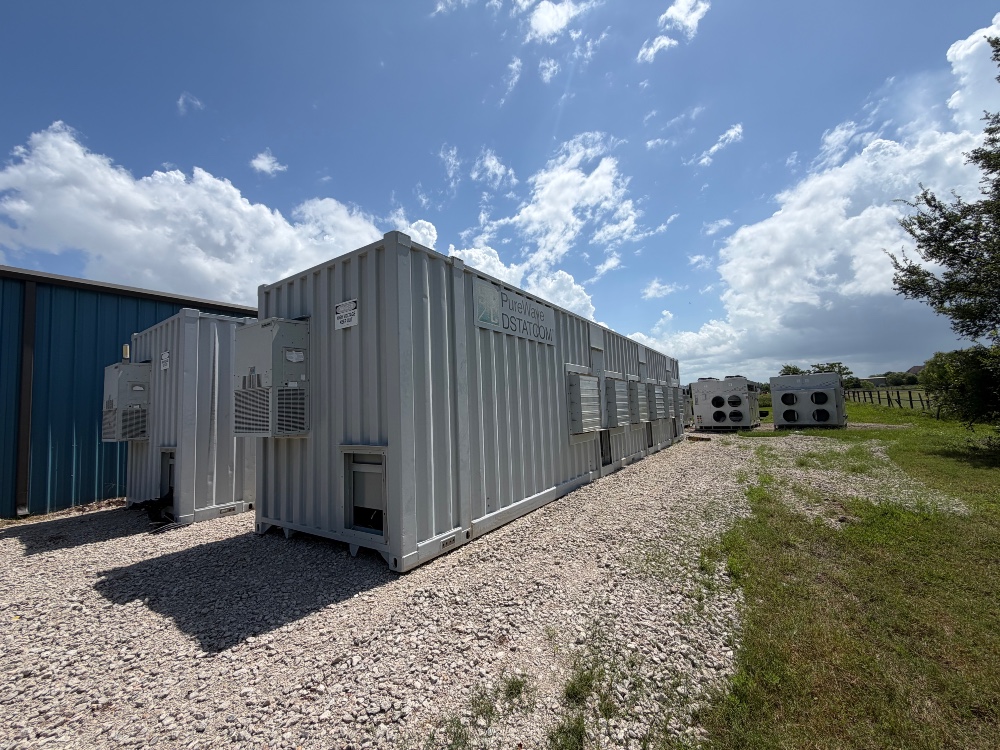

Configuration: Two (2) Factory Containerized 7.5 MVA Systems

Condition: Operational when removed from service

Installation Type: Outdoor Utility-Grade Package

Documentation Included:

• Complete Engineering Drawings
• Wiring Diagrams
• Electrical Schematics
• Technical Manuals
• OEM Documentation

⸻

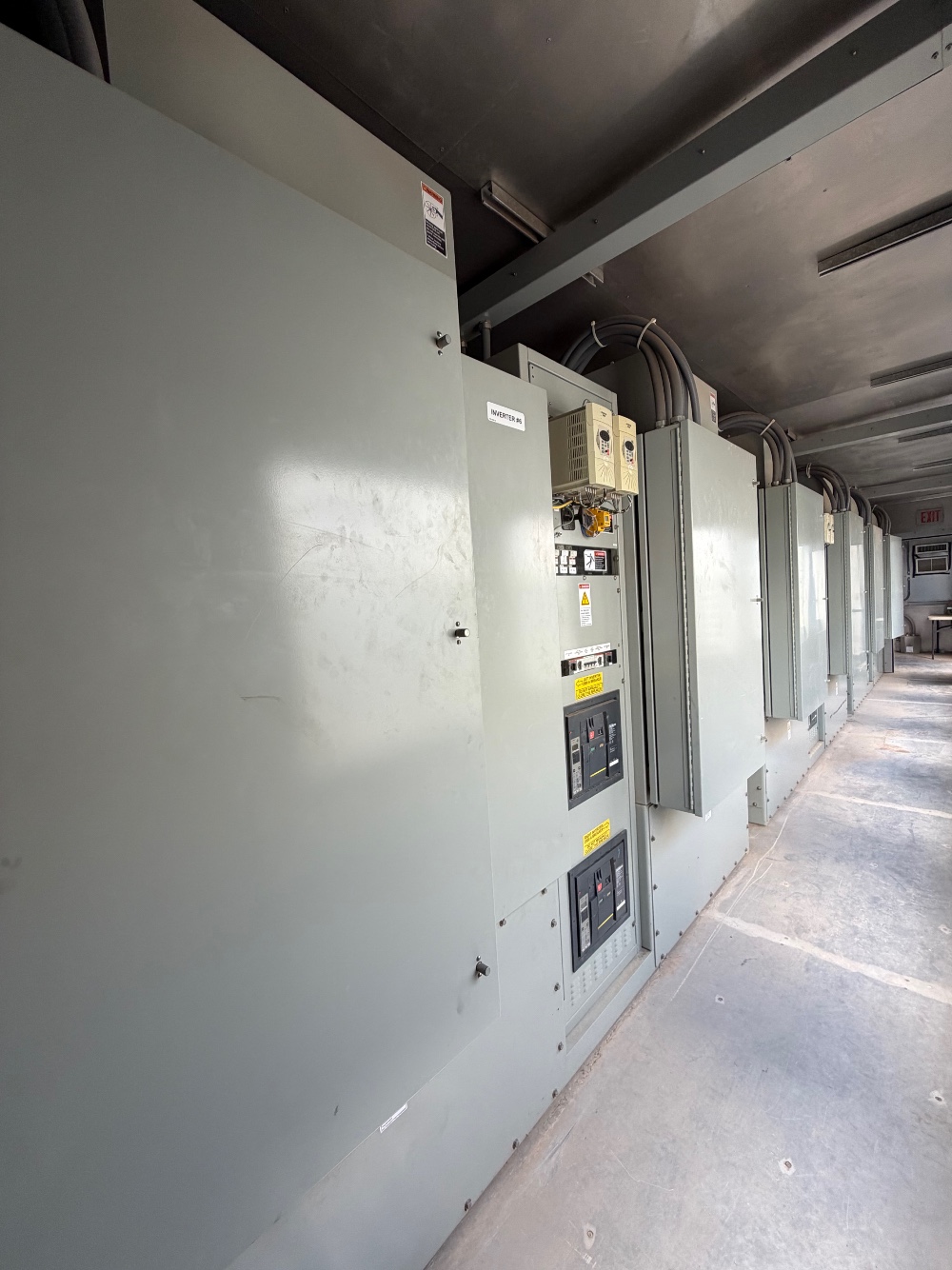

COMPLETE POWER CONVERSION PACKAGE

Each container includes:

• Six (6) High-Power Inverter Modules
• Factory Integrated AC Switchgear
• Heavy-Duty Copper Bus System
• Dynamic Reactive Power Compensation Equipment
• Harmonic Filter Banks
• Capacitor Banks
• Filter Capacitor Banks
• Inductor Banks
• Auxiliary Power Distribution
• Cooling & Ventilation Equipment
• Factory Cable Management
• Internal Service Power
• Complete Factory Wiring

⸻

PREMIUM LOW VOLTAGE POWER SWITCHGEAR

Each container is equipped with:

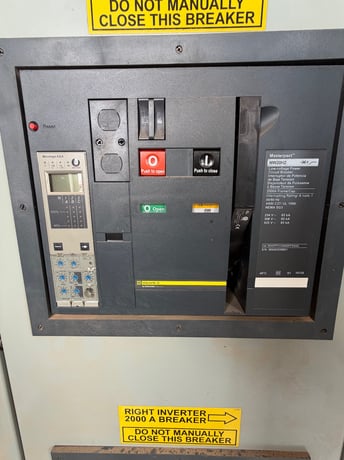

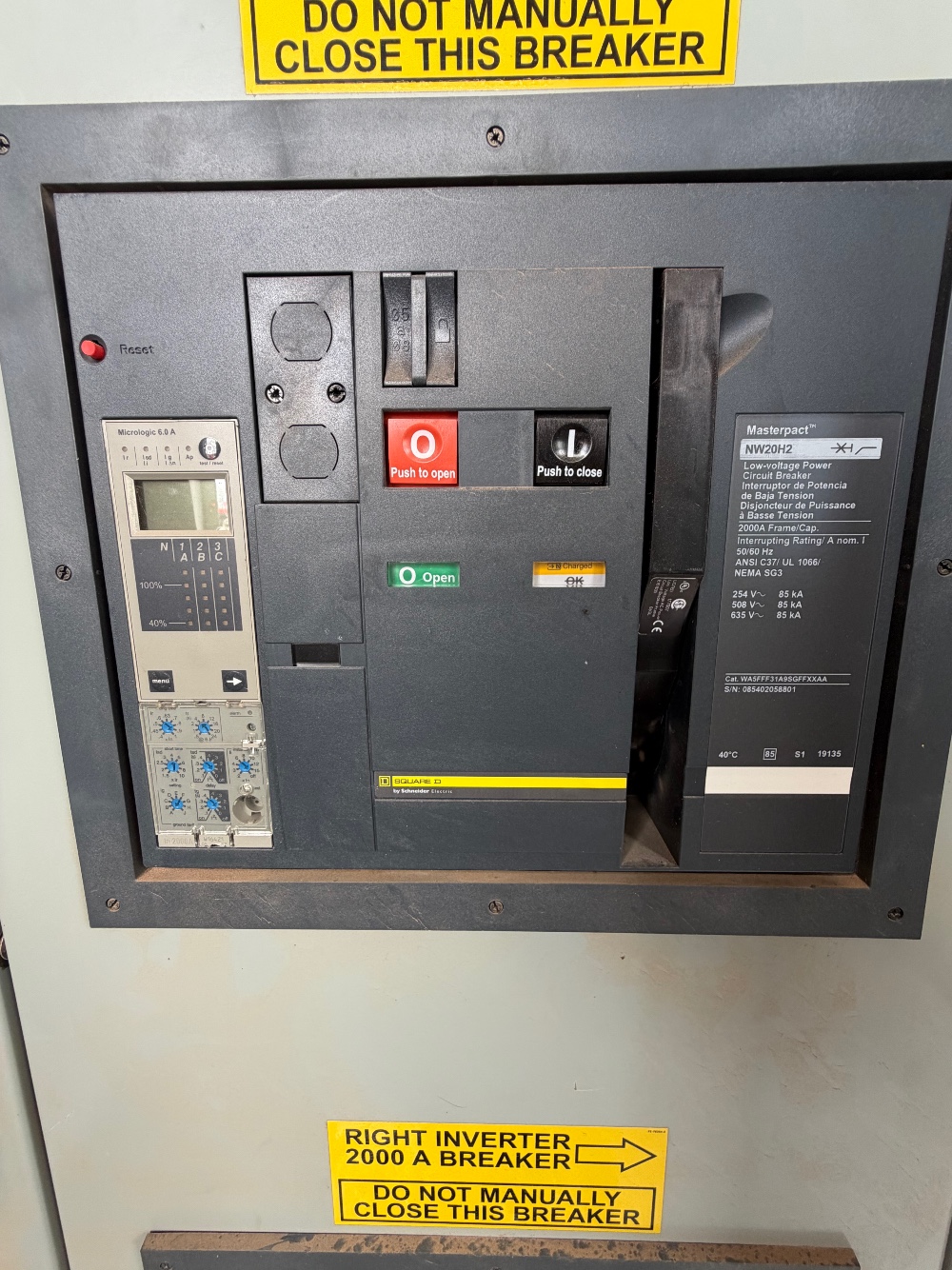

(6) Schneider Electric / Square D Masterpact™ NW20H2 Draw-Out Power Circuit Breakers

Specifications

• Manufacturer: Schneider Electric / Square D
• Product Series: Masterpact™
• Model: NW20H2
• Frame Size: 2000 Amps
• Draw-Out Construction
• Stored Energy Operating Mechanism
• Electrically Operated
• Push Button Open / Close Controls
• Spring Charged Mechanism
• Mechanical Position Indicators
• Electronic Trip Unit

Standards

• ANSI C37
• UL 1066
• NEMA SG3

Interrupting Ratings

• 254 VAC — 85 kA
• 508 VAC — 85 kA
• 635 VAC — 85 kA

Protection Functions

• Adjustable Long-Time Protection
• Short-Time Protection
• Instantaneous Protection
• Ground Fault Protection
• Utility-Grade Mission Critical Design

⸻

ADVANCED DIGITAL PROTECTION SYSTEM

Each container contains:

(6) SEL-751A Feeder Protection Relays

Installed within dedicated protection panels labeled SSDP1 through SSDP6.

SEL Relay Functions

• Phase Overcurrent Protection
• Ground Fault Protection
• Neutral Overcurrent Protection
• Negative Sequence Protection
• Breaker Failure Protection
• Over / Under Frequency Protection
• Oscillography
• Sequence of Events Recording
• Event Logging
• Digital Metering
• SCADA Communications
• Programmable Logic
• Utility Automation
• Local Operator Interface

⸻

POWER QUALITY & FILTER PROTECTION

Dedicated protection and control for:

• Capacitor Banks
• Filter Capacitor Banks
• Inductor Banks
• Harmonic Filtering Circuits
• Reactive Power Compensation Equipment
• Voltage Regulation Equipment

⸻

FACTORY AUTOMATION & CONTROL SYSTEM

Complete OEM automation package engineered by S&C Electric.

Includes:

• PLC-Based Automation
• Factory Control Cabinets
• Local & Remote Operation
• Automatic Operating Mode
• Manual Operating Mode
• Breaker Control
• Alarm Monitoring
• Equipment Diagnostics
• Factory HMI
• Utility Automation
• Integrated Protection Logic
• Real-Time System Monitoring

⸻

OEM CONTROL ELECTRONICS

Factory-installed S&C Electric proprietary electronics including:

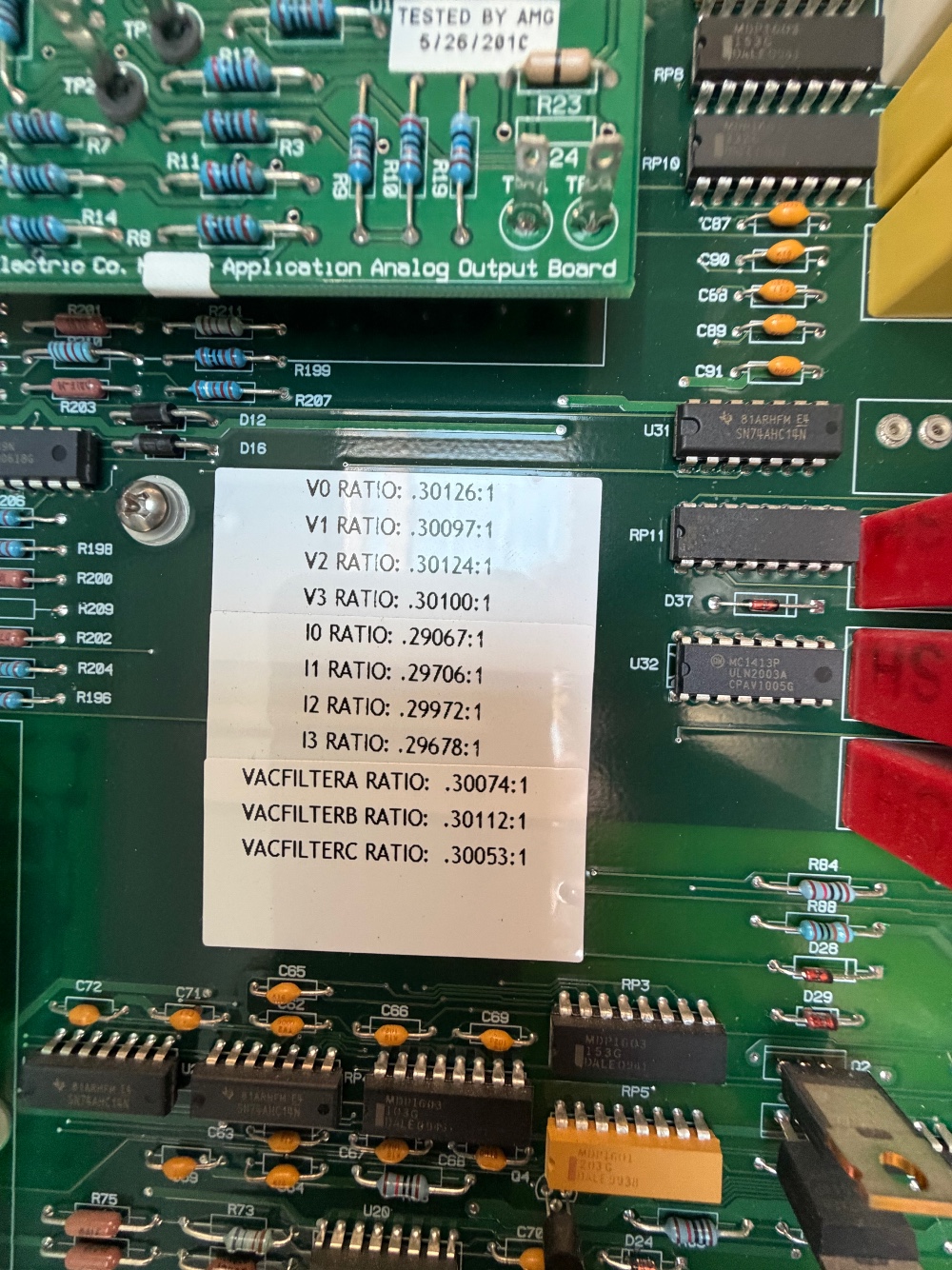

• S&C Electric Master Application Boards
• Factory OEM Control Boards
• Digital Processing Hardware
• I/O Rack Assemblies
• Power Electronics Interface Boards
• Factory Automation Modules
• Integrated Signal Processing
• Factory Certified Control Electronics
• Utility-Grade Digital Controls

These systems coordinate inverter operation, capacitor switching, harmonic filtering, protective functions, communications, and overall DSTATCOM performance.

⸻

INDUSTRIAL COMMUNICATIONS SYSTEM

Factory-installed communications include:

GarrettCom DYMEC 5844 Link / Repeater

Features:

• RS-232 Industrial Communications
• Utility SCADA Integration
• Long Distance Communications
• EMI Resistant Design
• Industrial Networking
• Remote Monitoring Capability
• Utility Automation Communications

⸻

INDUSTRIAL I/O SYSTEM

Automation package includes:

• Dedicated I/O Rack Assemblies
• Industrial Input / Output Modules
• Relay Interface Modules
• High-Speed Digital Processing
• Factory Wiring Harnesses
• Modular Automation Architecture
• Industrial Signal Processing

⸻

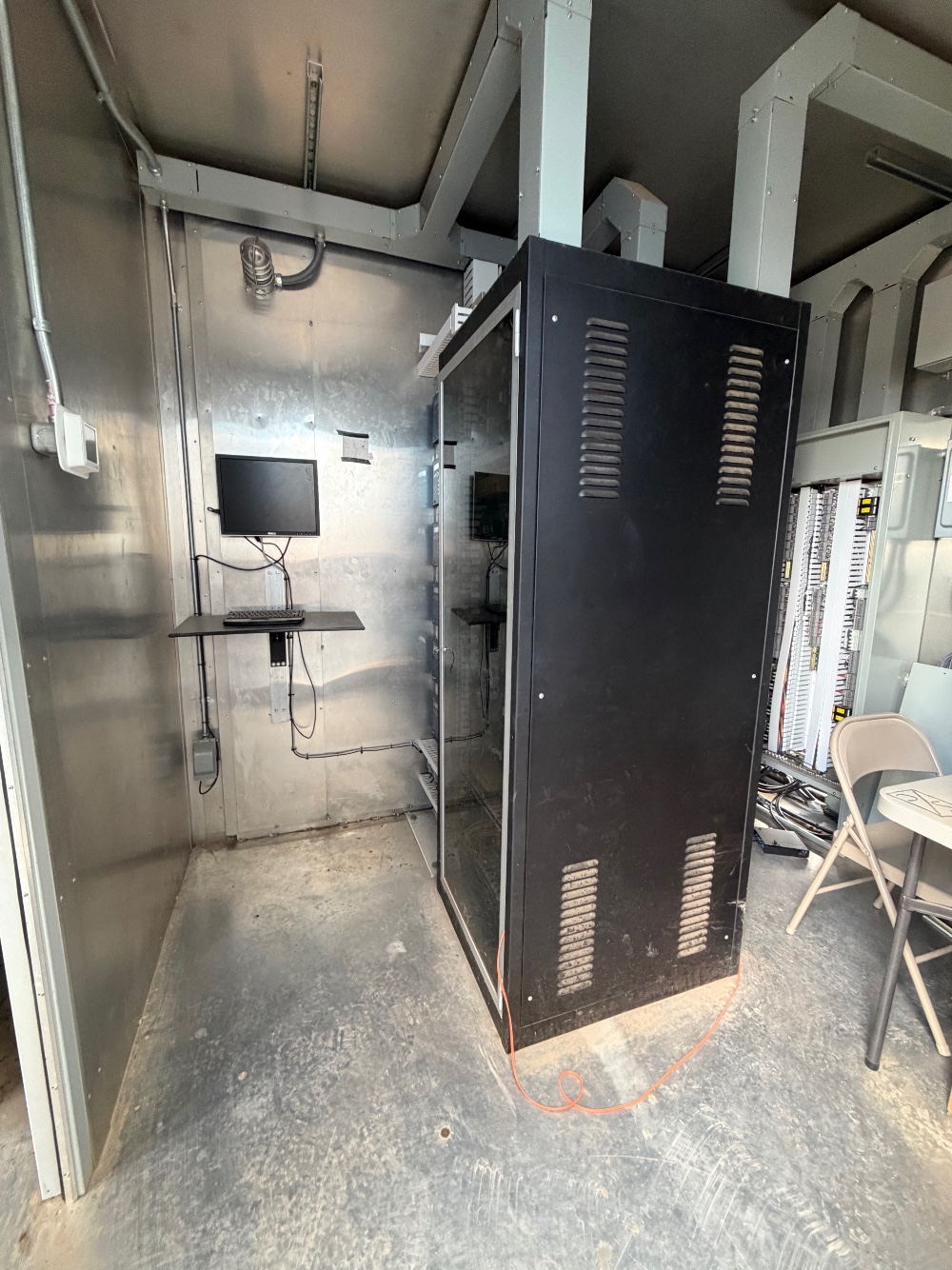

PREMIUM CONTROL ROOM

Dedicated operator room includes:

• Industrial Dell Operator Workstation
• Flat Panel Operator Display
• Keyboard & HMI Interface
• Local System Control
• Engineering Access
• Alarm Monitoring
• Diagnostics
• Configuration Interface
• Utility Control Console

⸻

VARIABLE FREQUENCY DRIVE SYSTEM

Each inverter cabinet includes:

AutomationDirect GS2 Variable Frequency Drives

Specifications

• 5 HP
• 460 Volt
• Three Phase
• Digital Programming Interface
• Adjustable Speed Control
• Electronic Motor Protection
• Diagnostic Display
• Industrial Duty Design

Used for precision control of auxiliary motors, cooling fans, and ventilation equipment.

⸻

HIGH-SPEED SEMICONDUCTOR PROTECTION

Each inverter is protected with:

Mersen (Ferraz Shawmut) UltraSafe™ Fuse System

Including:

• Ultra-Fast Semiconductor Protection
• High Interrupting Capacity
• Touch Safe Fuse Holders
• Individual Inverter Protection
• High-Speed IGBT Protection
• Industrial Service Design

Additional Bussmann Class J fuse holders and industrial fused disconnects are installed throughout the control cabinets for auxiliary circuit protection.

⸻

INSULATION MONITORING SYSTEM

Each inverter cabinet includes:

Bender LINETRAXX® CME420

Providing:

• Continuous Insulation Monitoring
• Ground Fault Detection
• Alarm Outputs
• Digital Monitoring
• Preventative Maintenance Diagnostics
• Increased Equipment Reliability
• Utility Grade Electrical Safety

⸻

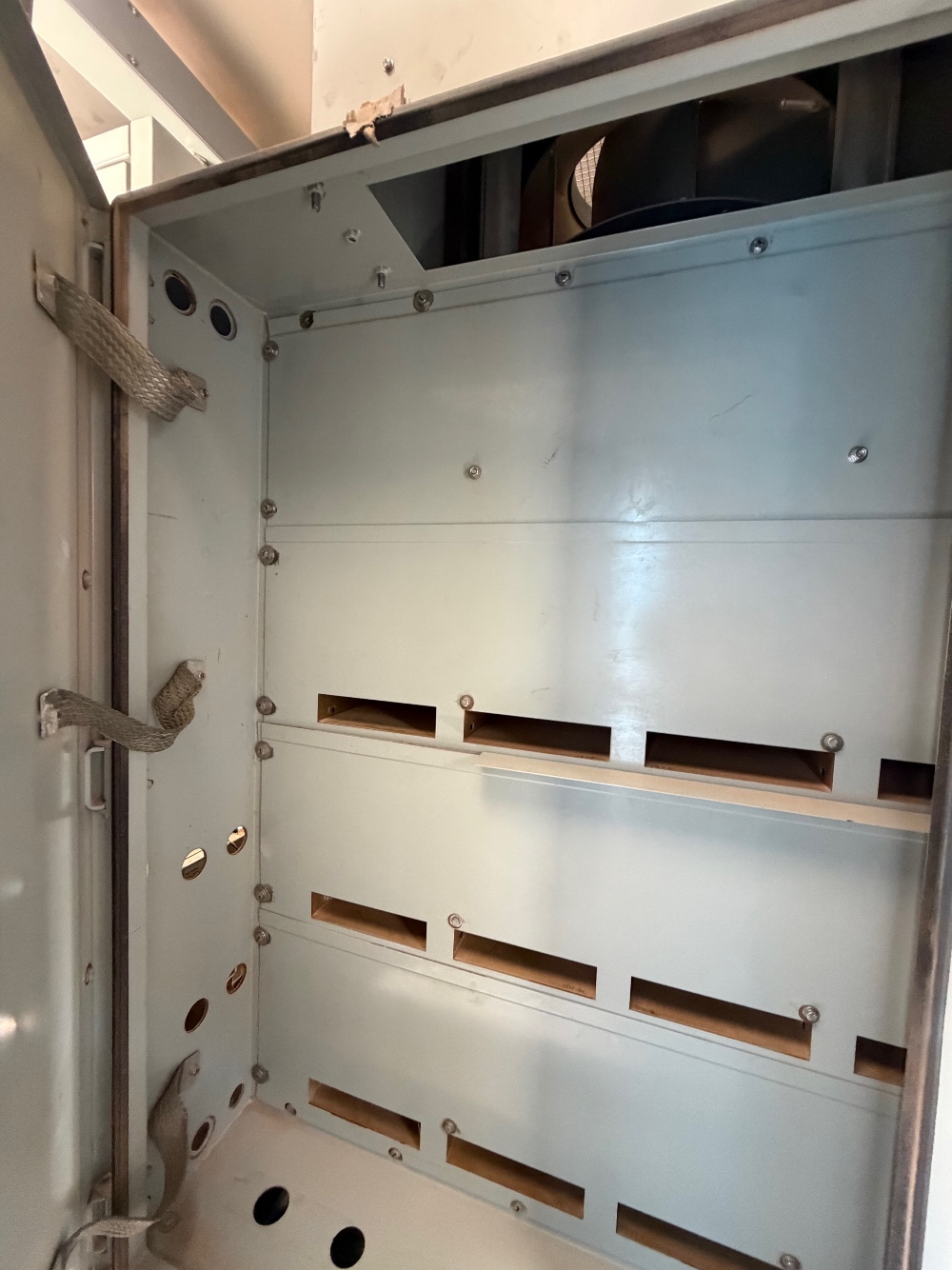

INDUSTRIAL CONTROL CABINETS

Factory-built control cabinets contain:

• Industrial Terminal Blocks
• DIN Rail Mounted Components
• Factory Wire Management
• Modular Control Assemblies
• Schneider Electric Miniature Circuit Breakers
• ABB Distribution Components
• Bussmann Fuse Holders
• Industrial Relay Sockets
• Low Voltage Control Distribution
• Factory Labeled Field Wiring
• Expandable Utility Architecture

⸻

INTEGRATED HVAC & ENVIRONMENTAL CONTROL

Each container is equipped with a factory-installed commercial HVAC system manufactured by Bard Manufacturing Company, designed specifically for utility control buildings and electrical equipment enclosures.

HVAC Specifications

• Bard Manufacturing Company
• Commercial Packaged Wall-Mount HVAC
• 230/208 VAC
• 60 Hz
• Single Phase
• R-410A Refrigerant
• Factory Refrigerant Charge: 56 oz.
• Factory Electric Heater Package
• Outdoor-Rated Commercial Construction

Maintains proper operating temperatures for:

• Inverter Modules
• Protection Relays
• PLC Hardware
• Communications Equipment
• Control Electronics
• Operator Workstation
• SCADA Hardware
• Power Electronics
• Automation Equipment

The integrated HVAC system ensures maximum equipment reliability and extended service life under demanding utility operating conditions.

⸻
