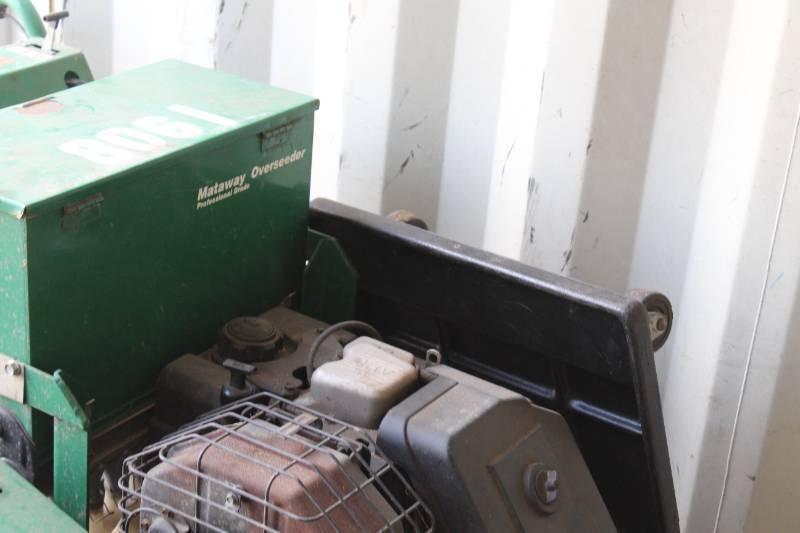

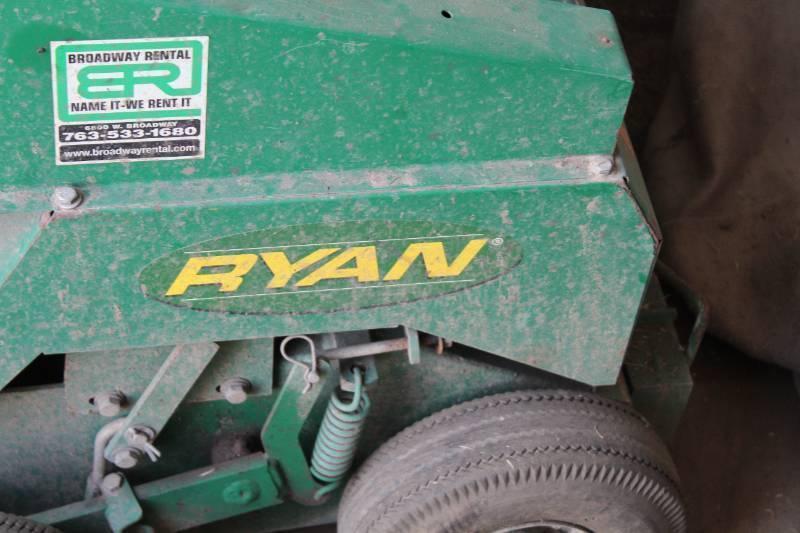

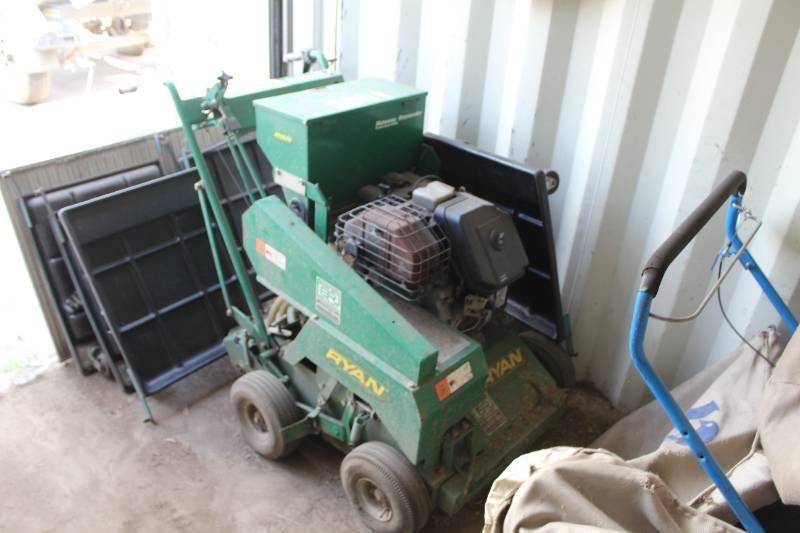

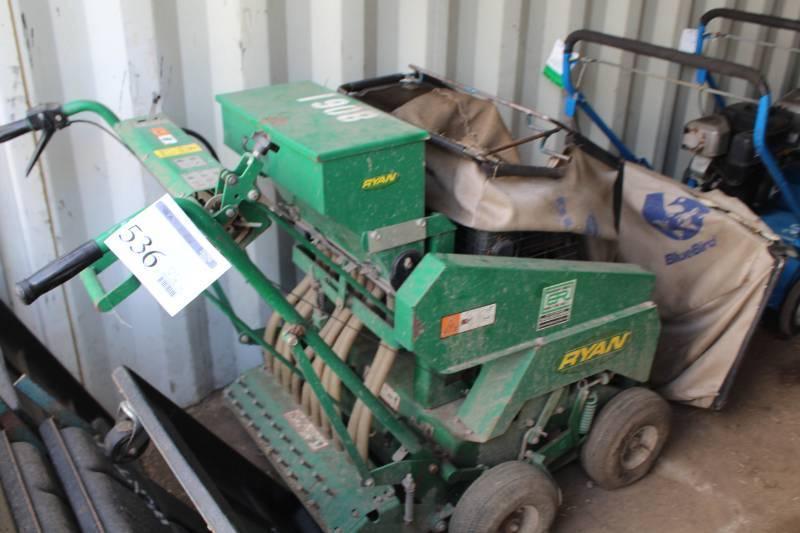

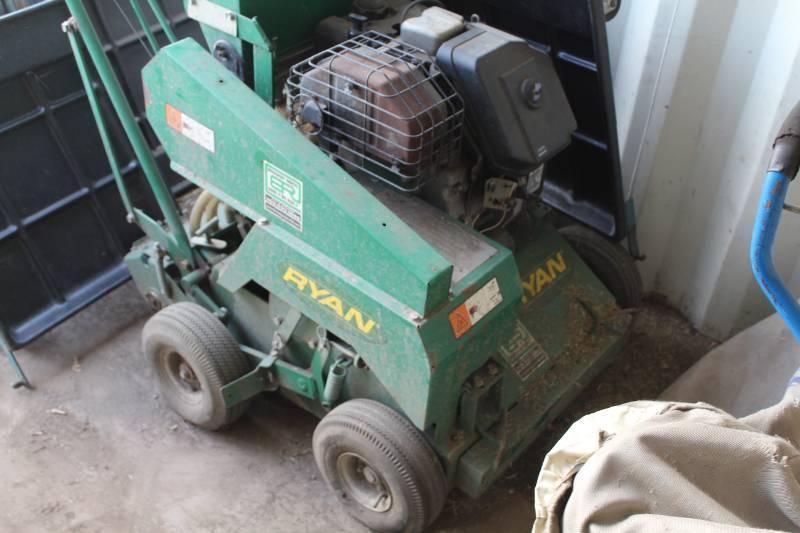

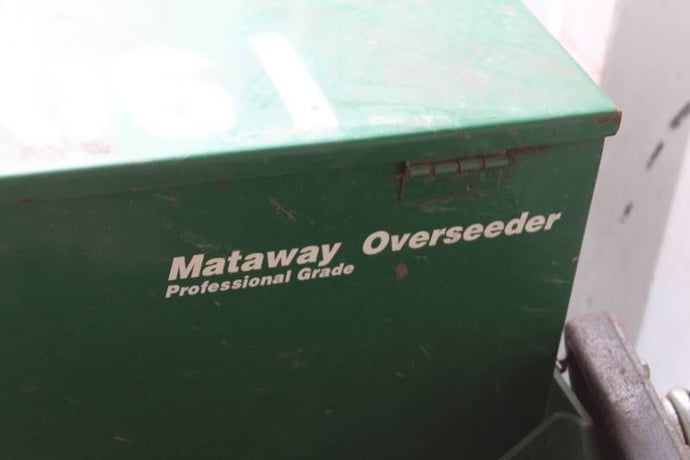

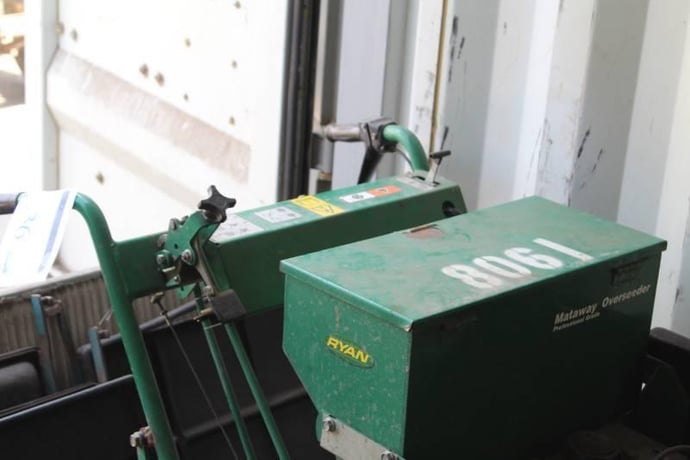

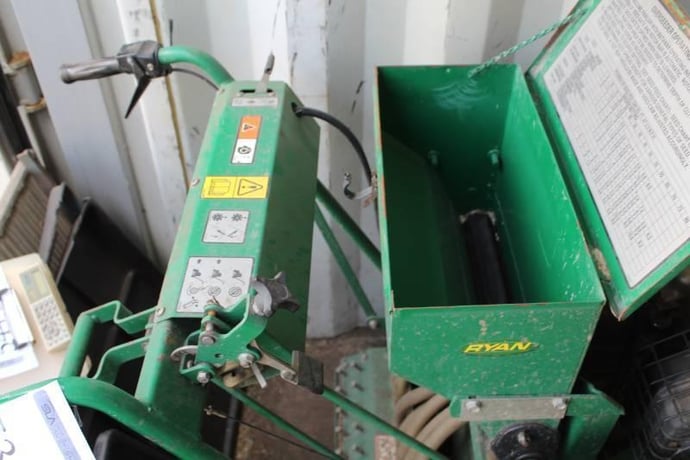

Ryan Mataway Professional Grade Overseeder

Specifications:
HONDA® Engine Model: • 4-cycle Honda® GX390 • Recoil start • On/off switch • Low-oil alert
Displacement: 23.7 cu in. (389 cc)
Fuel Capacity: 1.6 gal (6.1 L)
Oil Capacity: 1.16 qt (1.1 L)
Clutch: Spring-loaded belt tightener
Drive: • 4L-section V-belt to front wheels by gear box and sealed roller chain • Triple 3V-section V-belts engine to reel
Tires: • Front: (2) 4.10/3.50 x 4, 2-ply pneumatic, knob tread • Rear: (2) 4.10/3.50 x 4, 2-ply pneumatic, sawtooth tread
Operating Width: 19 in. (483 mm)
Cutting Depth: Seeding and Fixed Blades Up to 0.25 in. (6 mm) below ground
Blade Adjustment: Micrometer screw; adjustable up to 1.25" (32 mm) for blade wear
Seeding Blade: (10) 8-point, high carbon, heat treated blades, 2 in. (51 mm) spacing
Flail Blade Type: Hardened, high-carbon steel blades: 1/8 in. (3 mm) at 1 in. (25 mm) spacing Fixed Blade Type Hardened, high-carbon steel blades: • 1/32 in. (1 mm) at 1/2 in. (13 mm) spacing • 1/32 in. (1 mm) at 1 in. (25 mm) spacing • 1/16 in. (2 mm) at 1 in. (25 mm) spacing • 1/16 in. (2 mm) at 1 1/2 in. (38 mm) spacing
Weight: Wet 453 lb (205 kg) w/o reel
Width: 35.5 in. (902 mm)
Length: 50 in. (1,270 mm)
Height: 44 in. (1,118 mm)
Lubrication: Oil splash in gear case, grease fittings elsewhere
Productivity: • Single Pass: 80%; 18,700 sq ft/hr • Double Pass: 80%; 9,400 sq ft/h
