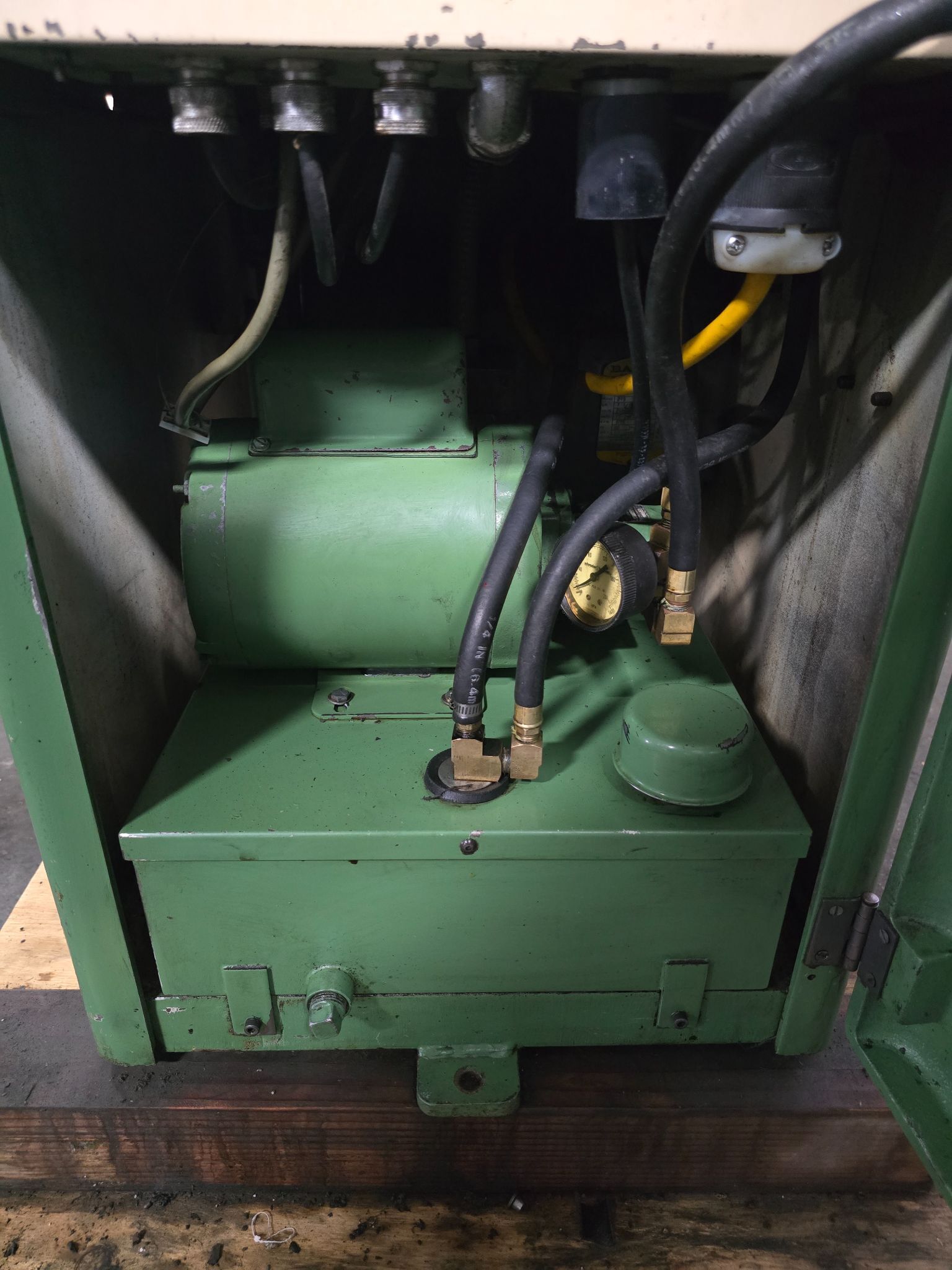

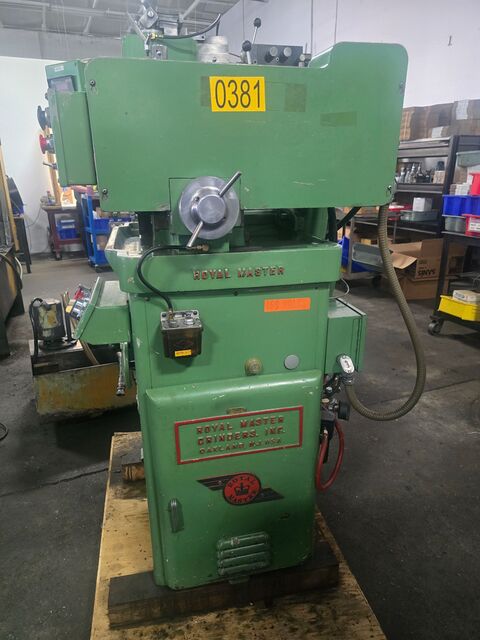

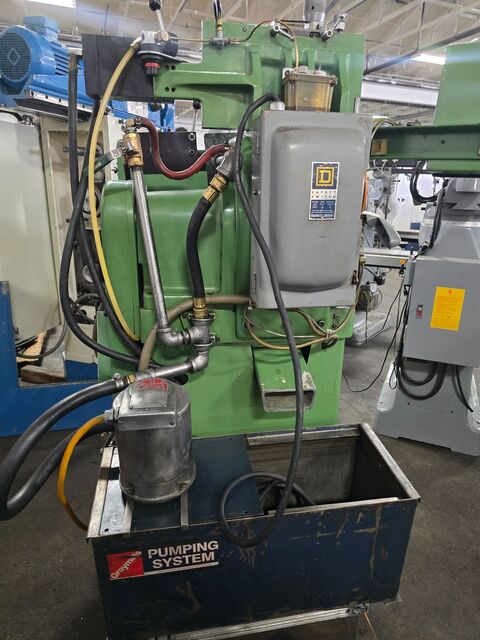

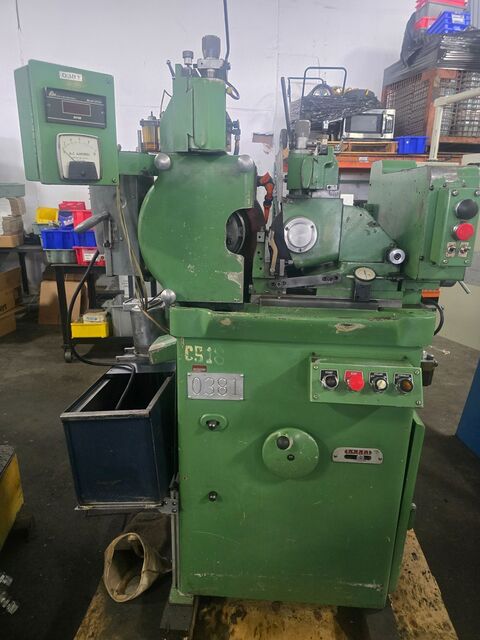

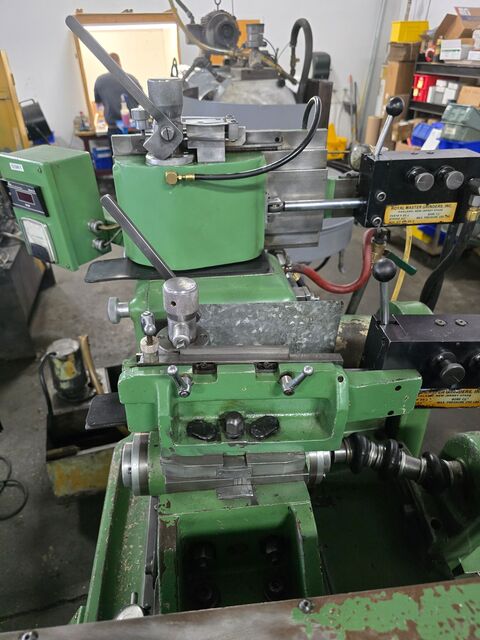

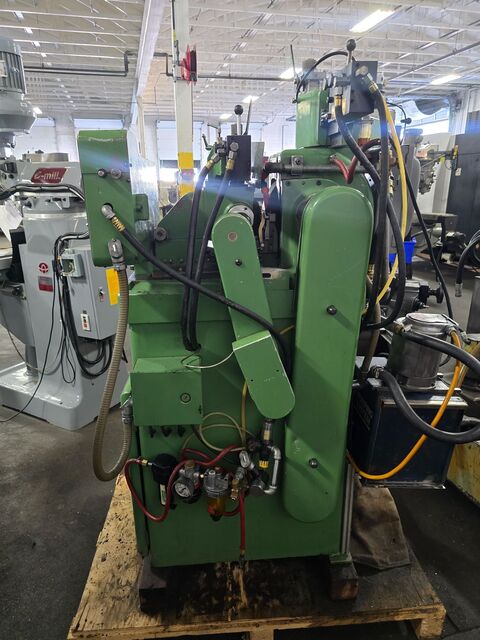

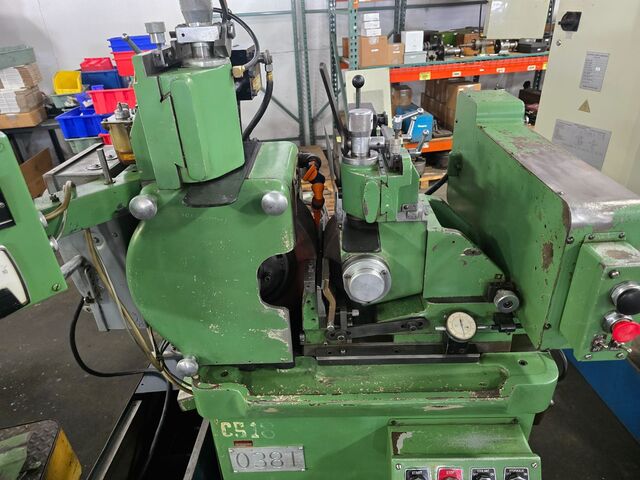

Description: Royal Master TG-12X4 Centerless Grinder for sale in used condition. Features a 1.5" capacity, 12" grinding wheel, 7.5 hp power, and 2,040 RPM. Equipped with a coolant tank and versatile spindle speeds. Ideal for precision grinding tasks. Spec Sheet: Royal Master TG-12X4 Centerless Grinder STANDARD SPECIFICATIONS CAPACITY In feed. 0.004 to 1.5 dia Thru feed. 0.004 to 1.5 dia Length.... 12 ft on .5 dia WHEELS Grinding Wheel (max)....12 dia x 4 wide Grinding Wheel (min) 10 dia x wide Regulating Wheel (max).... 6 dia x 4 wide Regulating Wheel (min). wide with spool SPINDLE SPEEDS Grinding Wheel.. 2,040 RPM (constant) Regulating Wheel... 25 to 480 RPM (varies) COOLANT EQUIPMENT Coolant Tank (3 stage).. 40 gallons DIAMOND TOOLS Wheel. 10 dia (min) Work Wheel Dresser.. 1 ct. Part# TG 199 105 Regulating Wheel Dresser.. 1/3 ct. Part# TG 222 50 FLOOR SPACE.24x 48 WEIGHT Approximate Weight. 2,000 lbs. MOTOR Main Drive...7.5 HP, 1,725 RPM, double end spindle Coolant Pump...1/6 HP, 3,450 RPM, 12 gal. per min. at 5 PSI Hydraulic Pump HP, 1,725 RPM, .5 gal. per min.at 150 PSI Hydraulic Tank 3 to 3 gallons of Mobil DTE-24 Wired 460V 3 Phase EQUIPMENT FEATURES In feed work rest. Thru feed work rest. Coolant tank pump. Specifications are deemed accurate, however, subject to verification or prior sale.

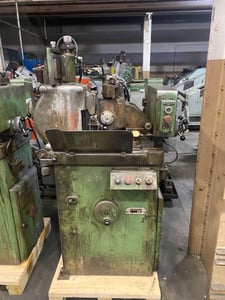

Part Diameter Range.002"-1 1/2" (infeed & thrufeed) Grinding Wheel 12" x 4" Regulating Wheel 6" x 4" Electrics AC Motor and Controls Weight 2500 Lbs., Coolant.
The Royal Master TG12x4 Centerless Grinder with Auto Cycle Option is a used precision grinding machine manufactured in 2000, currently located in New Jersey. This compact and efficient centerless grinder is ideal for high-precision applications in industries such as medical, aerospace, and electronics. an auto cycle ...more
ROYAL MASTER MODEL TG12X4 CENTERLESS GRINDER WITH AUTOMATIC CYCLE OPTION, Serial No. 2861 New 2007, Motor Drive with 10 HP AC Motor & Controls, Thru Feed Grinding, New Servo Drives Recently Installed, Thru Feed Work Rest, Coolant Filtration System, Auto Lube System. : : Capacity: 0.004"- 1 1/2" Grinding Wheel ...more
