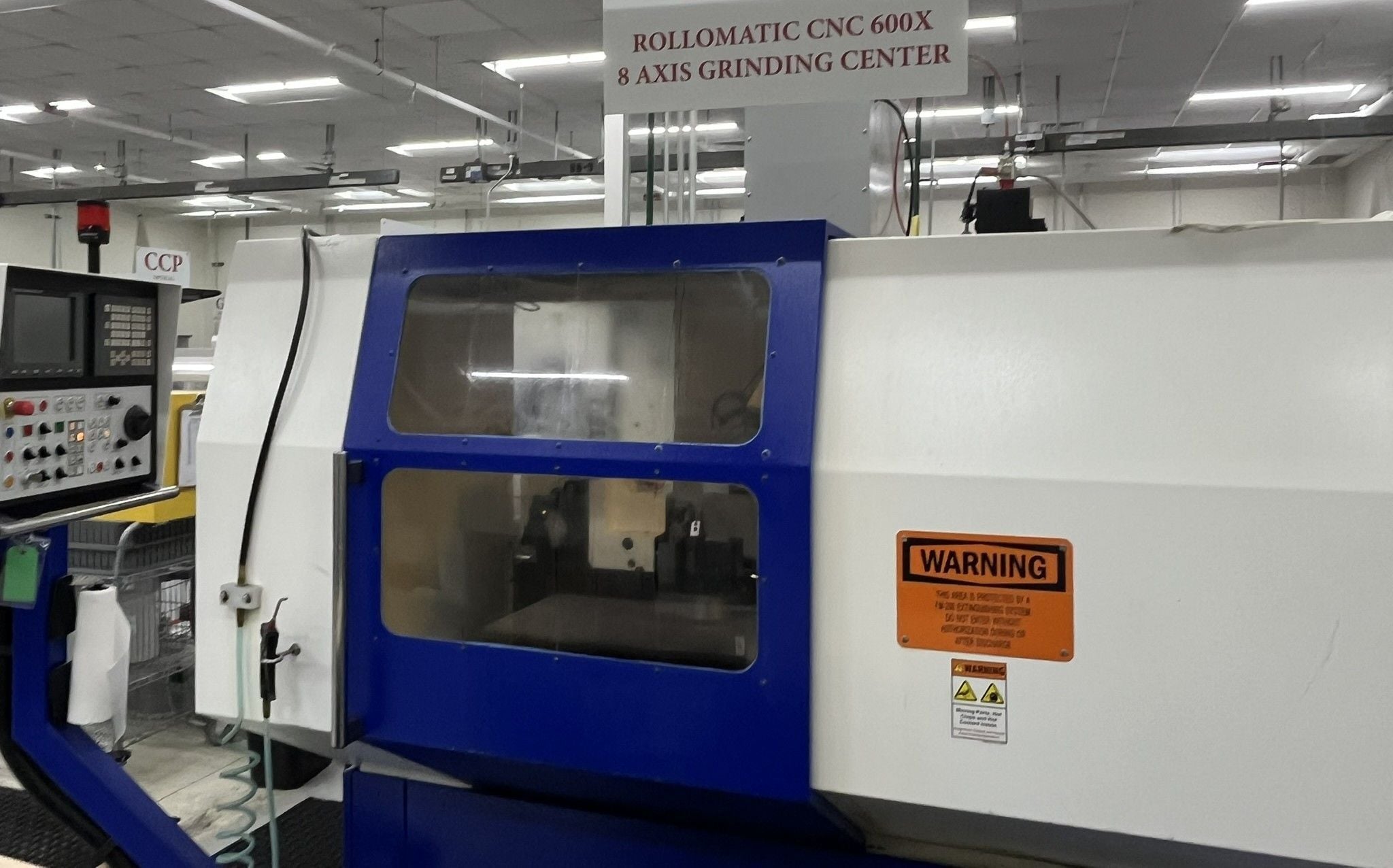

Rollomatic CNC #600-X, tool & cutter grinder, 7200 RPM, 6-Axis, 5.5 HP, refurbished 1999

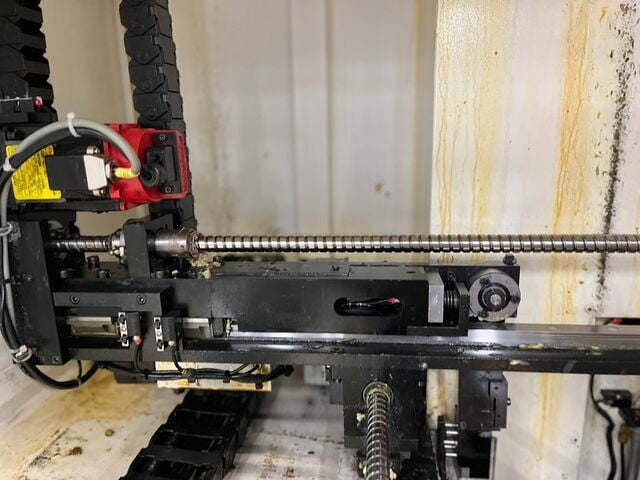

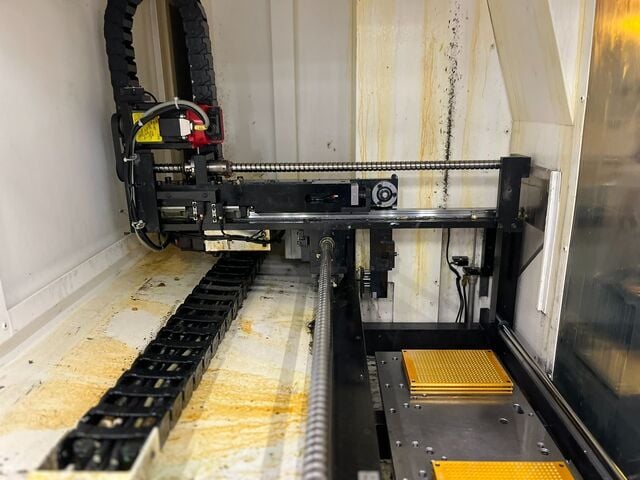

ROLLOMATIC CNC 600 X Tool & Cutter Grinder (used) New 1999 - Hydraulic pump assembly is new, OEM. Buyer will need new hydraulic hose. OEM refurbished grinder about 10 years ago. I rebuilt robot loader/unloader about 5-6 years ago.Rollomatic CNC 600X is a robust machine for high-precision grinding of rotary cutting tools, built for demanding applications needing extreme accuracy and repeatability.
The Rollomatic CNC 600X is a high-precision, 5/6-axis CNC tool and cutter grinder for creating complex cutting tools, handling diameters from about 0.1mm to 12.7mm, known for tight tolerances in industries like automotive, aerospace, and medical, featuring automated loading (on Plus models) and advanced software for grinding flutes, tapers, and burrs. It uses linear motors for accuracy, offers high spindle speeds (up to 7,200 RPM), and provides precise control over grinding axes (X, Y, Z, A, B, C) for reliable, automated production of precision tools.
Key Features & Capabilities:
Precision Grinding: Achieves very tight tolerances (e.g., 0.0001 mm resolution).
Axis Configuration: Typically 5-axis (X, Y, Z, A, B) with C-axis rotation, allowing for complex tool geometries.
Tool Capacity: Grinds small diameter tools, generally 0.1mm to 12.7mm (or 0.2mm to 12.7mm).
Automation: "Plus" models often include automatic pallet loading/unloading for unattended operation.
Spindle: High-speed, powerful spindle motor for efficient material removal.
Software: Includes specialized modules like FLUTECALC, TAPERCALC, and BURCALC for simulating and grinding flutes, tapers, and burrs.
Target Industries: Automotive, Aerospace, Medical, Watchmaking, and General Toolmaking.
Typical Specifications:
X/Y/Z Travel: Various ranges, e.g., X: ~228mm, Y: ~177mm, Z: ~152mm.
A/B Axis Range: E.g., A: -15 to 90, B: -110 to 40.
Spindle: Up to 7,200 RPM, ~14.5 kW motor.
Weight: Around 3,500 kg (7,700 lbs).
Max. grinding length 150 mm
grinding diameter 0.1 - 12.7 mm
Max. grinding wheel diamter 150 mm
Taper in spindle W15
Axial motion:
Crosswise 230 mm
Longitudinal 180 mm
Vertical 150 mm
Resolution
A axis -15 / +90
B axis swivelling range -130 / +45
C axis (spindle,resolution)
W axis 600 mm
U axis 600 mm
Grinding spindle speeds:
stepless
from 2000 t/min
up to 7200 t/min
Voltage 50 Hz 3x 380 Volt
Grinding spindle motor 14.5 kW
Machine's weight about 3500 kg
Overall dimensions machine:
Length 2060 mm
Width 2032 mm
Height 1880 mm
