RMT #S-GENIUS-CS-22-23-CNC, super automatic horizontal bandsaw, new

THE ULTIMATE BANDSAW MACHINE

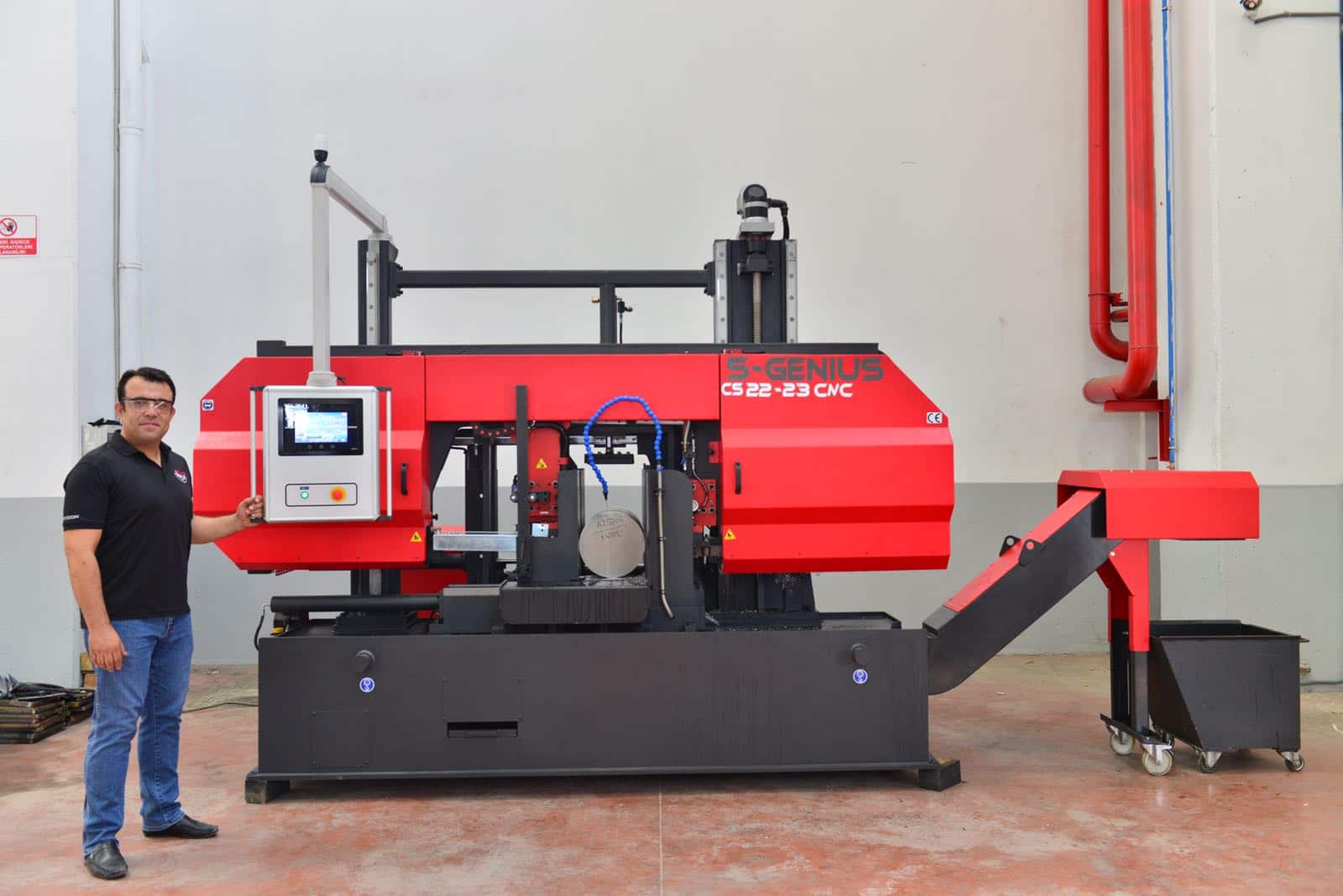

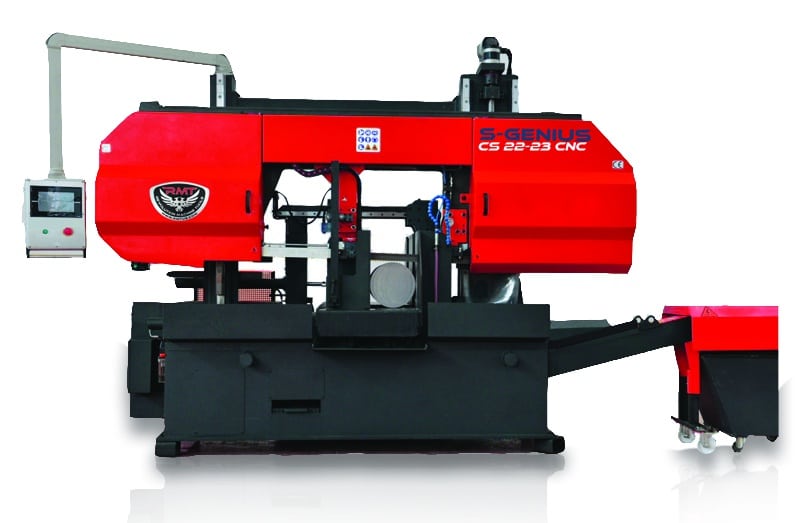

The Revolution Machine Tools™ S-GENIUS™ CS 22-23 CNC Fully Automatic Servo Column Type Straight Cutting Bandsaw is designed with a fully automatic servo drive and cutting system for our customers to maximize their production in heavy metal, profile and pipe cutting in high cutting quantities. The cutting capacity of this machine is 22” x 23” in 90° flat cuttings and Ø22” in round material. Maximum performance/cost ratio, up to 50% longer blade life with automatic controls and sensors.
The S-GENIUS™ CS 22-23 CNC Bandsaw comes standard equipped with NC control panel, motorized blade brush, hydraulic vise, servo motor feeding vise 27” stroke, linear guide rails, servo motor driven ballscrew down-feed system (CNC smart cutting), split vise, security switch, heavy duty planetary gearbox, infinite variable speed inverter, hydraulic blade tension, blade deflection sensor, coolant pump, optical saw height adjustment, proximity switch for sensing blade slippage, chip conveyor, and 230V or 440V 3 phase power.
Buyers have the option to add any of these additional features to their S-GENIUS™ CS 22-23 CNC Bandsaw as well: Hydraulic top clamping, DropsA air/oil clean lubrication system, micromist cooling, 10ft table with the option of making the table motorized, servo motor feeding vise 120” stroke.
CHARACTERISTICS
– Smart cut and user friendly touch screen with Omron CNC cutting program
– Ability to save up to 50 different cutting length steps in 100 different programs
– Cutting parameters are CNC controlled for an optimal processing of workpiece
– Manual cutting parameters input
– Servo feeding with 27″ stroke
– Guide arm travels on linear guide way and moves in coordination with the moveable vise jaw
– Hydraulic actuated carbide blade guides
– Idle Wheel motion detector and automatic deflection sensor
– Vibration free cutting with 3 linear way
– Motorized swarf brush
– Planetary Gearbox
OPTIONAL
– Hydraulic top clamping
– Microspray cooling system
– Hexagonal vises for bundle tube cutting
– 20 HP motor
