RGI Air Force & Air Force Plus Express Blowers

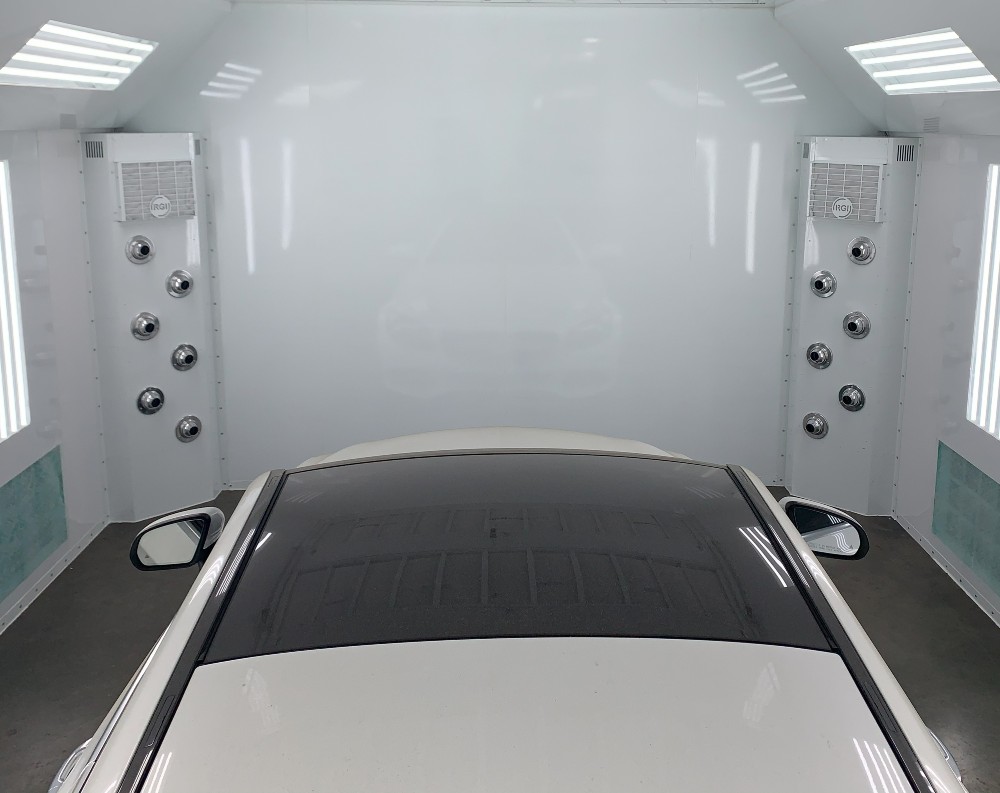

Air Force Highlights:The RGI Air Force and Air Force Plus ensure more even heat distribution and airflow. Flash waterborne basecoat in almost half the time by disrupting laminar airflow and creating turbulence in the booth, allowing for quicker paint jobs and increased output in your booth Since 1999, RGI has evolved significantly to become highly efficient and compatible with nearly any spray booth or prep environment. It offers superior contamination control with a premier filtration process, ensuring clean airflow into the booth. The system's unique control allows for the operation of individual modules, making it efficient for both spot painting and full vehicle jobs while also reducing energy costs and time.

Heavy Duty Construction: The construction features pre-punched single wall panels made from 18-gauge galvanized powder-coated steel. These panels are designed with self-supporting airtight construction and are precisely punched and companion flanged for easy assembly. The panels are precisely punched every 6 inches on center to facilitate assembly using 1/4" nuts and bolts for enhanced accuracy and durability.

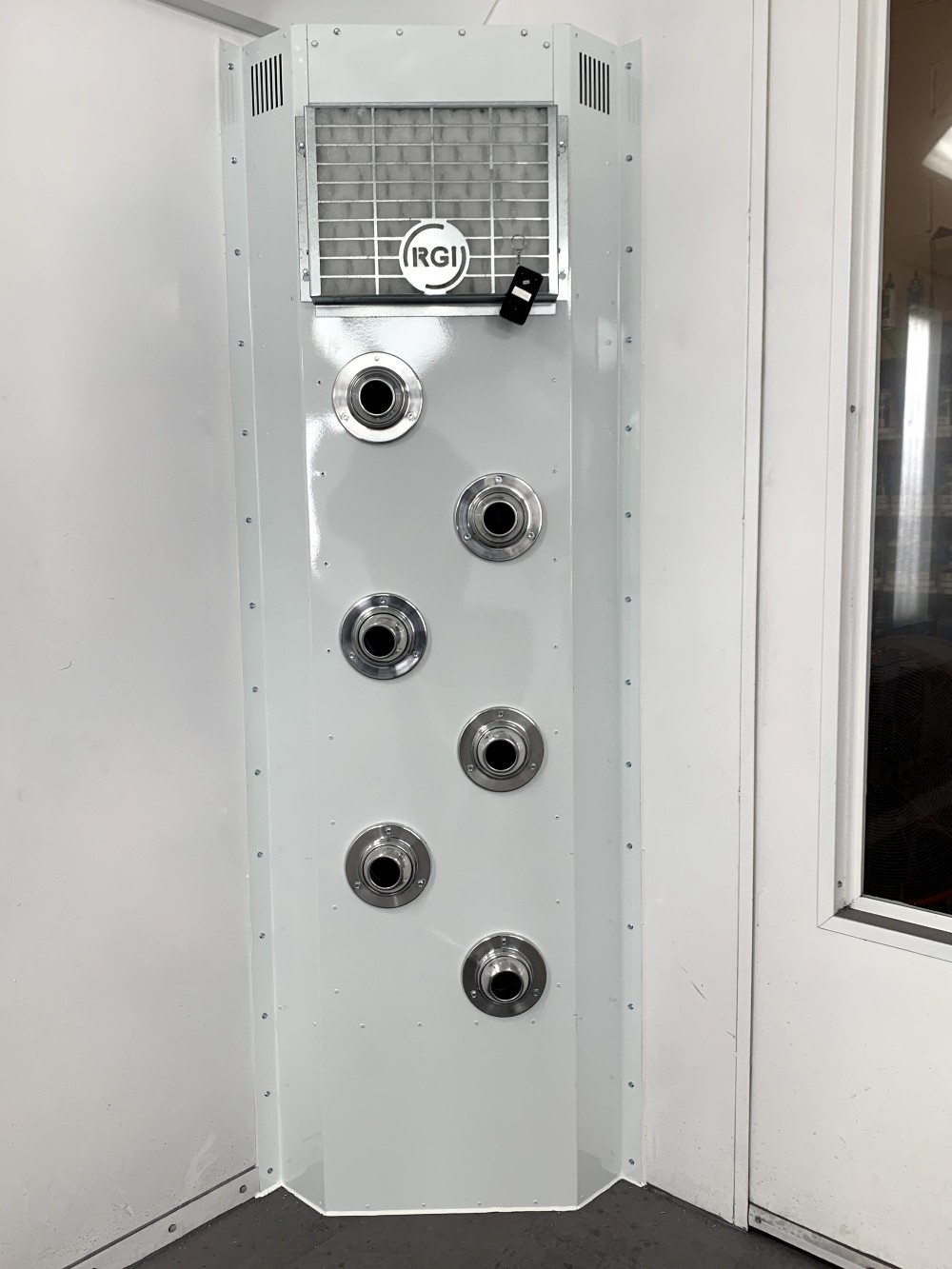

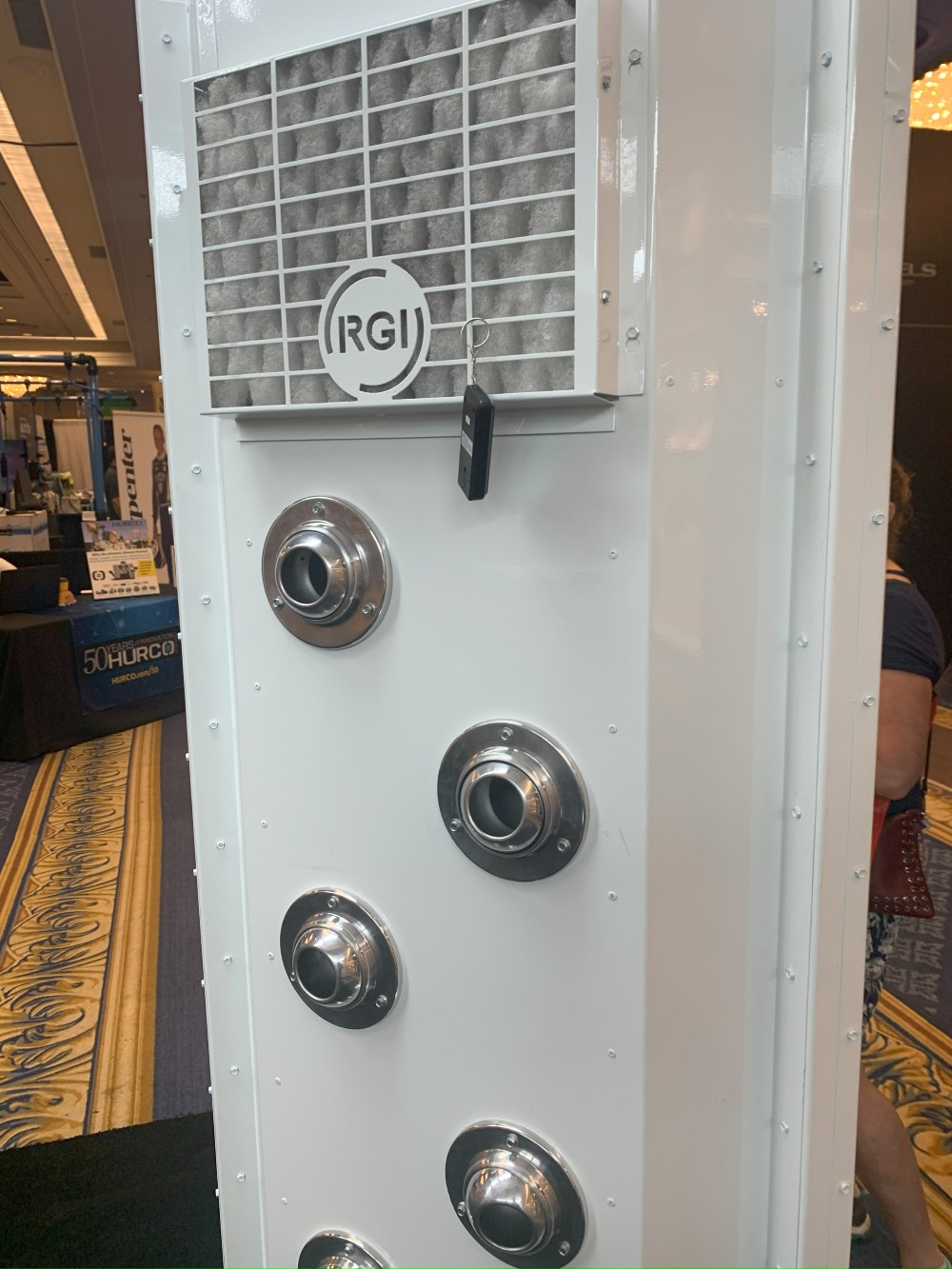

Nozzle System: The nozzle system includes six 2-inch diameter adjustable nozzles per tower, each delivering 2,900 CFM of air. The nozzles are constructed from heavy-duty stainless steel for added durability and performance.

Air Force Express Specs:
The RGI Airforce creates a controlled turbulent airflow that enhances heat transfer to the painted panels, leading to faster drying times and improved paint finishes. This reduces the slow-moving layer of air pockets on the vehicle's surface in spray mode, trapping solvents and hindering heat transfer during cure mode, which slows drying.

INTAKE FILTERS: (1) 12"X16"X2" PAINT POCKET FILTER

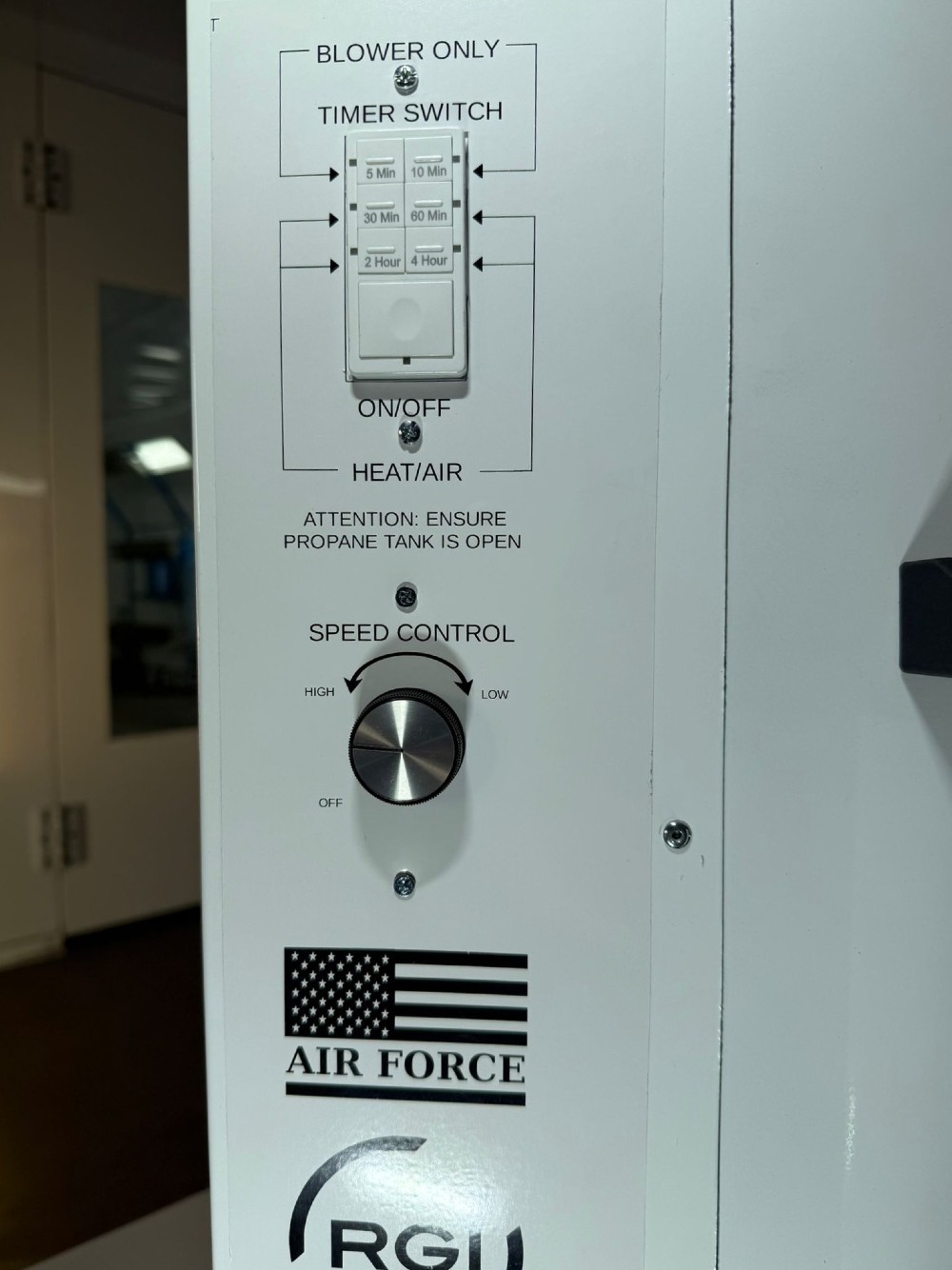

TIMER SWITCH: 4 HOUR COUNTDOWN TIMER SWITCH 120V, 1/2HP MOTOR 15A RESITIVE, ELECTRONIC BALLAST/LED 5A SWITCHES
HANDLE: 12" STEEL HANDLE
JET NOZZEL: HEAVY GAUGE ALUMINUM LOUVER NOZZLE 3" DIAMETER, 70 DEGREE GLOBAL ROTATION
AIR FORCE CONTRUCTION
CONSTRUCTION:20 GA. ZINC GALVANIZED STEEL PANELS
PRE-PUNCHED AND COMPANION FLANGED FOR EASY ASSEMBLY
PRE-PUNCHED ON 6" CENTER
ASSEMBLY WITH 1/4" NUTS AND BOLTS
MECHANICAL
ALUMINUM END SHIELDS DISSIPATE
HEAT; DYNAMICALLY BALANCED TO PROVIDE SMOOTH, QUIET OPERATION AND MAINTAIN CFM AT
HIGHER STATIC PRESSURES.
1-DIRECT-DRIVE OEM BLOWER
1-1/2HP 1PH MOTOR VOLTAGE 115/230V AC DELIVERS: 1,164 CFM @ .250" S.P.
CASTER WHEEL: NON-MARKING RUBBER TREND ON ALUMINUM CORE, 5 IN DIA


Air Force Plus Specs:

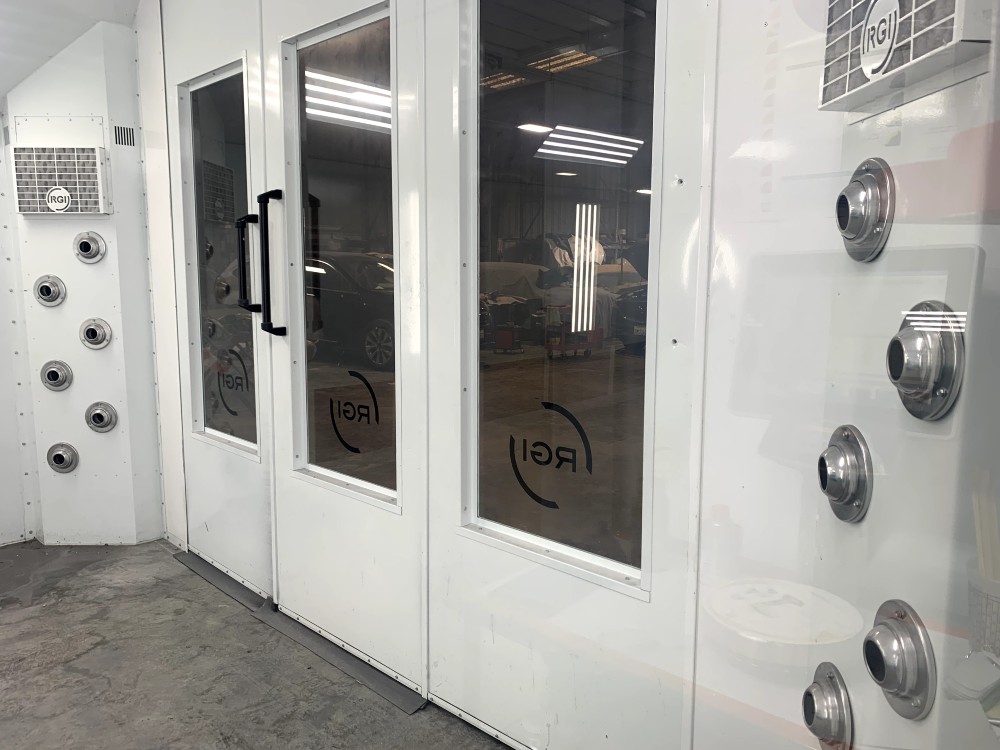

RGI Airforce Express Plus models are designed to integrate seamlessly with RGI automotive paint booths, optimizing space and resources. Easy installation and mobile features can fit virtually any paint booth, featuring heating options that improve airflow and dry times.

INTAKE FILTERS (1) INTAKE HOOD
TIMER SWITCH: 4 HOUR COUNTDOWN TIMER SWITCH 120V, 1/2HP MOTOR 15A RESISTIVE, ELECTRONIC BALLAST/LED SA SWITCHES
BLADE NOZZEL: BLACK LOUVER NOZZLE 8" LONG

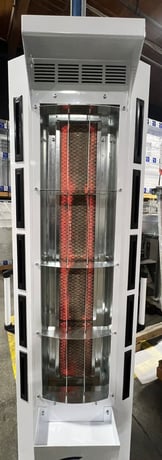

HEATING UNIT

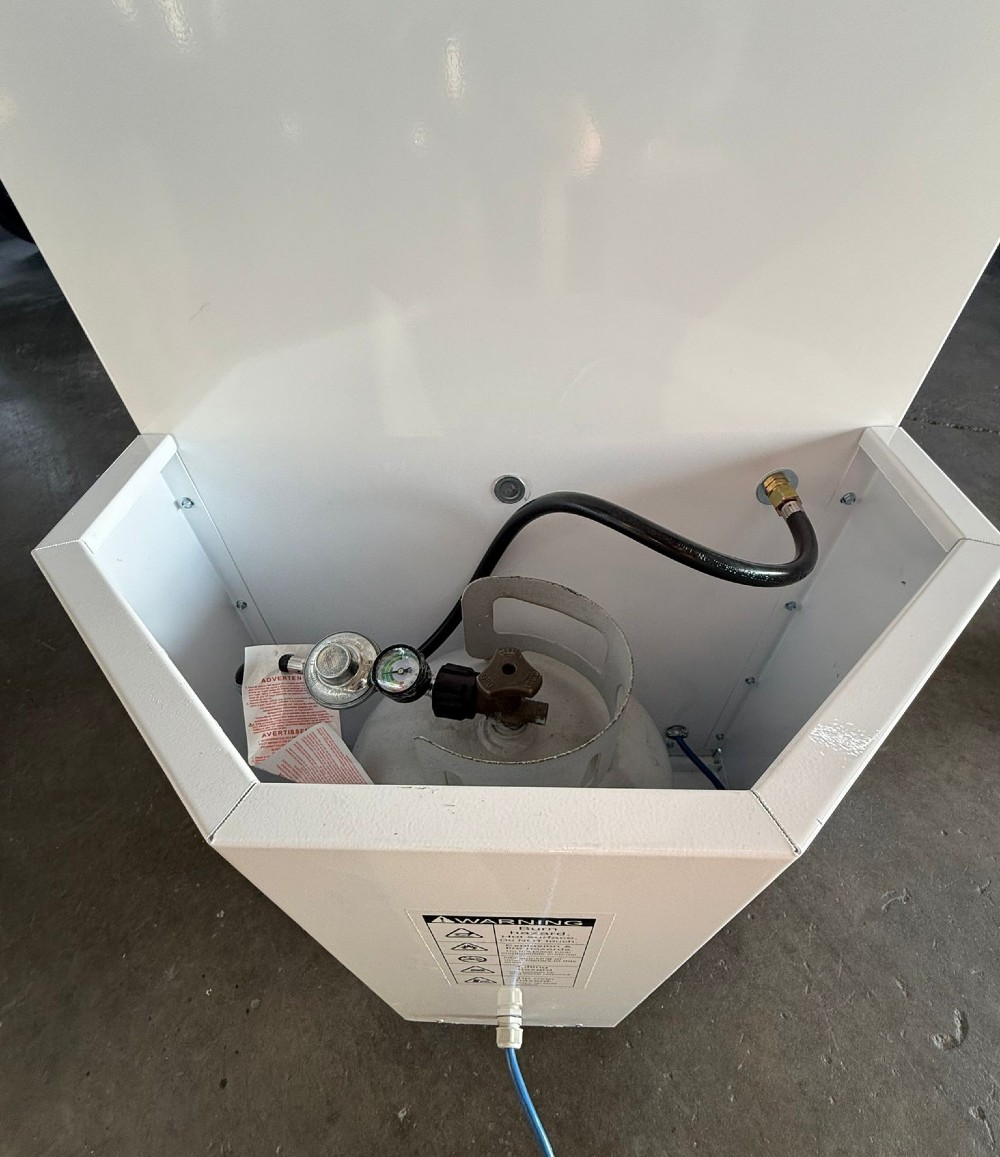

INFRARED GAS CATALYTIC HEATER 18,000 BTU
20 MBAR NATURAL GAS-37 MBAR PROPANE
120V 800W - 10MIN PRE-HEATING TIME
MAX TEMP - 180°F
INLET PIPE CONNECTION 3/8" NPT
MECHANICAL
ALUMINUM END SHIELDS DISSIPATE
HEAT; DYNAMICALLY BALANCED TO PROVIDE SMOOTH
QUIET OPERATION AND MAINTAIN CFM AT HIGHER STATIC PRESSURES
1-DIRECT-DRIVE OEM BLOWER
1-1/2HP 1PH MOTOR VOLTAGE 115/230V AC DELIVERS: 1,164 CFM @ .250" S.P.
CASTER WHEEL: NON-MARKING RUBBER TREND ON ALUMINUM CORE, 3" DIA
