Reliance Electric 3RA29030 Servo Drive Untested Surplus

Product Specifications

• Manufacturer: Reliance Electric
• MPN / Model: 3RA29030
• Product Type: Servo Drive
• Series: Motion Control Systems
• Power Rating: 9 kW
• AC Input: 208V, 25 Max Amps, 50/60 Hz, 3 Phase
• DC Output: 290V, 30 Max Amps
• Short Circuit Sym RMS Rating: 5K Amps
• Internal Module: D5-3006
• Rel. Part No.: 704323-21S
• Serial Number: V0628
• QMC Date Code: 2690
• Manufacturer Location: Reliance Electric Company, Cleveland, Ohio 44117 USA

Product Description

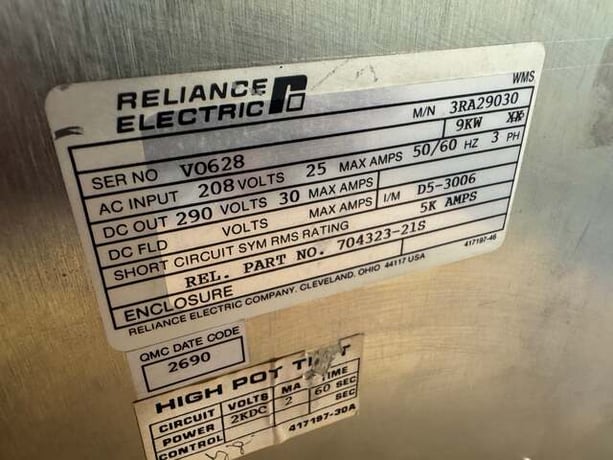

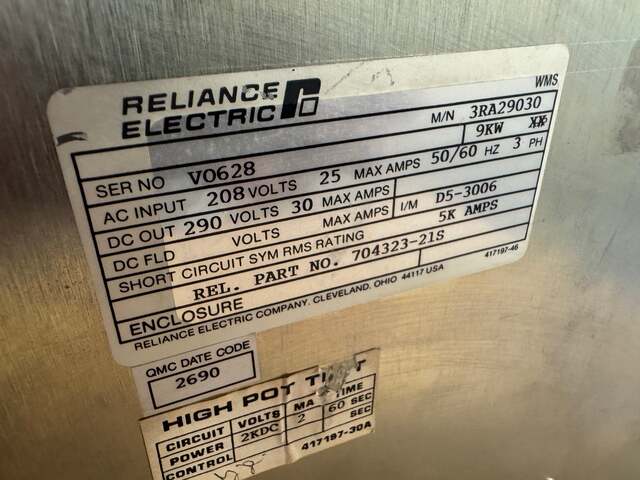

Reliance Electric model 3RA29030 is a 9 kW servo drive from the Motion Control Systems product line. The nameplate confirms AC input at 208V, 25 max amps, 50/60 Hz, 3 phase, with a DC output of 290V at 30 max amps. Short circuit symmetrical RMS rating is 5K amps. Internal module designation is D5-3006, and the Reliance part number is 704323-21S.

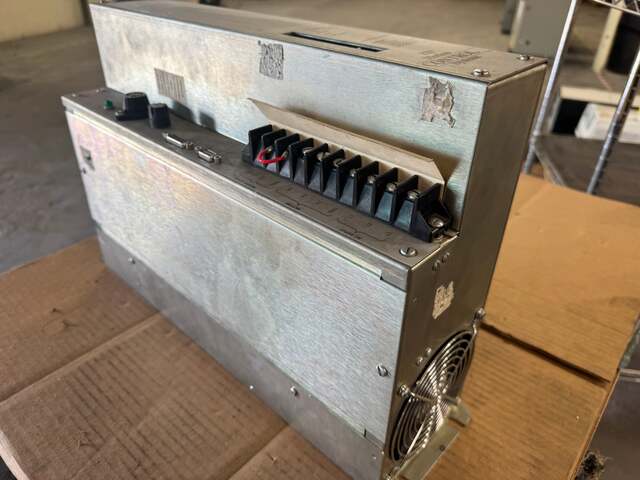

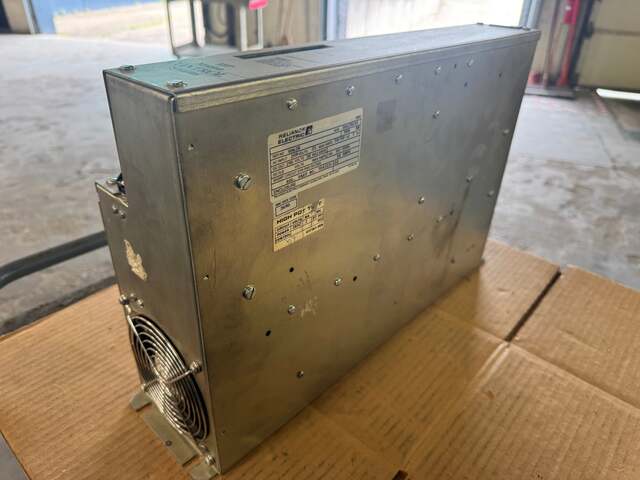

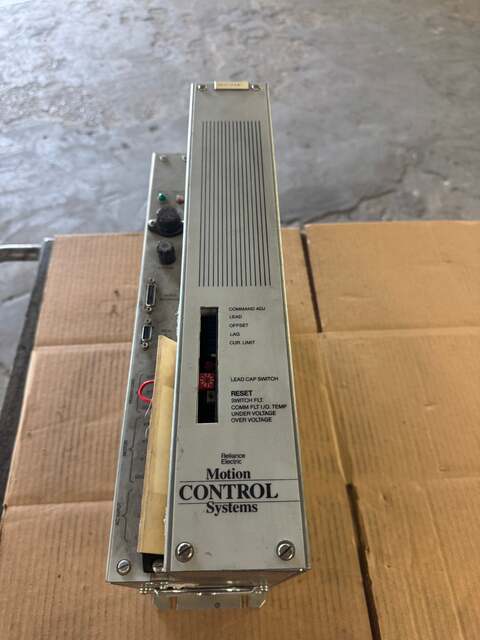

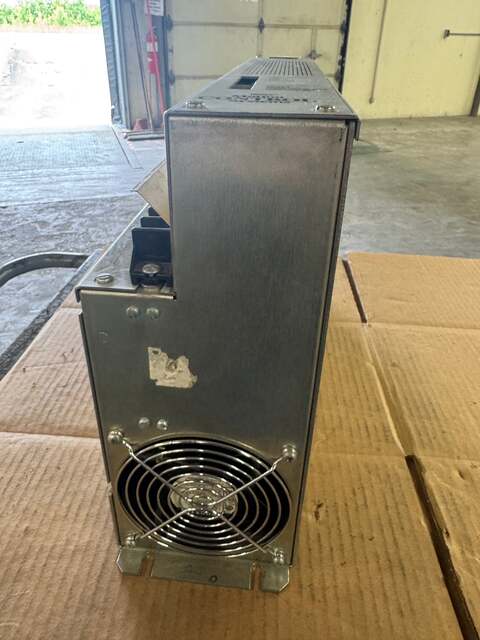

The front panel features adjustment controls for Command Adj, Lead, Offset, Lag, and Current Limit, along with a Lead Cap Switch and fault status indicators including Switch Fault, Comm Fault, I/O Temp, Under Voltage, and Over Voltage. The unit includes an integrated cooling fan and terminal block connections for AC input and motor output. Serial number V0628 and QMC date code 2690 are visible on the nameplate. This unit shows signs of prior field use and is listed as Surplus / Untested.
