For Sale by Gibbs Machinery Co
Surplus Record Dealer Since 1956
Location: Warren, MI
Contact Sales Dept.
Phone Number: 586...> Show Phone Number 586-755-5353
Let the seller know you found their listing on Surplus Record!
Description

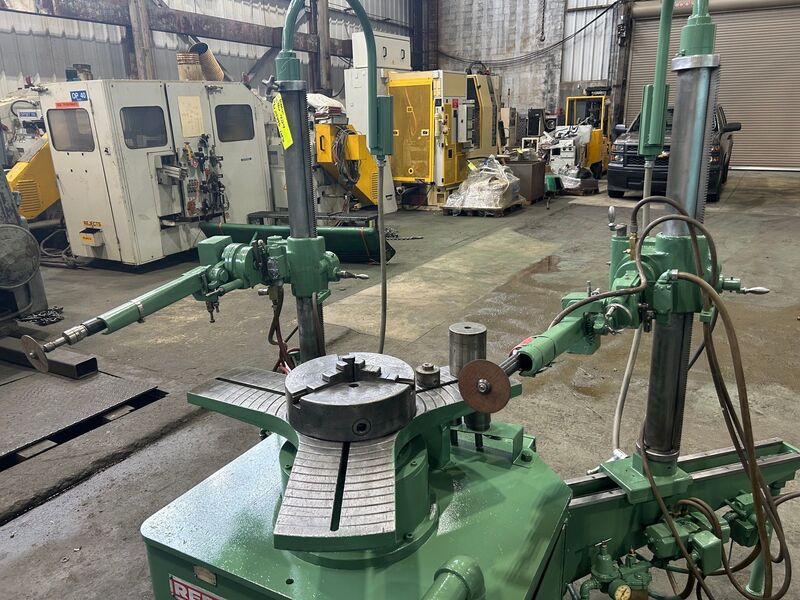

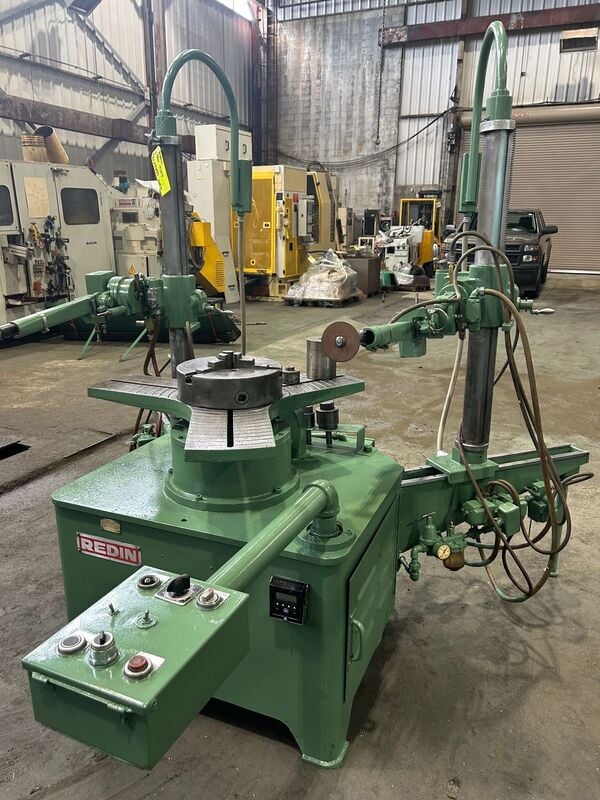

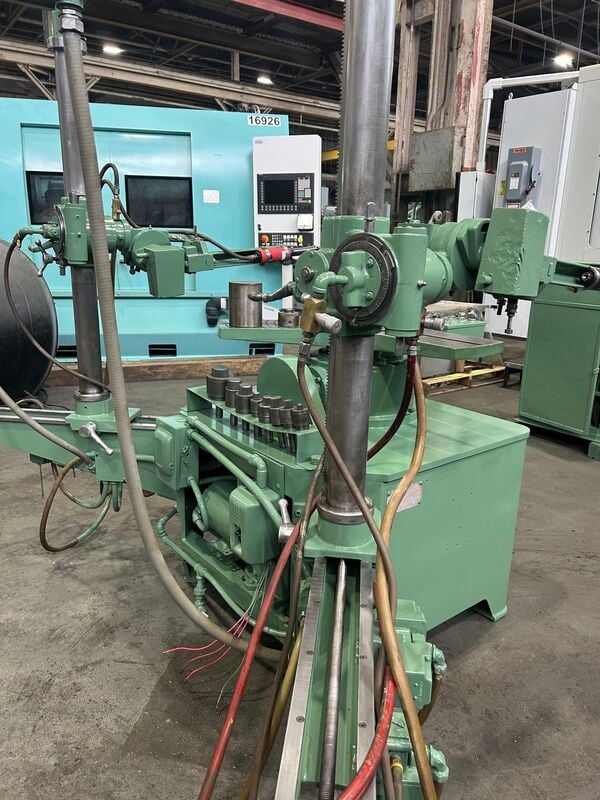

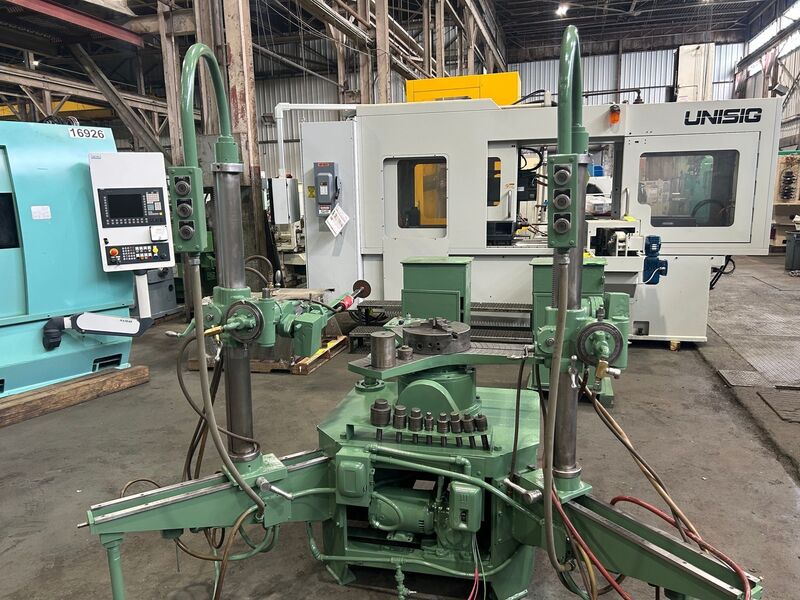

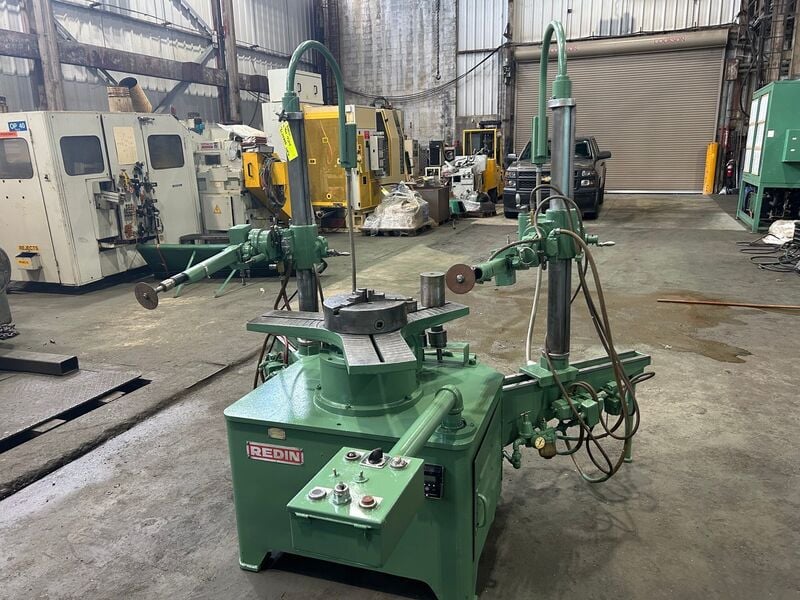

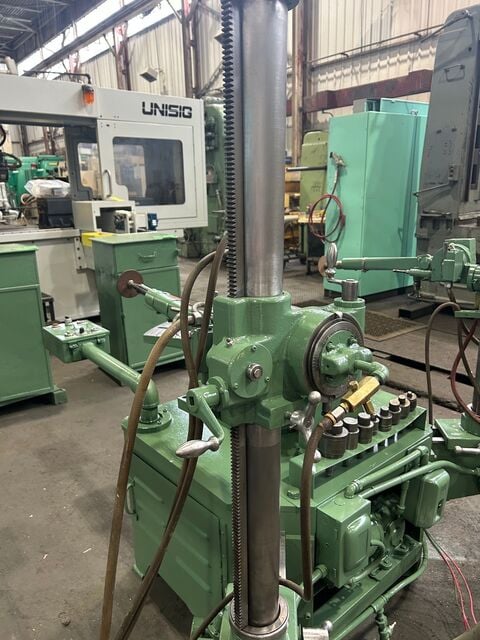

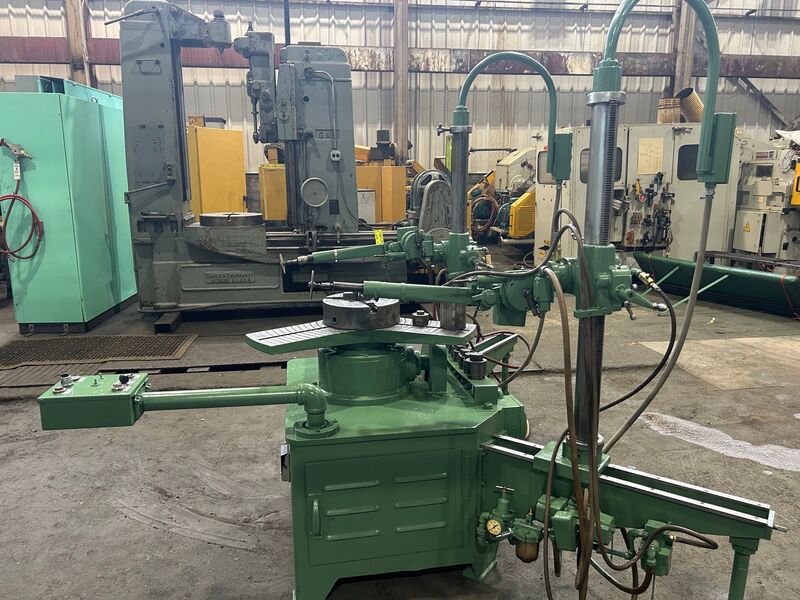

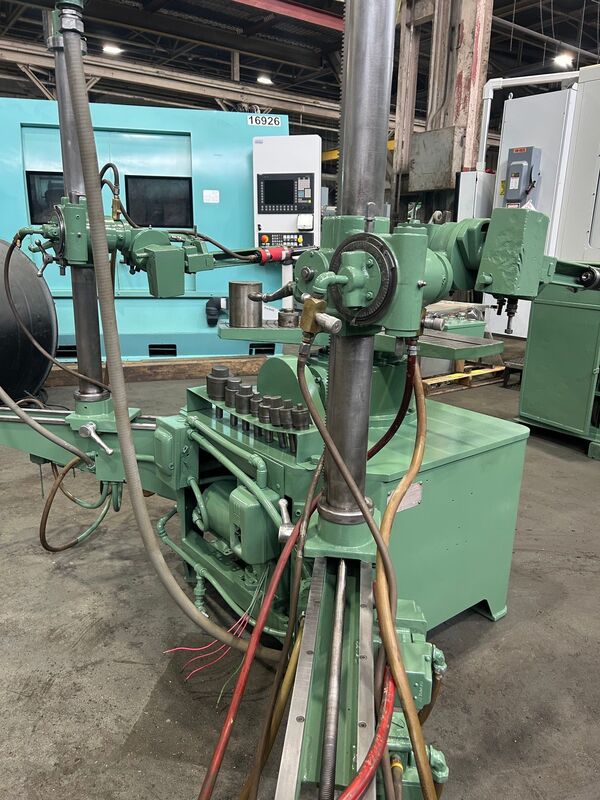

The Redin Model 72 is a heavy-duty, universal dual-arm gear deburring machine designed for the automatic deburring and brushing of internal and external gears. It is widely used in heavy manufacturing for precision finishing of spur and helical gears.
Specifications:

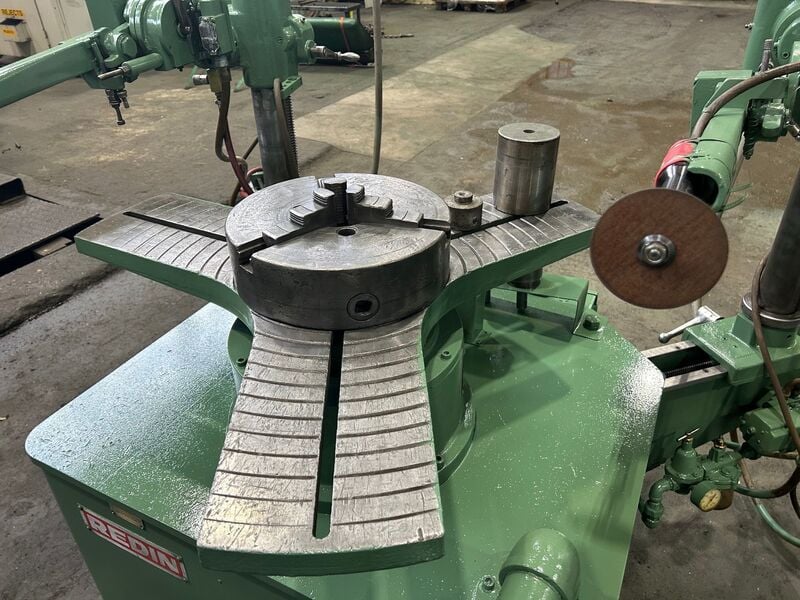

Work Table Diameter: 36" (915 mm)
Work Spindle Thru-Bore Diameter: 4" (101.6 mm)
Work Spindle Speed Range: .5 - 8 RPM
Work Spindle Motor Drive (Reversible): 3/4 HP DC
Maximum Work-piece Weight: 7,000# (3,182 kg)
Minimum Pitch Diameter External: 0" (00.0 mm)
Maximum Pitch Diameter Internal 68" (1727 mm)
Maximum Face Width: 16" (406.4 mm)
Minimum D.P.: 20 DP (1.27 Module)
Maximum Grinding Wheel Speed: 13,000 RPM
Grinding Spindle Speed (Full Load): 4,000 RPM
Maximum Diameter Work-piece (Nominal) W/Work Table Extension
Brackets Deployed: 72" (1829 mm)
Pneumatic Controls (Approximate): 90 PSI, 36 C.F.M
Overall Dimensions (LxWxH): 88" x 80" x 80"
Approximate Net Weight: 4,000 Lbs (1818 kg)
Specifications:
Work Table Diameter: 36" (915 mm)
Work Spindle Thru-Bore Diameter: 4" (101.6 mm)
Work Spindle Speed Range: .5 - 8 RPM
Work Spindle Motor Drive (Reversible): 3/4 HP DC
Maximum Work-piece Weight: 7,000# (3,182 kg)
Minimum Pitch Diameter External: 0" (00.0 mm)
Maximum Pitch Diameter Internal 68" (1727 mm)
Maximum Face Width: 16" (406.4 mm)
Minimum D.P.: 20 DP (1.27 Module)
Maximum Grinding Wheel Speed: 13,000 RPM
Grinding Spindle Speed (Full Load): 4,000 RPM
Maximum Diameter Work-piece (Nominal) W/Work Table Extension
Brackets Deployed: 72" (1829 mm)
Pneumatic Controls (Approximate): 90 PSI, 36 C.F.M
Overall Dimensions (LxWxH): 88" x 80" x 80"
Approximate Net Weight: 4,000 Lbs (1818 kg)
Get Your Price from Gibbs Machinery Co!
