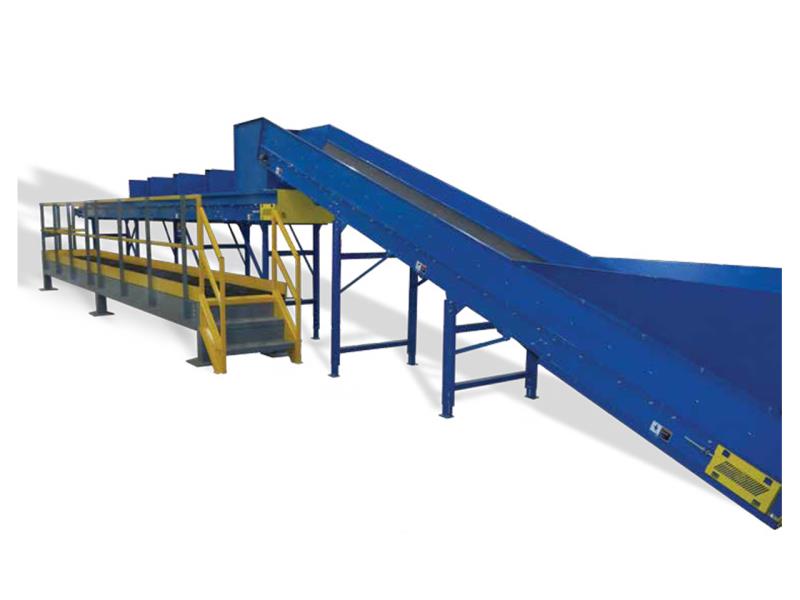

Recycling Sorting Line, Math-Ex, 4-person sort line, complete, slider bed belt conveyor, brand new with warranty, 2026, new

MATH-EX 4-Position (Person) Basic Recycling Sort Line SLIDER BED BELT CONVEYOR: (MODEL 600, STYLE B) FRAME CONSTRUCTION:Specifications: --10 GAUGE, BOLT TOGETHER PULLEY DIAMETER --6" DIAMETER CONVEYOR LENGTH --16' 0" ANGLE OF INCLINE: 25 --EFFECTIVE WIDTH: 32" BELT: --BLACK PVC120 COS ENDURA-CLEAT: 2" HIGH @ 48" CENTERS SIDE SKIRTS --12" HIGH (TOB), 12 GAUGE BELT RETURNS: BOTTOM PANS BELT SPEED: 60 FPM DRIVE MOUNT/SIDE: SHAFT MOUNT -- RIGHT HAND SIDE MOTOR: 1 HP, 460V/3PH LIVE LOAD CAPACITY: 394 LBS. (FIXED SPEED) CONTROLS: START/STOP CONTROL - (2) E-STOPS - --MOUNTED AND WIRED INFEED HEIGHT: 0" BOF DISCHARGE HEIGHT: 83" BOF SUPPORTS: -- PROVIDED INCLUDED FEATURES: - BLACK SIDE GUIDES - BOTTOM PANS - INFEED HOPPER - TRANSITION GUIDES --MAGNETIC HEAD PULLEY (CERAMIC) OVERALL FLOOR LENGTH: 174" (END TO END) -- APPROXIMATE SHIPPING WEIGHT: 1876 LBS. PLUS PACKAGING --FRAME CONSTRUCTION: 10 GAUGE, BOLT TOGETHER --PULLEY DIAMETER: 6" DIAMETER CONVEYOR LENGTH: 26' 0" ANGLE OF INCLINE: 0 EFFECTIVE WIDTH: 32" BELT: --BLACK PVC120 COS SIDE SKIRTS 6" HIGH (TOB)12 GAUGE BELT RETURNS --RETURN ROLLERS BELT SPEED: 60 FPM DRIVE MOUNT/SIDE: SHAFT MOUNT --RIGHT HAND SIDE MOTOR: 1 HP, 460V/3PH -- LIVE LOAD CAPACITY: 922 LBS. --(FIXED SPEED) CONTROLS --AC VFD CONTROL (2) E-STOPS --MOUNTED AND WIRED INFEED HEIGHT: 52" BOF DISCHARGE HEIGHT: 54" BOF SUPPORTS: --PROVIDED INCLUDED FEATURES: - BLACK SIDE GUIDES - SORT SKIRTS -- (4) SORT CHUTES OVERALL FLOOR LENGTH: 312" (END TO END) --APPROXIMATE SHIPPING WEIGHT: 2059 LBS. PLUS PACKAGING --4P SORT PLATFORM: LENGTH: 23' WIDTH: 42" HEIGHT: 26" ADDITIONAL FEATURES: - SAFETY RAILINGS4K DUMPER TO FEED LINE-1 (INLINE) - Extra $16,500 --CONTAINER DUMPER: 4BD-60-5248 LIFT CAPACITY: 4000LBS. DUMP HEIGHT: 60" ROTATING DRUM SIZE: 52" WIDE X 48" DEEP MAX. CONTAINER HEIGHT: 48" OVERALL HEIGHT: 150" (APPROXIMATELY) FRAME: REINFORCED FORMED STEEL CUSTOMER CONTAINER SIZE: 48" L. X 40" W. X 48" H. POWER UNIT: 2HP, TEFC - LEFT HAND PUMP MOUNT VOLTAGE: 460 VOLT, 3 PHASE, 60 HERTZ CONTROLS: PUSHBUTTON CONTROLS - LEFT HAND MOUNTED CONTROLS - 120V CONTROL C IRCUIT --OPTIONAL FEATURE: GATED ENCLOSURE: Extra - $5,950- WELDED CONSTRUCTION WITH EXPANDED METAL - PUSHBUTTON CONTROL STATION - NON-CONTACT DOOR SENSOR INCLUDED - ENCLOSED BACK COVERS --OPTIONAL FEATURE: AUTO-RUN CONTROLS: Extra - $4,200 - SELECTOR SWITCH FOR AUTO-RUN OR MANUAL MODE - KEY SWITCH AND EMERGENCY STOP BUTTON INCLUDED - ALL SENSORS AND CONTROLS PRE-WIRED ***REQUIRES SAFETY ENCLOSURE LINE ABOVE --OPTIONAL FEATURE:Extra - $1,200 - FASTER LIFT TIME - 5HP DRIVE - 27 SEC LIFT
