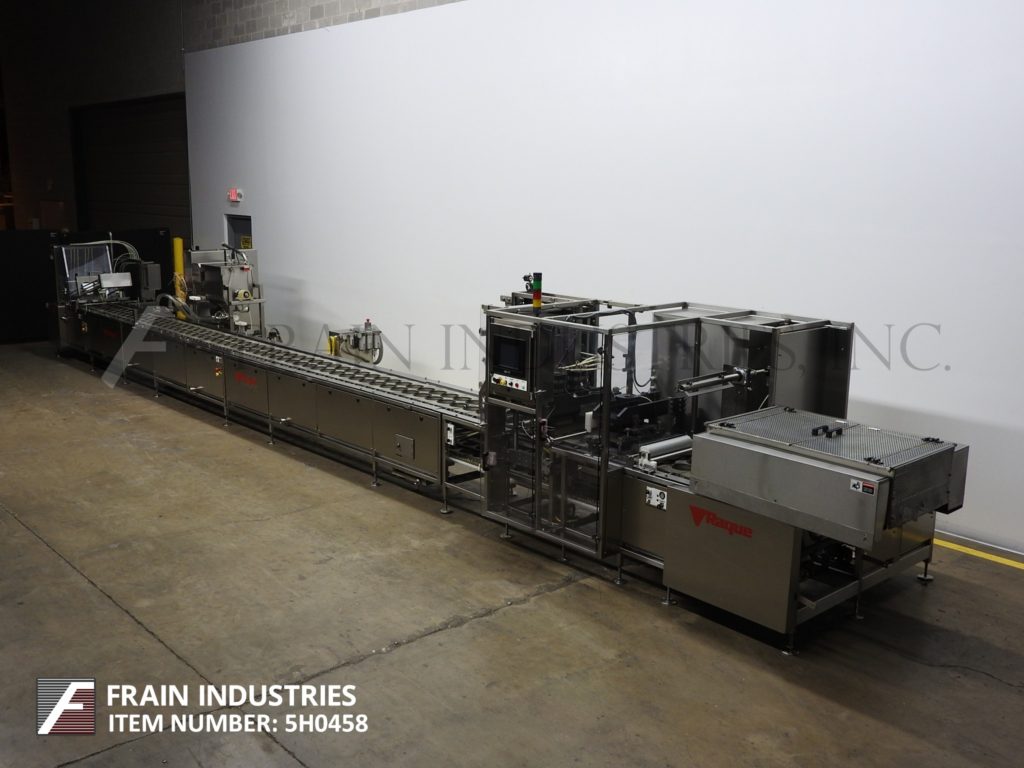

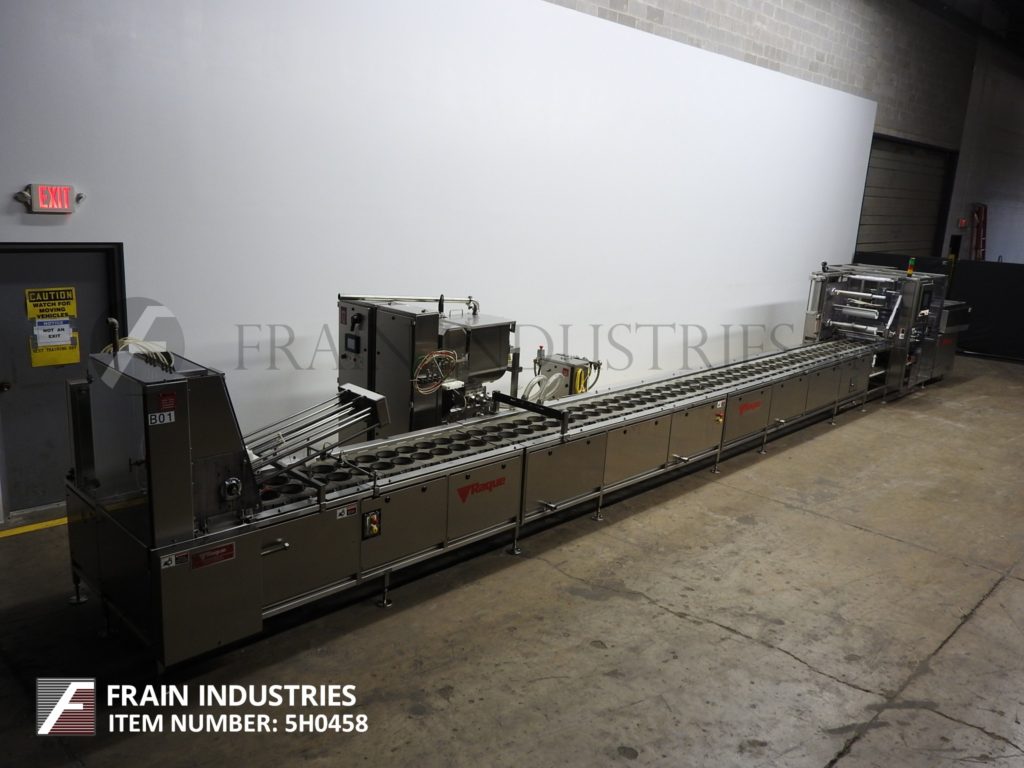

Raque #4500 Series, complete, Stainless Steel, tray denesting, filling, roll stock and heat sealing line

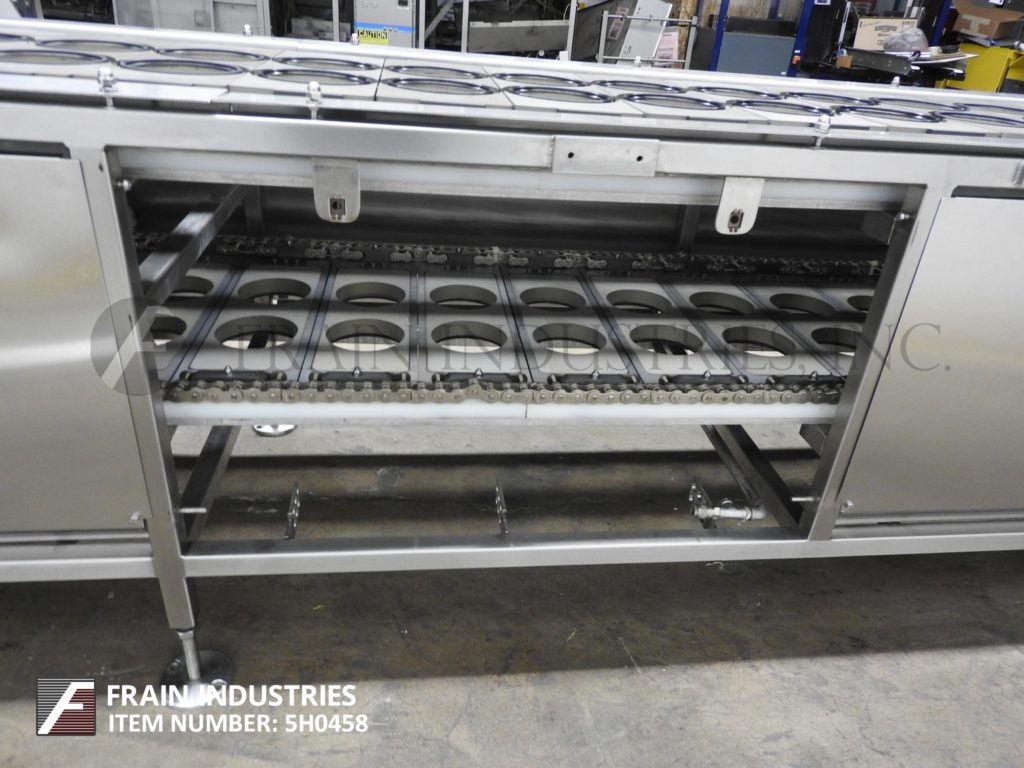

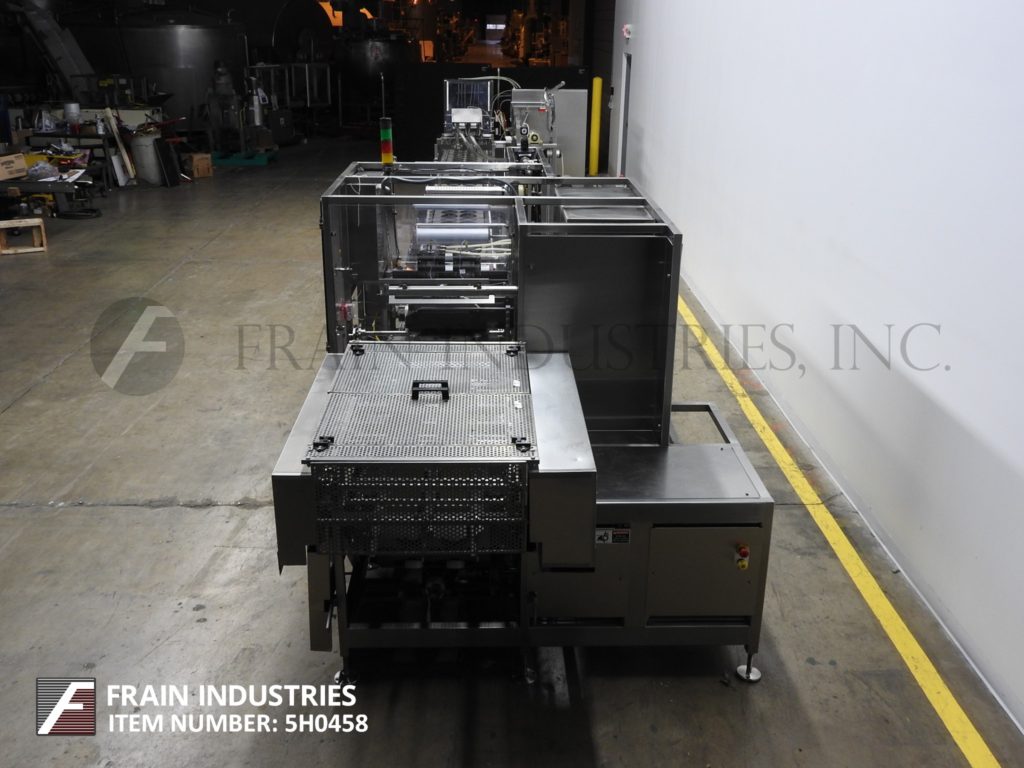

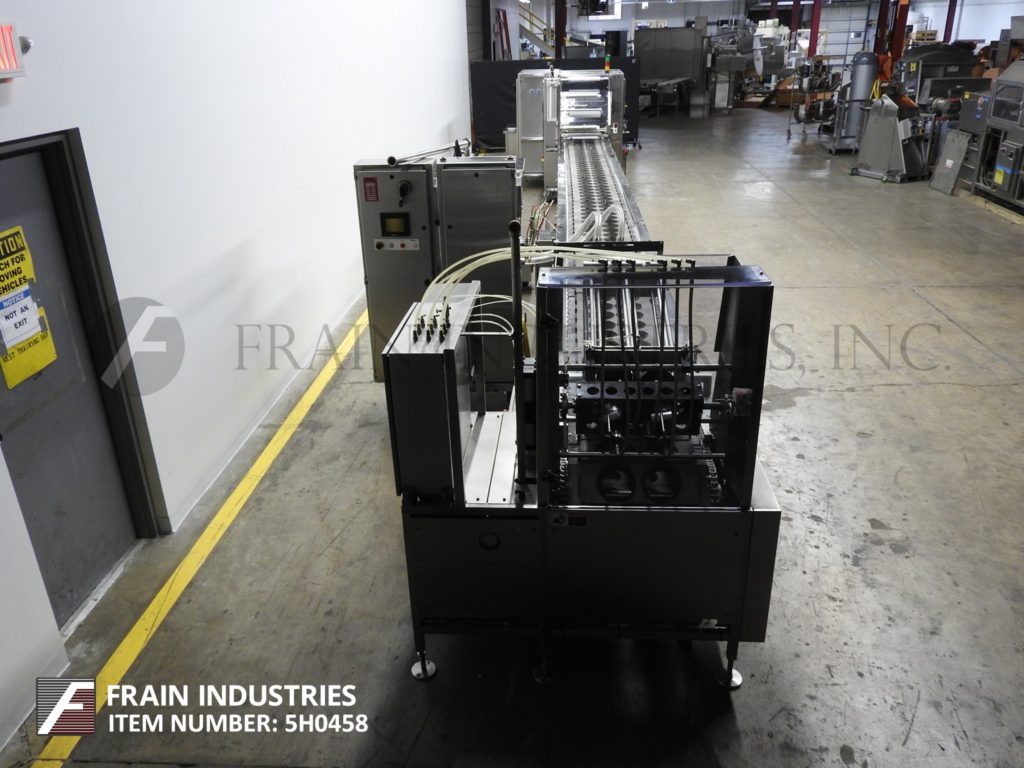

Raque Model 4500 series, complete, stainless steel, tray denesting, filling, roll stock and heat sealing line with number trays per minute – depending on materials, application and line configeration. Line consists of: Raque Model 4504 tray denester with dual 36" long x 6" OD empty tray roller magazines, (2) head reciprocating pick-n-place, 120" long x 32" wide dual lane tray conveyor with fixed 6" OD pockets set on 8" centers, to 156" long x 32" wide dual lane feed conveyor to Raque Model 1284-12-1, dual head piston filler with 19" long x 18" wide x 20" deep stainless steel product hopper with fill range per application and proper change parts, currently set with dual 6" long x 2-1/2" ID pistons set on 8" centers with Model 1148-45-1liquid depositor product feed pump. Filled trays, then conveyed by 118" long x 32" wide dual lane transfer conveyor to Raque Model 4503-1 dual lane, roll stock, heat sealer and die cutter with 108" long x 32" wide dual lane in feed conveyor with dual 6" OD fixed pockets, dual film mandrels with 19" long film roll on 4" core and 9" long x 6" wide pnuematic pressure, heat sealer and die cut-off each lane, film rewind and 48" long x 32" discharge conveyor. Control panels have CPU controllers with touch screen controls and start, stop, e-stop push button and statis light bar. Mounted on stainless steel base frames with height adjustable legs and interlock safety guarding.

OAD: 552" L x 84" W x 80" H
