Purui #SJ200/200, dual stage 8" single screw pelletizing system, spiral feeding conveyor, 2018

Dual stage 8“ single screw pelletizing system
Main Extruder 32:1
Secondary Extruder 10:1

MFG: Purui, Model: SJ200/32, MFG Date: 2018
1.L/D):321
2.Screw diameter200mm
3. AC motor power250kW
4.Rotate speed10~100rpm
5.Cooling methodforce wind cooling
6.Lubrication Force lubrication
7.Heating methodElectrical heater
8.Control section9 sectionsincluding machine head
9. Frequency inverter

Secondary Extruder of dual extruder system, Model SJ200/10:
1.L/D10 1
2.Screw diameter200mm
3. AC motor power75kW
4.Rotate speed10~100rpm
5.Cooling methodforce wind cooling
6.Lubrication Force lubrication
7.Heating methodElectrical heater
8.Control section4 sectionincluding machine head

Includes:
1 Large Feeding silo with sensor, 3-4 ton capacity

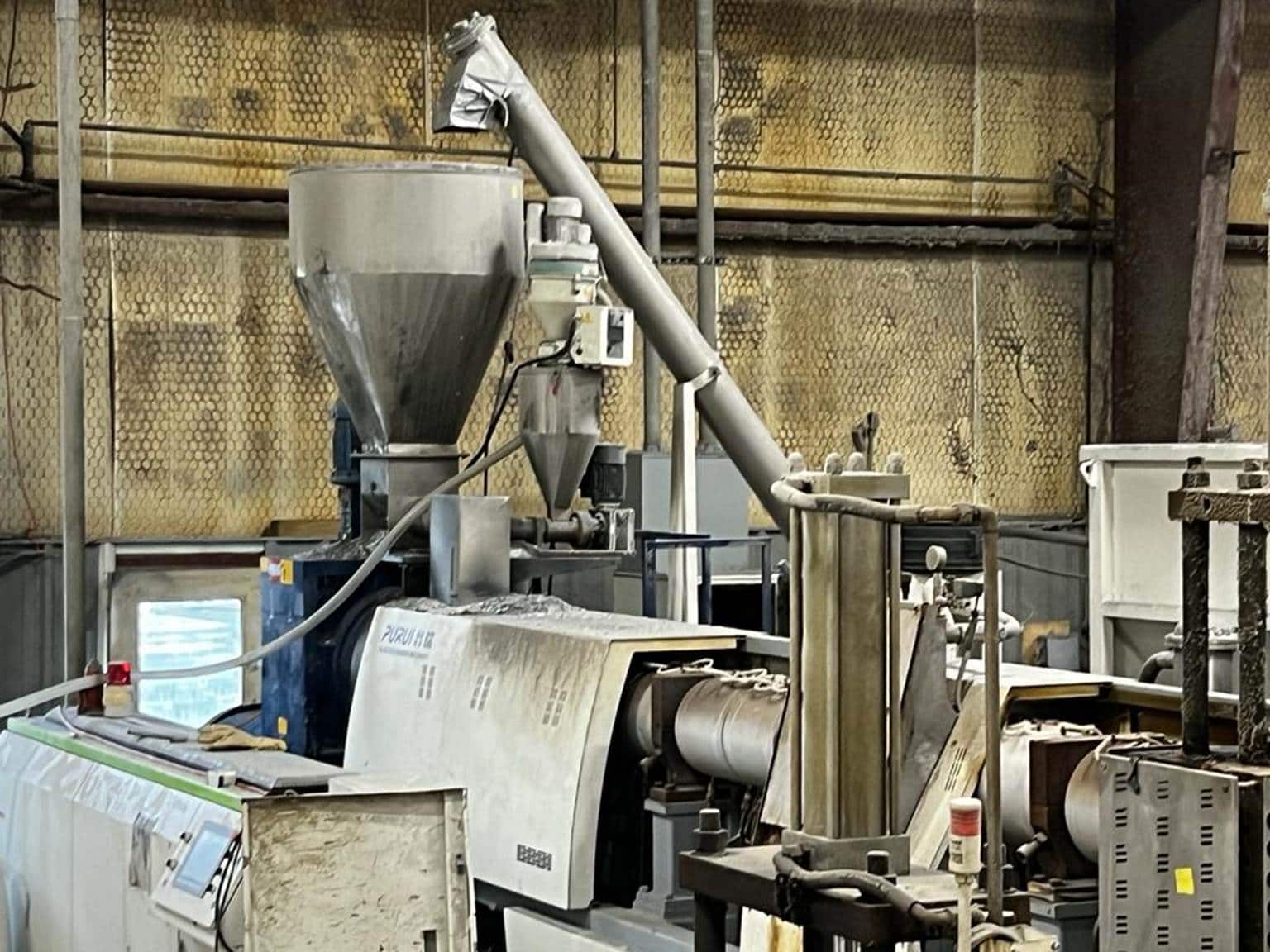

2 Spiral feeding conveyor
3 Feeding silo
4 SJ200/32 single screw extruder

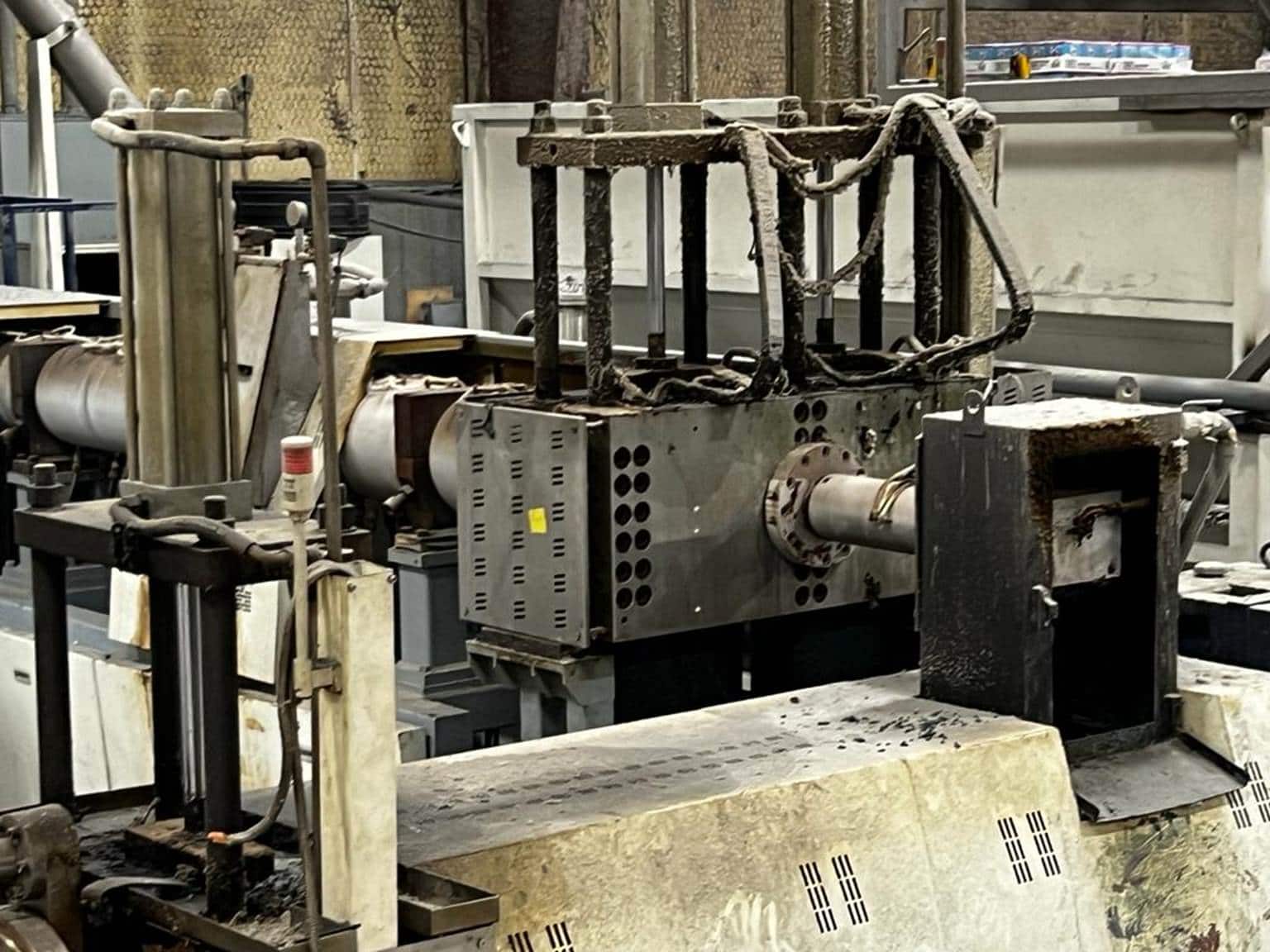

5 350mm Hydraulic screen changing system
6 SJ200/10 single screw extruder
7 350mmHydraulic screen changing system
8 Pelletizer system

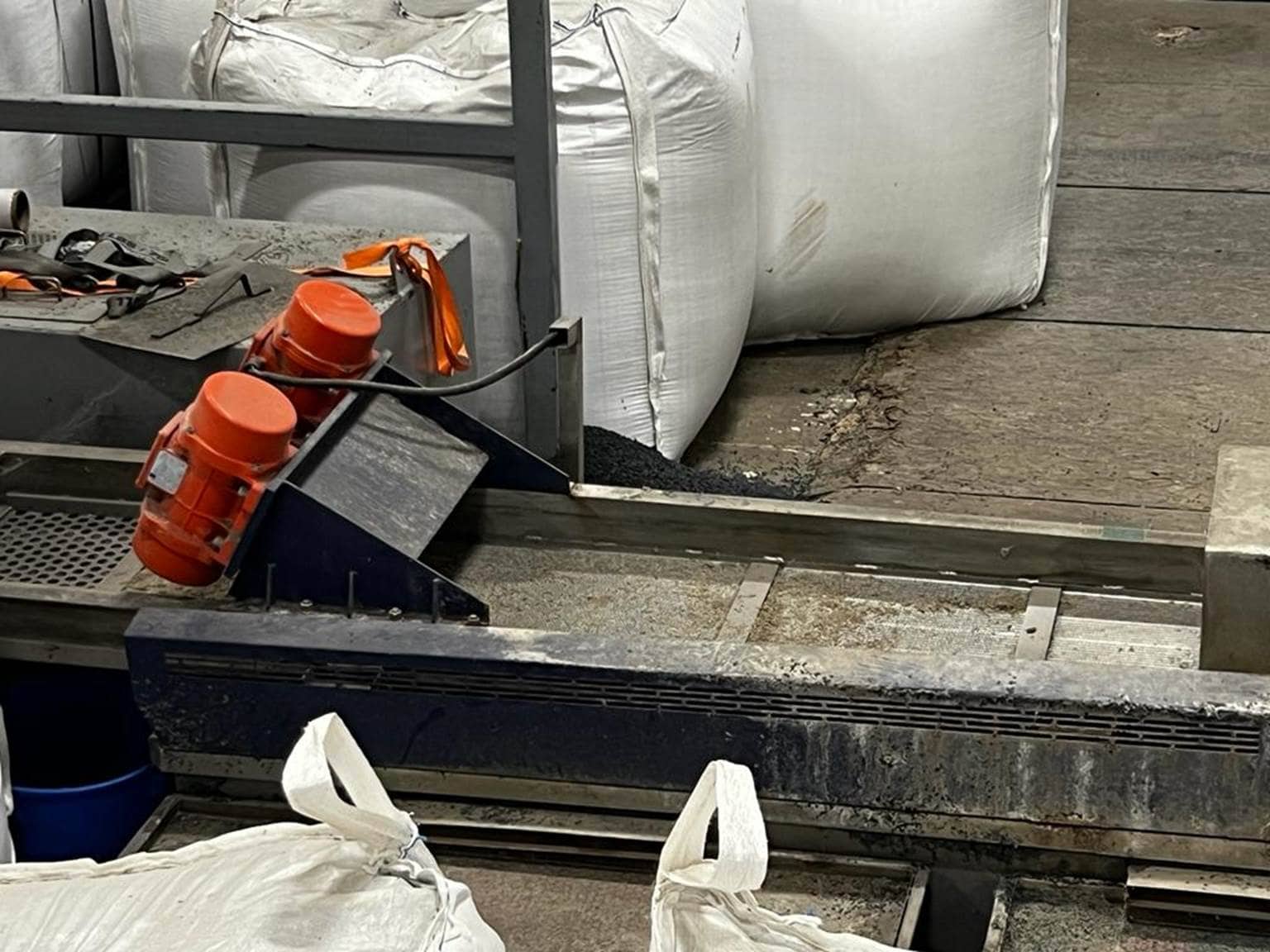

9 Dewatering vibrating screener
10 Dewatering fan & 2M stainless silo
11 Control cabinet
12 Spare parts
13 WEG motor with UL certificate
14. Control cabinet conforms with UL standard
