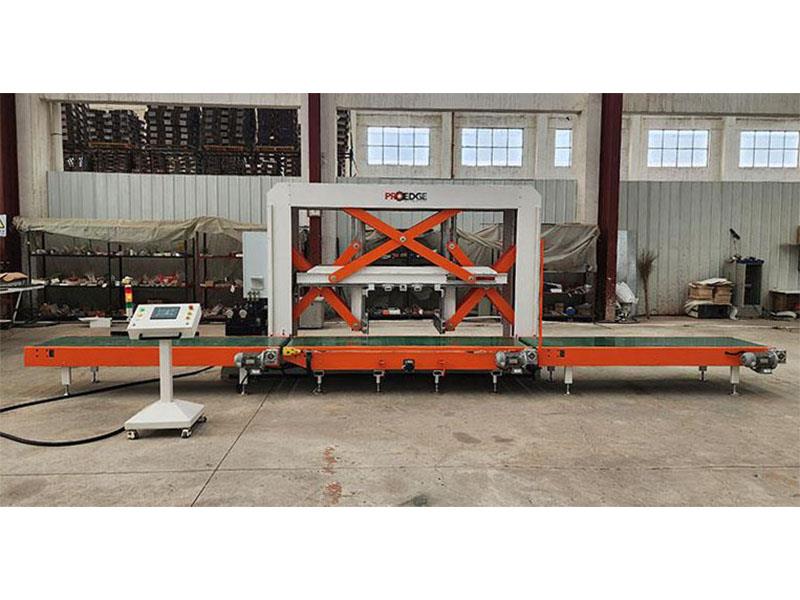

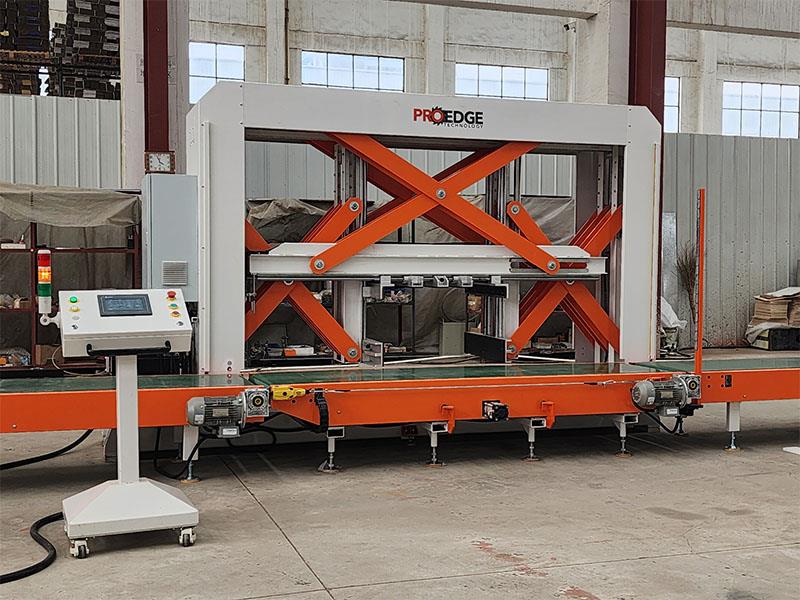

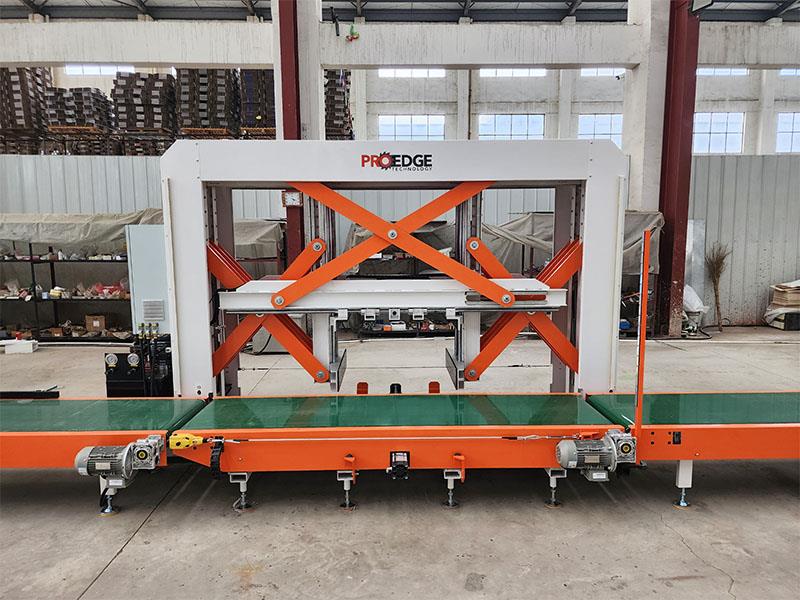

Pro-Edge Technology #SqueezeTight, automatic feed through case clamp, 2026, new

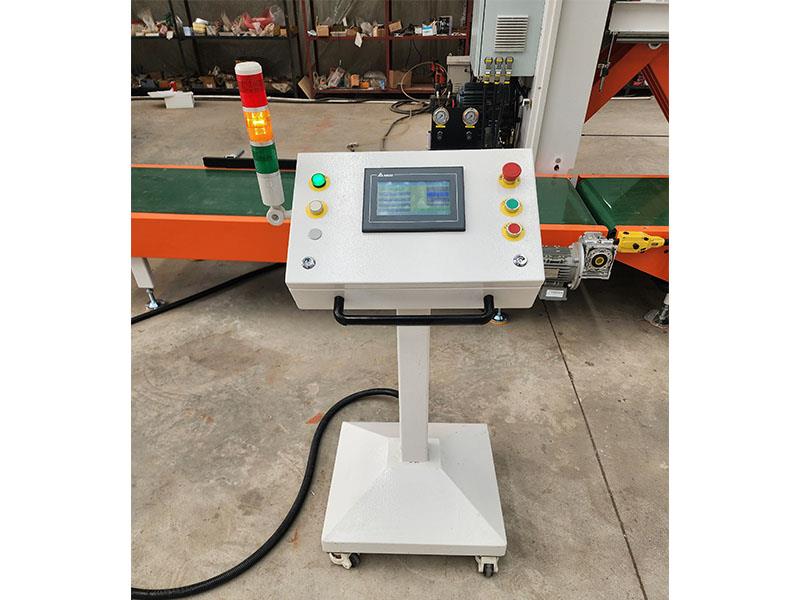

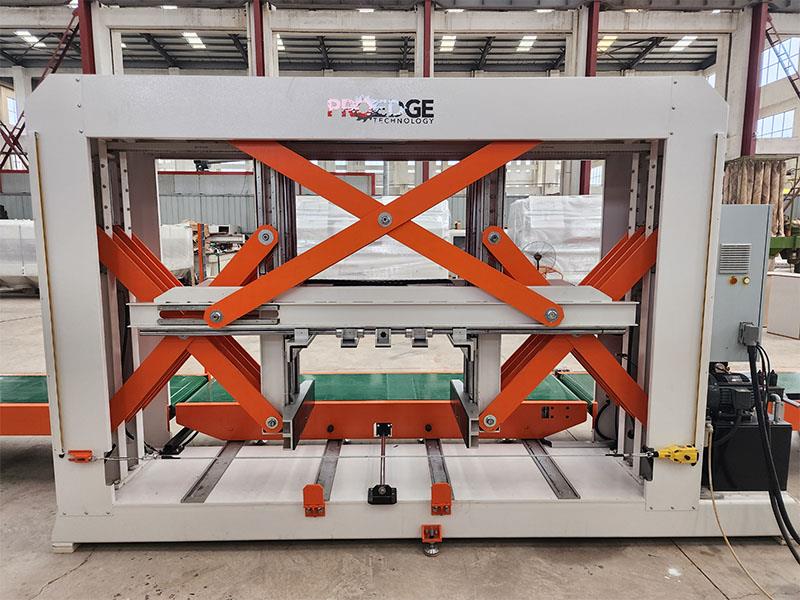

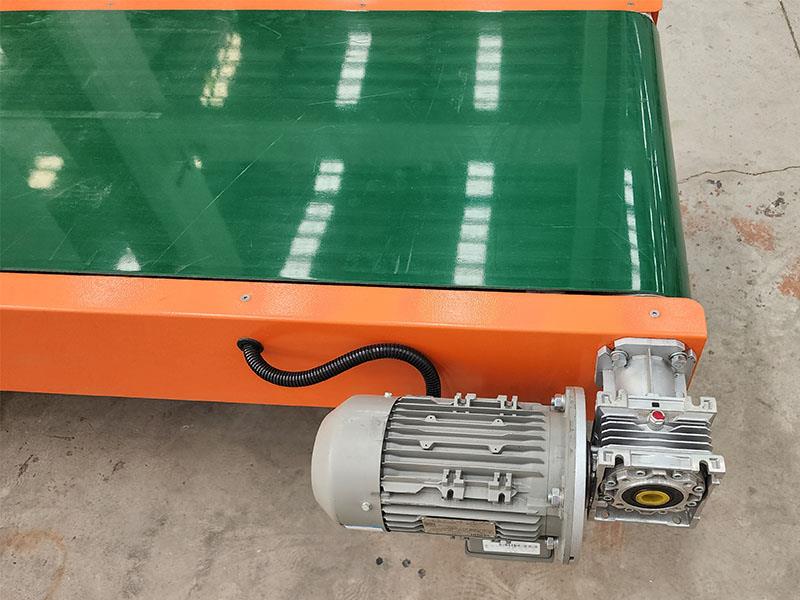

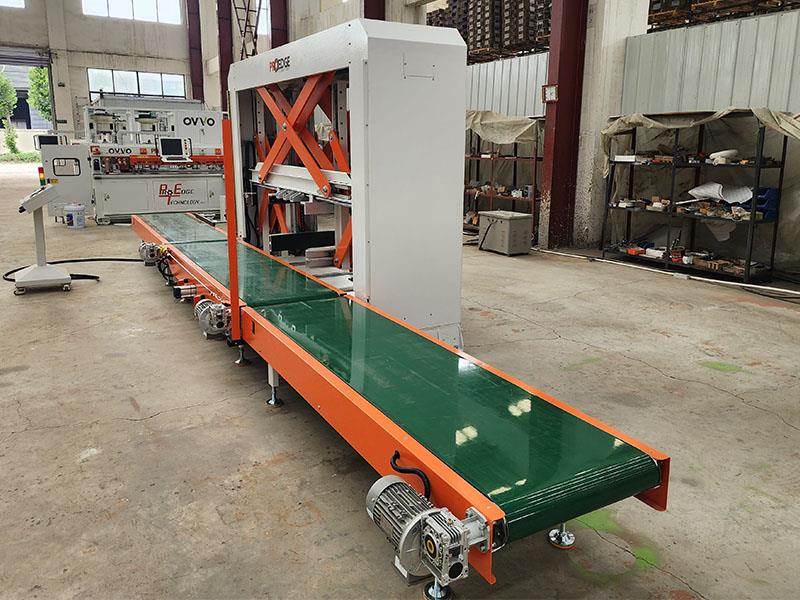

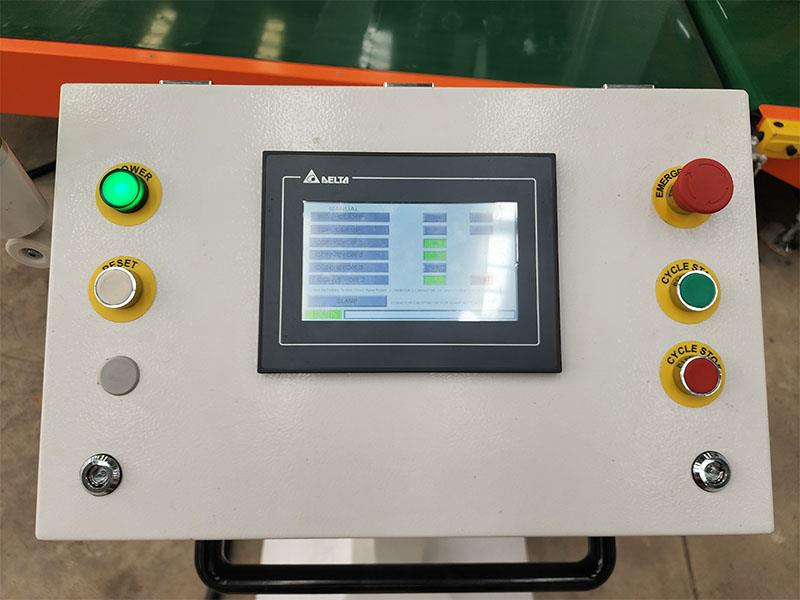

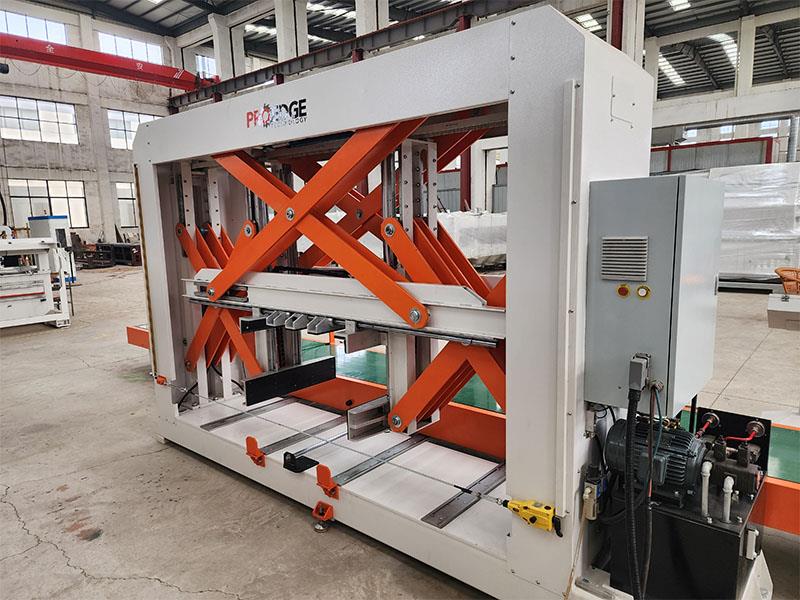

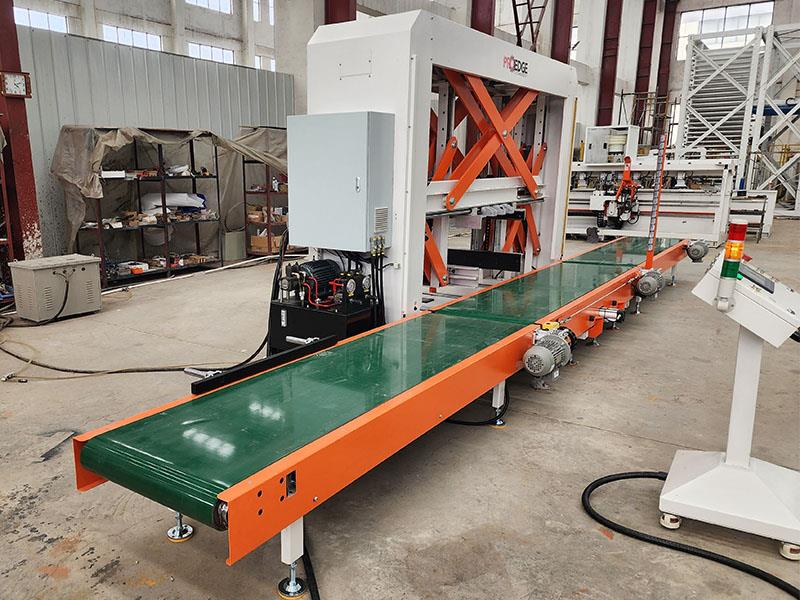

PRO-EDGE TECHNOLOGY SQUEEZETIGHT CASE CLAMP (AUTOMATIC FEED THROUGH): -- Specifications:The SqueezeTight automatic hydraulic case clamp does the work for you. The vertical pressing system with motors & independently controlled crossbars move according to the size of the piece to be pressed, mobile parts slide along linear bearings and guides. -- Operating Cycle;Once the piece of furniture is assembled on the preparation bench the operator starts the automatic cycle and the carcass enters the machine.The reading devices automatically determine the length and height of the workpiece and send this information to the PLC which positions the mobile head and the conveyor and stops the carcass in position. The beam automatically moves to the preset position.Each of the mobile heads are fitted with: (2) RH & (2) LH Horizontal pressure beams + (4) stationary & (1) adjustable top pressure clamps.The Clamping Cycle is 100% programmable & pressing is by a 10 HP (7.5 kW) Hydraulic pump system.The in-out-cross transfer powered belt conveyors are driven by "SIEMENS" AC brushless motors. -- Working Capacity:9.8" - 89.7" (250 - 2,280 mm) working width/length, 9.8" - 42.9" (250 - 1,090 mm) working height, 9.8" - 25.9" (250 - 660 mm) working depth. -- Positioning Speed:32.8 - 131.3 FPM (10 - 40 MPM) Variable speed controlled by programmable inverter. -- The carcass transfer system is located at the bottom of the bed and consists of an electro-welded steel structure on which a closed loop belt is driven by an inverter-controlled "SIEMENS" motor. -- Operator Interface:Automatic cycle control from onboard "HMI" Touch Screen control + "DELTA" VFD's & PLC with adjustment for all clamping aspects. Clamping pressure strength up to 1,200 PSI over-all. -- Complete with:(1) 98" Long powered in-feed conveyor belt with alignment guideways, (1) 98" Long powered cross-feed conveyor belt with alignment guideways & (1) 98" Long powered out-feed conveyor belt. Parameter Safety Light Curtain System. -- NOT included:Cost for Delivery, installation, and training (please call for quotes). -- Actual Model is PRO-EDGE TECHNOLOGY SQUEEZETIGHT
