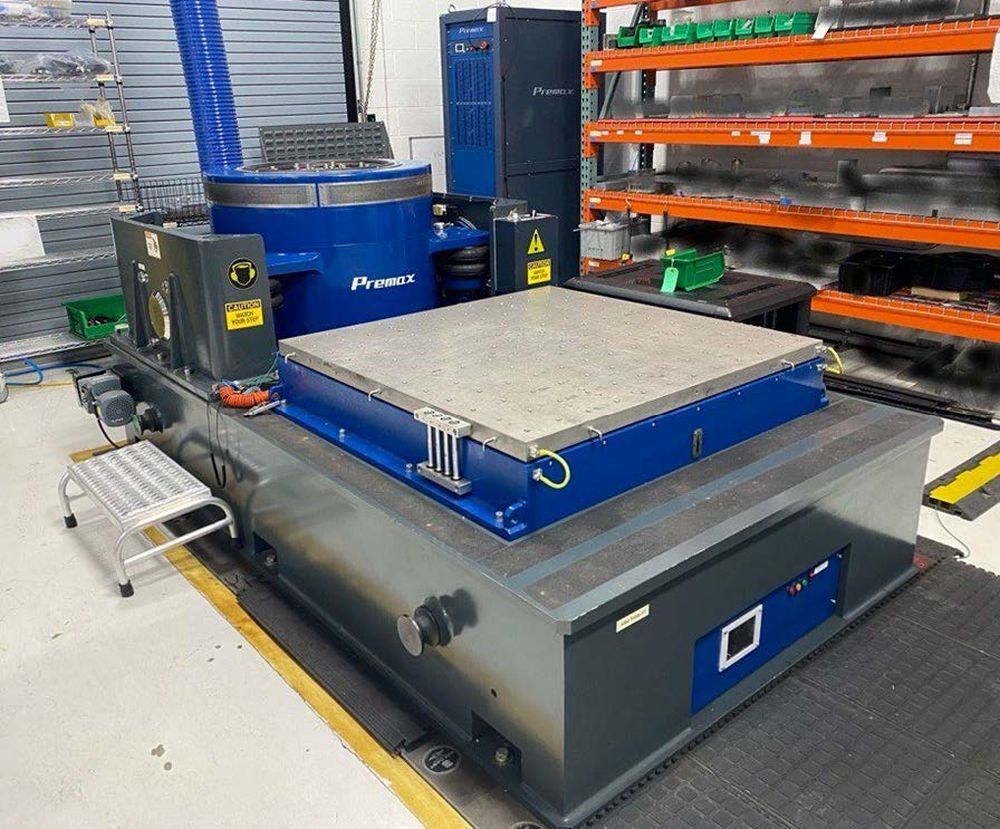

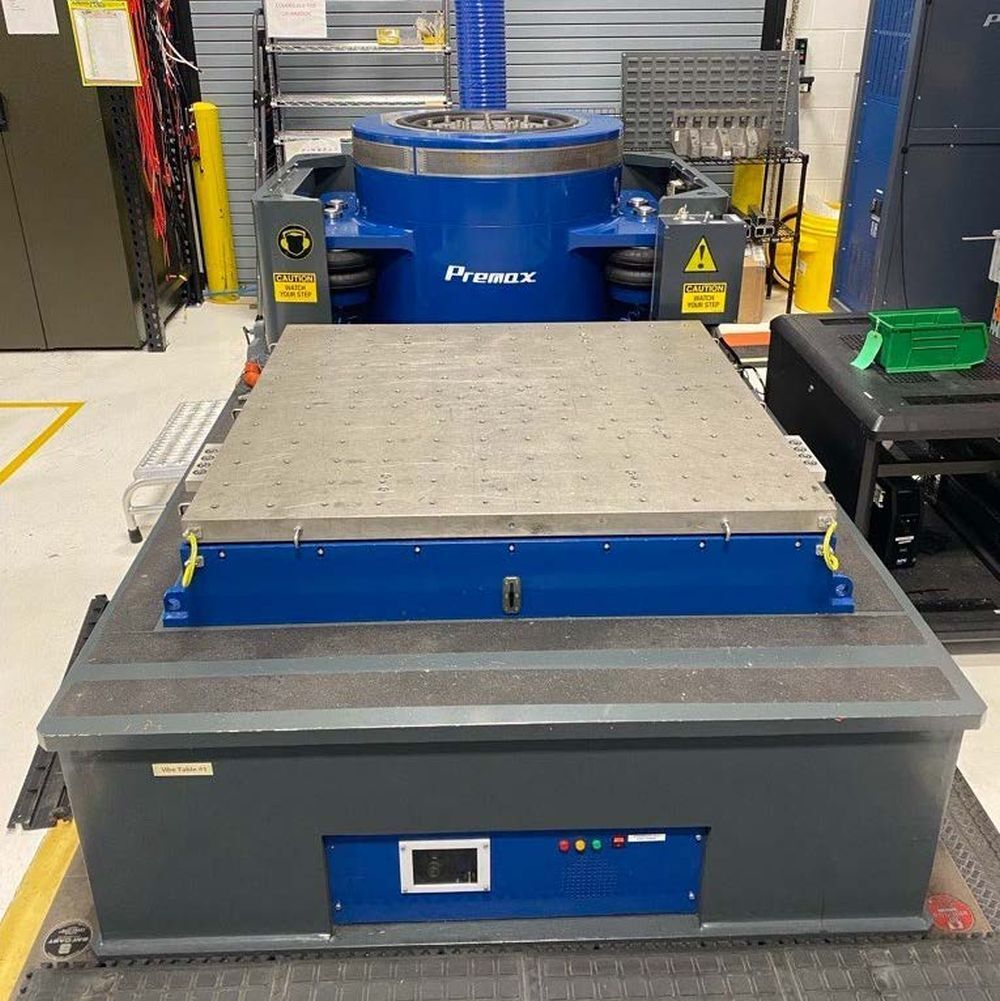

Description
Table dimensions 48 x 48
Sine Force Rating 53.4 kN (12,000 lbf RMS)
Shock Force Rating 106kN (24,000 lbf RMS)
Random Force Rating 3.4 kN (12,000 lbf RMS)
Sine Peak Acceleration Rating (Bare Table) 981 m/s^2 (100 g)
Velocity Rating 1.8 m/s
Frequency Range Rating 5 ~ 2500 Hz
Peak to Peak Displacement Rating 51 mm [2.0 in - p to p]
Load Rating 998 kg ( 2,200lbs)

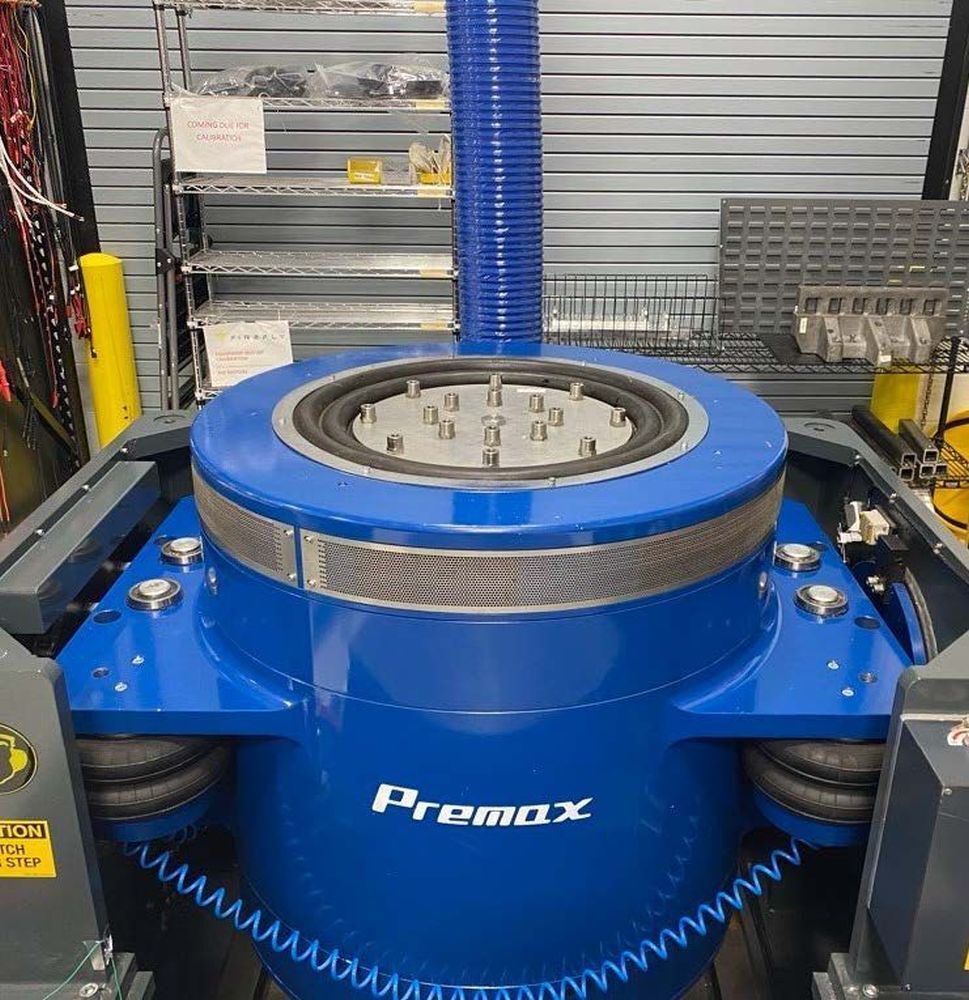

Armature Diameter 445 mm (17.5 in)
Armature Mass 55 kg (121.2 lbs.)
Armature Insert Pattern (9mm) 8 × 200mm (8 × 400mm)
Table Bolt Size (Standard) Metrix (M - 12)
Power Supply 3 phase 480V AC, 60H
Sine Force Rating 53.4 kN (12,000 lbf RMS)
Shock Force Rating 106kN (24,000 lbf RMS)
Random Force Rating 3.4 kN (12,000 lbf RMS)
Sine Peak Acceleration Rating (Bare Table) 981 m/s^2 (100 g)
Velocity Rating 1.8 m/s
Frequency Range Rating 5 ~ 2500 Hz
Peak to Peak Displacement Rating 51 mm [2.0 in - p to p]
Load Rating 998 kg ( 2,200lbs)
Armature Diameter 445 mm (17.5 in)
Armature Mass 55 kg (121.2 lbs.)
Armature Insert Pattern (9mm) 8 × 200mm (8 × 400mm)
Table Bolt Size (Standard) Metrix (M - 12)
Power Supply 3 phase 480V AC, 60H
