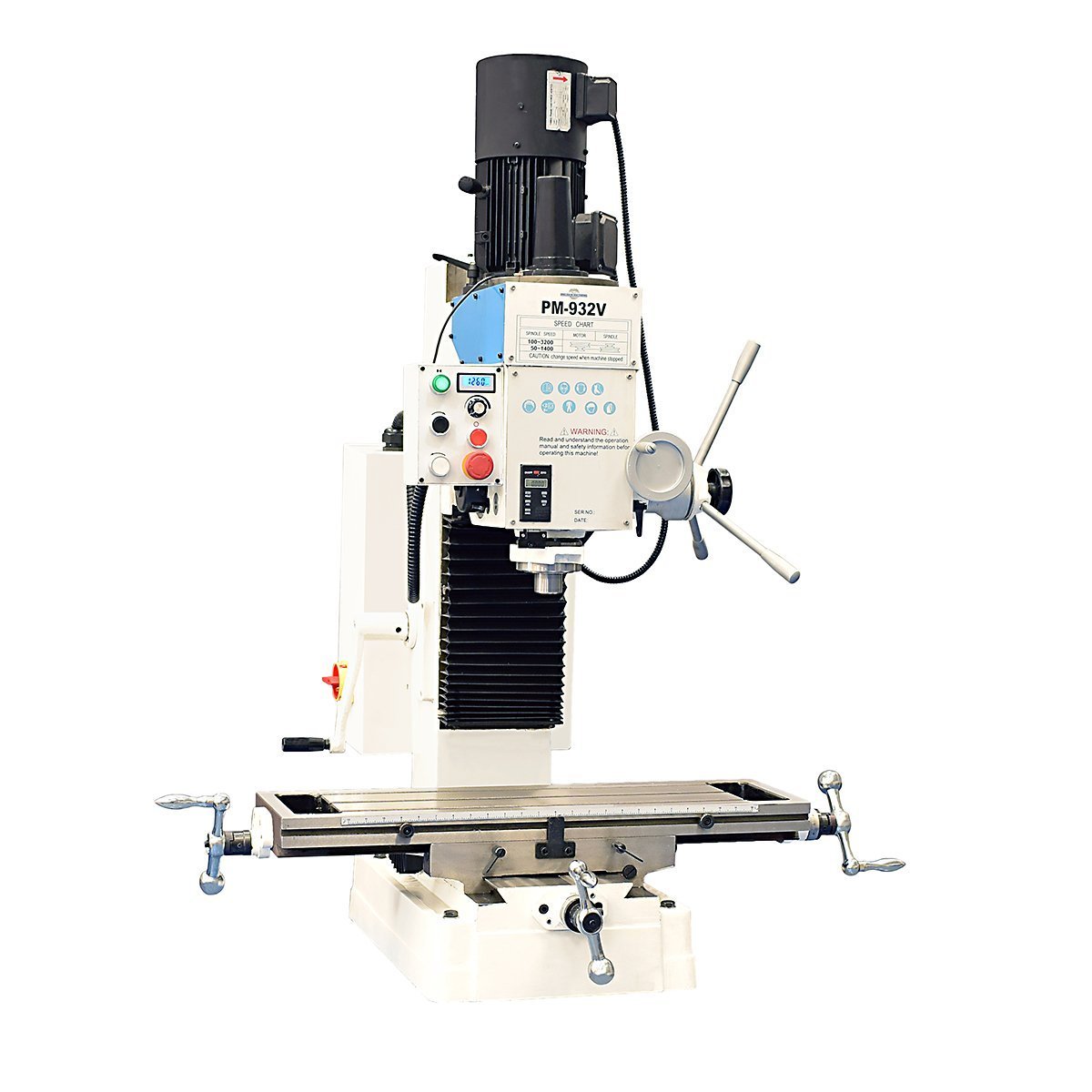

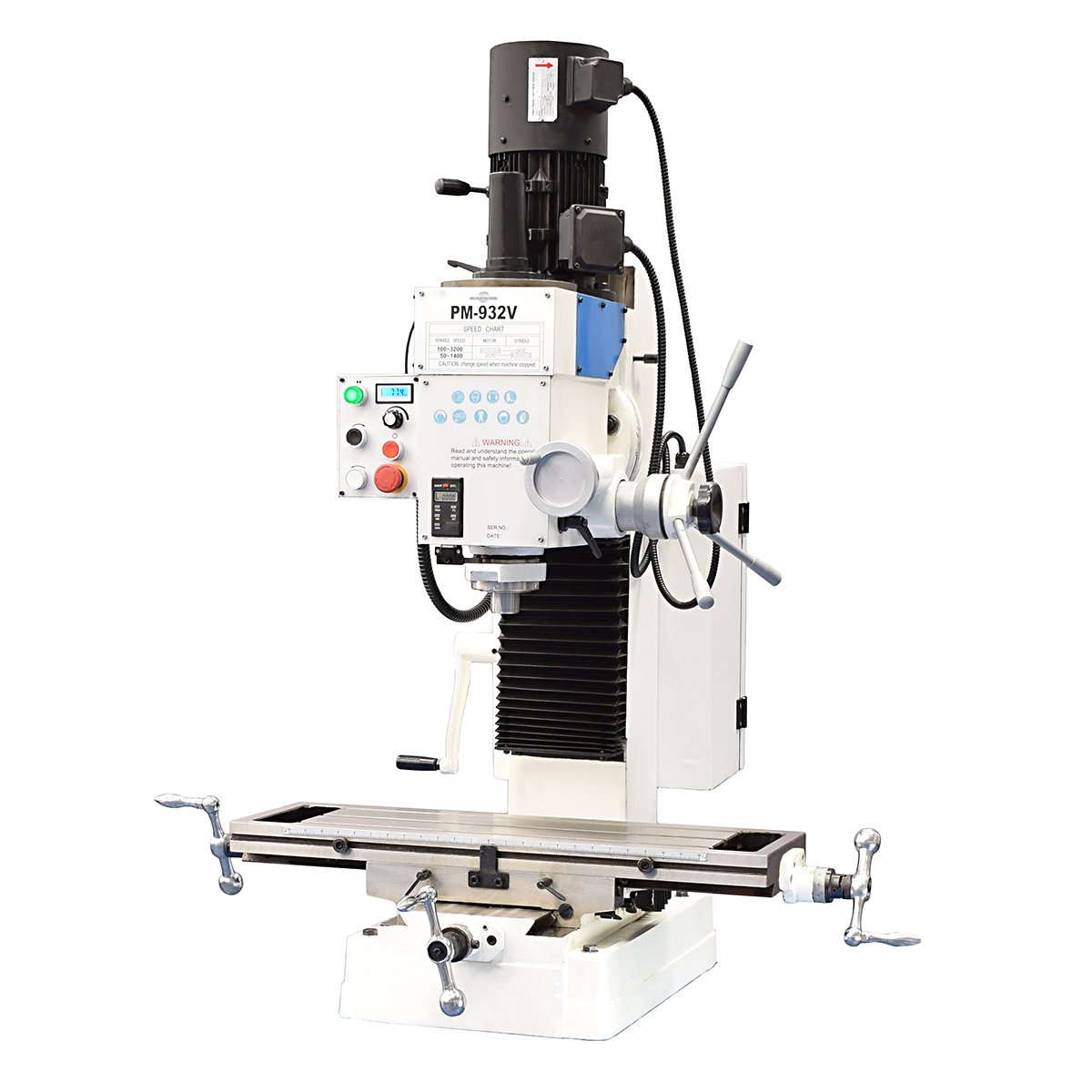

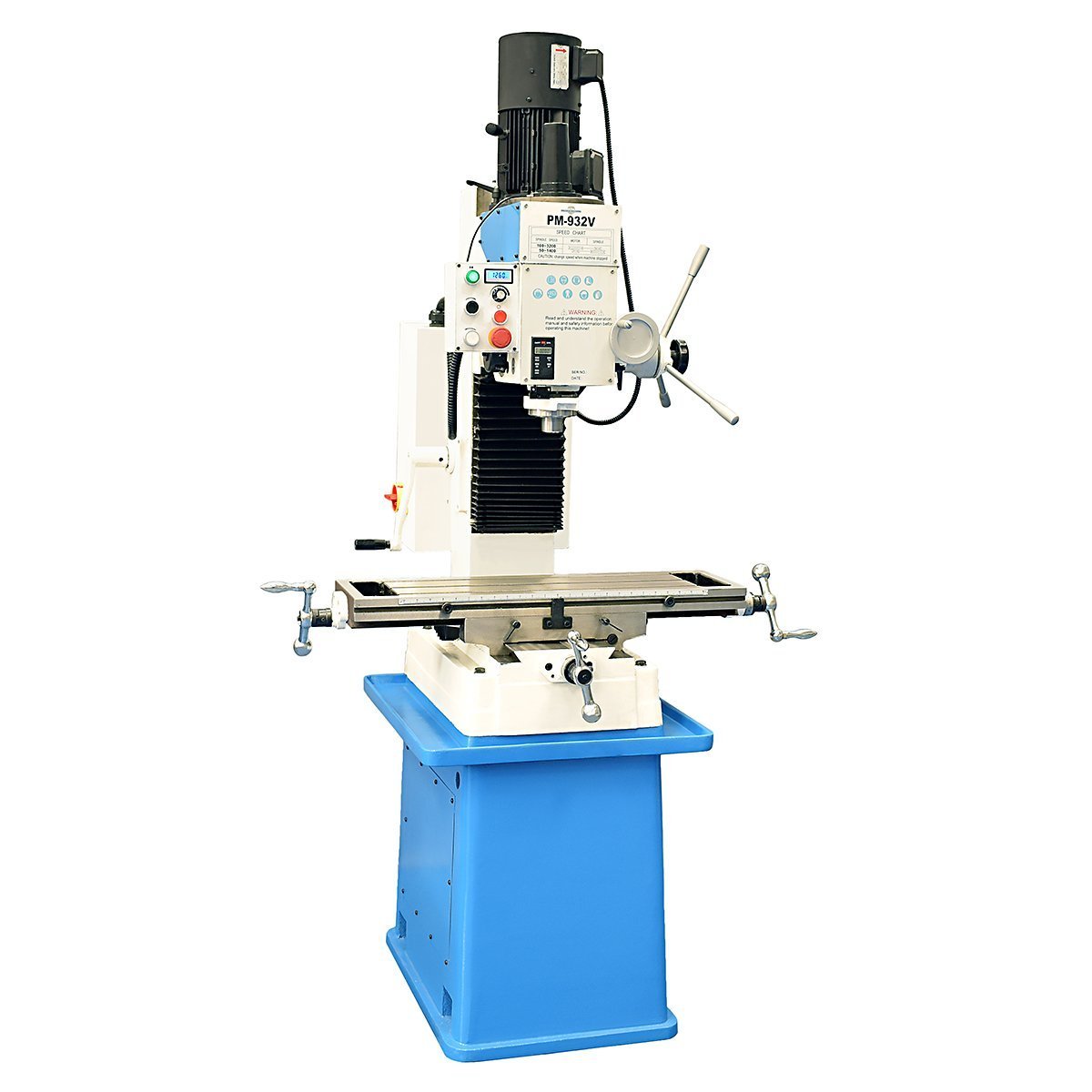

Precision Matthews #PM-932V-BASIC, Precision Bench Top Milling Machine, 9" x31.5" table, 2 HP

Main Specifications of PM-932V:

• Spindle Speeds: 50-3200 RPM, 2 Ranges (50-1400 in Low, 100-3200 in High)
• Spindle Drive Type: MultiV Belt (For smoother running)

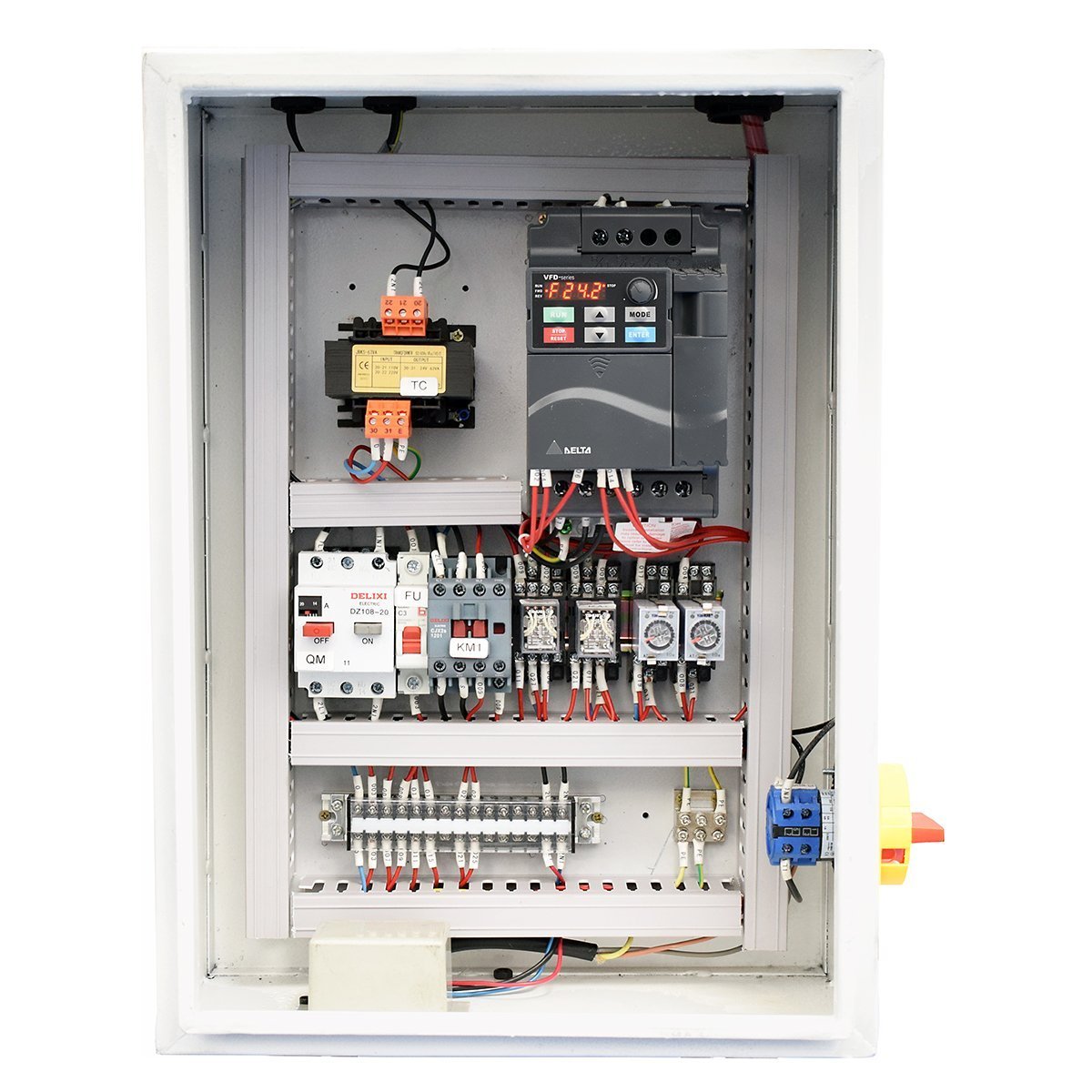

• Motor Drive Type: VFD
• Table Size: 9″x31.5″
• Max. Table Load Capacity: 300 lbs
• Table T-Slot Size and Number: 14mm / 9/16″, 3 Slots
• Table Travel, X Axis: 22-3/8″ Hand Only, 19.5″ w/ Power Feed
• Table Surface Height from floor, 34-3/4″ (With base flat on floor)
• Base Dimension at floor approx. 18-5/8″W x 27″D
• Bolt Mounting Pattern, Milling Machine Base (Where the machine would bolt to either a work bench or to the cast iron base) Approx. 12-3/4 Wide x 18-3/4 Deep, 9/16” Hole Diameter
• Base of machine casting, bottom of the mill where it would mount to the optional base is approx. 24″ Front to back, 16″ Wide
• Normal Working Max Height: (top of column travel motor) 76-1/2″ (with optional stand)
• Height with head all the way up: (top of main motor) 81-1/2″(with optional stand)
• Stand (Base) height, to machine mounting surface: 24″
• Cross Travel, Y Axis: 8″
• Head Vertical Travel: 17″
• Max. Distance Spindle to Table: 18″
• Quill (Spindle) Travel: 5″
• Lead Screw Type: Inch Pitch Acme Threads
• Spindle Taper: R-8, with 7/16-20 drawbar thread (U.S.
  Standard)
• Quill Diameter: approx. 3″
• Head Tilt Front to Back: N/A
• Head Swivel: Side To Side, 90 Degrees
• Ram Swivel: N/A
• Power: 220 Volt, Single Phase, 12 Amps

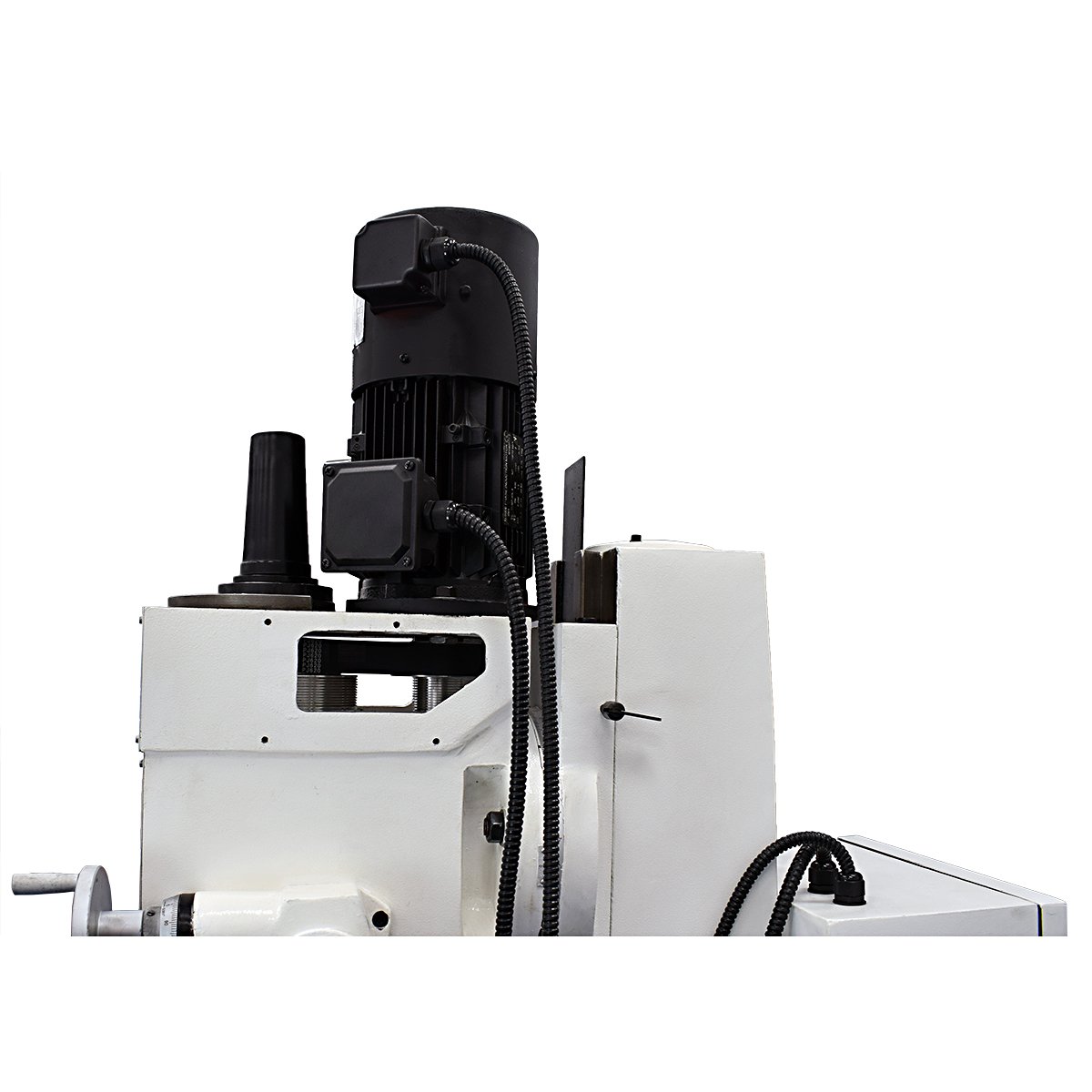

• Motor Horsepower: 2 HP
• Casting Type: Fine Grain Cast Iron
• Country of Origin: China
• Approximate Weight: 1000lbs with Stand, 750 Without Stand
• Cord Connection/Type: Cord approx. 5′ length, User to supply plug needed for your outlet (20A 240V With Ground, No Neutral Required)

Available Machine Options
* ALL Machines now come with larger mill style crank handles for
better feel and easier operation by hand, as shown in main
picture * STAND IS OPTIONAL FOR ALL MODELS, MUST BE SELECTED IF CAST IRON STAND IS DESIRED*

1. PM-932V-BASIC
Includes: Quill DRO, Manual Down Feed on spindle, Variable spindle speeds 50-3200 RPM

2. PM-932V-BASICw/3axDRO
Includes: Quill DRO, Manual Down Feed on spindle, Variable spindle speeds 50-3200 RPM, plus 3 axis DRO Installed

PM-932V Main Features:

• Heavier Class Milling Machine, (1000 LBS With Base) For More Rigidity, And Greater Cutting Ability
• Variable Spindle Speeds, offer the ability to fine tune the speed for the job, along with a higher top RPM then geared head models

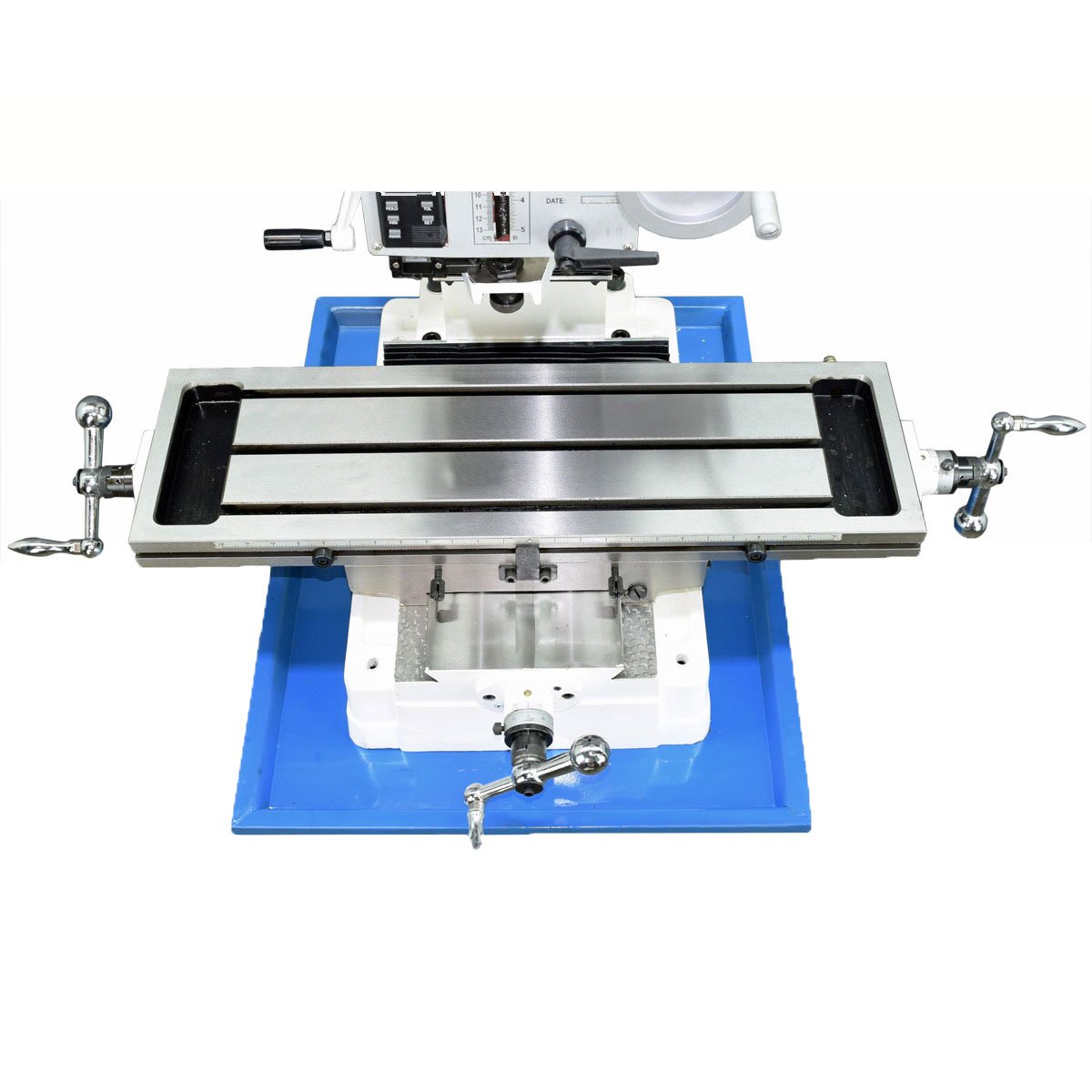

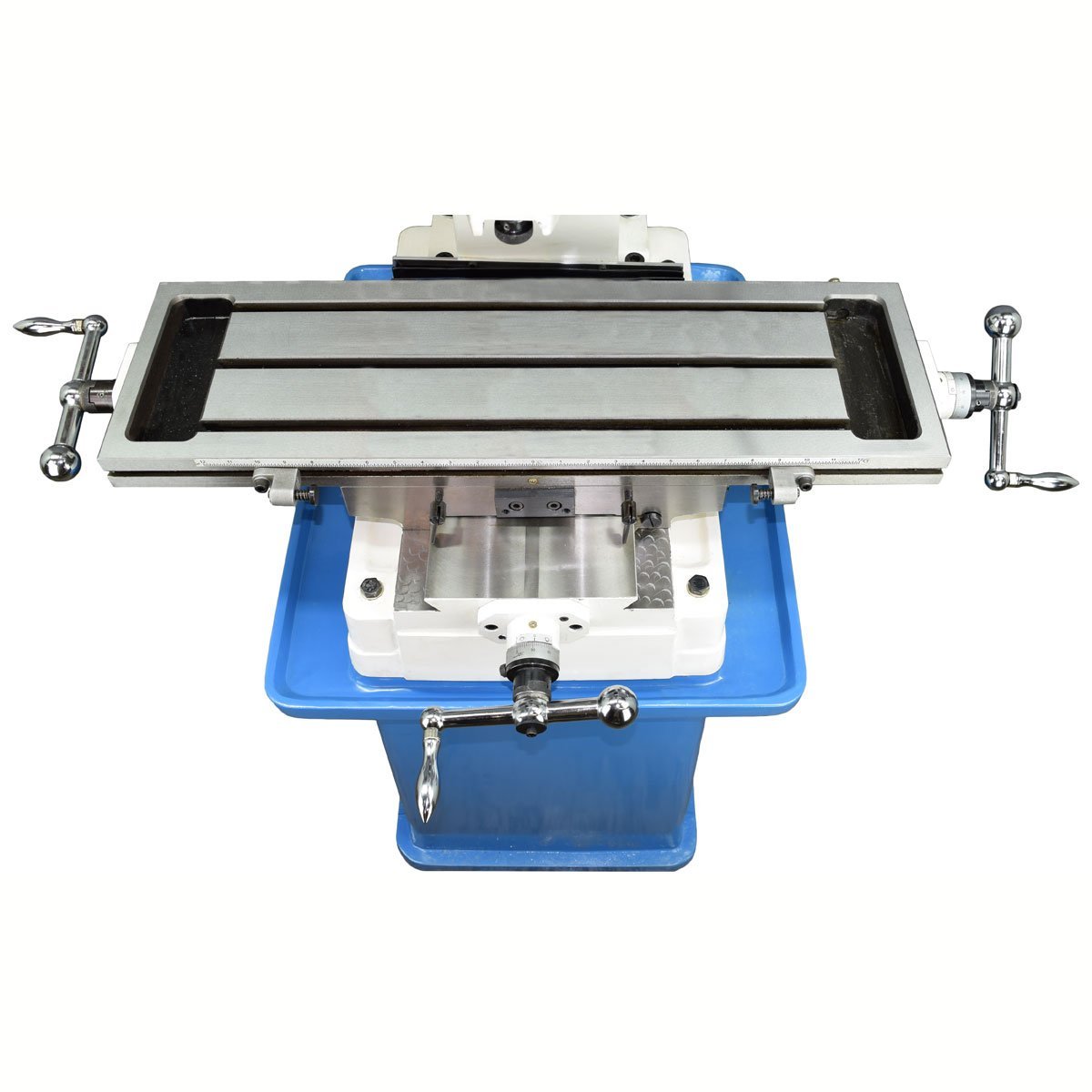

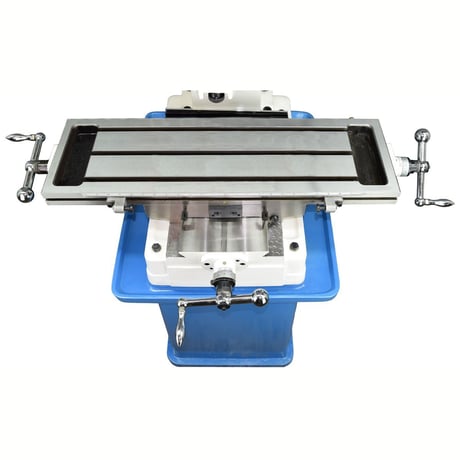

• Larger Knee Mill Style Table Handles, for Much Better Control By Hand
• True Inch Pitch Leadscrews on X and Y Axis, 10 TPI Screws (.100″ Per Turn) For Easier Operation

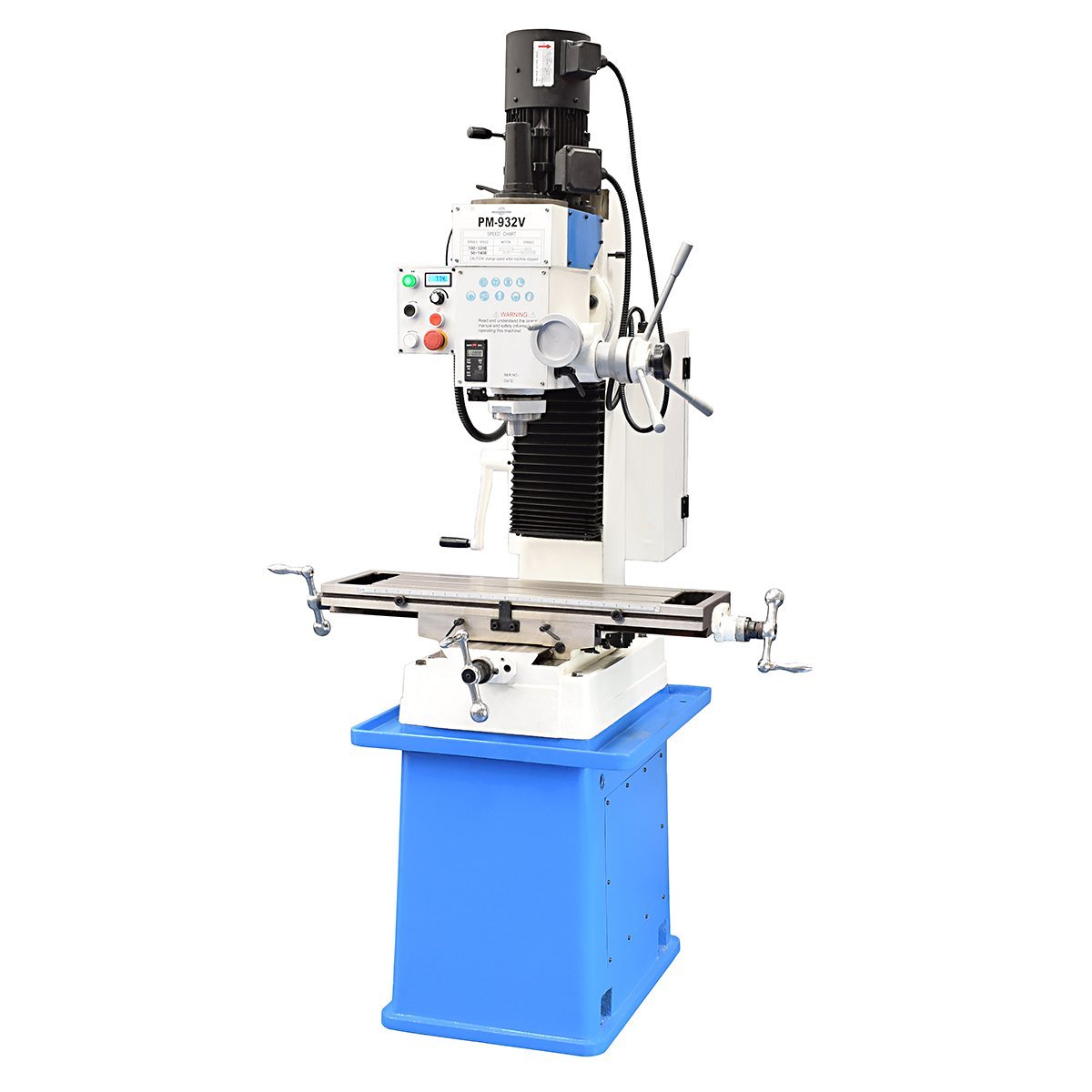

• Optional Stand is Heavy Duty Cast Iron, For Better Vibration Dampening and Rigidity
• Longest In Class, 3 Year Warranty
