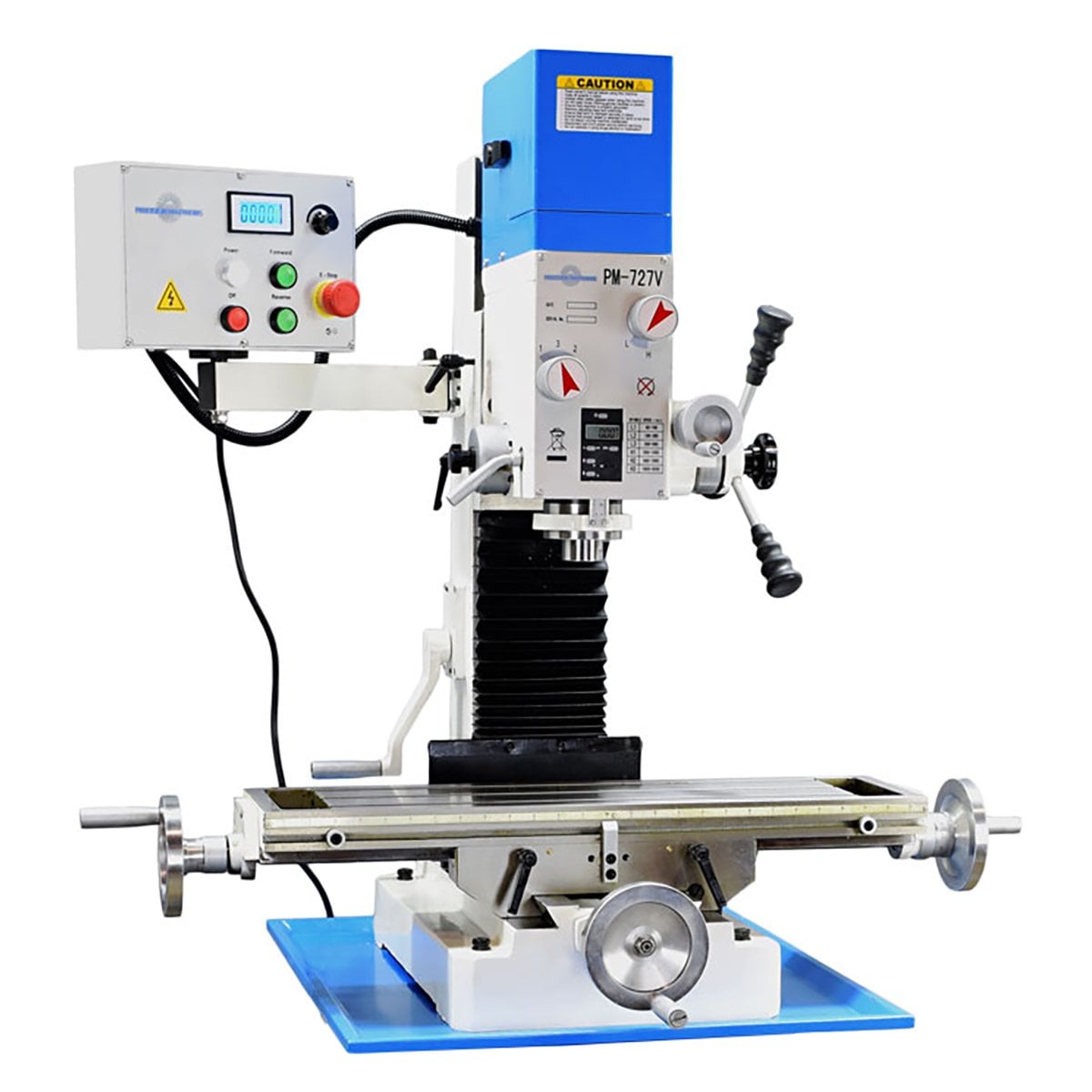

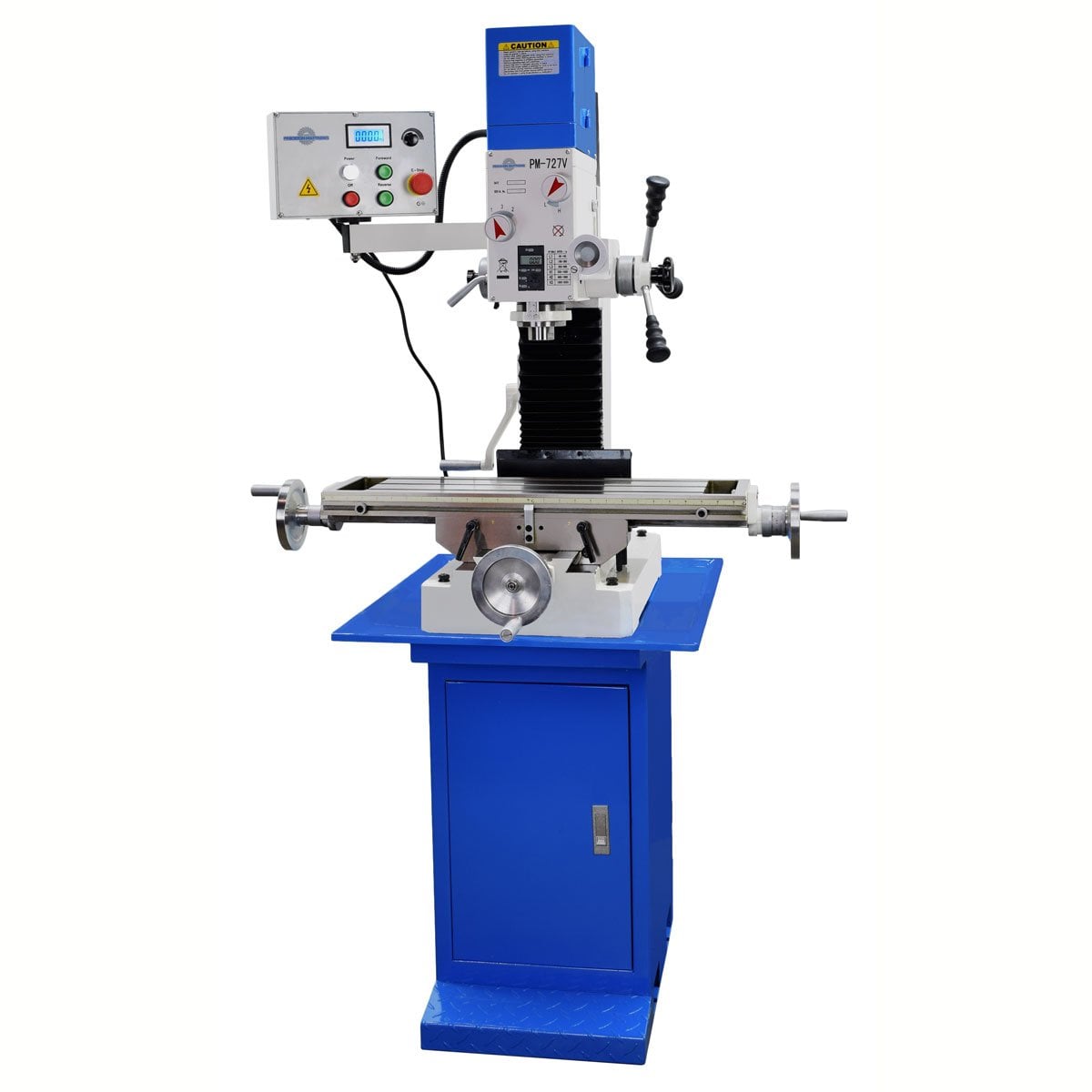

Precision Matthews #PM-727V, Benchtop Milling Machine, 7-1/8" x27-1/2" table, 1.5 HP

Main Specifications PM-727V:
Model No.: PM-727V
Max. Drilling Capacity: 1-1/4″
Max. End Milling Capacity: 1″
Max. Face Milling Capacity: 3″
Table Size: 27-1/2″ x 7-1/8″
Cross Travel (Y Axis): 8-1/2″
Longitudinal Travel (X Axis): 15″
Table Leadscrew Pitch 10 TPI (.100″ Per Turn)
Table Dial Graduations .001″
Vertical Travel (Z Axis): 16″
Max Distance Spindle to Table: 18-1/4″
Taper of Spindle: R-8, w/7/16-20 Drawbar Thread
Spindle (Quill) Travel: 3″
T Slot Size: 1/2″(T Slots are slightly less than 1/2″, actual size 12mm, our 1/2″ kit
is sized for this machine)

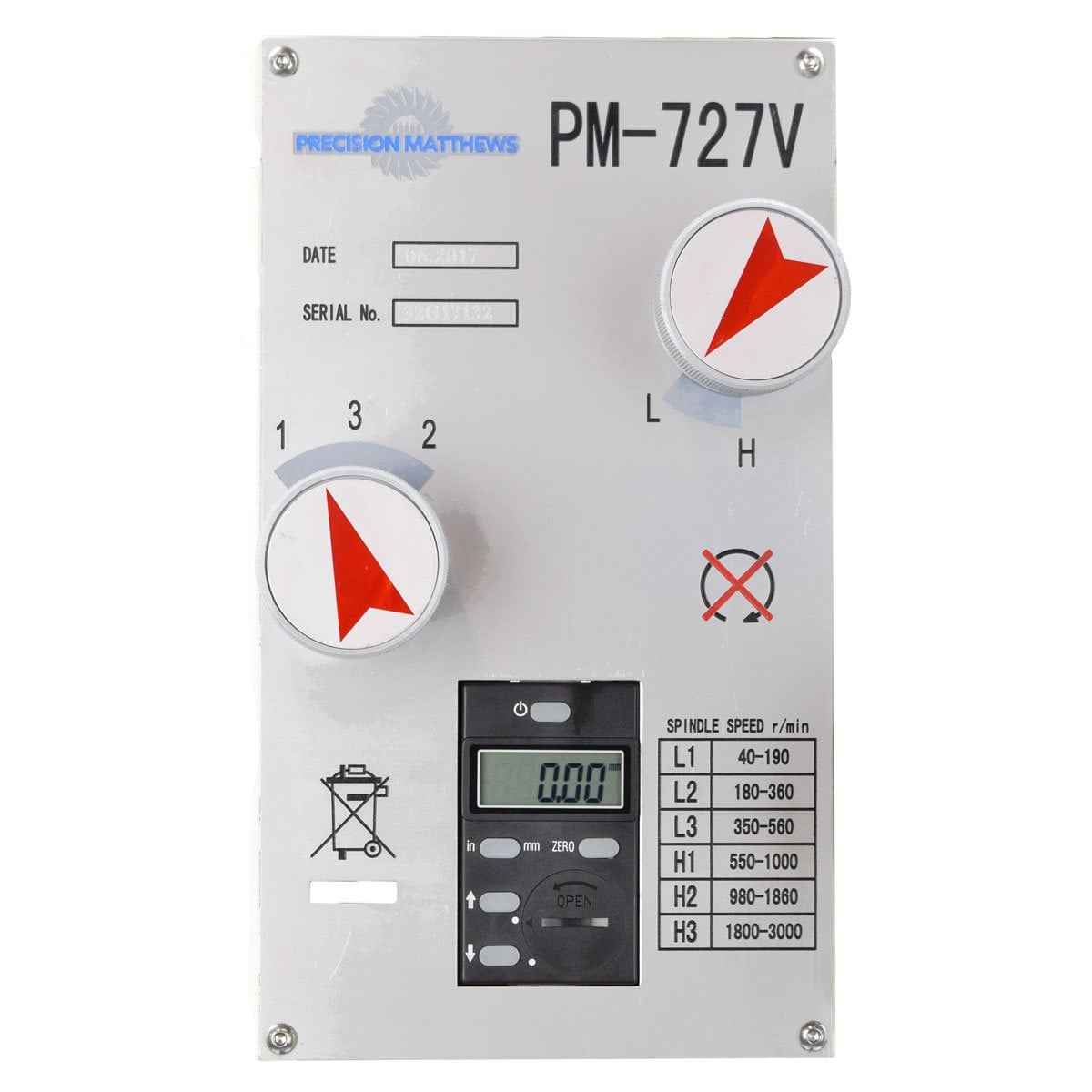

Range of Spindle Speeds: 40-3000rpm, 6 Steps, variable in each range
Head Tilt: Left & Right ±90°

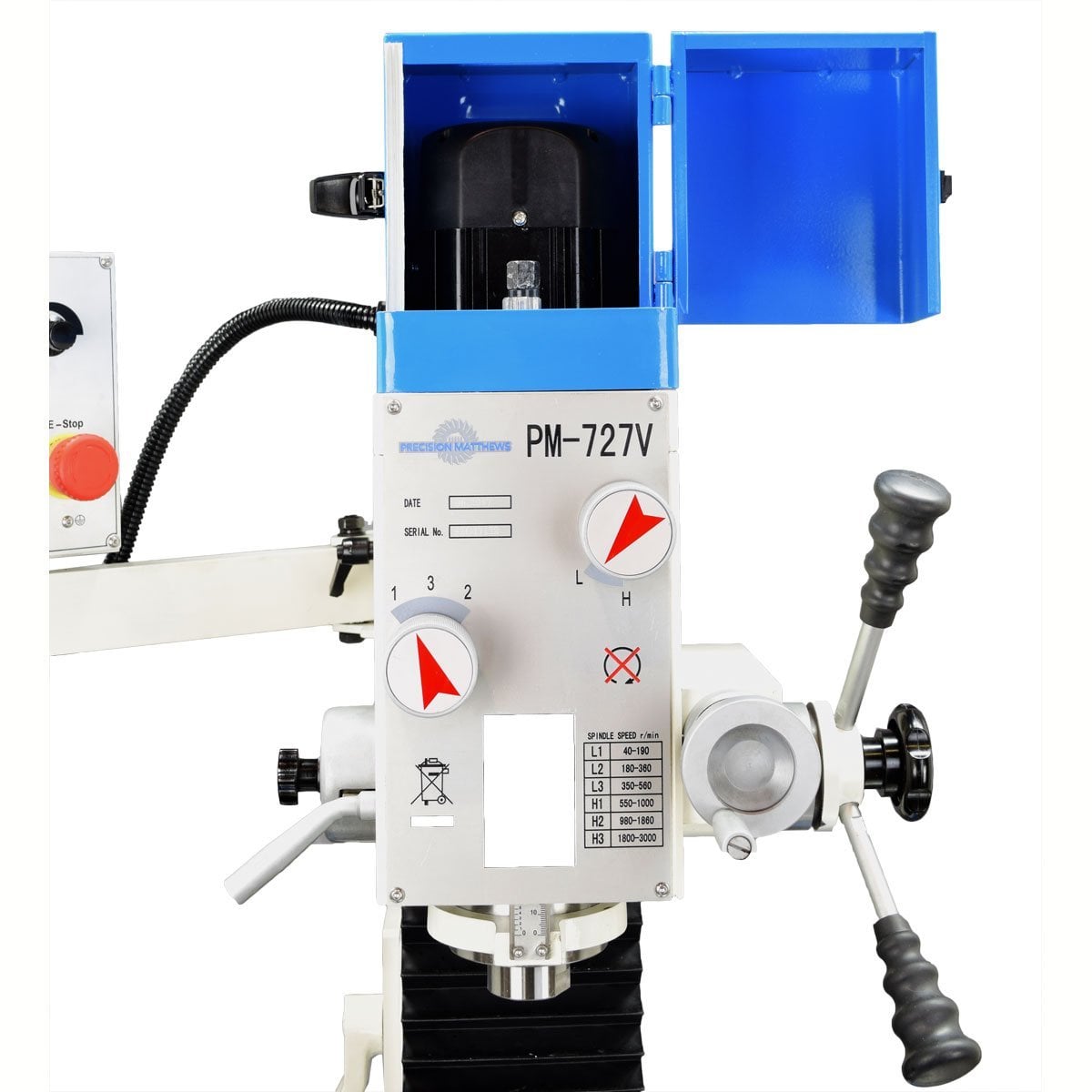

Motor: 1.5 HP
Net Weight (Not Including Base): 475 LBS
Net Weight (With Optional Base): 575 LBS
Power Required: 110/120V, 20A Circuit

Power connection: Approx. 5’ cord, Includes 120V Plug with ground
Dimensions (Assembled on stand): 39″W x 74″H x 30″D
Height with head at top of Z travel: 80″ (On Stand)
Height with head at normal working height: 75″ (On Stand)

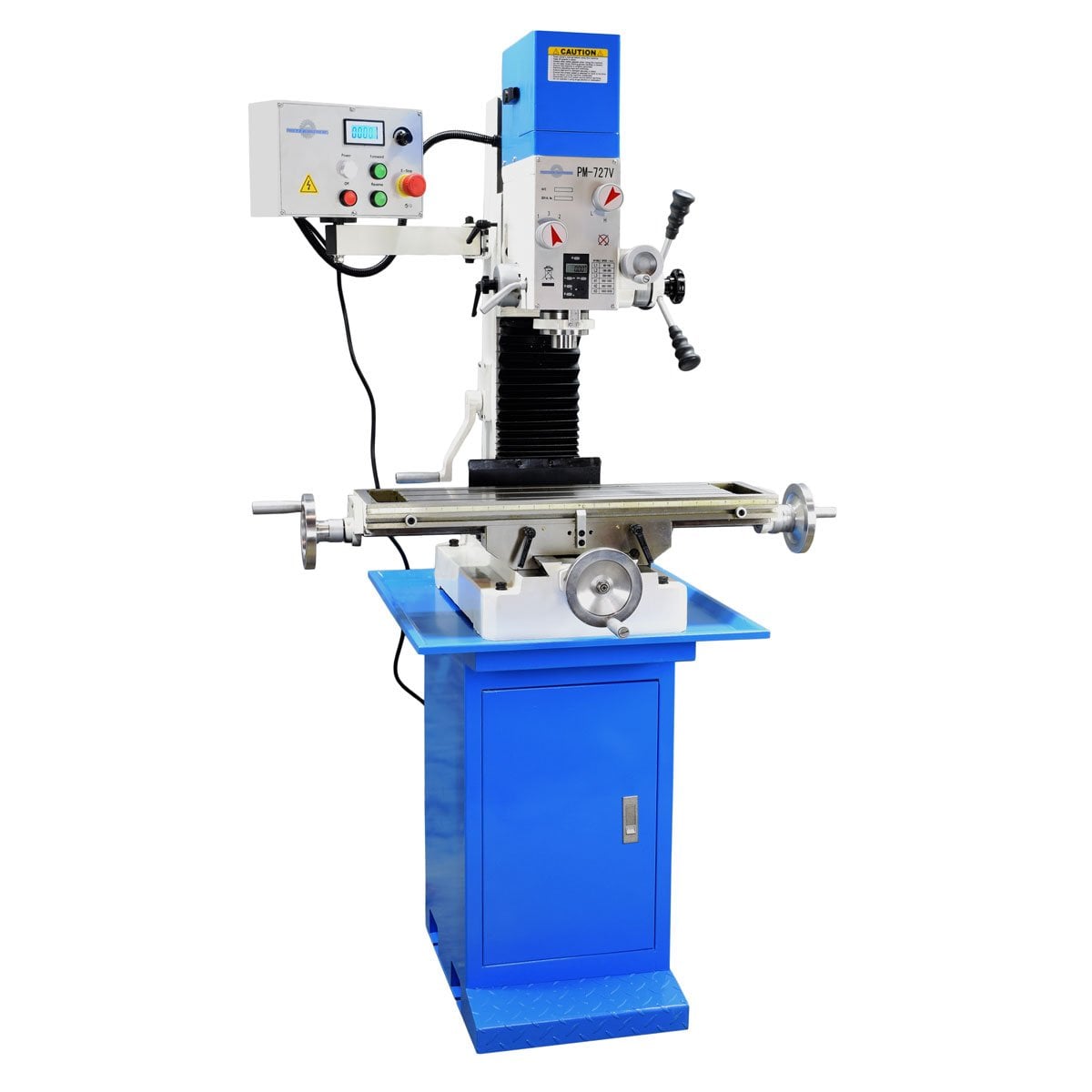

Optional Stand Height 32″
Country of Origin: China

Additional Specifications:

Machine Base Dimensions (Cast Iron Base of machine, where it sits on the chip pan) Approx. 13-1/2”Wx21”D
Machine Base Dimension (Bolt Pattern) Approx. 11”Wx14-1/4”D
Table Height, machine base (Where it sits on the chip tray) to table, approx. 8-1/2″
Footprint of stand at floor, approx. 14-1/2″W x 21-1/4″ Front to back

Main Features:

• Variable Spindle Speeds, with a range from 40 to 3000 RPM, in 6 steps, allows you to perfectly match the speed for each job
• Compact, Accurate, Economical Machine. Great for those who are looking for a
• compact machine for a smaller work shop, yet need the ability to take heavier cuts
• compared with other machines in this size range
• Spindle is Supported by High Precision Tapered Roller Bearings

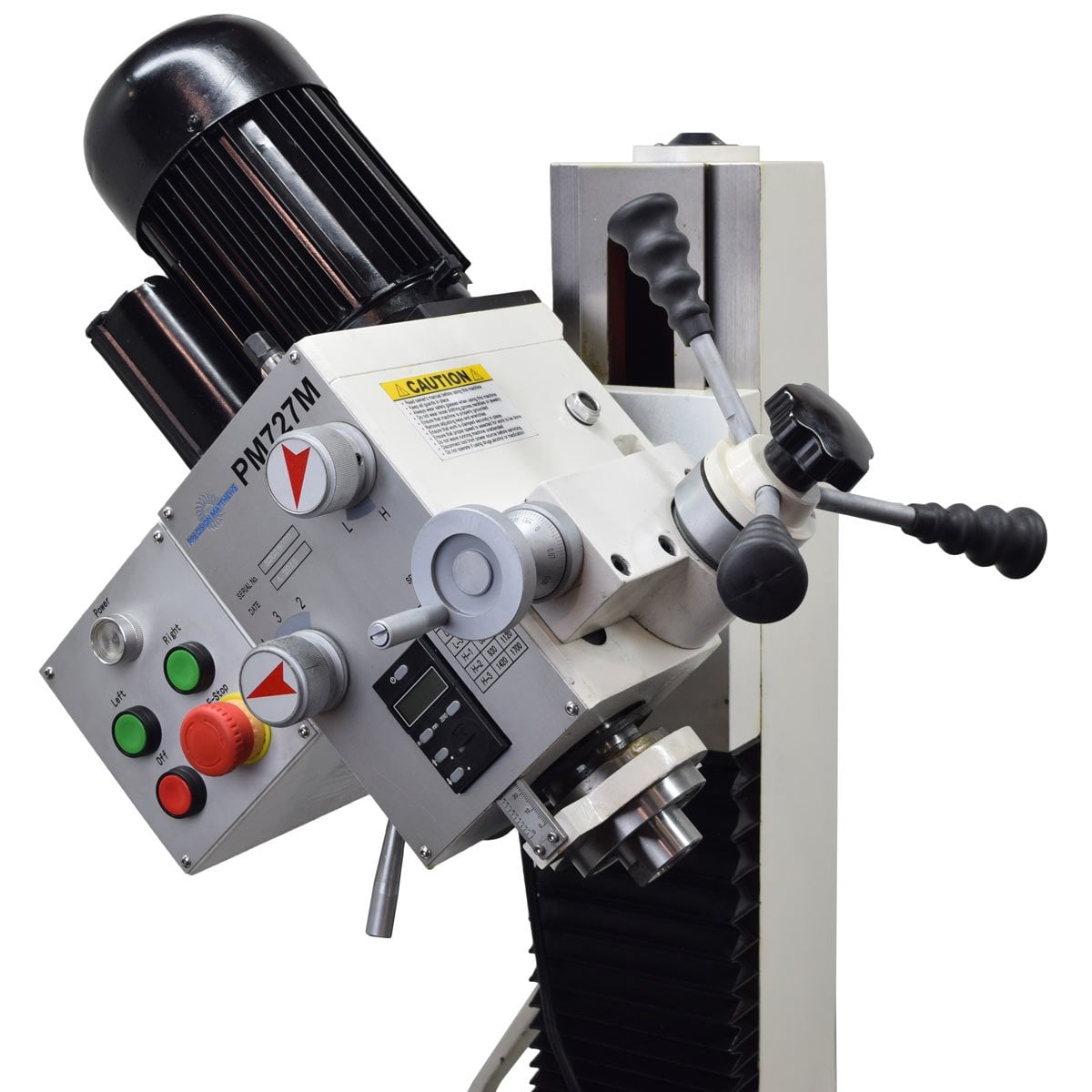

• Mill Head May be Tilted ±90° (both left and right)
• Precision Manual Fine Down Feed is standard
• Adjustable Tapered Gibs for longer life
• Positive Locks are standard for Table, Head, Quill, and Column
• Easy Reading Dials Have Satin Chrome Finish, Graduated in .001″
• Quill DRO is Standard, Accuracy of the Display 0.0005”, Selectable from
• mm/inch
• Generous 18-1/4″ Spindle To Table Max Distance for taller work
• 8-1/2″ Y Axis Travel, More than other machines in this class

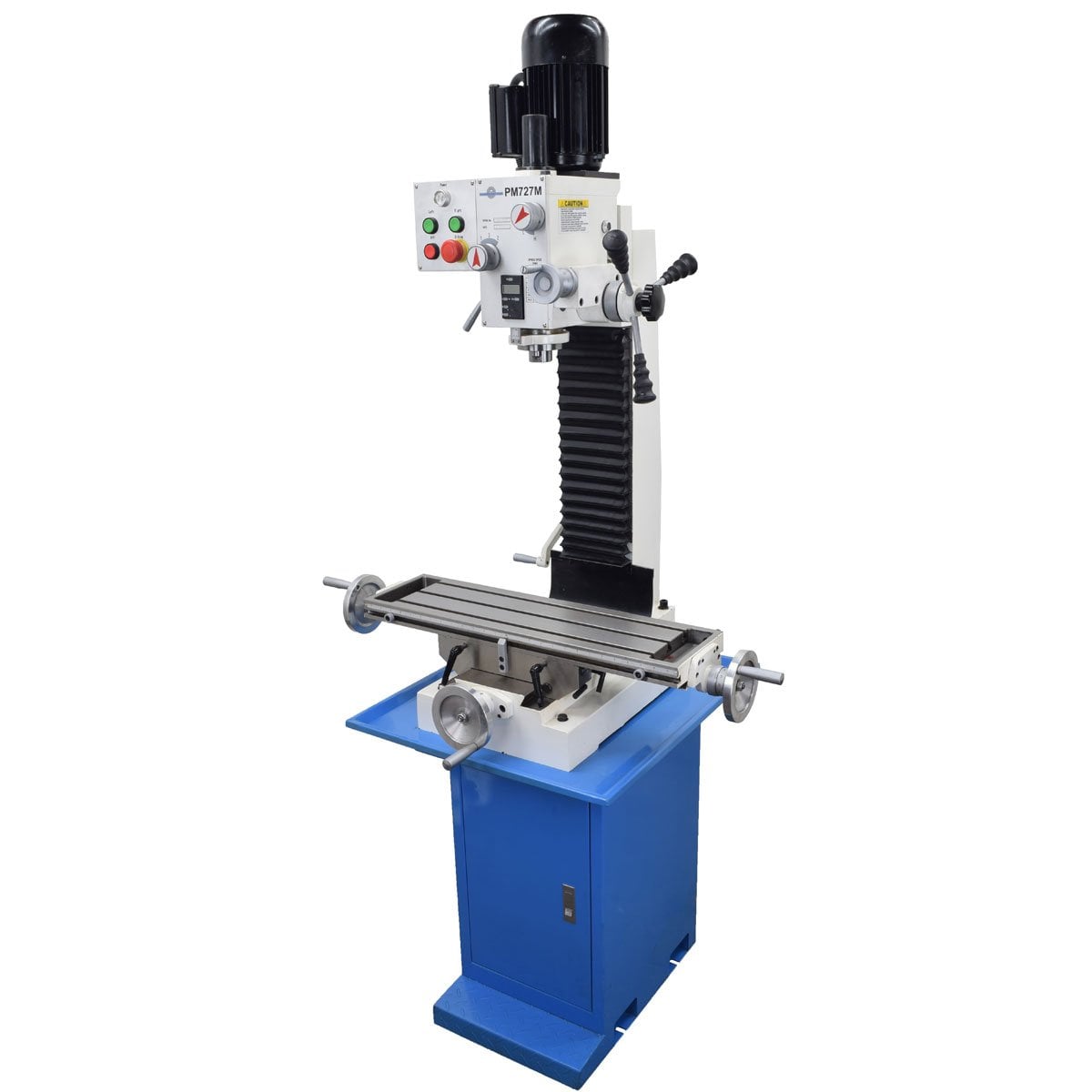

• This is the same mill as our PM-727M, only with the addition of the variable speed

Standard Equipment

1. PM-727V Milling Machine, with Variable Speeds (6 Steps, plus speeds are variable in each range)
2. Way Covers
3. Drawbar
4. R8 Spindle Taper
5. Quill DRO
6. Chip Tray

Optional Accessoriy Notes:

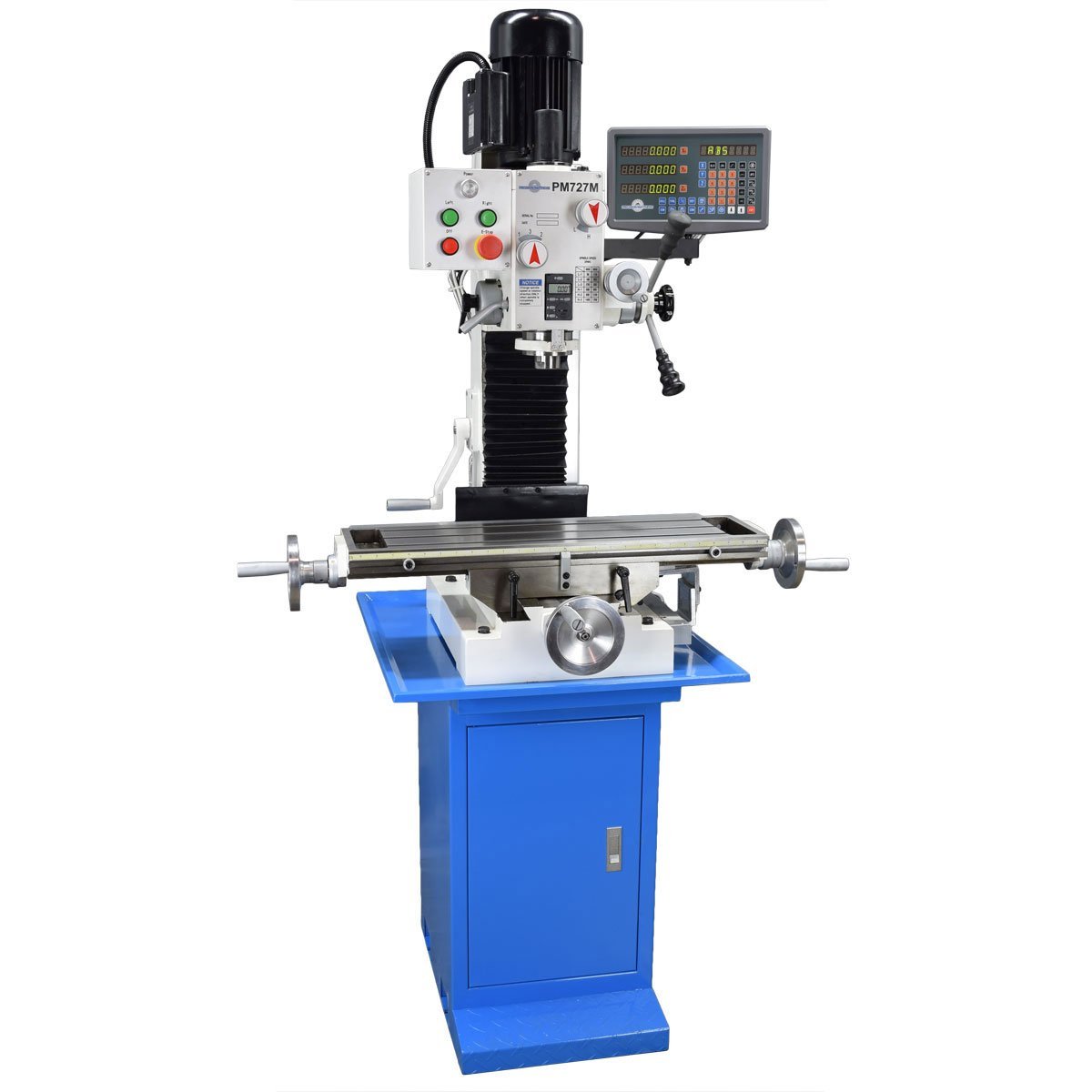

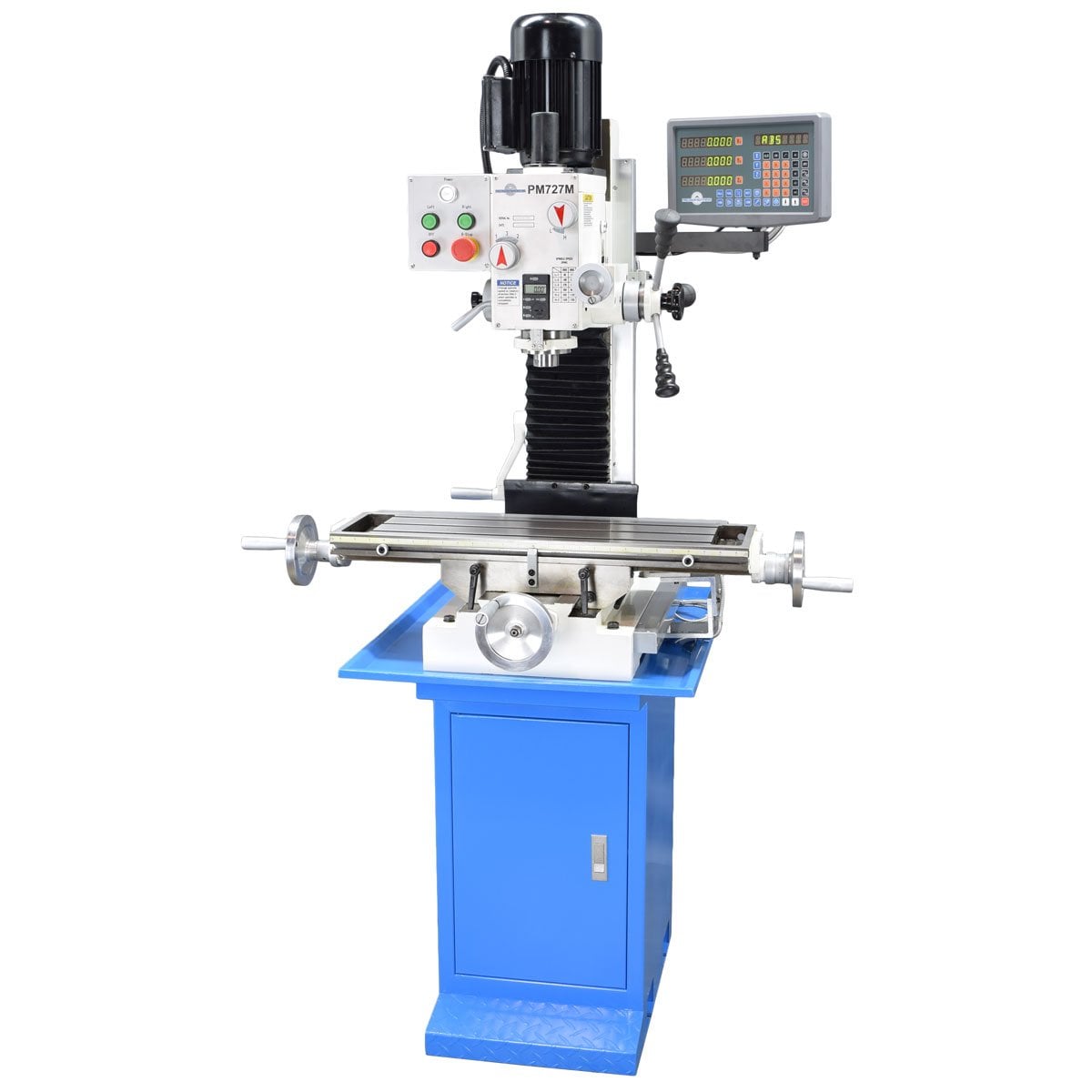

3 Axis DRO Installed Note: if a 3 axis DRO is added to the machine, the 3rd axis of the DRO reads the HEAD up and down, Not the quill, so it is not doubling up on the measurement. If you add the 3 axis DRO, now both Z Axis movements are covered)
