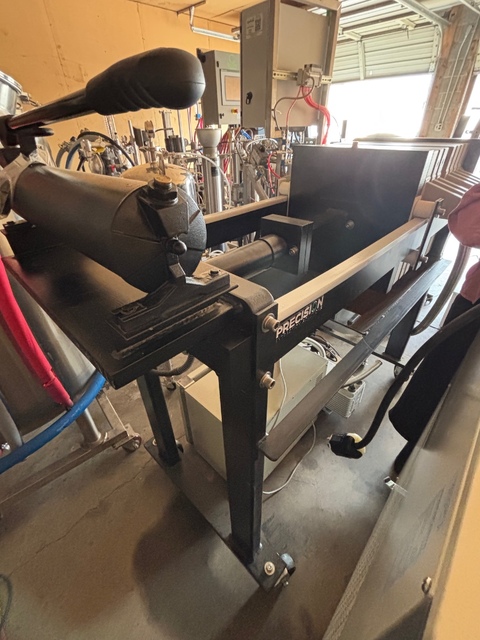

Precision Extraction #FP1, Filter Press

Optimize your post-winterization filtration process with the Precision Extraction FP1 Filter Press. Designed for efficient removal of fine particulates from crude oil, this industrial-scale filter press is ideal for botanical extraction facilities seeking high-throughput and reliable performance.

🔧 Key Specifications:
Model: FP1
Capacity: 1 cubic foot (expandable to 2 cubic feet)
Filter Area: 13.6 sq. ft.
Filter Plate Size: 470mm Filter
Cloth Material: Polypropylene
Frame Material: Carbon Steel
Manifold Material: 304 Stainless Steel
Operating Temperature Range: -40°C to 37°C
Max Feed Pressure: 100 PSI
Average Flow Rate: 2 GPM Air Compressor
Requirement: 5 HP, 20 CFM
Hydraulic Pump: Manual Hand Pump
Closure Sludge Chute: 8” x 8”
Opening Gaskets: EPDM
Dimensions: 75” L x 32” W x 52” H
Weight: Approximately 1,500 lbs

⚙️ Features:
Manual hydraulic closure for safe operation in C1D1 environments
Air-blown manifold piping for efficient filter cake drying
Food-grade wetted parts for compliance with industry standards
Expandable design to accommodate increased processing needs
Ideal for post-winterization and fine particle filtration of crude oil

💼 Ideal For:
Botanical extraction facilities
Pharmaceutical and chemical laboratories
Industrial processes requiring efficient solid-liquid separation
