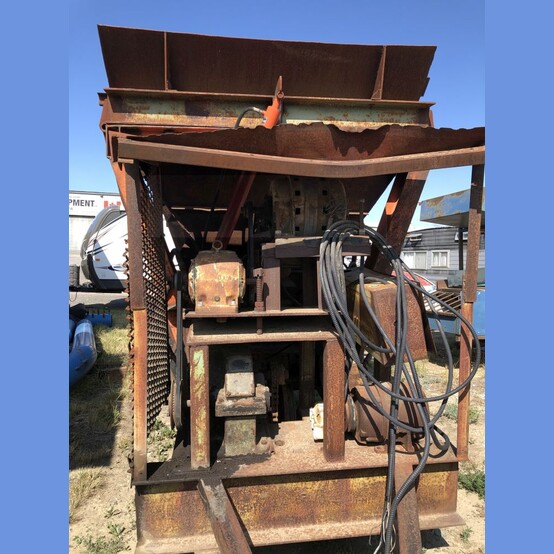

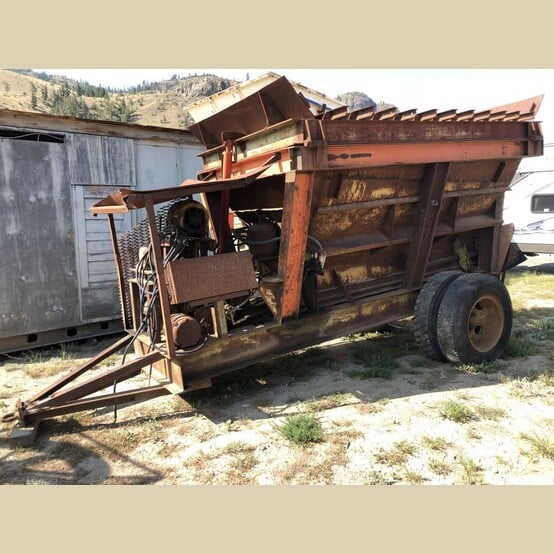

Portable Reciprocating Plate Feeder, 20" width x 10.5' long discharge plate, 11' x 7' hydraulic dumping grizzly, 7.5 HP, single axle chassis

Portable Reciprocating Plate Feeder

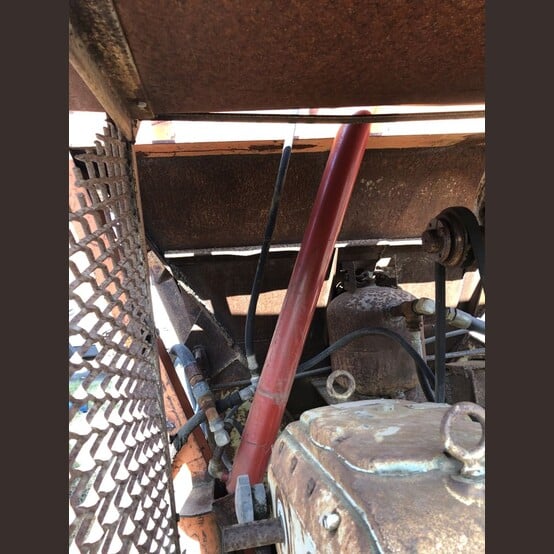

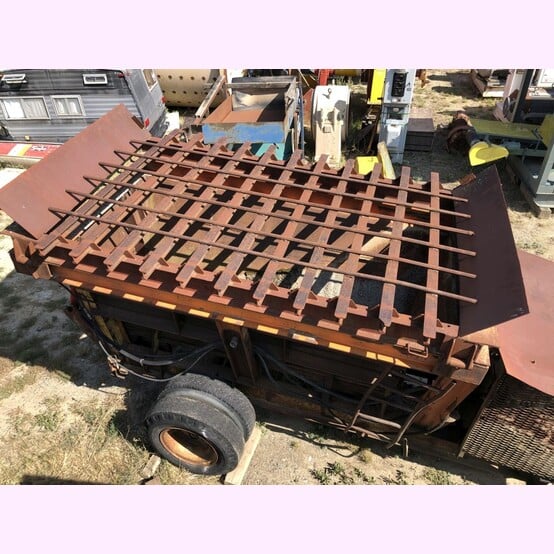

• Hydraulic Dumping Grizzly
  • 11ft Wide x 7ft Long x 6ft Deep
  • Comes with 18in Wings
  • Overall Width with Wings: 12ft 9in

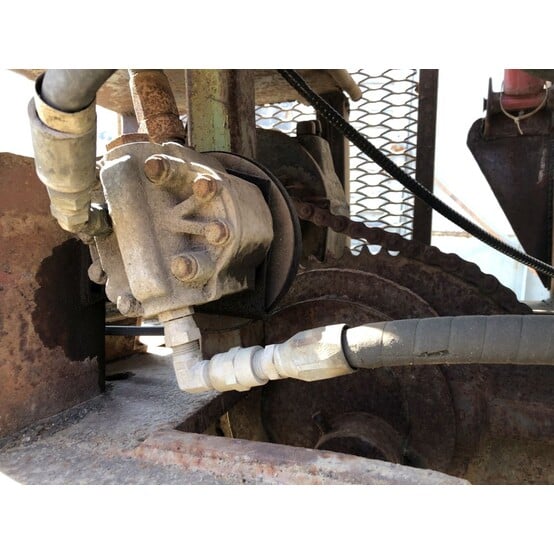

  • Belt Driven 2HP Electric/Hydraulic Motor and Pump

• 20in Wide x 10.5ft Long Discharge Plate
  • Reciprocating Stroke Approx. 4in

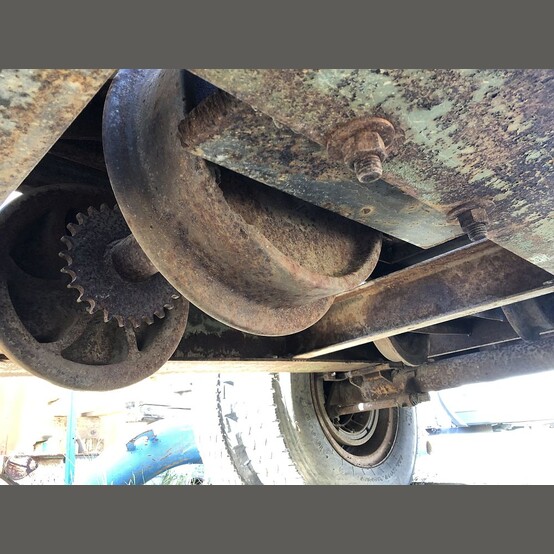

  • Mounted on 3 Sets of Mine Wheels and Axles (Upside Down Rail Mounted to Bottom of Plate as Guides)

• Multiple Reduction Drive System Consisting of:

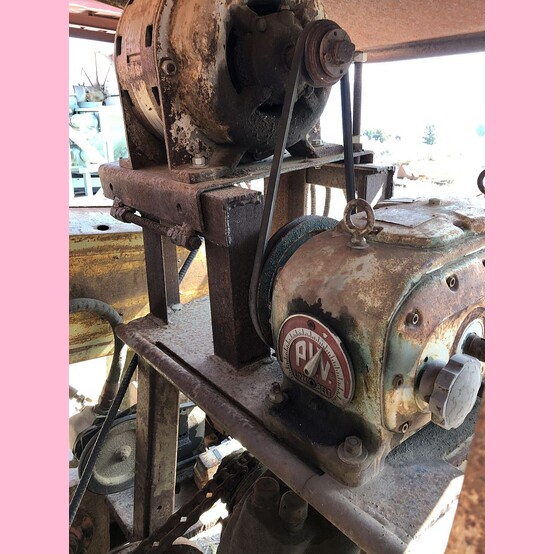

  • 7.5HP Motor (1740 RPM)
    • 3.5in Motor Drive Sheave

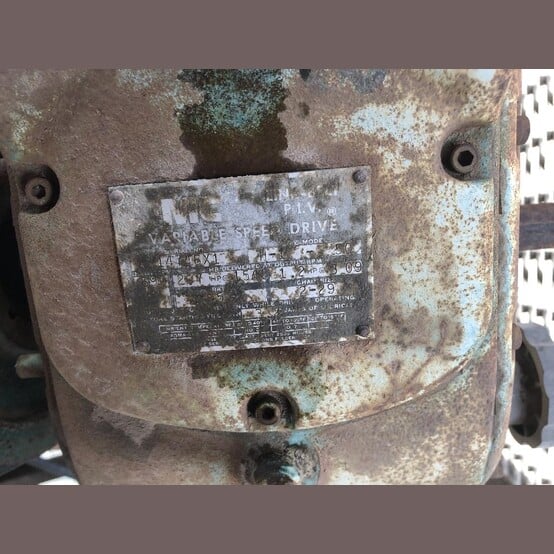

  • Belt Driving a Linkbelt Vari-Speed Reducer
    • Ratio: 5-1
    • 11in Input Shaft Sheave
    • 3.5in Output Shaft Sheave
  • Belt Driving a Parallel Shaft Gear Reducer
    • Ratio: 32-1
    • 8in Input Sheave
  • Chain Driving Plate Feeder
    • 14 Tooth Output Shaft
    • 68 Tooth Plate Feeder Sprocket

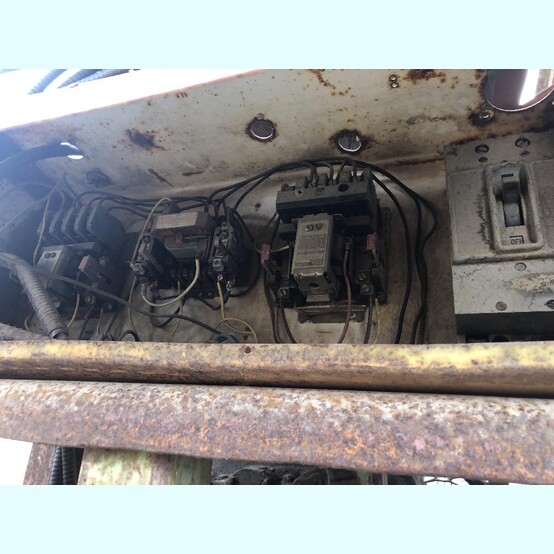

• Square D and General Electric Electrical Controls
  • Mounted in Common Electrical Box

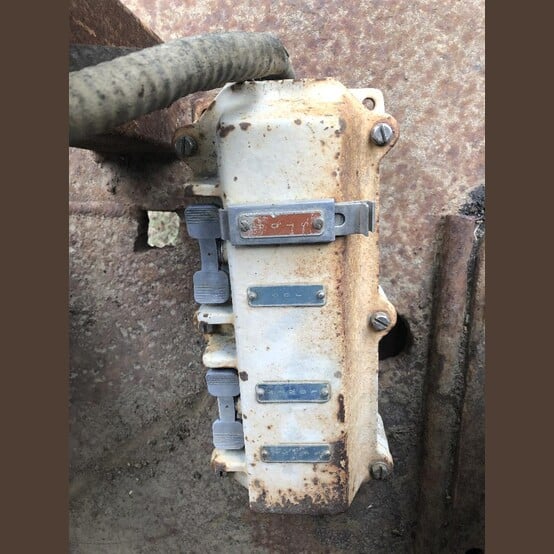

  • With Pendant Controls

• All Mounted on a Single Axle, Dual Wheel Chassis
  • With Pintle Hitch

• Overall Dimensions:
  • Length: 21ft
  • Width: 8.5ft
  • Height: 10ft

• Location: Savona, British Columbia, Canada
