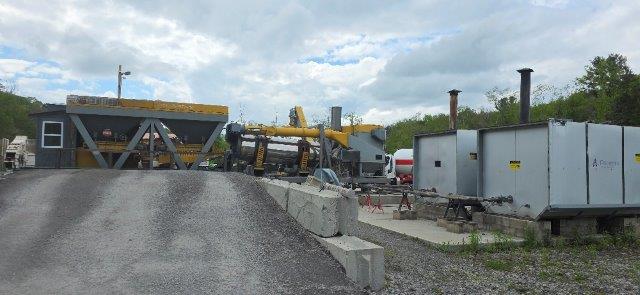

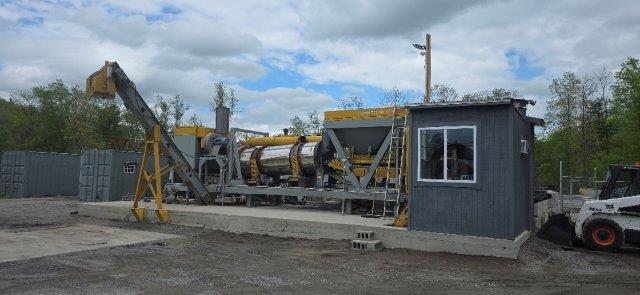

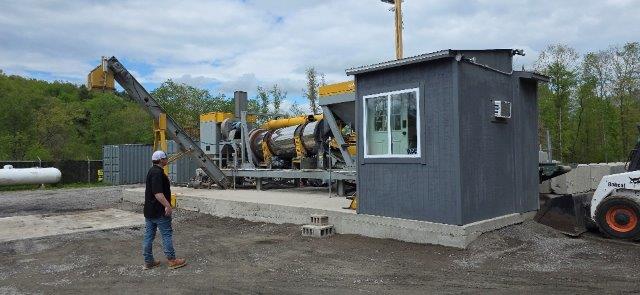

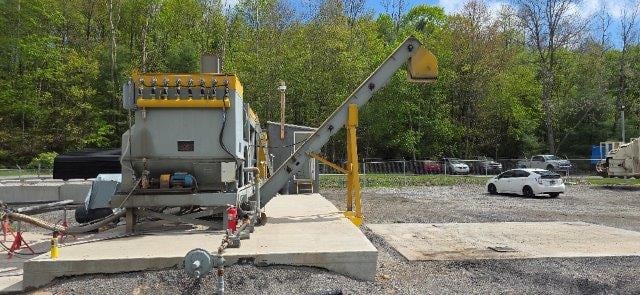

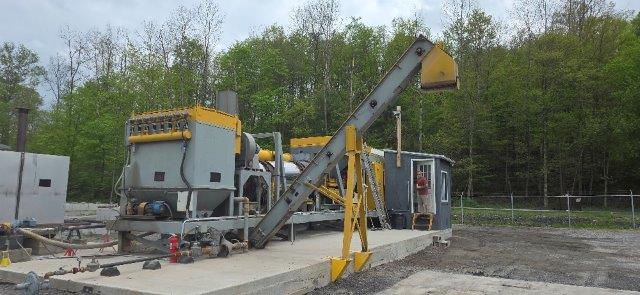

Portable 15-30 TPH Margui 1530 drum plant, 2019

Dryer:

Make: Margui Model: 15/30 Year: 2019 Drum Size: 4' x 15' Flights: Alternating flight design provides for a high efficiency material veil, reducing operating costs. Driving System: Trunnion Driven Trunnions: (4) Four adjustable trunnions with spherical roller bearings. Trunnions are hardened to a 40-50 Rockwell. Motor: Shaft mounted gear reducers 40hp x 1800 RPM motors. Burner Make: Webster Burner Volts: 220 Burner Fuel Source: Propane Misc: Dryer has insulation and stainless steel skin. The shell is manufactured from 1/4'' alloy steel. Tires constructed from A36 alloy steel. Tire support pads are placed between the drum tire and shell.
Condition Notes: Great condition. Current Status: Still connected and can be seen running for inspections.

Mixer:

Twin-shaft jacketed external post mixer (discharges directly into slat conveyor) with reject conveyor

Baghouse:

Make: Margui Model: 15/30 Year: 2019 Type: Pulse-Jet Bag Size: 160mm diameter x 1800mm long Bag Count: 56 Nomex filter bags Total Cloth Area: 50m² Access: Top Removal Bags (Recent Bag Replacement) Fan HP: 30hp Fan Type: Centrifugal Fan Compressor(s): (1) Skid mounted air compressor with air chamber. (1) 25hp Rotary air compressor is included, but not currently being utilized in the current setup. (1) Screw compressor to dust recovery (from baghouse to mixer) is included and currently operating plant. Condition Notes: Great condition. Current Status: Still connected and can be seen running for inspections.

Cold Feed Bins:

Make: Margui Model: 15/30 Year: 2019 Number of Bins: 2 Bin Size: 3.5 m³ Variable Speed Feeders: 18'' Skirted variable speed feeders. Vibrators: (1) Bin has vibrator. Motors: 3hp Direct drive motors. Condition Notes: Great condition. Current Status: Still connected and can be seen running for inspections.

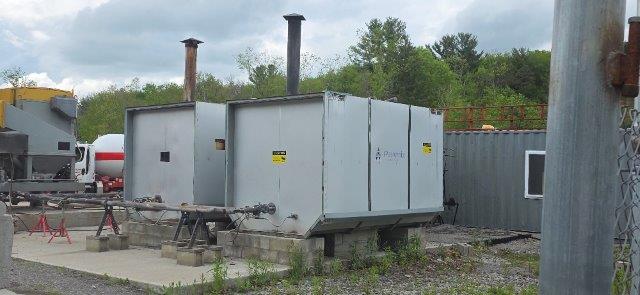

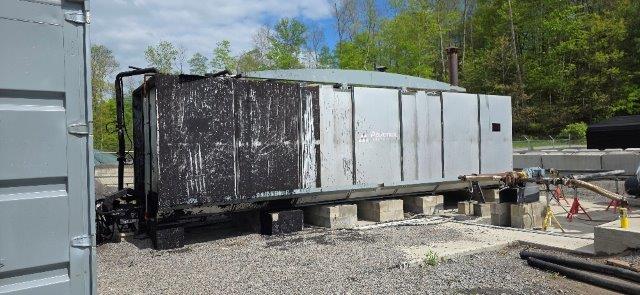

AC Tanks:

AC Tank 1: Make: Margui Model: 15/30 Year: 2019 Type: AC Tank Capacity (Gallons): Approx 8,000 Gallons Portability: Skid Mounted Compartments: Single Heating Source: Direct Fired Orientation: Horizontal Plumbing: Included Metering Skid: Included Pump: Unloading Pump Included Condition Notes: Great Condition Current Status: Still connected and being used in plant's current set up.

AC Tank 2: Make: Margui Model: 15/30 Year: 2019 Type: AC Tank Capacity (Gallons): Approx 6,000 Gallons Portability: Skid Mounted Compartments: Single Heating Source: Direct Fired with Scavenger Coils Agitation: Single Shaft Mixer Included (Never Used) Orientation: Horizontal Plumbing: Included Condition Notes: Great Condition, has some material inside. Is not currently hooked up to a heating source. Current Status: Disconnected and not being utilized in the plant's current set up.

Control House:

Make: Margui Model: 15/30 Year: 2019 Number of Rooms: Single Room Structure: Control house itself is original to the Margui plant. An additional moveable wood structure has been built around the control house. Controls: PLC touch screen computer controls. Brand: Beckhoff. Condition Notes: Great Condition. Current Status: Still connected and can be seen running for inspection.

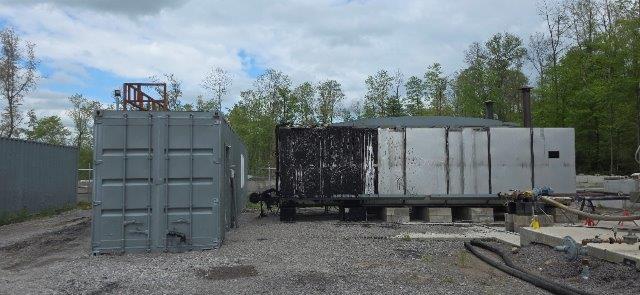

Shipping Container:

Size: 40ft Type: Shipping Container Included Items: Includes a 220 panel that powers the A/C tank burner and thermal oil pump. This system was converted to eliminate the need for running the generator overnight. Features an insulated and heated tool room and full office/apartment. The container also functions as a spray-down station for trucks, complete with steel steps, catwalk, and railing.

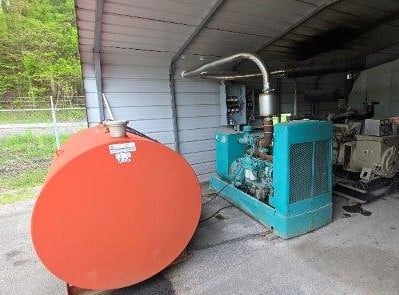

Generator:

KVA: 90 Fuel Source: Diesel Use: Back-up Generator Hours: 100

Fuel Tank:

Type: Fuel Tank Size: 500 Gallon Additional Notes: Fuel tank is used for generator.

Additional Included Items:

Conex Box: Additional Conex Box Containing Spare Parts Gob Hopper and Slat: Asphalt slat conveyor with small gob hopper.

Owner's Notes:

This plant produces 25–30 TPH with the current setup. Existing mix designs are stored in the control system. Lab testing has been completed, and results are included. Turn-key plant with $50,000 in upgrades! The plant has been converted to run on propane. Note: Propane tanks shown in photos are not included in the sale. Included in the sale are two days of training. Buyer is responsible for travel, lodging, and meals for the trainer. Plant setup is not included.

Additional Equipment Onsite and Available for Additional Funds (Not Included with Plant Sale):

Additional Generator (Not Included with Plant Sale) Make: John Deere Type: Genset KW: 120 Condition: Great Condition Current Status: Still Connected CALL FOR PRICING

Silo and Bucket Elevator (Not Included with Plant Sale): Silo Make: Barber Greene Silo Size: 50 Ton Bucket Elevator Make: Barber Greene Bucket Elevator Size: 150TPH CALL FOR PRICING

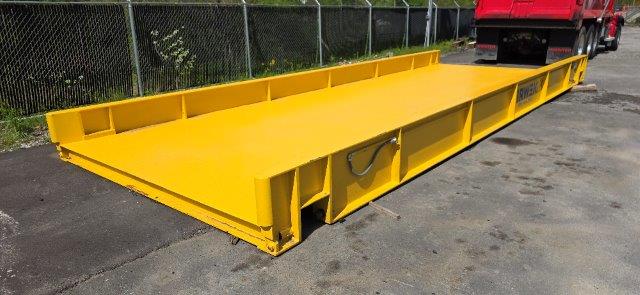

Scales (Not Included with Plant Sale): Condition: NEW, NEVER USED CALL FOR PRICING
