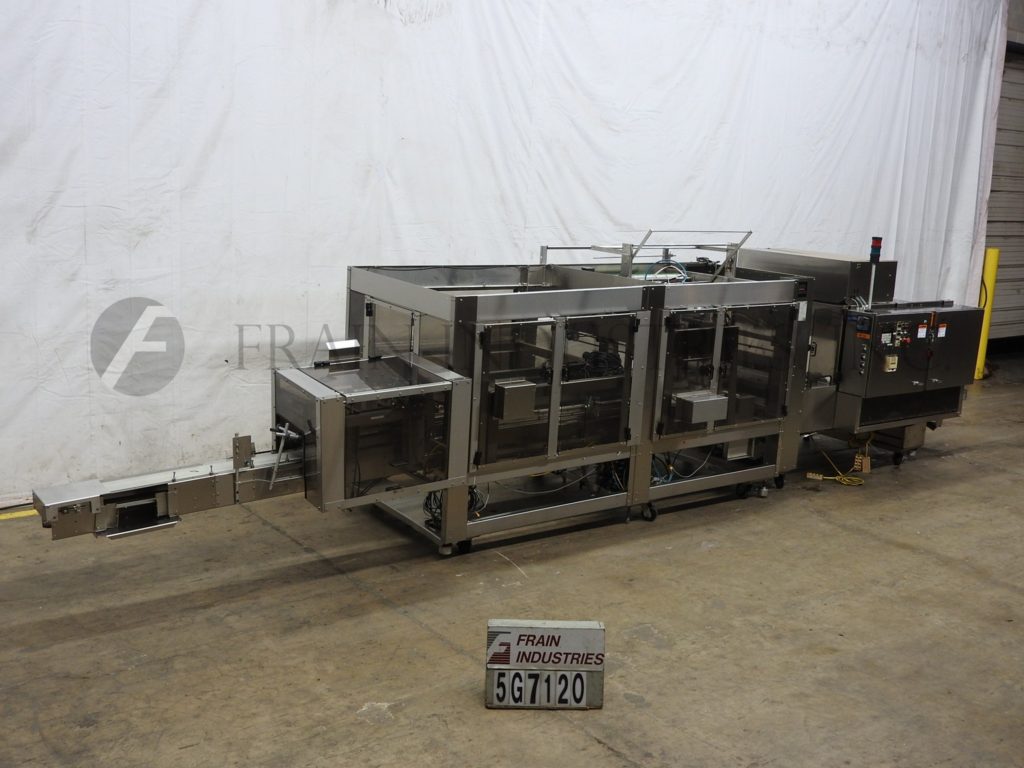

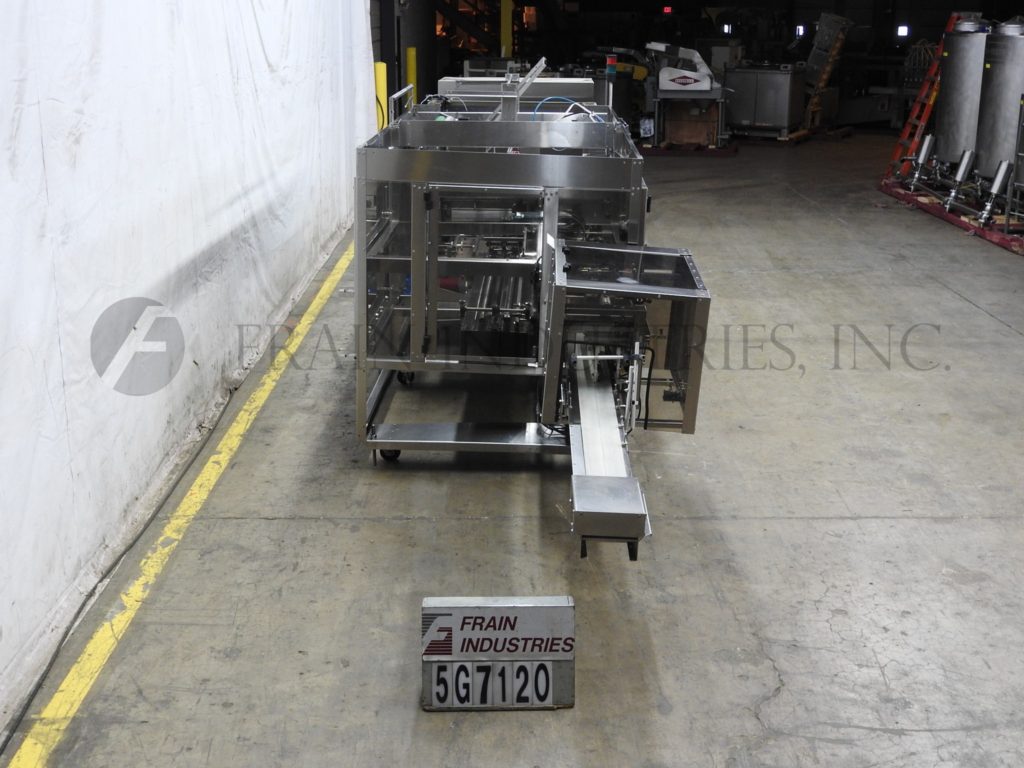

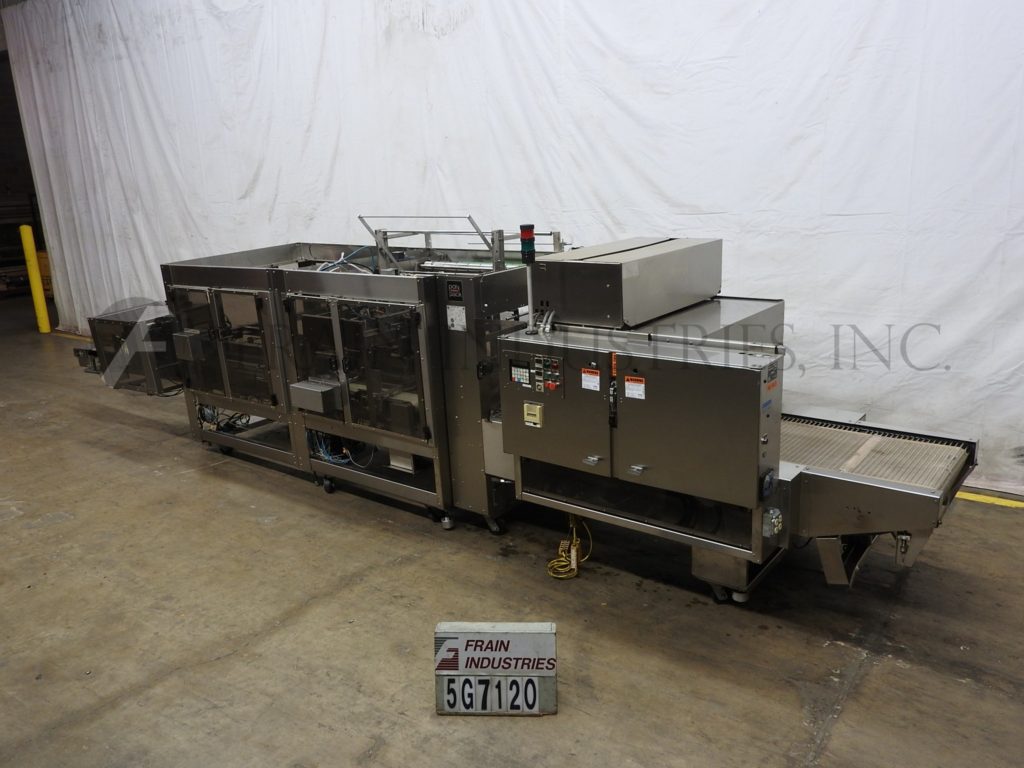

Poly Pack #FH-24-32C, intermittent motion, Stainless Steel, shrink bundling system, 1-30 wraps per minute

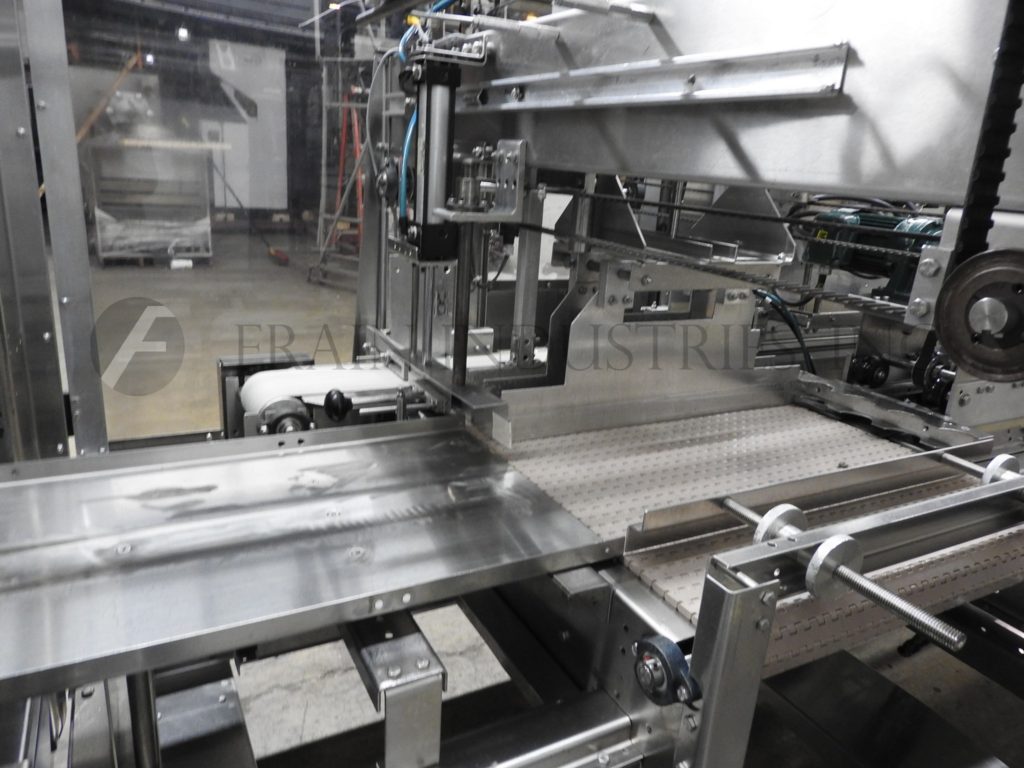

Poly Pack, Model FH-24-32C, intermittent motion, stainless steel, shrink bundling system. Rated from 1 to 30 wraps per minute – depending on materials, application and pack pattern. Can accomodate pack patterns up to 48" long x 24" wide x 14" high. Bundler: Equipped with 170" long x 6" wide product in feed belt conveyor, indexing and accumulation sections to pass product through film, up to 32" in width, with hot wire film cut-off jaws. Control panel has A/B PLC controller with touch pad controls and readout, start / stop / e-stop push buttons, interlock safety guarding and statis light bar. Dual bottom film carriages with specifications: up to 24" in Width; up to 20" in Diameter; on 3" Diameter core.

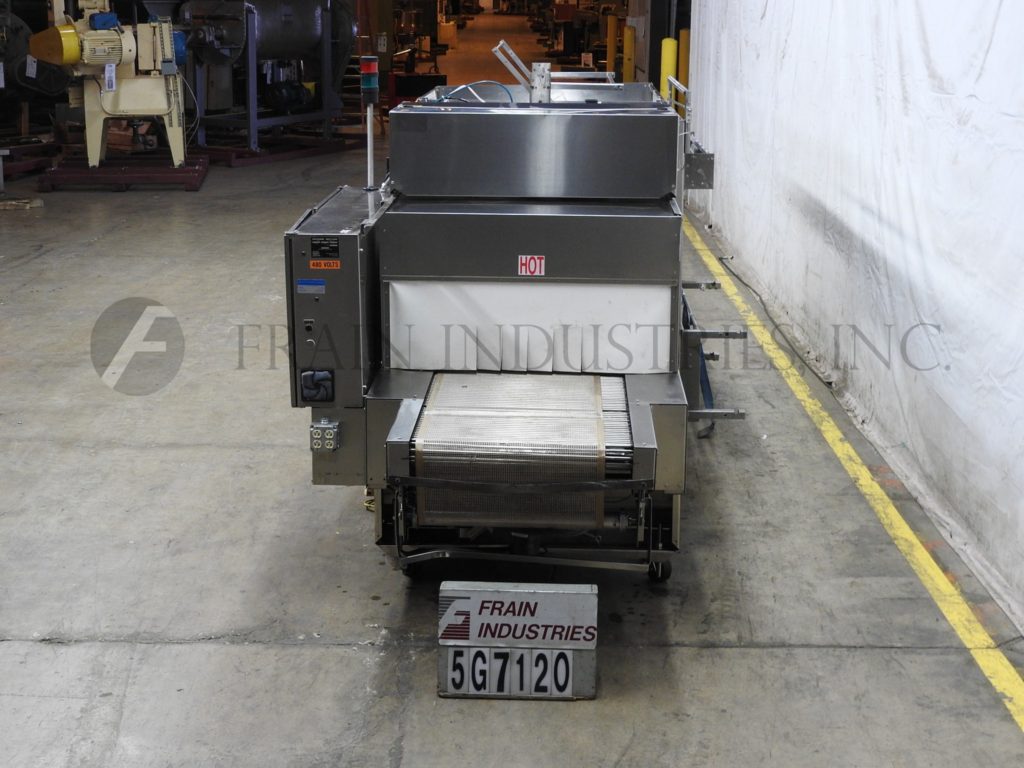

Tunnel: Equipped with 30" wide x 14" high total aperture, with 40" long heating chamber, 104" long x 25½" wide mesh conveyor, temperature and air flow controls. Both mounted on on stainless steel common base frame with casters.

OAD: 304"L x 77"W x 76"H
