For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!

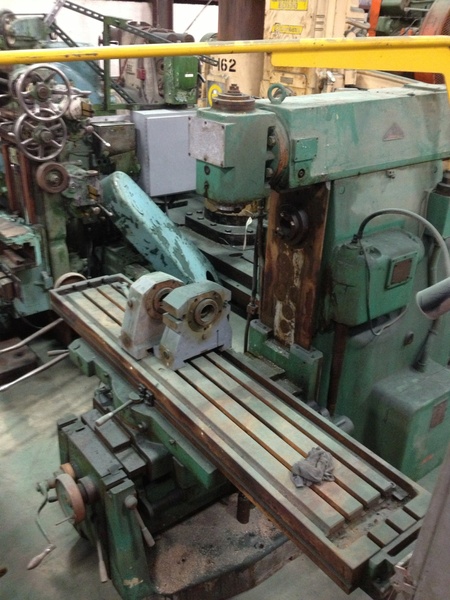

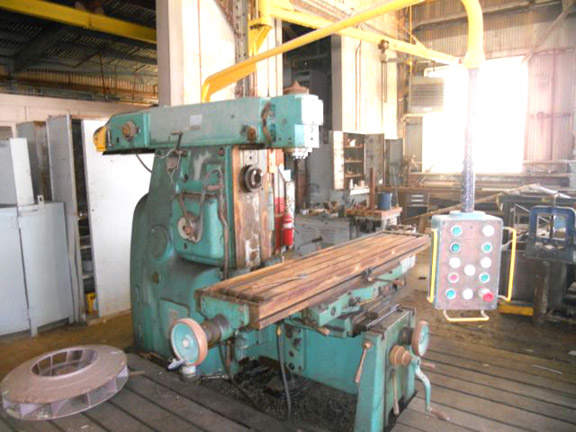

Description
SERIAL ............................. 92/23
MODEL .............................. FW41M
AREA OF TABLE ...................... 78" X 15-3/4"
SPINDLE SPEEDS HORIZONTAL .......... (21) 20 TO 1300 RPM
SPINDLE SPEEDS VERTICAL SPINDLE .... (21) 37.5 TO 2360 RPM
LONGITUDINAL FEEDS ................. (32) 1/2 TO 42 IPM
CROSS FEEDS ........................ (32) 3/8 TO 31-5/8 IPM
VERTICAL KNEE FEEDS ................ (32) 1/4 TO 20 IPM
VERTICAL RAM FEEDS ................. (16) 1/4 TO 80 IPM
LONGITUDINAL TRAVEL ................ 41-3/4"
CROSS TRAVEL ....................... 14-3/16"
VERTICAL KNEE TRAVEL ............... 13-13/16"
VERTICAL RAM TRAVEL ................ 5-1/2"
DISTANCE SPINDLE NOSE TO TABLE ..... 0" MIN, 20" MAX
DEPTH OF THROAT .................... 18-1/2"
TAPER IN SPINDLE ................... #50 NS
RAPID TRAVERSE ..................... 99 IPM
PENDANT CONTROL .................... YES
COOLANT ............................ YES
MOTOR .............................. 15 HORSEPOWER
MODEL .............................. FW41M
AREA OF TABLE ...................... 78" X 15-3/4"
SPINDLE SPEEDS HORIZONTAL .......... (21) 20 TO 1300 RPM
SPINDLE SPEEDS VERTICAL SPINDLE .... (21) 37.5 TO 2360 RPM
LONGITUDINAL FEEDS ................. (32) 1/2 TO 42 IPM
CROSS FEEDS ........................ (32) 3/8 TO 31-5/8 IPM
VERTICAL KNEE FEEDS ................ (32) 1/4 TO 20 IPM
VERTICAL RAM FEEDS ................. (16) 1/4 TO 80 IPM
LONGITUDINAL TRAVEL ................ 41-3/4"
CROSS TRAVEL ....................... 14-3/16"
VERTICAL KNEE TRAVEL ............... 13-13/16"
VERTICAL RAM TRAVEL ................ 5-1/2"
DISTANCE SPINDLE NOSE TO TABLE ..... 0" MIN, 20" MAX
DEPTH OF THROAT .................... 18-1/2"
TAPER IN SPINDLE ................... #50 NS
RAPID TRAVERSE ..................... 99 IPM
PENDANT CONTROL .................... YES
COOLANT ............................ YES
MOTOR .............................. 15 HORSEPOWER
Get Your Price from Yoder Machinery Sales!
