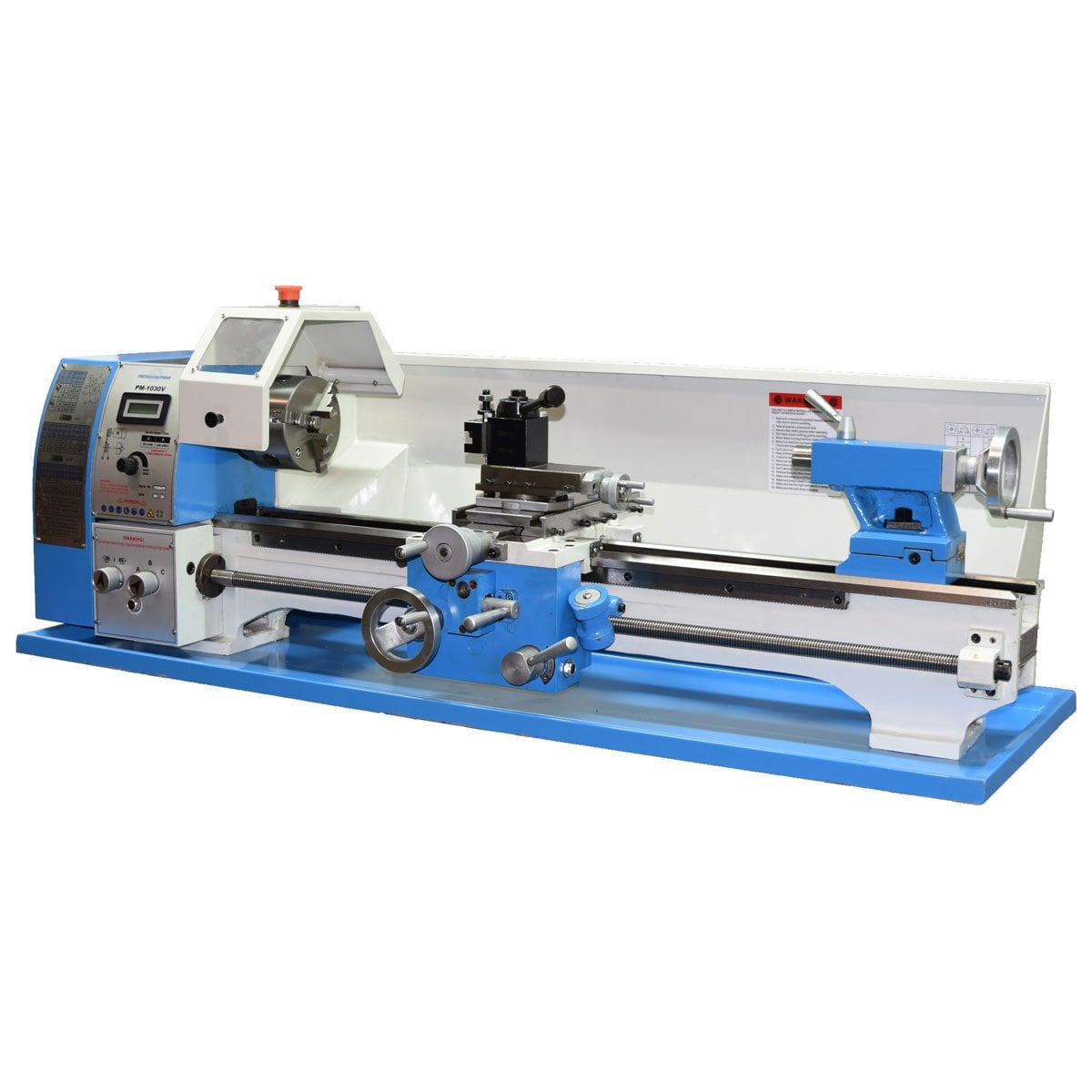

10" x 30" Precision Matthews #PM-1030V-w/QCTP, Precision Lathe, 5-1/2"SOCS

Main Specifications PM1030V:

• Model PM-1030V
• Motor Type DC Variable
• Swing Over Bed 10"
• Swing Over Cross Slide 5-1/2"
• Swing in Gap No Gap
• Center Height 5"
• Distance Between Centers 30"
• Face to Tail Stock Spindle Face Max. Distance 31"
• Width of Bed 3"
• Bed Height 7"
• Spindle Bore 1"
• Spindle Taper, Internal MT #4
• Spindle Mounting System Direct Mount
• Spindle Speeds 50-2000 RPM
• Lead Screw Diameter / Pitch 3/4" / 8 TPI
• Inch Thread Cutting Range 8-80 TPI, 37 Threads
• Metric Thread Cutting Range 35-3.0mm Pitch, 21 Threads
• Longitudinal Feed Range (Left and Right) 0014-0.004 Inches Per Revolution
• Cross Feed Range (In and Out) 0025-0.014 Inches Per Revolution
• Spindle Length Through Headstock Protruding End to Chuck Mounting Face 11-3/4"
• Spindle Length Through Headstock Protruding End to 3 Jaw Chuck Face 14-5/8"
• Cross Slide Travel 5"
• Compound Travel 3"
• Tail Stock Quill Taper MT #2
• Tail Stock Quill Travel 3"
• Main Motor Horsepower 1HP
• Speed Control Type Variable Speed
• Voltage / Phase / Amps 120 Volts, 12 Amps Max.
• Length of Machine 52"
• Approximate Shipping Weight 475 LBS
• Approximate Machine Weight 395 LBS

Main Features Of This Machine:

• Large 1″ Spindle Bore, larger than most in this size range
• Quick Change Spindle Mount, secure mount for both forward and reverse, plus allows chuck changes in seconds! (Please see more information tab below for instructions)
• POWER CROSS FEED as well as feed on the carriage – Both in, out, left, and right
• AXA Wedge Type Quick Change Tool Post set included, installed, ready for use – Compare with others, most in this class do not even have it available as an option, or require extensive modifications to mount one
• Variable Spindle Speeds
• Super Quiet Running Machine
• Lead screws Are True Inch Pitch Screws (Not Metric Conversions Like Many), 10 Threads Per Inch (.100” Per Turn) on Cross Slide, Compound Slide, and Tailstock for easy Inch measurement readings
• Many More great features with this machine, please see below
• Backed by an industry leading 3 year warranty

Standard Accessories With These Models: (Compare what this one comes with, where other similar sized models sell these all separate or do not even offer them – This is the best deal on a lathe this size out there – Compare Carefully!)

• 100/AXA Series Wedge Type Quick Change Tool Post Set W/ 5 Holders (Turning, Turning/Boring, Knurling, Boring, Parting Holders) – THIS QUICK CHANGE TOOL POST IS MOUNTED ON MACHINE, AND READY TO USE! COMPARE WITH OTHERS, WHERE THIS TYPE OF TOOL POST IS NOT INCLUDED, AND WILL NOT EVEN FIT WITHOUT MAJOR MODIFICATIONS TO THE MACHINE
• Power Cross Feed
• Upgraded Variable Speed Drive Board
• 5″ 3 Jaw Chuck (Includes a back plate for 3 jaw chuck, ready to mount on the spindle)
• 5″ 4 Jaw Chuck (Includes a back plate for 4 jaw chuck, ready to mount on the spindle)
• 8″ Face Plate
• Thread Chasing Dial
• Centers for the Tailstock and Headstock
• High Quality Electronics
• Chip Pan/Oil Tray
• Steady Rest
• Follow Rest
• Right/Left Hand Threading
• Inch/Metric Threading
• Misc. Hand Tools for operation
• Variable Speed Brushless DC Motor, with spindle speeds from 50-2000 RPM
• Country of Origin: China
• Power Connection Type: Cord, Approx. 5′ Length, includes standard 120V Plug with ground (20A 120V Outlet)

Now also available with 2 axis Digital Readout Pre Installed. Please choose the model you want w/2axDRO from the drop down box above to choose this model if you would like it to come with DRO Installed.
