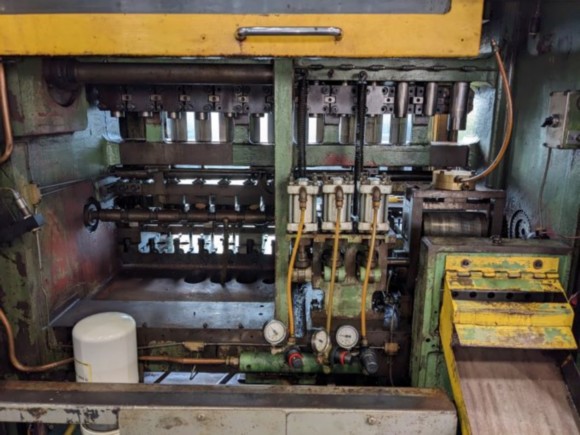

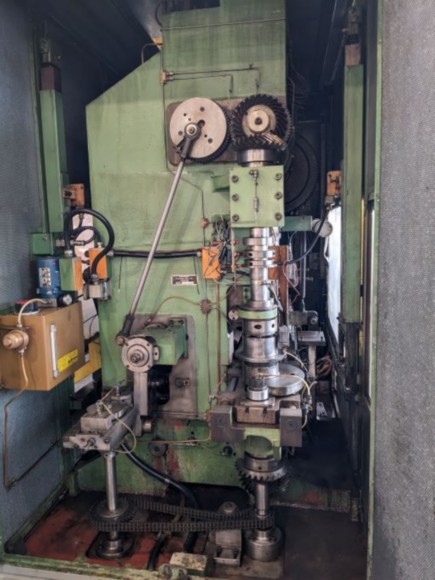

Platarg #612, Platarg transfer press, 12 rams, full follow cams, 4.25" stroke, 2" depth of draw

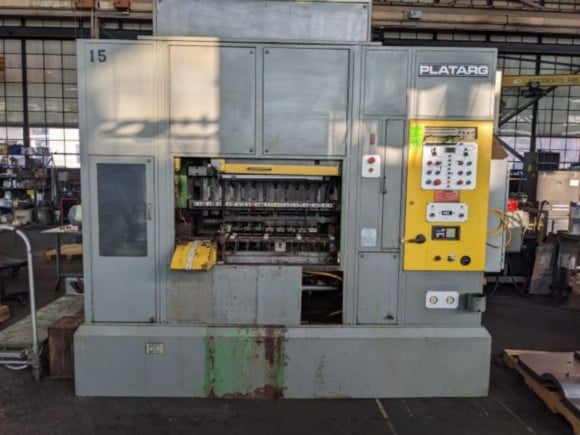

PLATARG 612 HIGH SPEED TRANSFER PRESS
SERIAL #612-F-132
YEAR 1987
12 RAMS AND 1 SLAVE

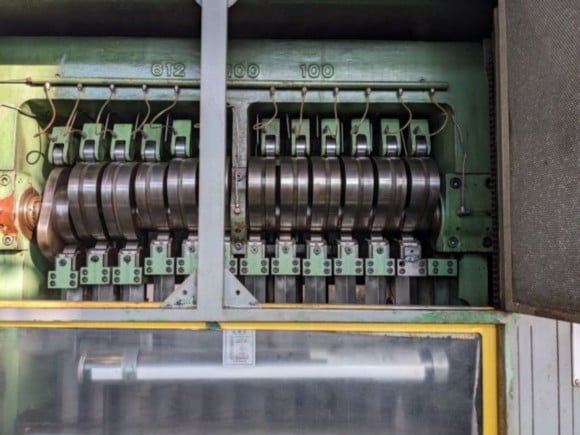

FULL FOLLOW CAMS
WEDGE ADJUSTMENT RAMS 10 DIE BLOCKS MISSING
STROKE OF CAMS: 4.25" OR 107MM
DEPTH OF DRAW (SHELL HEIGHT): 2" OR 50MM
DOUBLE "C "RING SLIDE

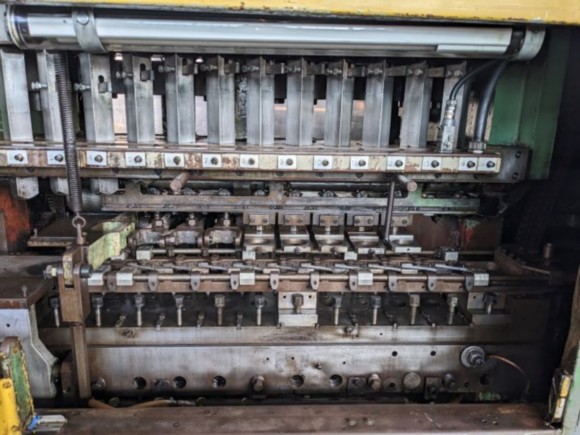

F.O.D. TRANSFER SLIDE
PLATARG TYPE ZIG-ZAG FEEDER - MATERIAL INPUT FROM FRONT
GUILLOTINE SHEAR
SAFETY CLUTCH ON SIDE SHAFT
PRESSURE PAD ASSEMBLY FITTED TO STAGE 3 - STAGE 2 IS A DUMMY
PNEUMATIC/MECHANICAL TRIPLE HOLD DOWN UNIT FITTED ON STAGES 4, 5 & 6
SPRING BOXES STATIONS 2,3,4,5,6
EJECTOR CAM STATION 7
STANDARD MALE THREAD
BALDOR 25 HP/240 V- AC VARIABLE SPEED INVERTER UNIT
STROKES PER MINUTE : 30 - 120 SPM
AIR CLUTCH & BRAKE - ORTLINGHAUS
PLATARG MK6 TRANSPROBE UNIT
4X VERTICAL STRIPPERS FITTED TO STAGE 7 TO 10
DROPSA OIL PUMP SYSTEM
FULL SET OF SOUND PROOFED GUARDS
COOLANT TANK FITTED ON L/H/S OF PRESS
NUT LINK BELTS FITTED TO FLYWHEEL
ELECTRICS: 240 V/3/60
FULL SET OF SOUND ENCLOSURE
FOOTPRINT: 3500MM X 1400MM X 2800MM
WEIGHT: 8 TONS
STROKES STAGE 1- 2.5"
STAGE 2- 2.5"
STAGE 3 - 3.5"
STAGE 4 -3.5"
STAGE 5-12 - 4.250"
*TECHNICAL DETAILS SUBJECT TO BUYERS VERIFICATION
RECONDITIONED MACHINE
REBUILT CLUTCH AND BRAKE
NEW SLAVE RAM INSTALLED
RAMS CLEANED AND REFIT
NEW AIR VALVE FOR CLUTCH INSTALLED
NEW TRAP BLOCKS FOR TRANSFER SLIDE
NEW CLUTCH KEYS
CHECKED ALL SHAFTS AND BUSHINGS
NEW VALVE FOR ROLL LIFTER ON FEED
ELECTRICS CHECKED AND REPAIRED AS NEEDED
TRANS PROBE UNIT WAS CHECKED
RAN AND TESTED THE MACHINE
