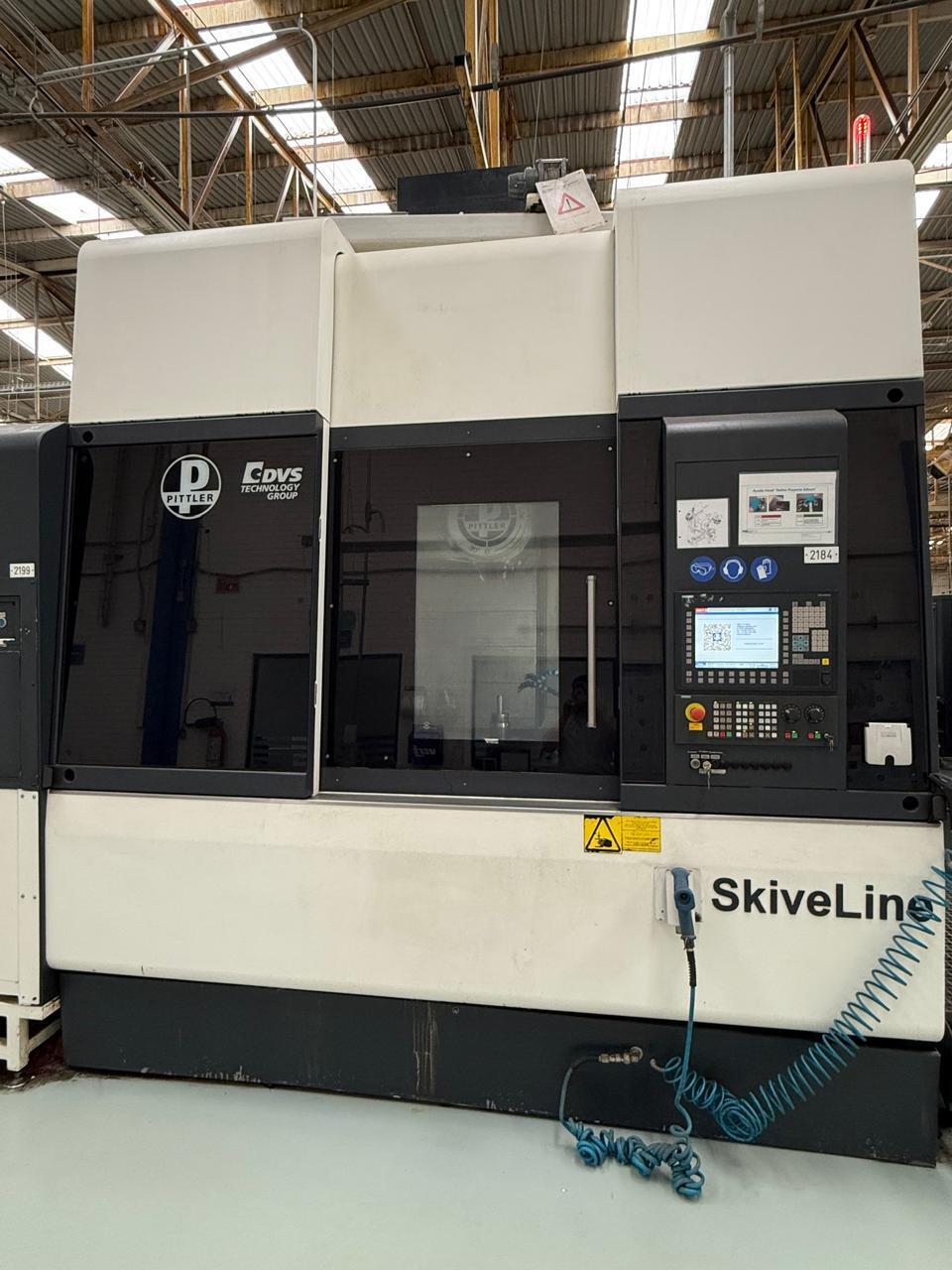

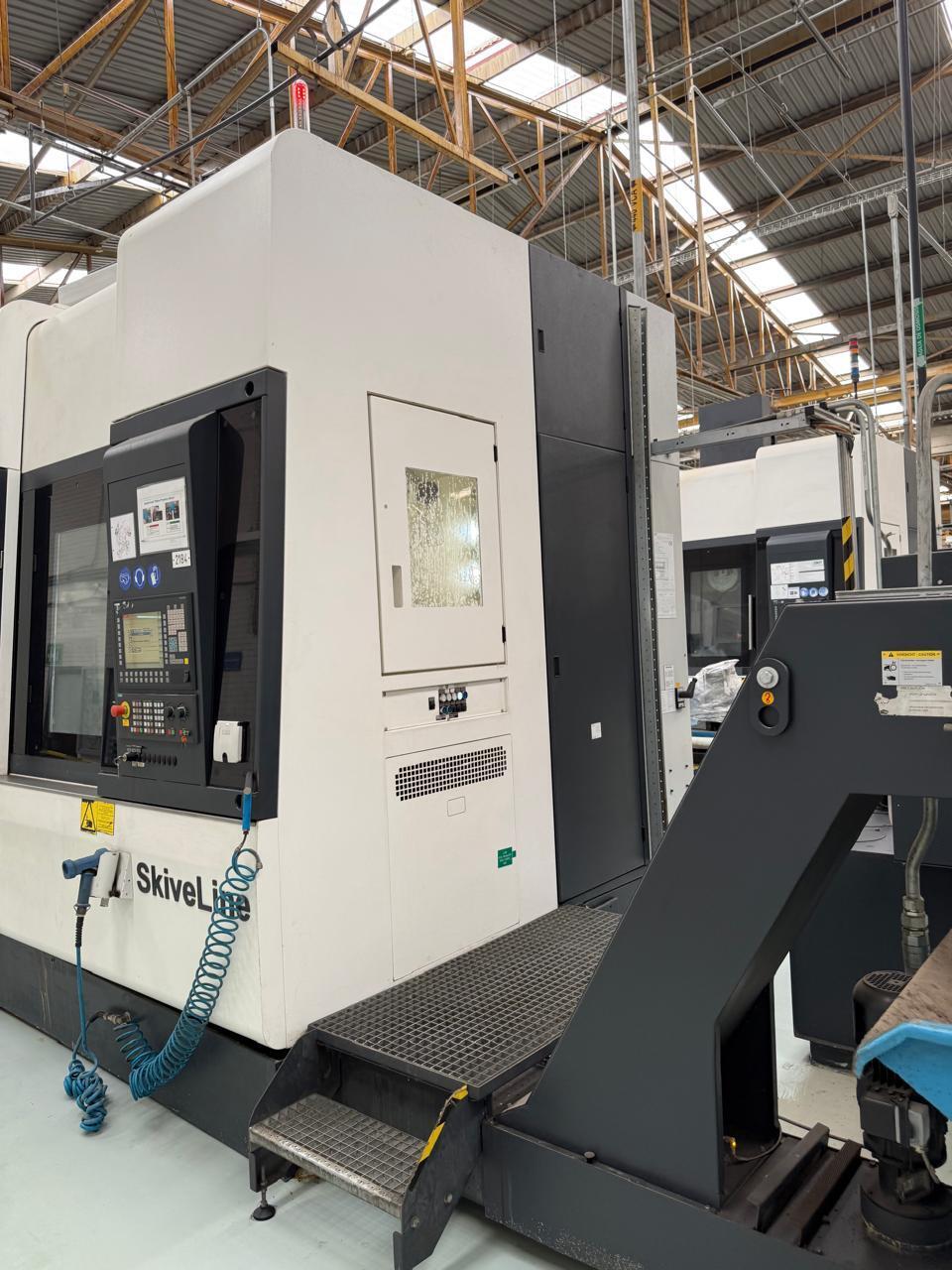

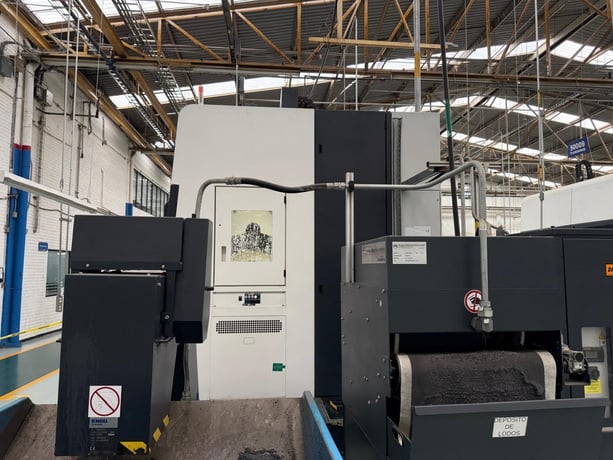

Pittler #PV-315 Skiveline CNC vertical turning center, 2019

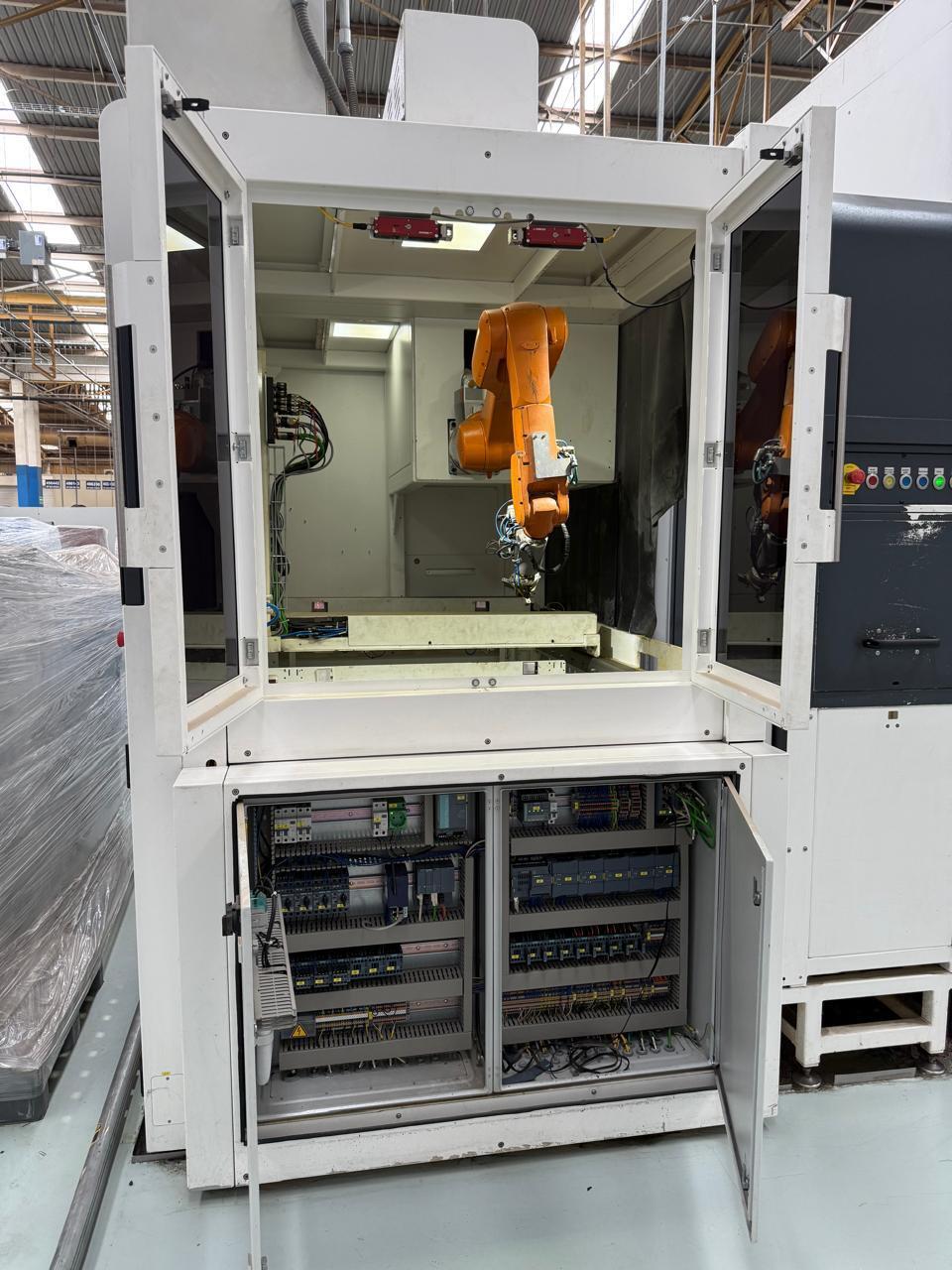

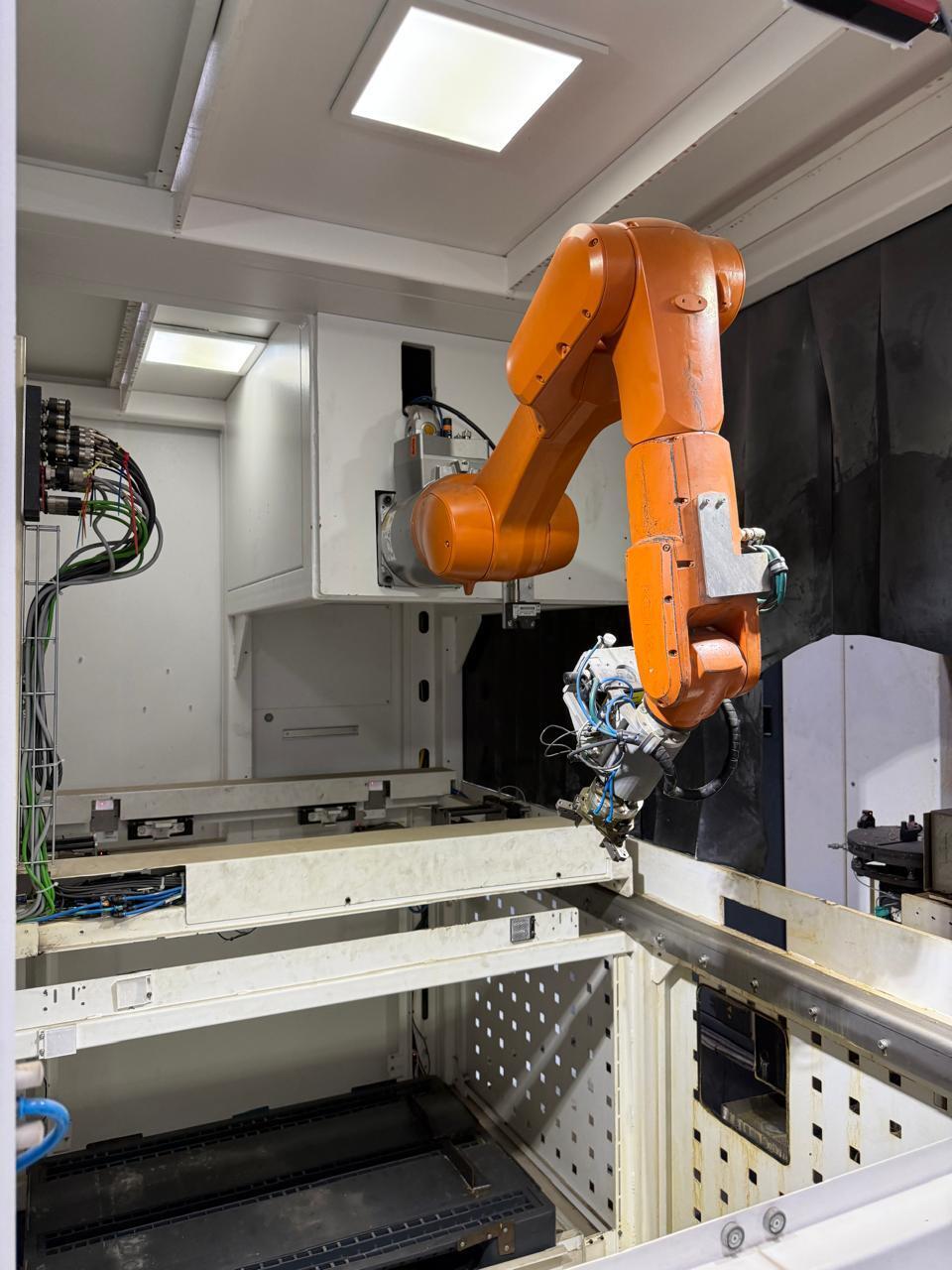

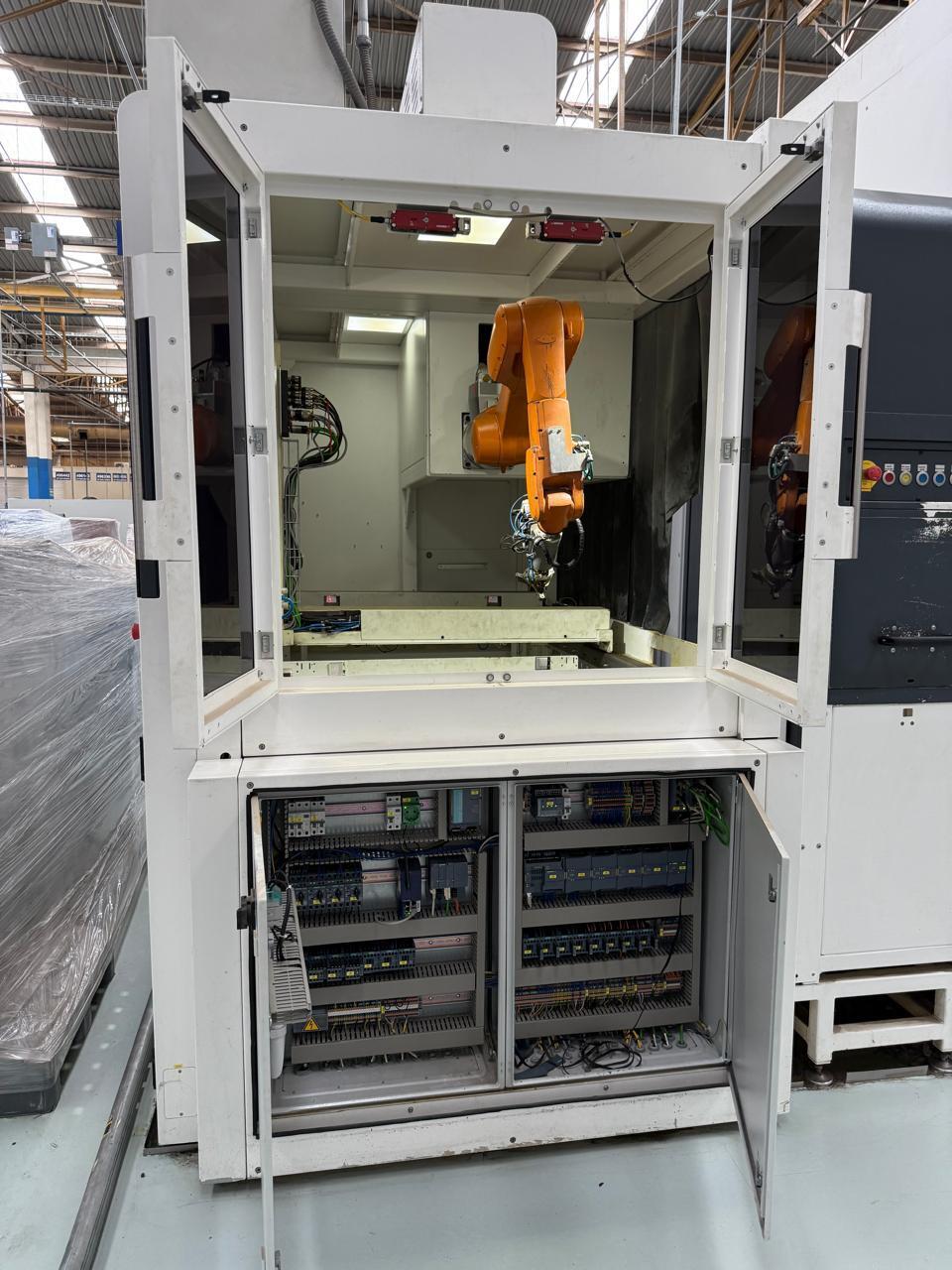

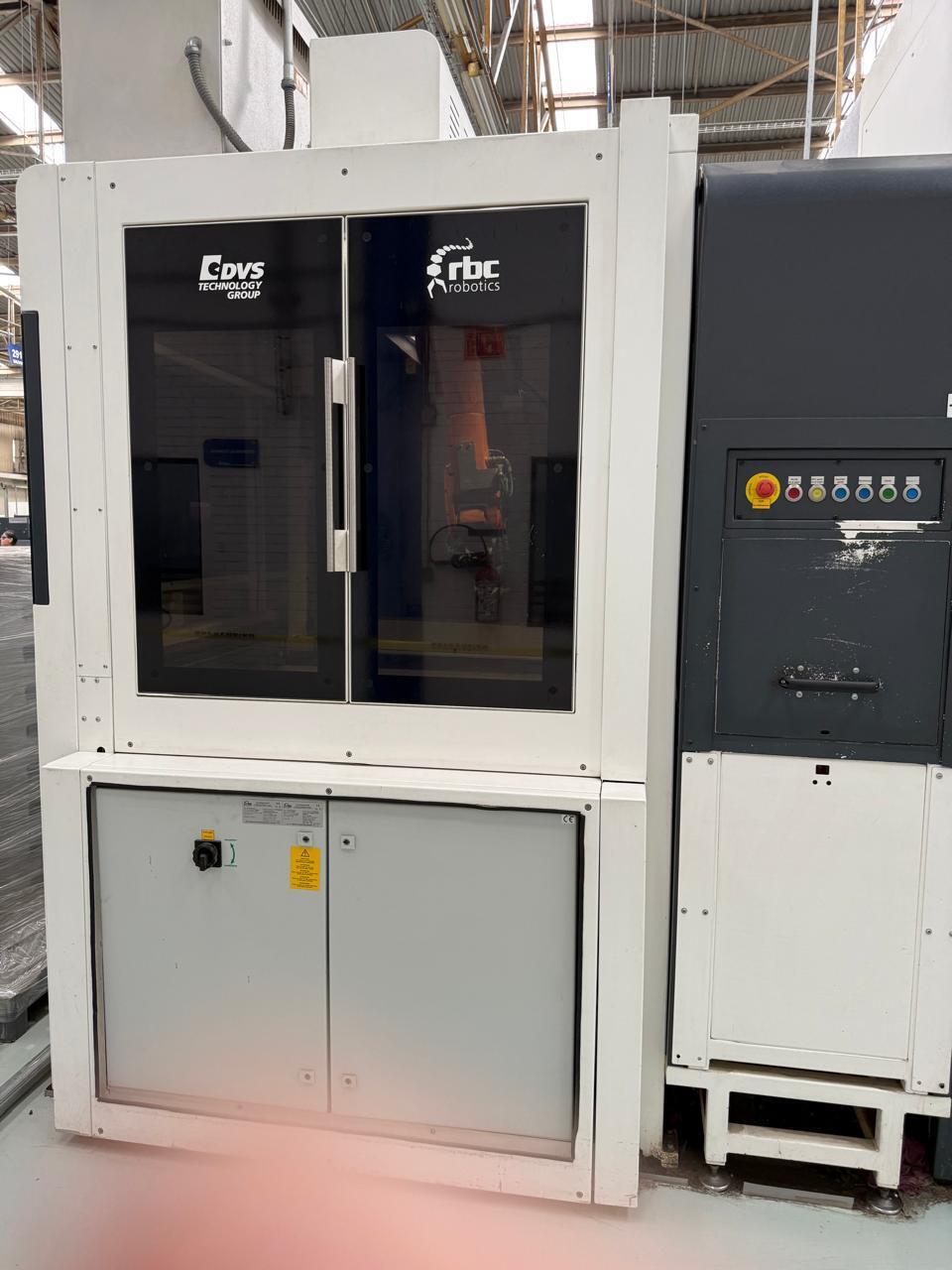

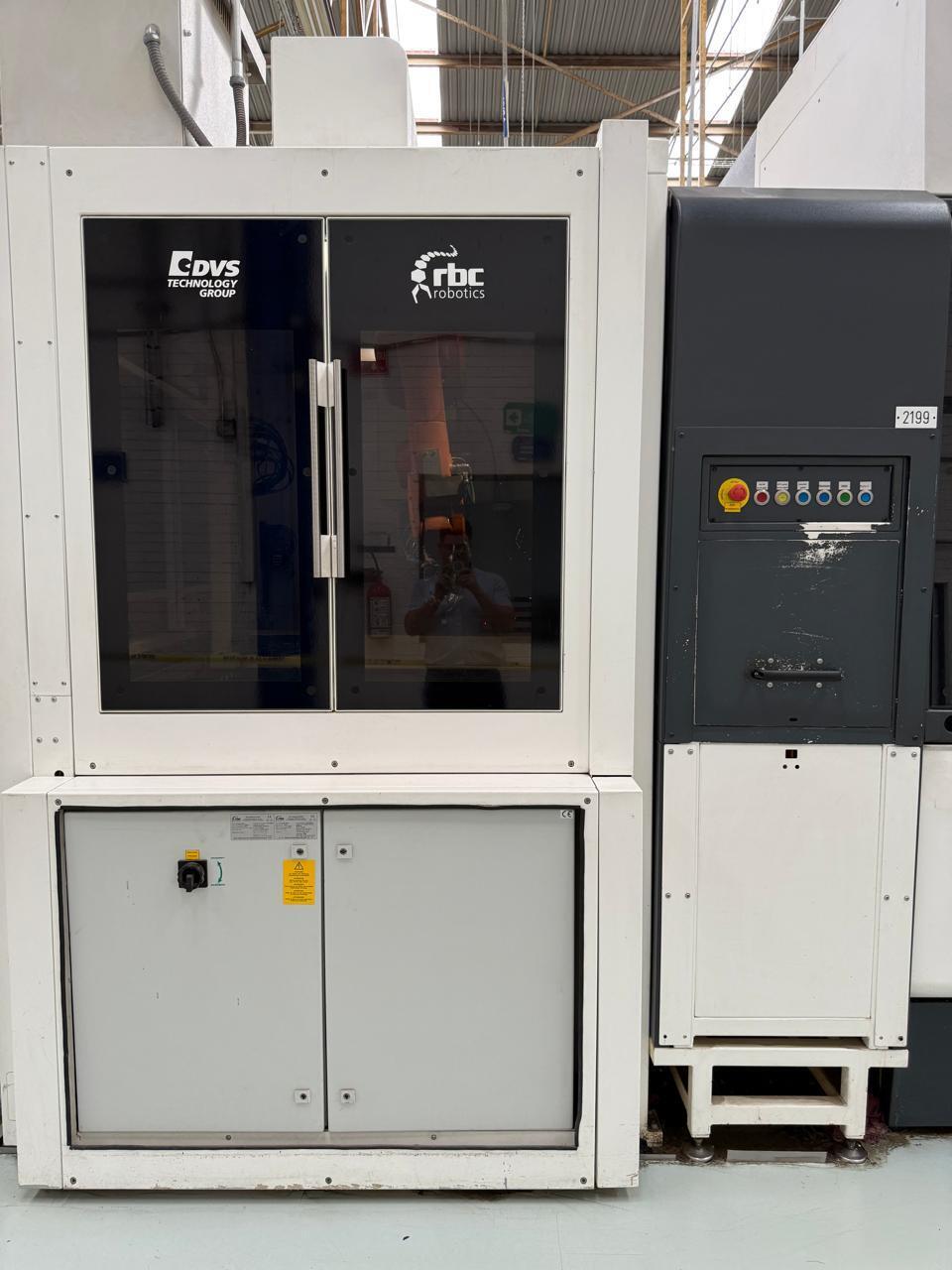

This machine is equipped with a multi-function head, 0 - 7000/min motor spindle unit and a turning spindle on a Y-axis slide. With the machine is included: Kuka robotic automation.
Specifications:
Workpiece Spindle:
-Speed: 0-7000 l/min
-Power: 55,2 - 59,7 kW
Tool: Capco C6
Tool Spindle:
-Speed: 0-6000 l/min
-Power: 29 - 41 kW
Machine Weight, Floor Space and Voltage Supply:
-Operating Voltage: 400V, 3 Phases, 50 Hz
-Control Voltage: 24 V
-Lighting Voltage: 240 V, 50 Hz
-Floor Space: 2,700 x 2,600 mm
-Height: 4,000 mm
-Total Weight, Approximate: 16,000 kg
Longitudinal, Z-Axis:
-Stroke: 800 mm
-Rapid Rate: 24 m/min
-Feed Force: 12 kN
Transverse, X-Axis:
-Stroke: 900 mm
-Rapid Rate: 24 m/min
-Feed Force: 12 kN
Tool Spindle, B-Axis:
-Range: -20 / +90 Degree
Y-Axis for Spindle Unit:
-Stroke: 200 mm
-Rapid Rate: 12 m/min
-Feed Force: 6 kN
C-Axis Main Spindle:
-Positioning Accurace: 9"
Multifunctional Tool Carrier:
-Power: 29 kW at 100% ED
-Power: 41 kW at 44% ED
-Torque: 141 Nm at 100% ED
-Torque: 212 Nm at 44% ED
-Spindle Speed: 0-6000 min-1
-B-Axis for Stepless Motion in a Range Of: -20/+90 Degree
Tool Magazine:
-Maximum Tool Diameter: 100 mm
-Approximate Tool Length: 300 mm
-Approximate Tool Weight: 12 kg

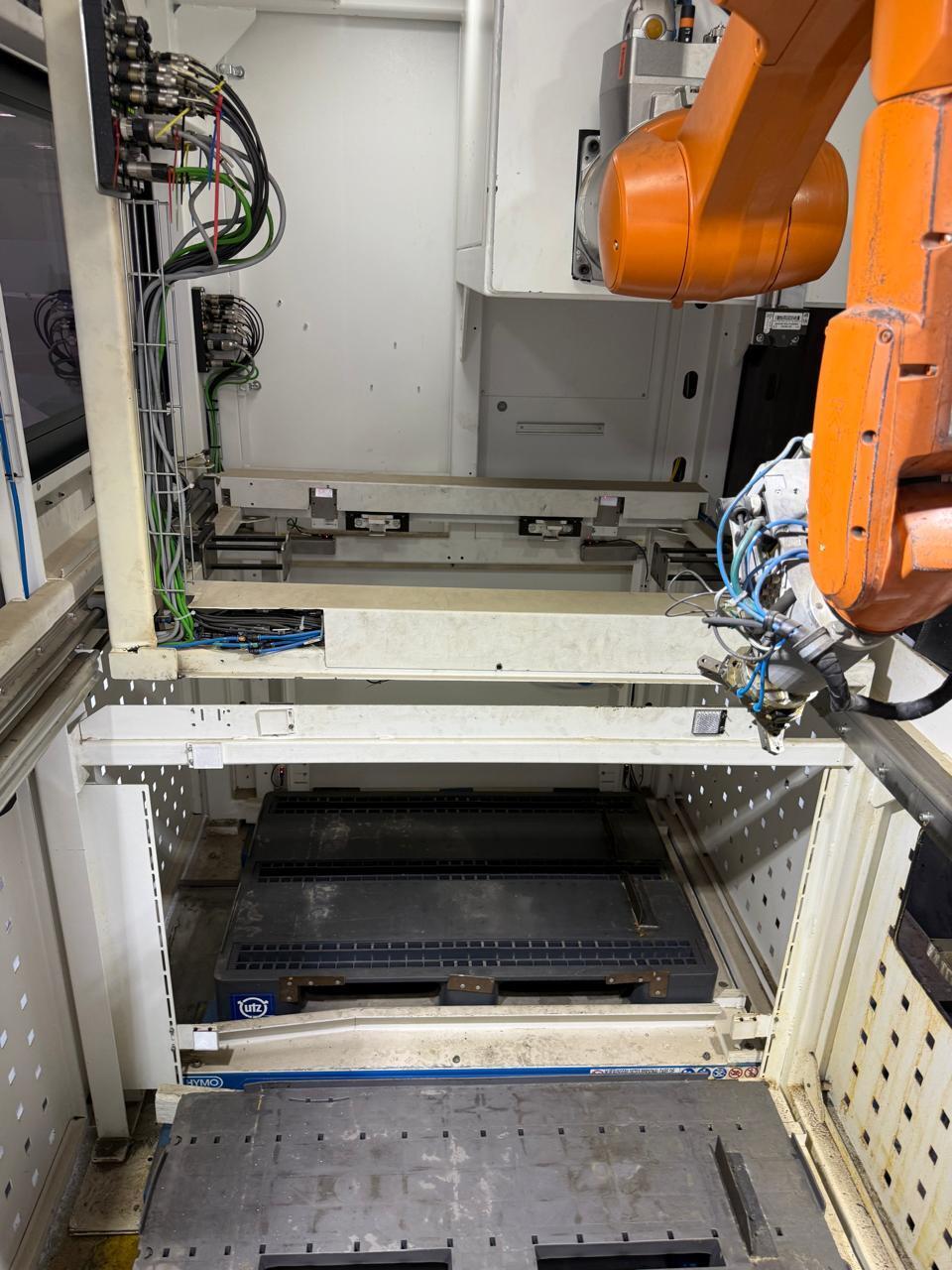

Swivel Loader:
-Maximum Workpiece Diameter: 270 mm
-Height: 150 mm
-Weight: 16 kg
