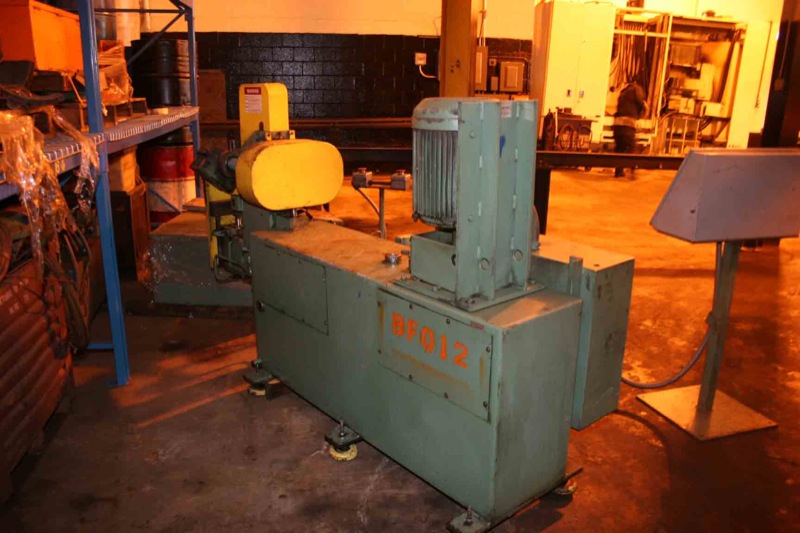

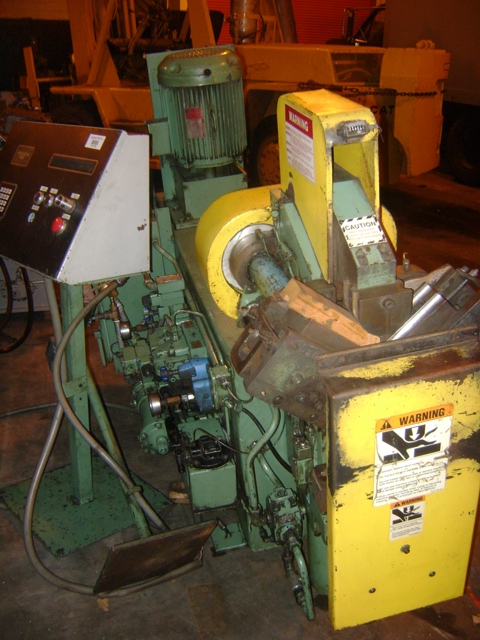

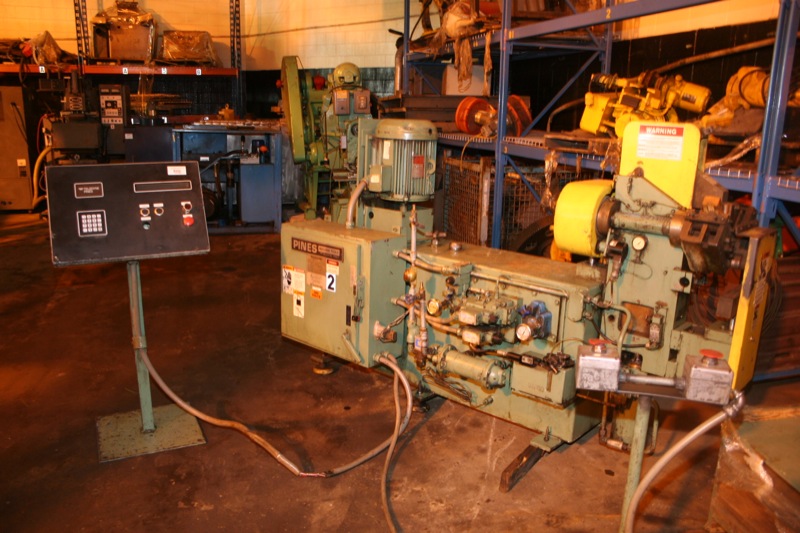

Pines #5T, vertical hydraulic tube bender, pedestal mounted controls, Bijur lube system, 1986

Pines 5T Vertical Hydraulic Tube Bender
SERIAL ............................... 44362-86105
MODEL ................................ 5T
NEW IN ............................... 1986

CAPACITY TUBING:
NON FERROUS (2) 1" X .072"
MILD STEEL (2) 1" X .065"
STAINLESS (2) 1" X .049"
SQUARE BAR (2) 1/2"
ROUND BAR (2) 5/8"
BENDS PER HOUR 2000 MAXIMUM
MAXIMUM BENDING ANGLE 100 DEGREES
MAXIMUM CENTERLINE RADIUS 2- 3X'S TUBE DIAMETER
MAXIMUM CENTERLINE RADIUS 90 DEGREES - 4-1/2"
MOTOR 20 HORSEPOWER
EQUIPPED WITH
PEDISTAL MOUNTED CONTROLS
DIGITAL DIAL-A-BEND SELECTOR
BIJUR LUBE SYSTEM
THERMAL COOLING SYSTEM
PALM BUTTON

OVERALL DIMENSIONS APPROX. 86”L x 32”W x 56”H
APPROX. WEIGHT 3000 LBS
