For Sale by Prestige Equipment Corp
Surplus Record Dealer Since 1991
Location: Melville, NY
Contact Frank DiSalvo
Phone Number: 631...> Show Phone Number 631-249-5566
Let the seller know you found their listing on Surplus Record!
Description
CAPACITY:
Maximum Profile Width: 43.40"
Maximum Profile Height: 18"
Minimum Profile Width: 2"
Minimum Profile Height: 3/4"
Number of Spindles: 3 Spindles 1-Per Drilling Axis
Tool Changers: 5-Stations Per Drilling Axis
Spindle Power: 25 HP
Spindle Speeds: 50 - 2250 RPM
Maximum Feed Rate, X-Axis: 100 FPM
Maximum Hole Size, HSS Twist: 1-9/16 Dia
Maximum Hole Size, Carbide: 1-1/4 Dia
Maximum Weight Section Size: 300 Lbs Per Ft
Maximum Profile Weight Total: 18,000 lbs.
Equipped With:

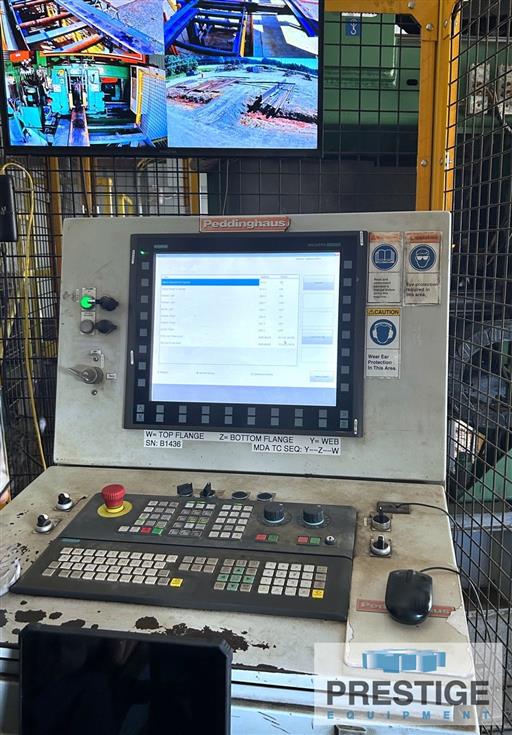

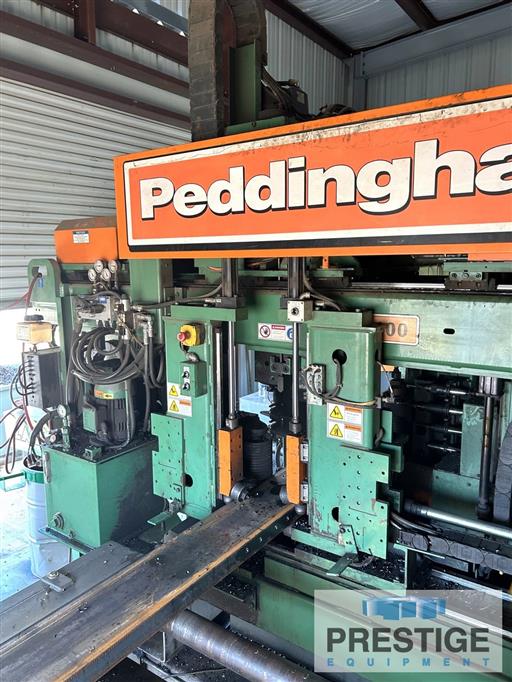

Siemens CNC Control
3-Spindles Each With 5-Station Automatic Tool Changer
High Speed Carbide Drilling & Milling
Servo Driven Ballscrew Axes With Positional Feedback
4-Axis Carbide Scribing Capable
Roller Feed Measurement System
Minimum Quantity Lubrication (MQL)
LNS Turbo HB Chip Conveyor

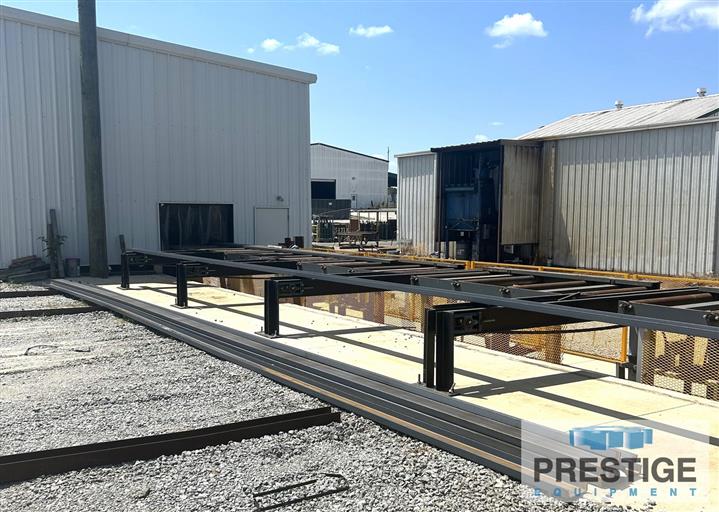

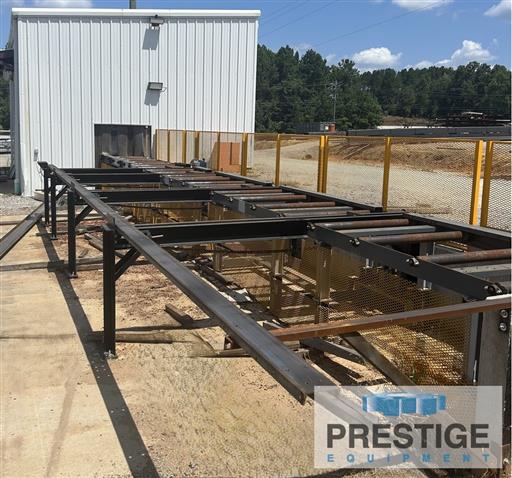

58'x 46" 300 Lbs/ft Power In-Feed EMS Inc Conveyor
48'x 46" 300 Lbs/ft Power Out-Feed EMS Inc Conveyor

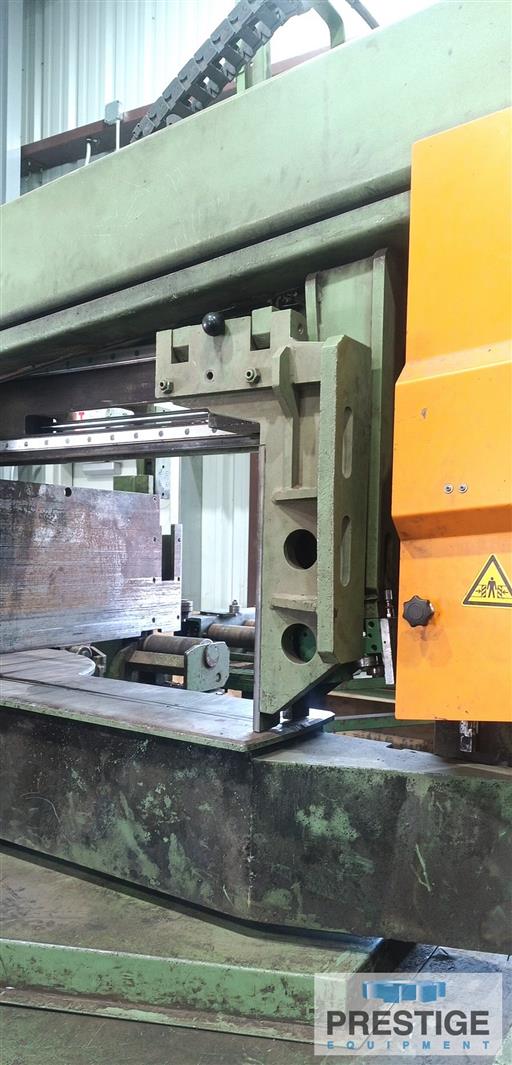

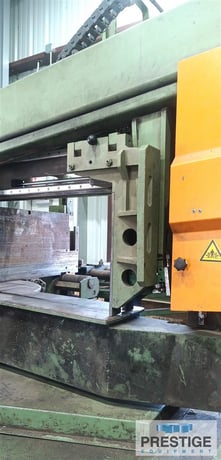

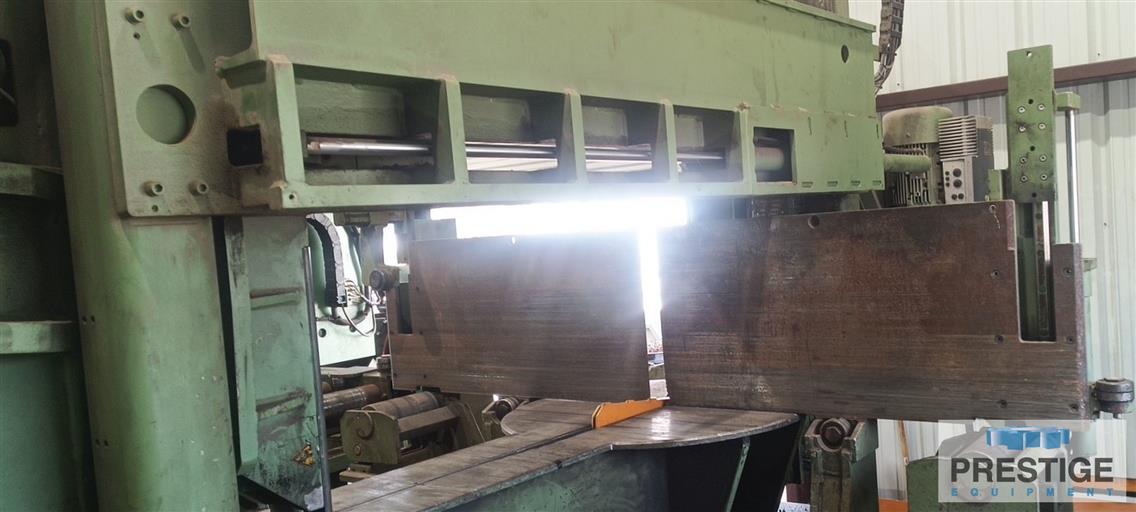

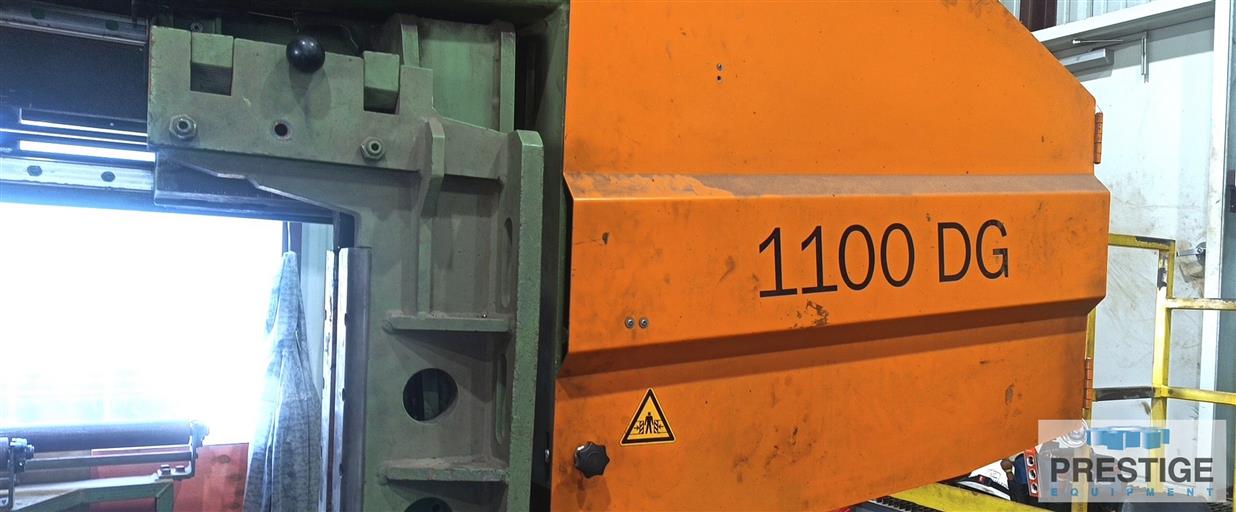

Meba 1100DG-510 Miter Band Saw
NOTE:
Inspect Under Power in a Plant
Features:
Siemens CNC Control
3-Spindles Each With 5-Station ATC
High Speed Carbide Drilling & Milling
4-Axis Carbide Scribing Capable
In-Feed & Out-Feed Conveyor
Meba 1100DG-510 Miter Band Saw
