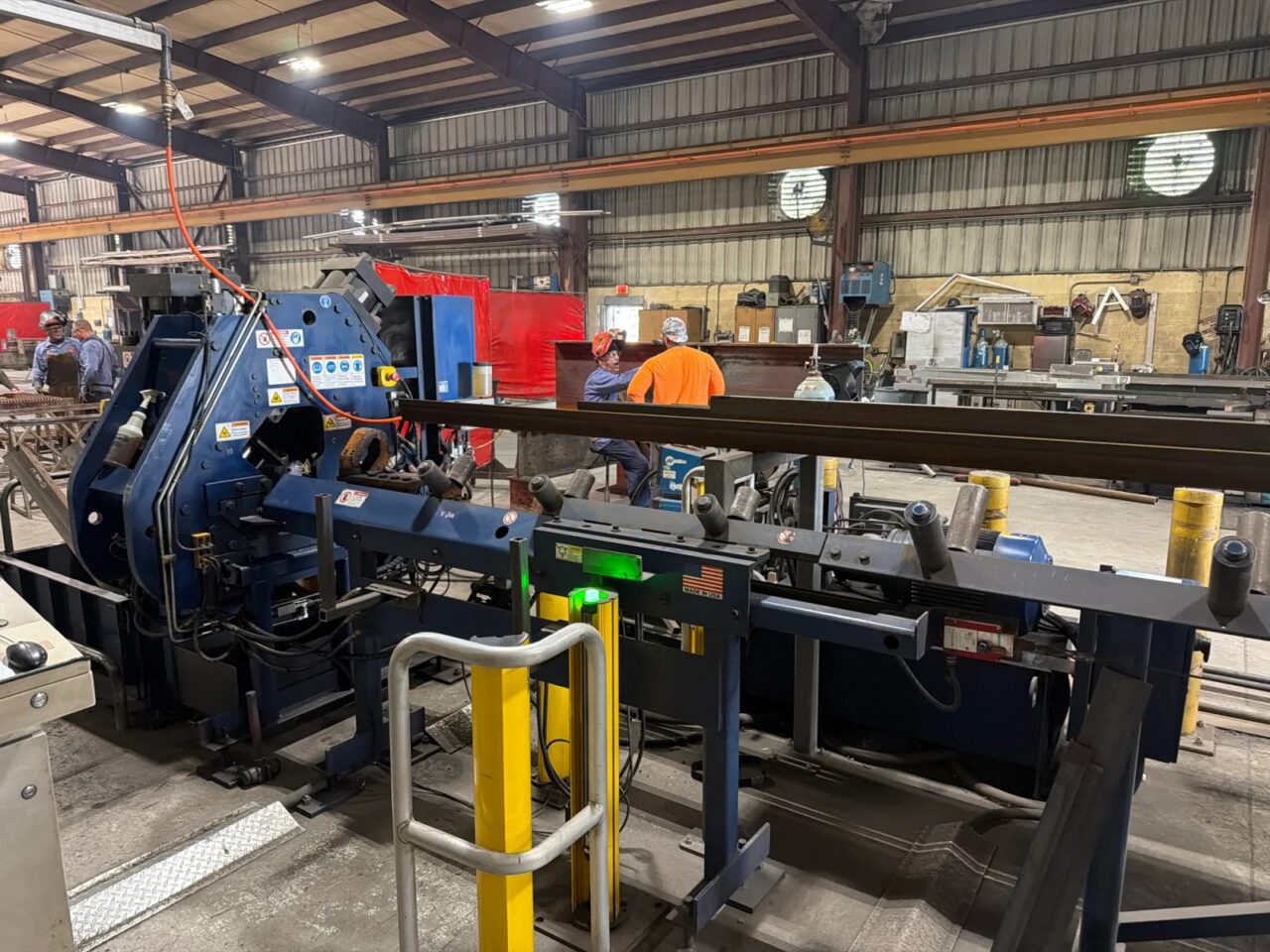

Manufacturer: Peddinghaus
Model: OCEAN CLIPPER APDS-613/1B
Year: 2015
Stock # 173260016
Price: $57,500 USD
1 / 10
Click to zoom in
1 / 10
For Sale by Equipment Hub
Surplus Record Dealer Since 2014
Location: Decatur, GA
Contact Drake Denham
Phone Number: 770...> Show Phone Number 770-621-0495
Let the seller know you found their listing on Surplus Record!
$57,500 USD
Finance for as low as $1,166/mth
Description
General Info
Stock #: 173260016
Year: 2015
Brand: Peddinghaus
Model: Ocean Clipper APDS-613/1B
Description: Angle Line
Specifications
Min-Max Angle Size: 1-1/2" × 1-1/2" × 1/8" - 6" × 6" × 5/8"
Drilling Hole Diameter: 5/16"–1-9/16"
Drill Gauge: 0.5"–5.5"
Drilling Feed Rate: 2-10 IPM
Punching Tonnage: 75
Max Punch Size: 1-1/4" (#272 Standard) - 1-1/16" (#132, Requires PFP Holder)
Punch Cycle Time: 2 seconds
Shear Tonnage: 100
Shear Minimum Drop: 8.125"
Shear Cycle Time: 5 seconds
Shear Slug Size: 1/2"
In-Feed Speed (X-Axis): 61 FPM Max
Max X-Axis Stroke: 50"
Y-Axis Travel: 12" (starting 1/2" past datum)
Z-Axis Travel: 5" (starting 1/2" past datum)
Pass Line Height: 45"
Power: 460V, 40 amp, 33 KVA
Shop Air: 90–100 PSI
Foundation: 6" Concrete
Punch/Shear Frame Weight: 5,000 Lbs
X-Axis Assembly: 900 Lbs
In-Feed Power Unit: 300 lbs
Equipped With

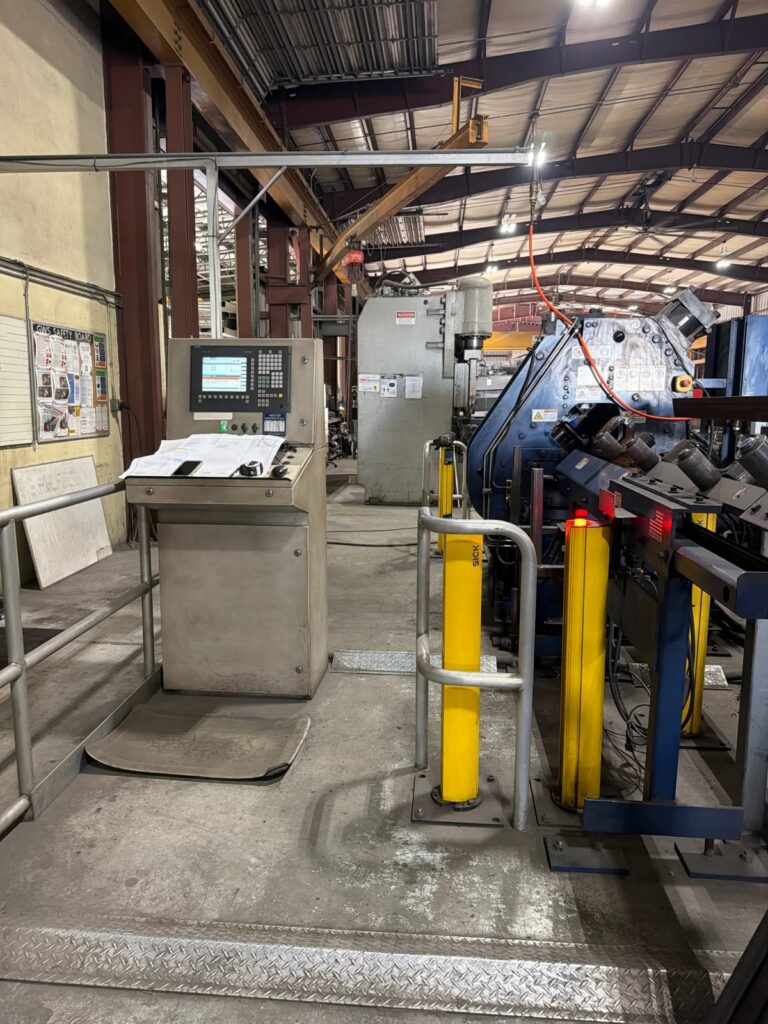

20 Ft In-Feed Roller Support (Extendable), Auto-Zeroing/Backlash Compensation/Axis Calibration, Automatic Angle Sensor Sets Drill Stroke Off The Heel, Fully Automatic Punch/Drill/Shear Cycle, In-Line Hydraulic Punch And Drill - No Repositioning Of Material, Siemens 840Di CNC Control With Conversational Programming/Graphic Display/2-Axis Simultaneous Control
Additional Info
The machine can be seen under power for an inspection.
Stock #: 173260016
Year: 2015
Brand: Peddinghaus
Model: Ocean Clipper APDS-613/1B
Description: Angle Line
Specifications
Min-Max Angle Size: 1-1/2" × 1-1/2" × 1/8" - 6" × 6" × 5/8"
Drilling Hole Diameter: 5/16"–1-9/16"
Drill Gauge: 0.5"–5.5"
Drilling Feed Rate: 2-10 IPM
Punching Tonnage: 75
Max Punch Size: 1-1/4" (#272 Standard) - 1-1/16" (#132, Requires PFP Holder)
Punch Cycle Time: 2 seconds
Shear Tonnage: 100
Shear Minimum Drop: 8.125"
Shear Cycle Time: 5 seconds
Shear Slug Size: 1/2"
In-Feed Speed (X-Axis): 61 FPM Max
Max X-Axis Stroke: 50"
Y-Axis Travel: 12" (starting 1/2" past datum)
Z-Axis Travel: 5" (starting 1/2" past datum)
Pass Line Height: 45"
Power: 460V, 40 amp, 33 KVA
Shop Air: 90–100 PSI
Foundation: 6" Concrete
Punch/Shear Frame Weight: 5,000 Lbs
X-Axis Assembly: 900 Lbs
In-Feed Power Unit: 300 lbs
Equipped With
20 Ft In-Feed Roller Support (Extendable), Auto-Zeroing/Backlash Compensation/Axis Calibration, Automatic Angle Sensor Sets Drill Stroke Off The Heel, Fully Automatic Punch/Drill/Shear Cycle, In-Line Hydraulic Punch And Drill - No Repositioning Of Material, Siemens 840Di CNC Control With Conversational Programming/Graphic Display/2-Axis Simultaneous Control
Additional Info
The machine can be seen under power for an inspection.
General Info
- Stock #: 173260016
- Year: 2015
- Brand: Peddinghaus
- Model: Ocean Clipper APDS-613/1B
- Description: Angle Line
Specifications
- Min-Max Angle Size: 1-1/2" × 1-1/2" × 1/8" – 6" × 6" × 5/8"
- Drilling Hole Diameter: 5/16"–1-9/16"
- Drill Gauge: 0.5"–5.5"
- Drilling Feed Rate: 2-10 IPM
- Punching Tonnage: 75
- Max Punch Size: 1-1/4" (#272 Standard) – 1-1/16" (#132, Requires PFP Holder)
- Punch Cycle Time: 2 seconds
- Shear Tonnage: 100
- Shear Minimum Drop: 8.125"
- Shear Cycle Time: 5 seconds
- Shear Slug Size: 1/2"
- In-Feed Speed (X-Axis): 61 FPM Max
- Max X-Axis Stroke: 50"
- Y-Axis Travel: 12" (starting 1/2" past datum)
- Z-Axis Travel: 5" (starting 1/2" past datum)
- Pass Line Height: 45"
- Power: 460V, 40 amp, 33 KVA
- Shop Air: 90–100 PSI
- Foundation: 6" Concrete
- Punch/Shear Frame Weight: 5,000 Lbs
- X-Axis Assembly: 900 Lbs
- In-Feed Power Unit: 300 lbs
Inquire Further with Equipment Hub!
