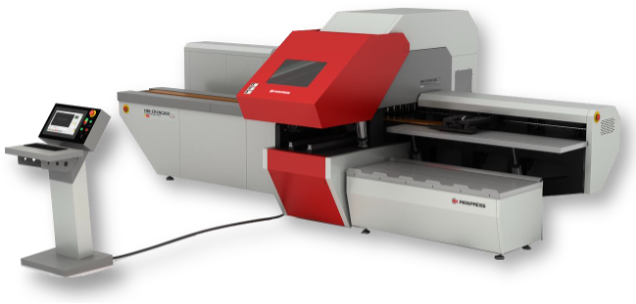

Payapress #HBC-CP-CNC200, CNC Busbar Processing Machine, 45 ton, 7.87" x 0.59" punching & cutting capacity, 157.5" busbar length, 200 bar, 15 HP, 380 Volt, 3PH

Spec

Model: HBC-CP-CNC200
Function: Cutting and Punching Busbars Simultaneously
Cutting Capacity: Up to 200 x 15 mm
Punching Capacity: Busbar Size 200 x 15 mm
Circle Dies: M6 Up to M20
Puncher Center Finder: CNC Controller
Length Measuring System: Ball Screw and Servo Motors
Hydraulic System: One Power Pack, Double Acting System
Max Force: 400 kN
Operating Pressure: 200 Bar
Power Rating: 1 x 11 kW
Voltage: 380 Volt – 3/50 Hz
Oil Capacity: Hydraulic Oil H68 – 290 Liters
Main Desk Dimension: 537 x 240 x 188 (H) cm
Tool Stations: 7 Station Tool Carrier (6 Punching, 1 Cutting)
Max Busbar Length: Up to 4 Meters

Description

The Payapress HBC-CP-CNC200 CNC Busbar Processing Machine is a high-speed, high-precision solution for punching and cutting copper busbars. Fully automated throughout the production process, it delivers consistent accuracy while reducing manual handling and increasing efficiency.
With a 7-station tool carrier and CNC control, this machine allows for flexible, precise operations across a wide range of busbar applications. Its compact, all-in-one design makes it ideal for high-volume and precision-driven production environments.
