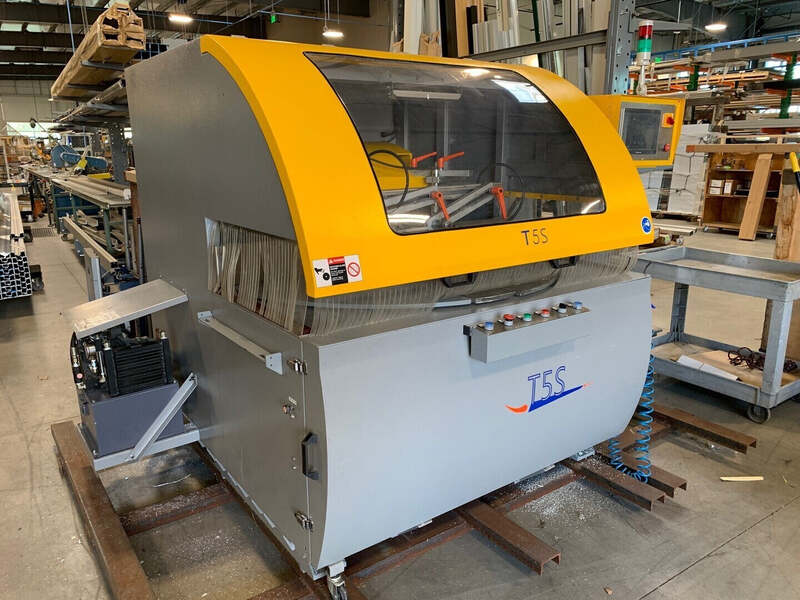

SKU: 111338 Model: PMI-T5S Year: 2018 Condition: Used S/N: T5S2018004 General Specifications: Horsepower: 7.5 hp Saw Type: Mitre/Crosscut Saws CNC: Yes Electrical Specifications: Voltage: 230 volts Phase: 3-phase Additional Description: ** Lightly used condition Rotary Miter: 67.5 degrees to the left and right Tilt Miter: 45 degrees to the right Saw Blade Size: 24" x 1" bore Spindle Speed: 2000 rpm Saw Motor: 7.5 hp Servomotor Work Table Rotation: 200 W Servomotor Sawhead Tilt: 60 W Work Table Height: 34-1/2" Saw Dimensions: 81"L x 71"W x 70"H Saw Weight: 2310 lbs
OMGA TR-2-B 14" Double Miter Chop Saw : -- (2) Saw heads, 3 HP - 3,000 RPM motor ea., 350 mm dia. sawblades with 30 mm bore (not included); one head in fixed position, one head adjustable up to 110" (at 90) between centers on rack-&-pinion. -- Min. cutting length 12-1/2", max. cross cut at 90 up to 6-5/8", max. ...more
Manufacturers, Max Width of Material: 12 in, 12-14” blade capacity, Production Rate: 45-50 cuts per minute, designed for 45 degree vertical cuts, Work Tables: 60 inches to the right and left of the saw, Motors: (2) 2.5 HP (3,600 RPM). 220/60/3PH.
RazorGage AngleMaster Programmable Angle Saw SystemRazorGage ST with AutoList and AngleMaster software integrated to the RazorGage AngleMaster programmable angle saw system.Since the stock is on rollers, the operator must also ensure that the stock is against the auto pusher system before cycling the saw. Specify the ...more
OVERALL DIMENSIONS ------------------- 32 in x 40 in x 60 in, (2) WESTINGHOUSE MOTORS, HP ---------------------- 1-1/2, RPM --------------------- 3450, VOLTAGE ----------------- 230/460, 3PH, 60 HZ, FOOT PEDAL, COOLANT SYSTEM, AIR SYSTEM, ALLEN BRADLEY SWITCH, NOTES:, SUBJECT TO VERIFICATION, DELIVERY:, IMMEDIATE ...more
