Parker Hannifin Planetary Gearhead PS180-005-SH with MT180-002 motor adapter - Variable 0 RPM

The Parker Bayside PS180-005-SH is a Gen II Stealth series inline helical planetary gearhead with a 5:1 reduction ratio, built on the 180mm frame platform. The PS series uses an all-helical planetary gear design with Parker Bayside's HeliCrown gear tooth profile and plasma nitriding heat treatment, delivering high torque capacity, low backlash, and low noise output. The 180mm frame is the largest in the standard PS series lineup, making this unit well-suited for high-torque servo applications in industrial automation, robotics, packaging, and semiconductor handling equipment.

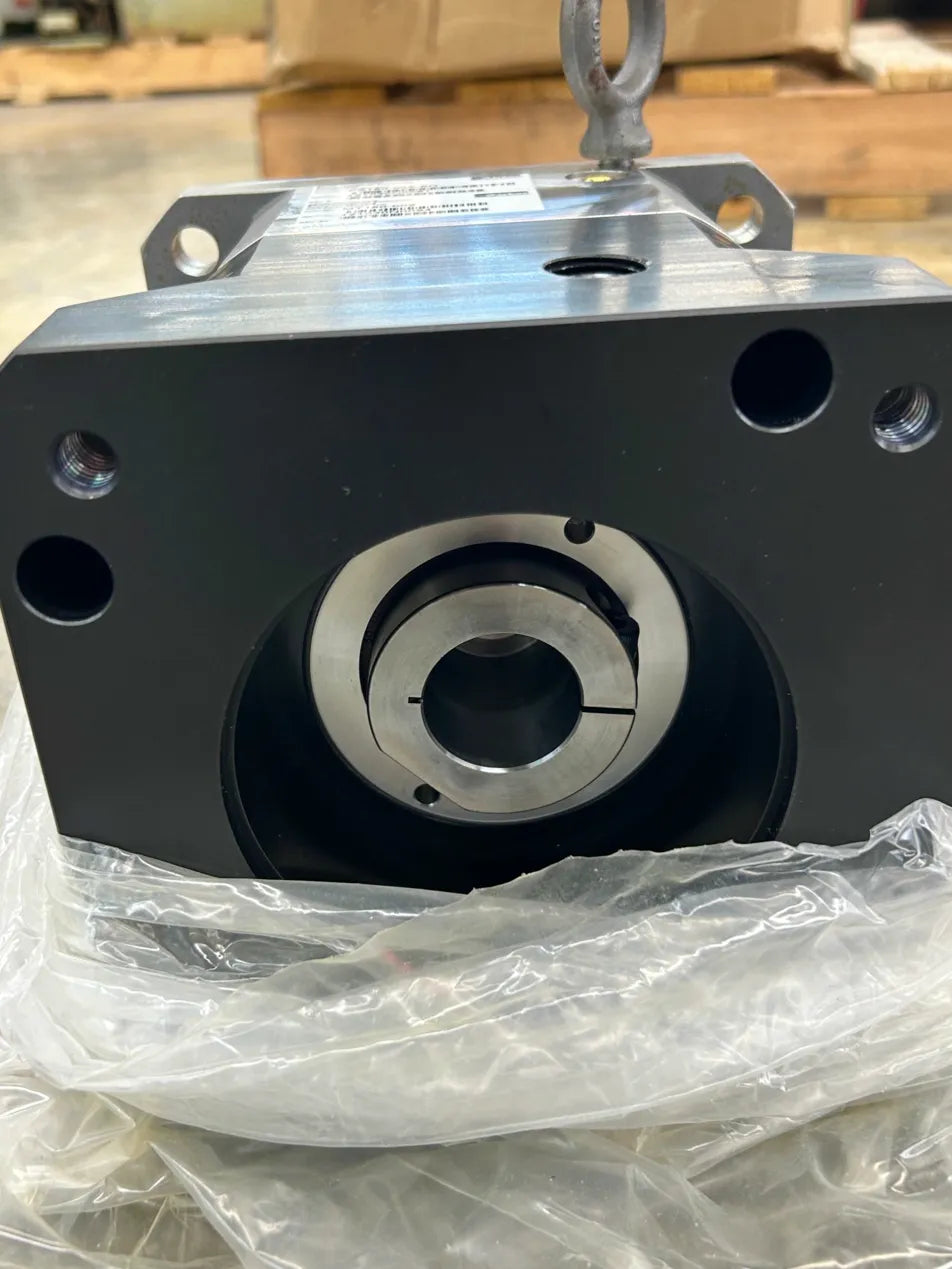

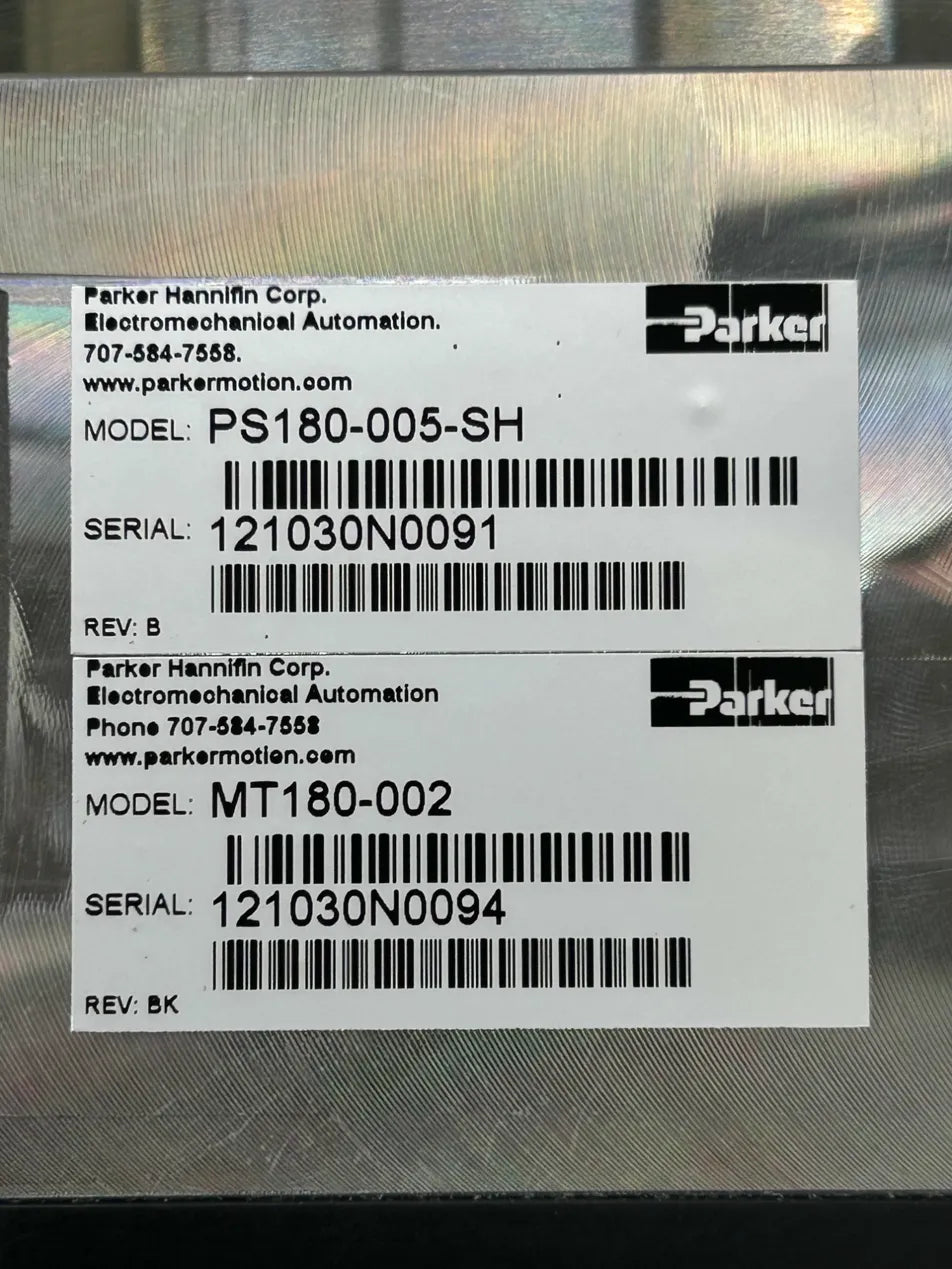

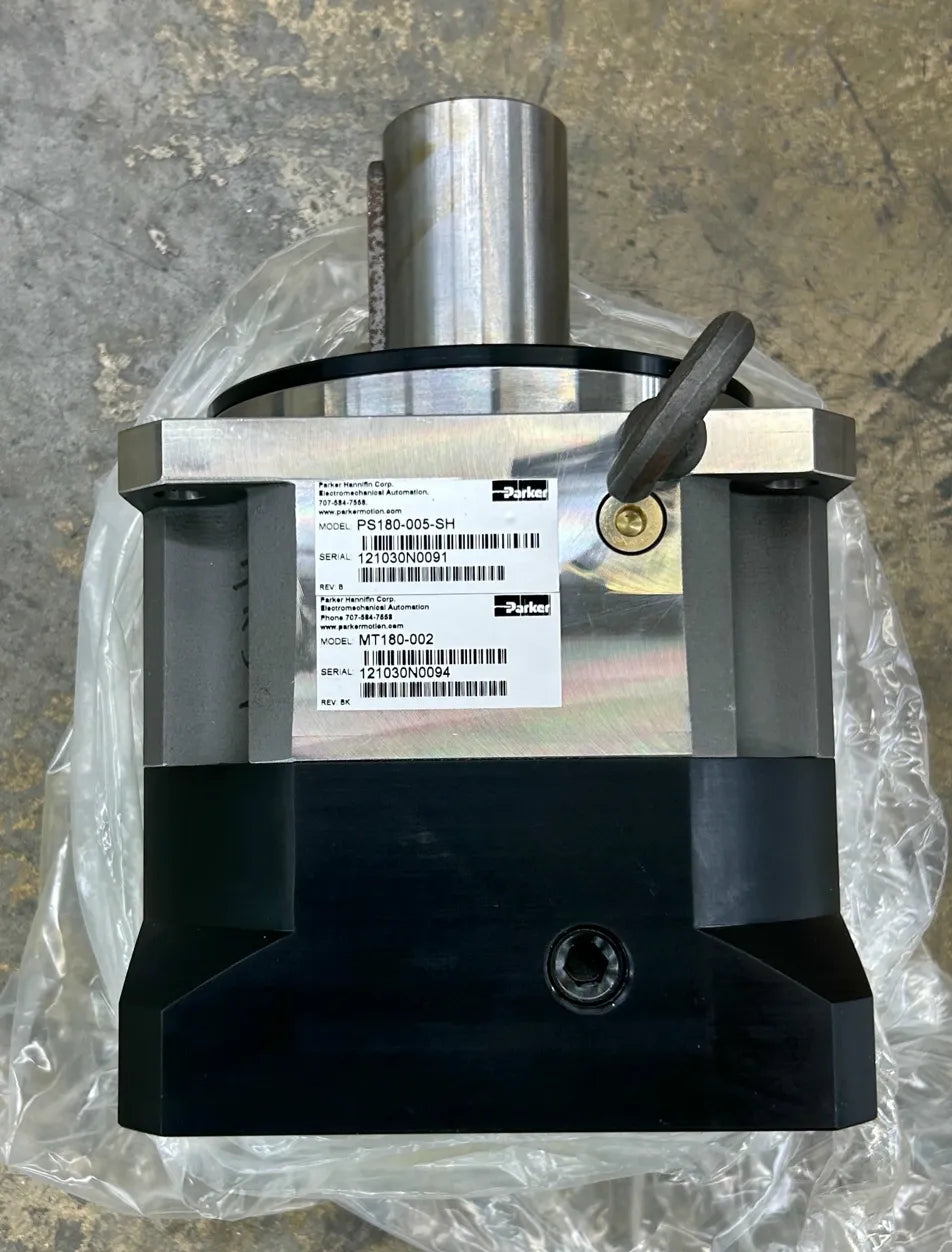

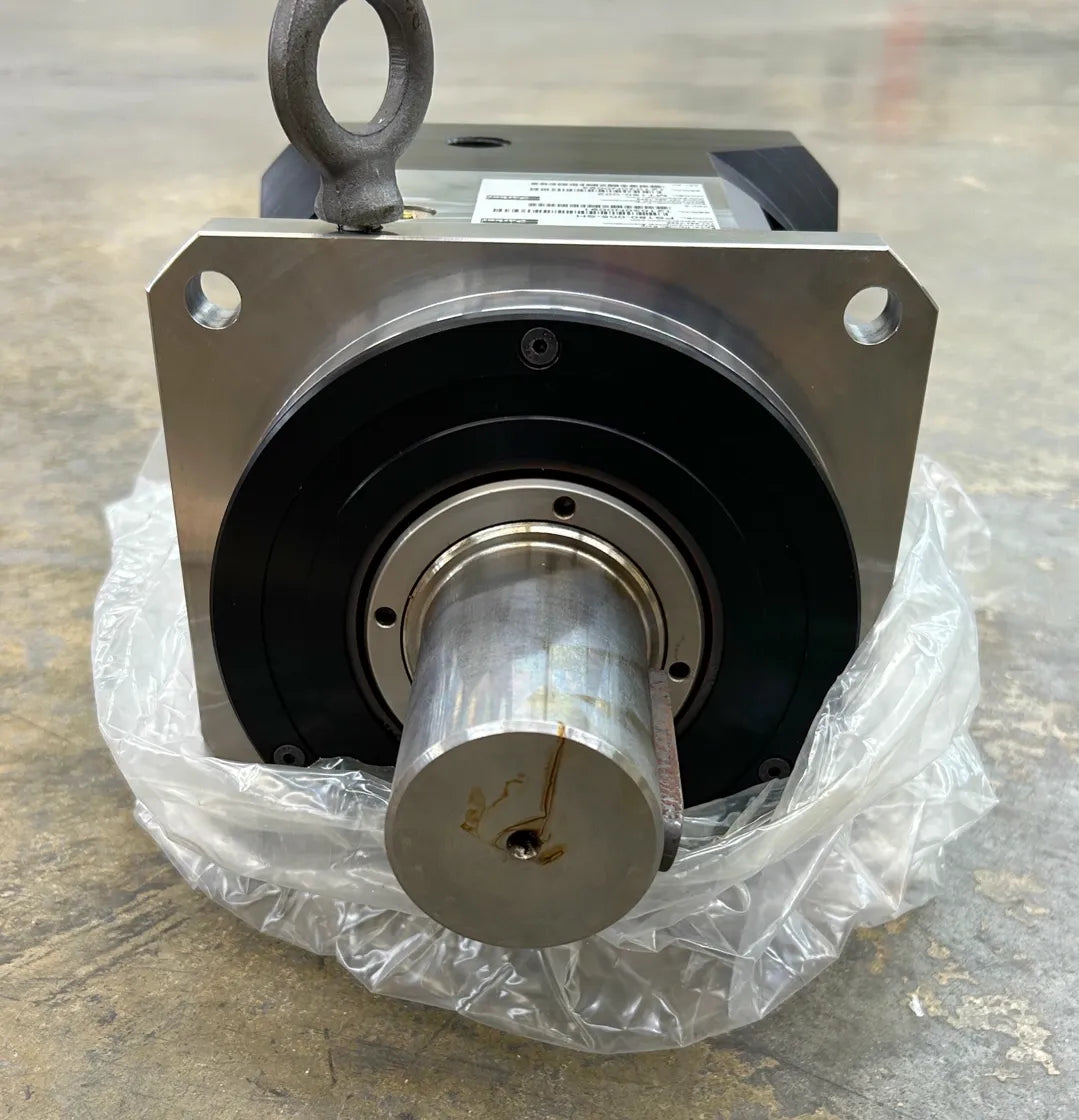

This unit carries serial number 121030N0091 (Rev B) on the gearhead label (PS180-005-SH) and is accompanied by motor adapter MT180-002 (serial number 121030N0094, Rev BK), both labeled by Parker Hannifin Corp., Electromechanical Automation Division. The motor adapter is the interface component used to mate a compatible servo motor to the gearhead input. The adapter is present and attached. The gearhead output shaft is visible, solid, and of substantial diameter consistent with the 180mm frame class. An eyebolt is installed at the top for rigging.

Parker Bayside is a US-manufactured premium precision gearhead brand within the Parker Hannifin family. The PS180 frame class supports rated input speeds up to 3,000 RPM with maximum input speeds higher, per published Parker specifications. Over 97% efficiency is published for the PS series helical design. MPN PS180-005-SH. Motor adapter part number MT180-002.

Stock # 0226-767
