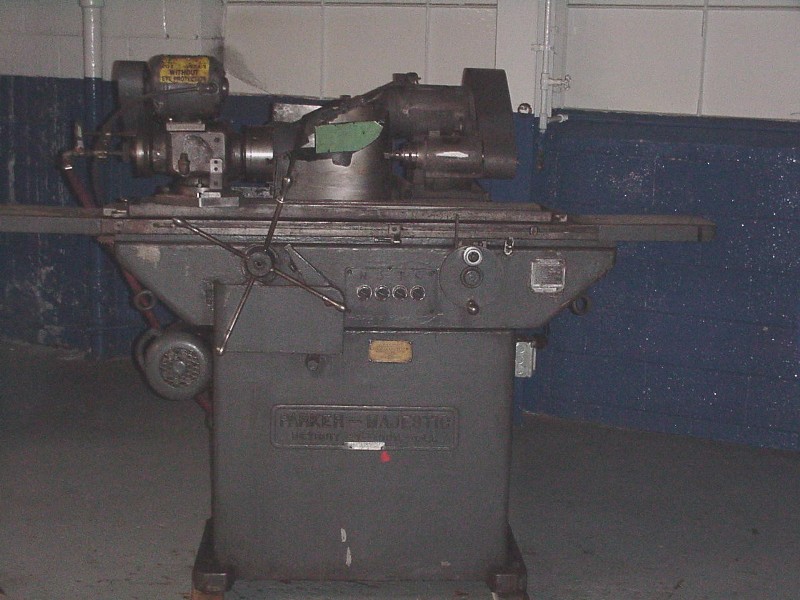

Parker #B, internal grinder, 10" swing, 24" centers, 6" 5-Jaw chuck, 5" x 42" table, 24" table travel, 1957

10" x 24" Parker Majestic Model "B", Internal Grinder, 6" 5-Jaw Chuck, Table Dress, Cartridge Type Internal Grinding Spindle, Cleaned, Painted, and Cycled
10 x 24 PARKER MAJESTIC B INTERNAL GRINDER
S/N 1578-B-57Year: 1957
STANDARD SPECIFICATIONS
Swing over table…………………………………….……………… 10
Table travel(power-feed)……………………………..……………. 24
Speeds (4) of table travel(in./min.)…………………….…….……. 12, 24, 36 48
Table travel with reciprocator……………………………………… 0 to 3
Reciprocator speeds to table(reversals/min.)………………………. 25, 50, 75 100
Angle setting of table(maximum)……………………………….…. ' 5'
Table working surface…………………………………………….....5 x 42
Swivel of workhead……………………………………………….... 90'
Hole through work head shaft……………………………………..... 13/16
Collet capacity of workhead…………………………………….….. 5/8 max.
Live dead center rotational speeds (work head)…………………. 175, 325 425 RPM
Screw adjustment of cross slide………………………….………..… 2 1/4
Graduations of cross slide hand wheel……………………..…….…. .001
Graduations of hand wheel vernier dial…………………….....……. .0001
Center of work head to floor…………………………………....…… 46
Capacity of coolant tank………………………………………....….. 12 gal.
Flow (adjustable) from coolant pump……………………………….. 13 gal./min.
Nose threads of grinding spindle and/or adaptor……….…………… L.H.
Floor area……………………………………………………………..32 x 108
Net weight………………………………………..…………………..2250
EQUIPMENT FEATURES
6 5 Jaw chuck.
Table dress.
Cartridge type internal grinding spindle.
Coolant tank and pump.
Specifications are deemed accurate, however, subject to verification or prior sale.
