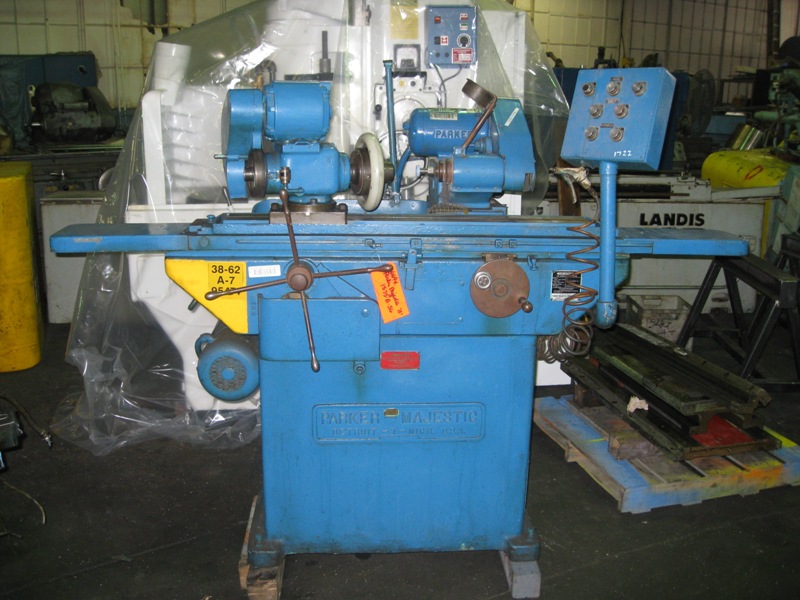

Parker #B, High Precision internal-External grinding Machine, 10" x 24" capacity, 10" swing, 24" travel, 5" x 41.5" table, 1.5 HP, 3600 RPM, 1956

Parker Majestic Type B Universal Internal Grinder, Quick Release Hand Collet on Head Stock, Power Table, Stand Alone Electrical Panel, As Is
PARKER MAJESTIC MODEL B HIGH PRECISIONPRIVATE
INTERNAL-EXTERNAL GRINDING MACHINE
S/N 1575-B-56Year: 1956
STANDARD CATALOG SPECIFICATIONS
Capacity..................................................10 x 24
Swing over table......................................10
Table travel, manual power....................... 24
Table feeds (4)........................................ 6,12, 18, 24 IPM
Table size................................................... 5 x 41 1/2
Table swivel................................................ 5 degrees
HEAD STOCK
Head stock speeds (3)..............................175, 325 425
Head stock swivel, each way........................ 90 degrees
Head stock spindle hole............................ 1 1/4
Head stock center taper............................ #6 Jarno
WHEEL HEAD
Cross travel.................................................... 2 1/4
Cross feed adjustment......................................... 4
Cross feed hand wheel graduations...................0005
Cross feed precision hand wheel graduations.........00005
Spindle diameter................................................3
Spindle speed............................................... 20,000 RPM
MOTORS
Table feed................ 1/2 HP, 1140 RPM, 3/60/220/440 V
Head stock................ 1/4 HP, 1740 RPM, 3/60/440 V
Wheel head................ 1.5 HP, 3600 RPM, 3/60/230/440 V
Coolant................... 1/20 HP, 1725 RPM, 3/60/220/440 V
Coolant tank....................................... 12 gallons
Coolant flow....................................... 13 GPM
OVERALL DIMENSIONS
Overall dimensions....................... 79 L x 29 W x 58 H
Approximate weight....................... 2,400 lbs.
EQUIPPED WITH
Power table.
Quick release hand collet on head stock.
PRIVATE Care is taken to give accurate specifications from information available. However, critical areas should be verified by inspection.tc' \l 1 Care is taken to give accuratespecifications from information available.'However, critical areas should be verified by inspection.
Specifications are deemed accurate, however, subject to verification or prior sale.
