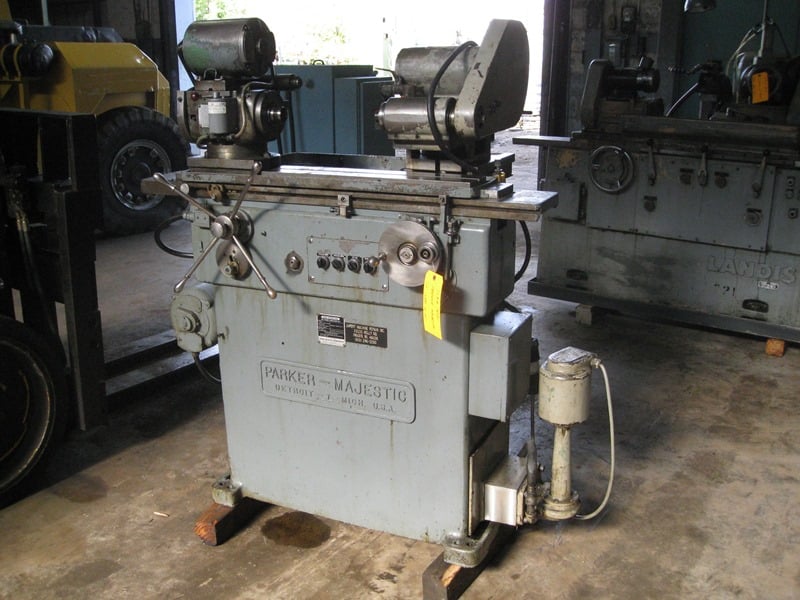

Parker #B, External grinder, 10" x 24" capacity, 12" swing, 24" table travel, 1/2 HP, 3370 RPM, 1955

10 x 24 MODEL B PARKER-MAJESTIC EXTERNAL GRINDER
S/N 1488-A-55Year: 1955
STANDARD SPECIFICATIONS
Swing over table…………………………………………………….. 12
Table travel(power-feed)………………………………………….… 24
Speeds (4) of table travel(in./min.)…………………………….….… 6, 12,18 24
Table travel with reciprocator…………………………………….….. 0 to 3
Reciprocator speeds to table(reversals/min.)…………………..…… 15,30,45 60
Angle setting of table(maximum)…………………………………... -5-
Capacity from chuck to table end.………………………………….... 24
Swivel of work head……………………………………………….… 90-
Hole through work head shaft…………………………………….… 13/16
Graduations of cross slide hand wheel…………………………....… .001
Graduations of hand wheel vernier dial……………………………... .0001
Center of work head to floor……………………………………....… 46
Capacity of coolant tank…………………………………………...... 12 gal.
Nose threads of grinding spindle and/or adaptor………………….… L.H.
Floor area……………………………………………………………. 32 x 108
Net weight……………………………………………………….…... 3000
EQUIPPED WITH
Table reciprocator.
Cross feed.
Power feed.
Hand feed stop.
1/2 H.P. 3370 R.P.M. external grinding spindle.
Coolant tank pump.
Forward reversing work head.
Specifications are deemed accurate, however, subject to verification or prior sale.
